Kepco BOP Bipolar Power Supply Troubleshooting and Maintenance Guide

Kepco BOP Bipolar Power Supply Troubleshooting and Maintenance Guide

The Kepco BOP series bipolar programmable DC power supply (100W/200W/400W) is a commonly used high-precision voltage/current source in laboratories and industrial automation, as well as a bipolar amplifier. Its unique four quadrant output capability (which can serve as a source or trap) makes it indispensable in applications such as battery simulation, motor drive, and magnetic material testing.

However, due to its high bandwidth and complex preamplifier structure, BOP power supplies often experience oscillations, output loss of control, and even damage during on-site use due to improper grounding, poor load inductance matching, remote programming wiring errors, or digital control card configuration issues. This article combines the key technical points in the BOP operation manual to systematically sort out common types of faults, diagnostic methods, and preventive maintenance measures, providing reference for on-site engineers.

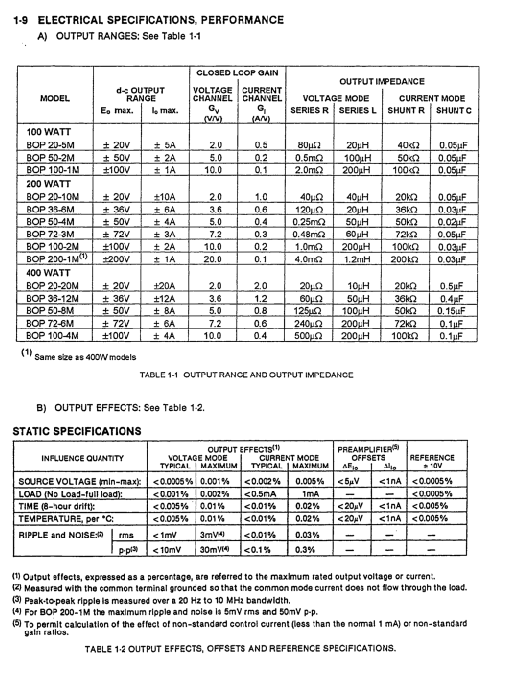

Common fault phenomena and root causes

2.1 Output oscillation: instability under inductive load

When BOP drives inductive loads in voltage mode or capacitive loads in current mode, loop oscillation may occur due to additional phase lag. The typical manifestation is high-frequency jitter or significant periodic fluctuations in the output voltage/current.

Root cause: When the load inductance is greater than 0.5 mH (current mode) or the load capacitance is greater than 0.2 μ F (voltage mode), the turning frequency of the load is lower than the closed-loop bandwidth of BOP, and the phase margin decreases, resulting in system instability.

Solution (from manual "IMPORTANT NOTES"):

Method 1: Connect capacitors in parallel at the output end (0.1 μ F to 1.0 μ F, depending on the inductance).

Method 2: Connect an RC series network in parallel at the output end (resistance 100-500 Ω, capacitance 0.1-0.5 μ F).

For BOP 200W/400W models that require driving a wide range of inductive loads and cannot eliminate oscillations using the above methods, they can be sent back to the factory to upgrade to the "ML" version (with component changes and recalibration).

On site experience: If the oscillation frequency is between several hundred Hz and several kHz, a 0.22 μ F capacitor should be tried first; If the load inductance is extremely large (such as the primary of a transformer), RC combination should be used.

2.2 Communication input power failure causing damage to output terminal

When the BOP drives a large inductive load and the output current is high, if the AC input suddenly loses power, the internal circuit of the BOP cannot quickly dissipate the energy stored in the load, which may cause damage to the BOP or the load. The manual suggests taking the following preventive measures:

Use UPS to supply power to BOP.

Before cutting off the BOP power supply, manually reduce the output voltage/current to zero, and then turn it off after the output current actually returns to zero.

Parallel appropriate rated bidirectional transient suppression devices (such as bidirectional thyristors or Zener diodes) at the output end, or use normally closed AC contactors directly in parallel at the output end.

2.3 Damage caused by grounding errors

The programming signal return path of BOP is strictly separated from the output circuit. If the output terminal (+or -) is directly grounded and the programming device is also grounded, the output current will flow through the internal circuit through the programming signal return path, causing irreversible damage.

Key Warning (bolded content in the manual):

It is strictly prohibited to ground the BOP output terminal (or the side of the load connected to this terminal).

It is strictly prohibited to ground both the load return terminal and the programming signal return terminal simultaneously.

It is strictly prohibited to use the programming return terminal as a tap point for load return.

Correct approach: The output common terminal (Common) should be used as the only signal ground and connected to the chassis ground (Chassis) through a "Grounding Network" terminal, which is internally connected to the chassis through an RC series network to reduce common mode noise. If the system must ground the output common terminal, ensure that the programming signal source is completely floating or use an isolated amplifier.

Preventive maintenance and daily inspections

3.1 Cooling and Ventilation

BOP relies on forced air cooling to maintain the internal power semiconductor temperature. The side panel openings and top cover must be kept unobstructed and not blocked. When installing the rack, it is necessary to ensure that the ambient temperature does not exceed 55 ° C. Regularly cleaning the internal dust (recommended every six months) can effectively extend the lifespan.

3.2 Input voltage selection and wiring

When leaving the factory, the BOP is set to 115V input. If it is necessary to change to 104V, 208V or 230V, the primary jumper of transformer T201 must be reconnected according to Figure 2-3 and operated by qualified technicians. The circuit breaker is effective at all voltages.
