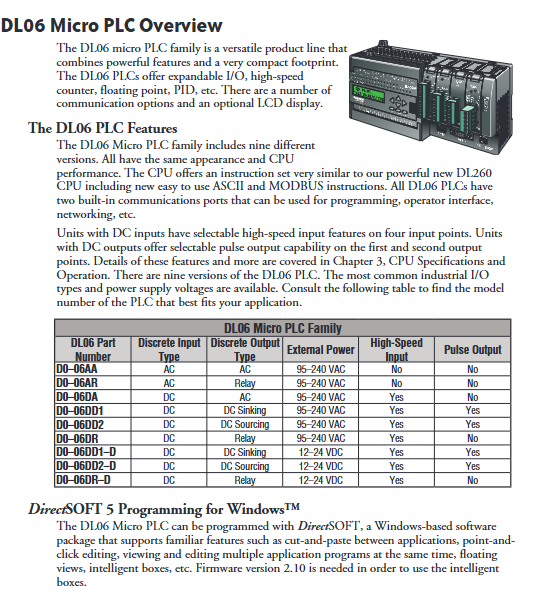

The DL06 series Micro PLC is a powerful and compact programmable controller in the DirectLOGIC family under Automation Direct. It provides multiple I/O types (AC/DC/relay), supports up to 14.8K words of program memory, has two built-in serial communication ports, and has advanced functions such as high-speed counting, pulse output, interrupt, PID, etc. It is suitable for the control core of small and medium-sized automation systems.

However, any automation equipment may experience abnormalities during long-term operation due to wiring, environment, configuration, or external interference. This article is based on the technical information in the DL06 user manual, combined with actual on-site experience, to systematically sort out the common fault phenomena, troubleshooting steps, and maintenance suggestions of the DL06 PLC, helping engineers restore stable system operation in the shortest possible time.

Installation and hardware troubleshooting

2.1 Power failure (PWR indicator light not on)

The DL06 PLC has two versions: AC powered (95-240 VAC) and DC powered (12-24 VDC). If the front panel PWR indicator light does not light up after power on, check according to the following steps:

Confirm that the power supply voltage is within the specified range. AC type 100-240 VAC, DC type 10.8-26.4 VDC.

Check if the power terminal is loose. The AC type uses A1/A2 terminals (some models have four terminals), while the DC type also uses dedicated power terminals.

Measure the voltage at the input terminal. If the voltage is normal but the PWR does not light up, it may be due to damage to the internal fuse or power board.

For AC type, please note that the maximum surge current can reach 15A (1ms). If the power capacity is insufficient, the PLC may not start properly.

Tip: The power polarity of DC type PLC cannot be reversed, otherwise it cannot work.

2.2 Abnormal running indicator light (RUN not lit)

If the RUN indicator light does not light up after the PLC is powered on, it usually indicates that the CPU is not in running mode or there is a fatal error.

Check the position of the mode switch: the three position switch (RUN/TERM/STOP) located below the front panel. If the switch is in the STOP position, the RUN light will turn off; TERM position allows upper software control mode; RUN position is forced to run.

If the switch is in the TERM or RUN position but RUN still does not light up, it may indicate a program null, syntax error, or fatal fault (such as EEPROM error). Error codes can be viewed through programming software or handheld programmers.

2.3 Environmental and heat dissipation issues

The working environment temperature of DL06 is 0-55 ° C, with a relative humidity of 5% -95% (non condensing). If installed in a closed control cabinet with poor ventilation, it may cause internal overheating, resulting in CPU abnormalities or I/O misoperation.

Ensure that the PLC is installed horizontally, leaving sufficient heat dissipation space (at least 7.2 inches at the top/bottom and 1.5 inches at the side).

Regularly clean the ventilation filter of the cabinet.

If the ambient temperature exceeds 55 ° C, forced ventilation or air conditioning should be installed.

2.4 Grounding and Noise Interference

The grounding terminal of DL06 must be connected to a single point grounding (usually a copper bar), and the grounding impedance must be low. Incorrect grounding can lead to communication errors or I/O misoperation.

Use 16 AWG or thicker copper wire, crimp and weld copper wire lugs at both ends.

Strong electric power lines and signal lines should be wired separately to avoid parallel long-distance wiring.

For inductive loads (relays, contactors), transient suppression devices (such as anti parallel diodes, RC absorbers, varistors) must be connected in parallel at both ends of the load, otherwise it may cause damage to the output contacts or generate strong electromagnetic interference.

CPU and memory failure

3.1 Battery backup issue

DL06 uses a supercapacitor (optional D2-BAT-1 battery) to maintain data during power failure. If the CPU indicator light flashes or the special relay SP43 is set (and V7633.12 is enabled), it indicates that the battery voltage is below 2.5V.

When the battery voltage is low, the battery should be replaced in a timely manner. It is recommended to use DirectSOFT backup program, V-memory, and system parameters before replacement.

If the battery is not used and the supercapacitor has been discharged, the operating mode of the PLC after power on may be uncertain (even if the mode switch is in the TERM position). At this time, the power on mode should be specified in the program through B7633.13 (1=enter RUN after power on).

3.2 Memory Initialization and Password Forgetting

Clear the entire program: Use AUX 24 to clear all ladder diagrams, or AUX 31 to clear V-memory.

Initialize system memory (AUX 54): Restore system parameters (such as maintain range, port configuration, etc.) to factory default values. This operation will clear all custom settings, please confirm before execution.

Password management: If you forget your password and cannot unlock it, the CPU must return to the factory to clear it. Therefore, it is necessary to properly record the password after setting it. A multi-level password (starting with uppercase A followed by 7 digits) allows for locking programming access while preserving communication ports for use by the operator panel.
