Emerson MMS 677X Dual Channel Bar Chart Indicator

Equipment Overview

The MMS 677X series dual channel bar chart indicator (including MMS 6771 and MMS 6772) belongs to the MMS 6000 series machine monitoring system and is used to display the measurement results of the MMS 6000 module. With a dual channel design, the MMS 6000 monitor can display data from two channels simultaneously. The bar chart resolution is 100 scale lines, corresponding to a range of 0... 100% or ± 50%, and can present measurement results at a resolution of 1%. It adopts a 19 inch design.


Technical parameters

power supply

Power supply method: Redundant power supply is achieved through two power inputs, which are separated by diodes. At least one power input is required to power the module.

Input voltage: 10...+24... 26 V DC.

Power consumption:<1 W.

signal input

Each indicator channel has one voltage input.

Input voltage: 0... 10 V.

Input impedance:>1 M Ω.

bar chart

Display type: Green segment display, with red segments every 10%.

Accuracy: ± 0.5% ± 1 segment of full scale.

Resolution: 101 segments.

Bar height: 75mm.

Bar chart width: 4.2 mm.

Environment and Protection

Protection level: The module complies with the IP 00 standard of DIN 40050; The front panel complies with the IP21 standard of DIN 40050.

Climate conditions: Complies with DIN 40040 KTF grade.

Working temperature range: 0...+65 ° C.

Storage and transportation temperature range: -30....+85 ° C.

Allowable relative humidity: 5... 95%, no condensation.

Allowable vibration: in accordance with IEC 68-2 Part 6, vibration amplitude within the range of 10... 55 Hz is 0.15 mm; vibration acceleration within the range of 55... 150 Hz is 16.6 m/s ².

Allowable impact: Complies with IEC 68-2 Part 29, with a peak acceleration of 98 m/s ² and a nominal impact duration of 16 ms.

Size and weight

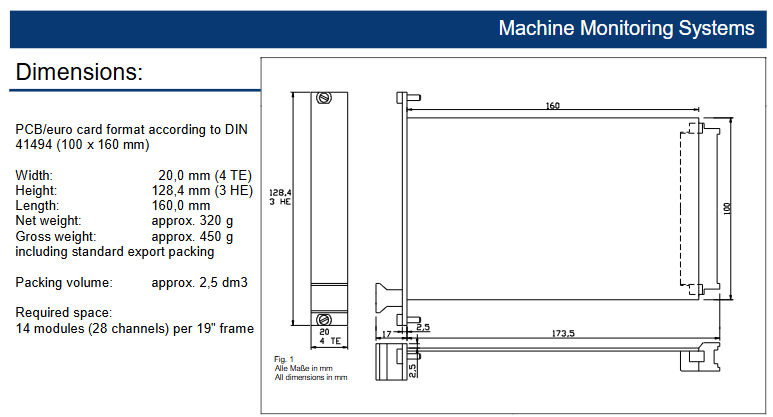

Size: Using PCB/European standard card format that complies with DIN 41494 standard (100 x 160 mm); Width 20.0 mm (4 TE); Height 128.4 mm (3 HE); Length 160.0 mm.

Weight: Net weight approximately 320 g; Gross weight (including standard export packaging) approximately 450 g; Packaging volume approximately 2.5 dm ³.

Space requirement: Each 19 "rack can accommodate 14 modules (28 channels).


Order Information

MMS 6771 Bar Chart Indicator (0... 100%): Order Number 9100-00067.

MMS 6772 Bar Chart Indicator (± 50%): Order Number 9100-00075.
