Phoenix Contact ILC 1X1 Field Troubleshooting and Engineering Application Guide

Phoenix Contact ILC 1X1 Field Troubleshooting and Engineering Application Guide

In small and medium-sized automation systems, compact controllers often need to simultaneously undertake logical operations, fieldbus management, and remote communication tasks. The ILC 1X1 series Inline controllers from Phoenix Contact (including ILC 131 ETH, ILC 151 ETH, ILC 171 ETH 2TX, ILC 191 ETH 2TX, and their XC wide temperature models) are designed specifically for this purpose. They integrate Ethernet, INTERBUS local bus, digital I/O, and optional PROFINET device functions, enabling flexible construction of distributed control solutions. However, facing the complex electromagnetic environment, power fluctuations, and network configuration on site, engineers often encounter problems such as inability to start, communication interruption, or parameter loss. This article is based on the official technical manual, systematically reviewing the hardware characteristics, installation specifications, common fault phenomena, and troubleshooting methods of this series of controllers, and providing practical suggestions for SD card usage, IP allocation, and firmware upgrades.

Model Differences and Selection Points

The ILC 1X1 series includes multiple models, with the main differences being memory capacity, number of Ethernet ports, and environmental adaptability.

Model Program Memory Data Memory Ethernet Port Supports INTERBUS Remote Bus Environment Temperature

ILC 131 ETH 192 kbyte 192 kbyte 1 No -25...+55 ℃

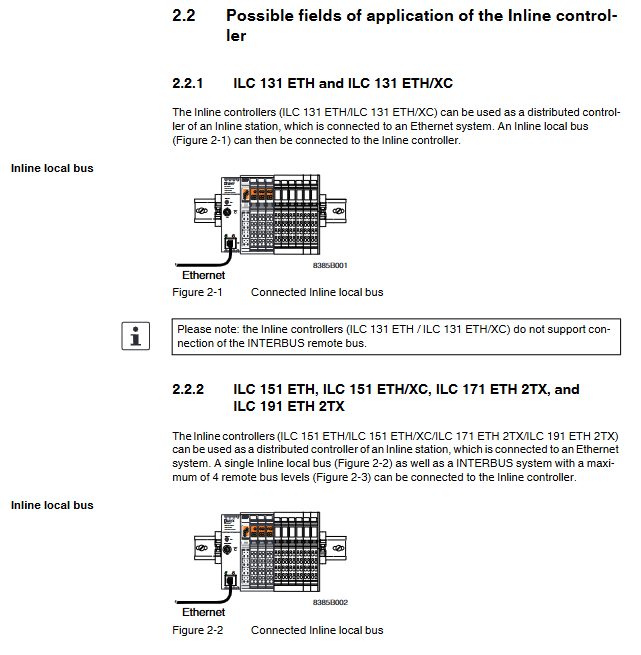

ILC 151 ETH 256 kbyte 256 kbyte 1 is (up to 4 levels) -25...+55 ℃

ILC 171 ETH 2TX 512 kbyte 512 kbyte 2 (internal exchange) is -25...+55 ℃

ILC 191 ETH 2TX 1 Mbyte 1 Mbyte 2 (internal exchange) is -25...+55 ℃

ILC 131 ETH/XC 192 kbyte 192 kbyte 1 No -40...+60 ℃ (derating)

ILC 151 ETH/XC 256 kbyte 256 kbyte 1 is -40...+60 ℃ (derating)

Key selection points:

When dual port redundancy or ring network (MRP) is required, ILC 171/191 ETH 2TX must be selected.

When involving the INTERBUS remote bus (beyond the local station), the ILC 131 series is not available.

Select XC model for extremely cold or high temperature environments (such as outdoor cabinets and desert areas), and note that it needs to be downgraded for use above 24.5V.

Core points of installation and wiring

2.1 DIN rail and grounding

The controller adopts IP20 protection and must be installed in a closed control cabinet (recommended IP54 or above). Using 35mm standard DIN rails, end clamps (such as CLIPFIX 35-5) must be installed at both ends. The guide rail must be grounded, and the FE spring at the bottom of the controller must be in reliable contact with the guide rail. The manual emphasizes that when installing and disassembling the controller, the power must be turned off, and the adjacent right side Inline terminal must be removed first, otherwise it will damage the hook and jumper contacts.

2.2 Power selection and wiring

ILC 1X1 requires three 24V power supplies:

ULLC: Provides power for controller logic and local bus communication, with a typical current of 210 mA and a maximum of 870 mA. It is necessary to use a power supply without a return characteristic curve (such as the QUINT POWER series) because the controller is a capacitive load when powered on, and a return type power supply may mistakenly trigger overload protection.

UM (Main Power Supply): Provides power to local inputs and some bus devices, with a maximum of 8 A.

US (segment power supply): Provides local output power, with a maximum of 8 A.

Common on-site error: Using a regular switch power supply causes the controller to fail to start after power on, and the FR and RDY LEDs do not flash. The solution is to replace it with a power supply without folding characteristics, or connect a larger capacitor in parallel (not recommended in the manual, it is best to directly replace the power supply).

Fuse configuration: Each power supply must be equipped with an external fuse (8 A recommended for UM/US and 2 A recommended for UICC), as the controller only has polarity reversal and surge protection internally, without short circuit protection.

2.3 Digital I/O wiring

The controller comes with 8 inputs (I1~I8) and 4 outputs (Q1~Q4). The input is 24V DC, in compliance with EN 61131-2 type 1, with a switch threshold low level<5V and high level>15V. The output is 0.5 A per channel, with a total current of 2 A. Please note that the output has ground interruption protection, but inductive loads (relays, solenoid valves) must be connected in parallel with freewheeling diodes to avoid damaging the output stage. The manual states that the switching frequency under nominal inductive load should not exceed 0.5 Hz, otherwise the output may be damaged.

Startup and IP address allocation

3.1 Factory state and first power on

The controller does not have a preset IP address when it leaves the factory, and the internal parameter memory is empty. After the first power on, the PWR LED (UL/UM/US) should light up, and after about 10 seconds, the FR (green) and RDY (green) LEDs start flashing, indicating that the IEC 61131 system has been initialized but no program is running.
