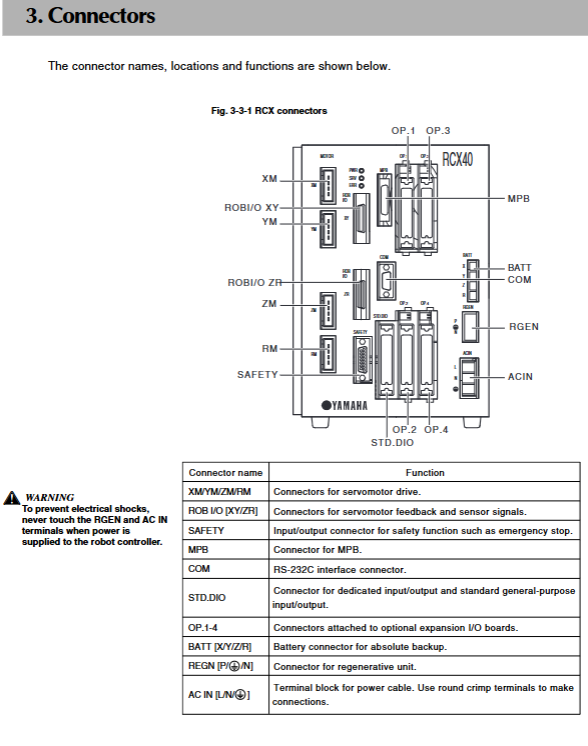

How to install the YAMAHA RCX40 four axis robot controller?

(3) Coordinate and parameter settings

Standard coordinate setting: SCARA robots need to set standard coordinates and support three methods: 4-point teaching, 3-point teaching, and simple teaching;

Displacement coordinates and hand definition: Supports up to 10 displacement coordinate settings, which can limit the robot's operating area; 4 hand definition settings, suitable for motion compensation in different tool installation scenarios.

Maintenance and fault diagnosis

1. Key points of daily maintenance

(1) Regular maintenance project

Battery maintenance: The absolute battery life is about 1.5 years. B3 battery takes 48 hours to fully charge, B4 battery takes 96 hours, and if the voltage is below 3.5V, it needs to be replaced and recharged;

Verification testing: Conduct verification testing every 10 years, refer to the security manual HI 801 003 E;

Data backup: Regularly backup programs, point data, and parameters to internal Flash ROM or external devices to avoid data loss.

(2) Maintain safety requirements

Before maintenance, cut off all power sources and wait for at least 30 minutes to avoid burns or electric shock caused by high-temperature components and high-voltage circuits;

It is prohibited to disassemble or modify the controller. If parts need to be replaced, please contact YAMAHA or an authorized dealer.

2. Fault diagnosis mechanism

(1) Error messages and historical queries

Supports up to 500 error history storage records, including error codes, occurrence times, and error descriptions, which can be obtained through MPB or RS-232C interfaces;

Common types of errors include abnormal power supply, communication failure, motor overload, absolute reset failure, low battery voltage, etc.

(2) Self diagnostic function

Controller self-test: Perform controller checks in SYSTEM>DIAGNOS mode to detect hardware and system status;

Battery voltage detection: The absolute battery voltage of each axis can be viewed, with a normal range of 3.50-4.3V;

System error details: Display detailed information about serious software errors (error code, occurrence time, related parameters).

(3) Common fault handling

Emergency stop trigger: First, release the emergency stop button, cancel the emergency stop flag in UTILITY mode, and then turn on the motor power;

Incomplete origin: Absolute reset is required, supporting single axis reset and full axis reset. Origin detection methods include marking method, end of travel method, and sensor method;

Communication failure: Check if the RS-232C interface parameters (baud rate, data bits, parity bits) match and if the cable connection is reliable.

Compliance and Disposal Standards

1. Certification and Compliance

Compliant with CE certification related directives (Machinery Directive, Low Voltage Directive, EMC Directive), operating in SAFE mode by default;

Program and Data Storage: We do not guarantee that the internal storage data will remain permanently unchanged and needs to be backed up regularly. YAMAHA is not responsible for any industrial property conflicts caused by the content of the manual.

2. Abandonment and disposal

When disposing of products, they should be treated as industrial waste and are prohibited from being discarded indiscriminately;

The disposal of batteries must comply with local regulations and handle lithium manganese dioxide batteries.

Key question answer

How to ensure the operational safety of RCX40 controller?

The core security mechanism includes graded warning (Warning/CAUTION/NOTE), hardware security design (emergency stop terminals, interlock circuits), wiring and installation protection (line spacing ≥ 100mm, reliable grounding), environmental restrictions (non explosion proof environment, temperature and humidity control);

Operators need to receive professional training and are strictly prohibited from staying within the robot's range of motion. They should regularly check the emergency stop function and safety interlock circuit.

What are the core differences and applicable scenarios of different operating modes?

AUTO mode: Program execution automatically, suitable for mass production;

MANUAL mode: manual movement and demonstration, suitable for debugging and setting up new tasks;

Program mode: Program editing and management, suitable for program development;

SYSTEM mode: parameter configuration and system maintenance, suitable for first-time installation or parameter adjustment;

Service mode: Maintenance within the safety fence, with a speed limit of less than 3%, suitable for equipment maintenance.

How to achieve reliable communication between the controller and external devices?

Connect to the upper computer through the RS-232C interface, configure matching parameters such as baud rate (4800-57600bps), data bits, parity bits, etc., and support XON/XOFF or RTS/CTS stream control;

Realize signal interaction with peripheral devices (sensors, actuators) through STD. DIO interface, correctly wire according to NPN/PNP specifications, ensure reliable signal transmission, and avoid cable interference.
