Product Core Basic Information

1. Core positioning and applicable scenarios

Application areas: industrial control, electrical equipment wiring, lighting systems, motor wiring, marine equipment, explosion-proof scenarios (some models), etc.

Installation method: Mainstream compatible with 35mm DIN rail, some support 15mm DIN rail or panel screw/buckle installation.

Suitable conductors: Copper and aluminum conductors (aluminum conductors need to be coated with "Alu Plus" contact paste to remove the oxide layer), with a cross-sectional range of 0.08-35mm ² (28-2 AWG).

General technical characteristics:

Connection technology: CAGE CLAMP ®  Cage spring crimping (requires tools) Push-in CAGE CLAMP ®  Direct insertion (tool free, compatible with solid/multi stranded conductors with cold pressed ends).

Electrical parameters: rated voltage 400V-1000V, rated current 6A-125A, pollution level 2-3, rated surge voltage 4kV-8kV.

Material safety: The insulation material is PA66/PPA/PC, the flame retardant grade is UL94 V0, the contact material is electrolytic copper+tin plating, and the spring is austenitic chromium nickel steel (corrosion-resistant and fatigue resistant).

2. Compliance and Certification

International standards: comply with IEC/EN 60947, UL 1059, CSA C22.2 and other standards.

Special certification: Some models have passed ATEX (Ex i Explosion proof), DNV (Marine Equipment), LR (Classification Society) certifications, meeting the requirements for use in hazardous environments and marine scenarios.

Detailed analysis of core product series

1. Classic rail mounted terminal block (279/280/281/282/283/284/285 series)

Series positioning: The main series of industrial cabling, covering all scenario requirements from ordinary signals to power circuits.

Key parameters and characteristics of each series:

Series conductor cross-sectional range, core type, key characteristics, electrical specifications (typical), application scenarios

279 series 0.08-1.5mm ² straight/grounded/shielded/double-layer terminal block 2-4 conductor design, compact size, supports Ex i explosion-proof rated voltage 800V, rated current 18A signal circuit, control wiring

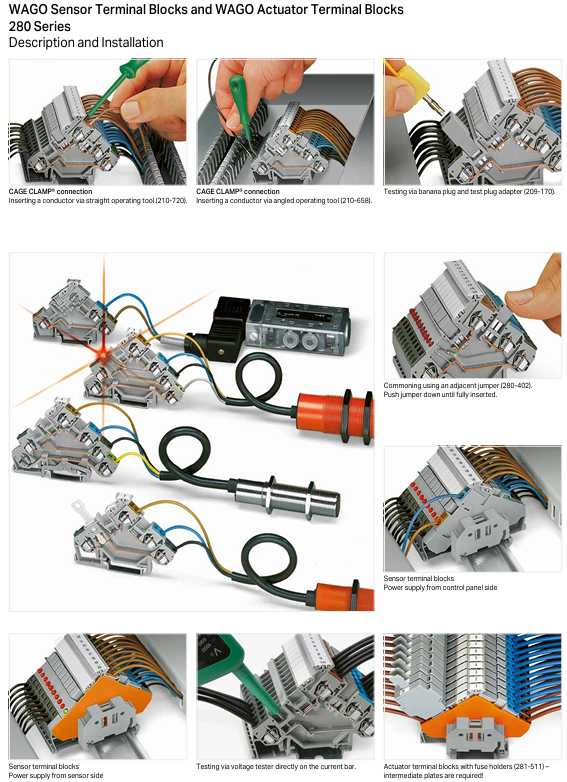

280 series 0.08-2.5mm ² straight through/grounded/shielded/double-layer/three-layer terminal block with multiple colors to choose from, with test slots, compatible with sensor/actuator wiring rated voltage 800V, rated current 24A industrial control, lighting system

281 series 0.08-4mm ² through/ground/fuse/isolation switch terminal block with rotatable fuse holder, some with LED fuse indication rated voltage 800V, rated current 10-26A, control circuit requiring overload protection

282 series 0.2-6mm ² isolation switch/test/fuse terminal block supports online testing, with locking function, anti misoperation rated voltage 630V, rated current 41A industrial equipment maintenance circuit, power branch

283 series 0.2-16mm ² high current through/ground terminal block compatible with medium power power circuits, supporting step-down jumpers, common potential rated voltage 800V, rated current 76A, motor control, power distribution

284 series 0.2-10mm ² high current through/fuse terminal block with fuse holder, supporting 35mm ² conductor distribution rated voltage 800V, rated current 57A, power circuit overload protection

285 series 6-35mm ² ultra-high current terminal block is suitable for heavy-duty power circuits, with copper bars connected to industrial power supply main lines and high-power equipment with a rated voltage of 1000V and a rated current of 125A

Detailed explanation of special types:

Fused terminal block: compatible with glass fuses of 5x20/25/30mm, 1/4 "x1" and other specifications. Some models come with LED or neon light fuse indication and support quick replacement of fuses (one end automatically pops out when the cover is opened).

Double/triple layer terminal block: The upper and lower layers are designed to be independent or have a common potential, saving rail space and adapting to motor L1/L2/L3/GND multi potential wiring.

Isolation switch terminal block: equipped with sliding isolation switch, supporting circuit power-off maintenance, and some with locking function to prevent accidental closing.

2. Pluggable connector terminal block (X-COM) ®- SYSTEM， 769/870 series)

Series positioning: For scenarios that require frequent maintenance and quick plugging, supporting modular combination.

Core product type:

Carrier terminal block (769 series): 1-4 pole design, including through/isolation switch/diode/LED types, compatible with 0.08-4mm ² conductors, rated current 16-32A, supports coding error prevention (16 coding combinations).

Double layer carrier terminal block (870 series): 2-4 pole double-layer design, supports L/N/GND multi potential distribution, compatible with 0.08-2.5mm ² conductors, rated current 16A.

Supporting plug: 1-15 pole straight/curved plug, with strain relief board, locking lever, protective cable pulling, supporting multiple plugs with common potential.

Core advantage: The plug and terminal block can be quickly separated, and there is no need to disconnect the wires during maintenance; Encode the key to prevent accidental insertion and improve wiring accuracy.
