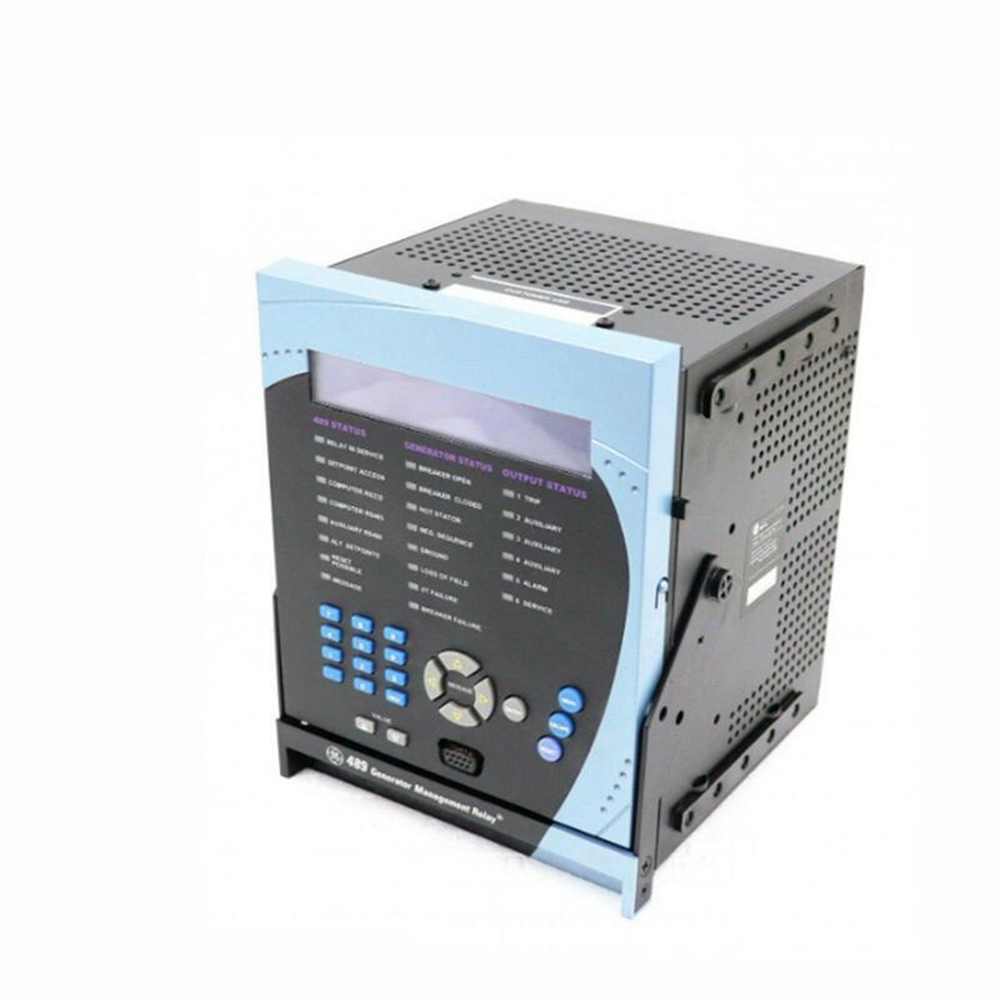

GE SR489-P5-LO-A20-E relay protection

GE SR489-P5-LO-A20-E relay protection

Core technical parameters and functional characteristics

Protection function system

Stator and rotor protection: integrated stator grounding protection (100% stator grounding monitoring), stator thermal overload protection (combined with RTD temperature sensor and current model), negative sequence overcurrent protection (rotor thermal stress monitoring), and excitation fault protection.

Bearing and vibration monitoring: 12 RTD inputs support bearing temperature monitoring, and 4 analog inputs can be connected to vibration sensors to achieve bearing overheating and mechanical vibration warning.

Power and frequency protection: Supports overvoltage/undervoltage, overclocking/underfrequency, reverse power (to prevent motor operation), and demagnetization protection, suitable for 25Hz, 50Hz, or 60Hz power grid environments.

Measurement and communication capabilities

Multi dimensional data collection: Real time monitoring of parameters such as current, voltage, power, frequency, power factor, etc., supporting energy metering and event recording (256 time scale events).

Flexible communication interface: standard RS232/RS485 port (Modbus RTU protocol), optional Ethernet (Modbus TCP/IP), supports integration with SCADA/DCS systems.

Human computer interaction interface: The 40 character LCD screen supports local parameter configuration, fault diagnosis, and waveform playback (128 cycle waveform capture).

Hardware and environmental adaptability

Input/output configuration: 9 digital inputs, 6 output relays (including trip/alarm contacts), 4 programmable analog outputs (4-20mA), which can directly drive PLC or external controllers.

Power compatibility: The control power supply supports 20-60V DC or 20-48V AC (48-62Hz), adapting to various power supply conditions in industrial sites.

Environmental reliability: Operating temperature range of -40 ° C to+60 ° C, protection level IP20 (dustproof), meeting the long-term operational needs of industrial environments.

Application scenarios and industry value

Power generation and energy sector

Small and medium-sized generator protection: widely used in industrial self owned power plants, distributed energy stations, and renewable energy projects, such as grid protection for gas turbines and wind turbines.

Cogeneration system: supports reverse power protection and automatic synchronization control to ensure the stability of the unit during grid switching.

industrial process control

Redundancy protection for key equipment: In scenarios such as petrochemicals and mines, it provides backup protection for compressors and pumps driven by high-voltage motors to prevent production interruptions caused by generator failures.

Mechanical condition monitoring: Predictive maintenance is achieved through the integration of vibration sensors, such as early warning of bearing wear or rotor imbalance.

Power grid connection and stability

Isolation operation protection: In microgrids or off grid systems, frequency/voltage protection is used to prevent islanding effects and ensure system stability.

Harmonic suppression: The negative sequence current monitoring function can identify harmonic pollution in the power grid and avoid generator overheating and damage.

Technological Evolution and Alternative Solutions

Alternative model Multilin 889

Function upgrade: As the successor product of SR489, Multilin 889 adds sub cycle differential protection, IEC 61850 communication, and Wi Fi configuration functions, supporting more complex generator transformer protection.

Compatibility design: GE provides a dedicated upgrade kit that can directly replace SR489, retaining the original wiring terminals and communication protocols to reduce renovation costs.

Digitization and Intelligence

Network Security Enhancement: The Multilin 889 supports AAA authentication, Radius, and Syslog, meeting power grid security standards such as NERC CIP.

Edge computing capability: built-in programmable logic controller (PLC) can realize localized logic control and reduce dependence on the central control system.

Industry standards and certifications

Compliance: Compliant with international standards such as IEC 60255-1 and IEC 61850 (Multilin 889), and certified for industrial environments by organizations such as DNV GL.

Quality Assurance: GE provides a 10-year warranty (Multilin 889) and meets IPC-A-610E Class 3 electronic manufacturing standards to ensure long-term reliability.

Key points of operation and maintenance

Installation and debugging

Drawer style design: Supports live plugging and unplugging, making it easy to quickly replace modules during maintenance and reducing downtime.

Waveform simulation test: Built in waveform simulation function can verify the correctness of protection logic and reduce the difficulty of on-site debugging.

fault diagnosis

Event recording and analysis: Export event logs and waveform data through RS232 interface, and use GE's PowerTools software for fault tracing.

Environmental monitoring: Some models support environmental temperature and humidity monitoring, which can provide early warning of equipment aging caused by dust or humidity.

precautions

Discontinuation and replacement suggestions

SR489-P5-LO-A20-E has been discontinued. It is recommended that the new project directly adopt Multilin 889. Technical support for upgrading the existing system can be obtained through GE authorized channels.

Compatibility verification

If integration with existing systems is required, it is necessary to confirm the compatibility of communication protocols and, if necessary, achieve protocol conversion through a Modbus gateway.

Summarize

GE SR489-P5-LO-A20-E has become a classic solution for protecting small and medium-sized generators due to its comprehensive protection functions, flexible communication capabilities, and industrial grade reliability. Although discontinued, its replacement model Multilin 889 has achieved significant improvements in intelligence, network security, and digital integration. For Chinese users, the local supply chain and technical support network can effectively ensure equipment operation and maintenance, and the localization adaptation case of Multilin 889 further reduces the upgrade threshold. It is recommended that users choose appropriate solutions based on their specific needs and prioritize the long-term benefits brought by technological evolution.
