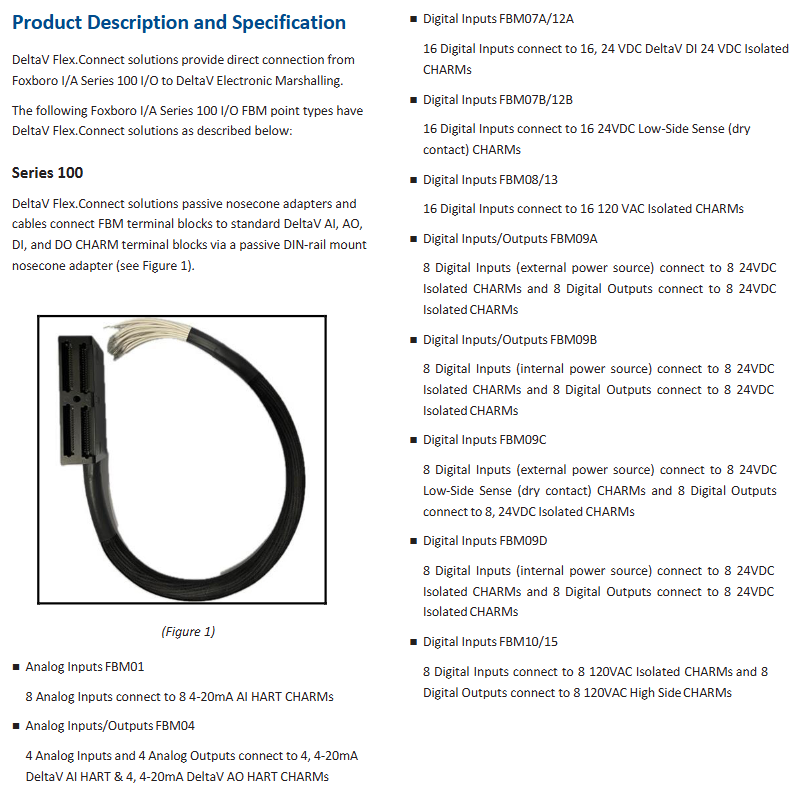

DeltaV ™ Flex Connect Solutions for Foxboro ™ I/A Series 100 I/O

Remote reading of diagnostic information, range settings, and calibration data from smart devices such as HART transmitters;

Remote configuration and calibration of on-site HART devices through the main controller, without the need for on-site operation.

HART data processing: Supports HART universal instructions, conventional operation instructions, and device specific instructions. The main controller can receive multiple digital messages from each HART device per second, meeting real-time monitoring and control requirements.

（3） Installation and maintenance convenience

Modular design:

The remote I/O module and terminal components adopt a modular structure and support "hot plugging" (some models). When replacing the module, there is no need to disconnect the on-site wiring or interrupt the system operation, reducing maintenance downtime.

The module size is compact (such as height ≤ 150mm, width ≤ 30mm), and can be installed on DIN rails or small cabinets, suitable for on-site environments with limited space.

Simplified wiring:

Remote deployment reduces the long-distance wiring of on-site equipment to the central cabinet, lowering cable costs and construction difficulties;

The terminal component supports the "one in, multiple out" wiring method, which can simultaneously connect multiple on-site devices of the same type, simplifying the wiring logic.

Configuration tool support:

Compatible with Foxboro I/A Series system configuration software (such as FoxDraw, Control Builder), remote I/O module channel parameters (such as range, alarm threshold, fault safety action) can be configured remotely through the software without on-site debugging.

（4） Environmental adaptability

Protection level: When the remote I/O unit is paired with a dedicated protective casing, the protection level can reach IP65/IP67, and it can be directly installed outdoors or in dusty, humid, and corrosive environments (such as chemical workshops and refinery sites).

Temperature and humidity range:

Working temperature: -20 ° C to+60 ° C (some models support a wide temperature range of -40 ° C to+70 ° C);

Working humidity: 5% -95% (non condensing), suitable for high humidity industrial environments;

Anti vibration performance: Within the frequency range of 5-500Hz, it operates stably under a vibration intensity of 7.5m/S ² (0.75g), meeting the requirements of industrial site vibration environment.

Detailed explanation of technical specifications

（1） Electrical and Communication Specifications

Specification category parameter details

Power requirement input voltage: 24V DC (allowable fluctuation range:+5%/-10%);

Maximum power consumption: Single module ≤ 8W, redundant configuration ≤ 16W.

Communication rate Ethernet link: 10/100Mbps adaptive;

Industrial bus: Depending on the bus type, it can reach 1Mbps (such as Profibus DP).

Signal type supports analog input (AI): 4-20mA, 1-5V;

Analog output (AO): 4-20mA;

Digital input (DI): dry contact, 24V DC wet contact;

Digital Output (DO): Relay output, 24V DC transistor output.

HART performance baud rate: 1200bps (half duplex);

Support message types: general instructions, general operation instructions, device specific instructions;

Data verification: 32-bit CRC verification to ensure communication accuracy.

Isolation performance between channels: 600V AC/1 minute;

Channel and ground isolation: 600V AC/1 minute;

Power and logic isolation: 500V AC/1 minute.

（2） Environmental and mechanical specifications

Specification category parameter details

Working temperature standard type: -20 ° C to+60 ° C;

Wide temperature range: -40 ° C to+70 ° C.

Storage temperature -40 ° C to+85 ° C (non condensing).

Working humidity 5% -95% RH (without condensation, temperature ≤ 40 ° C).

Protection level module bare machine: IP20 (to be installed in the cabinet);

Equipped with protective casing: IP65/IP67 (can be installed outdoors).

Installation method: DIN rail installation (compatible with 35mm standard rail);

Fixed installation of cabinet screws.

Module size (example) height: 130mm (5.12 inches);

Width: 25mm (0.98 inches);

Depth: 150mm (5.9 inches);

Weight: Approximately 200g (7.05 ounces).

（3） Compliance certification

Electromagnetic compatibility (EMC): Complies with the EU EMC Directive (2014/30/EU), meets the Class A emission requirements and industrial immunity levels (anti-static, radio frequency interference, electrical fast transient pulse group, etc.) of EN 61326-1:2013 standard.

Security certification:

UL/UL-C certification: suitable for hazardous environments with Class I A-D groups, Zone 2, T4 temperature codes (with designated Foxboro I/A Series controllers);

ATEX certification: Ex nA IIC T4 Ga, suitable for Zone 2 hazardous environments;

IECEx certification: Compliant with IEC 60079-15 standard, suitable for global hazardous area applications.

Environmental compliance: Compliant with the EU RoHS Directive (2011/65/EU), restricting the use of harmful substances such as lead, mercury, cadmium, etc;

Marine certification: Some models have been certified by American Bureau of Shipping (ABS) and Bureau Veritas, and are suitable for marine environments such as ship power systems and offshore platforms.
