XP POWER VFR05 Series 5W Convertible Plug AC-DC Adapter

XP POWER VFR05 Series 5W Convertible Plug AC-DC Adapter: A Global, Efficient and Energy saving Integrated Power Solution

Introduction

With the rapid development of the global market, power adapters need to meet the voltage standards and socket types of different countries and regions. As a 5W external AC-DC wall mounted adapter, the VFR05 series not only possesses the high-efficiency, energy-saving, and safety features of the VFL05 series, but also comes with interchangeable global plugs, making it a truly "universal" power solution. This article will conduct a systematic analysis of its unique design, technical performance, certification compliance, and application scenarios.

Core innovation: interchangeable global plug design

1. One machine is compatible with multiple national standards

The biggest highlight of the VFR05 series is its interchangeable AC input plug, which users can quickly replace according to the usage area

American Standard (US)

European Regulation (EU)

British regulations (UK)

Australian Regulations (AU)

This design greatly simplifies inventory management, logistics, and equipment deployment processes, making it particularly suitable for OEM manufacturers and system integrators selling to multiple countries.

2. Compact integrated structure

Despite supporting plug replacement, its body still maintains a compact size:

Body size: 37.0 × 55.1 × 42.9 mm

Weight: Only 80g

Adopting Class II construction, no grounding required, flexible installation.

Efficient electrical performance and stable output

1. Wide input voltage range

Input voltage: 90-264VAC

Input frequency: 47-63Hz

Support global power grid standards and adapt to voltage fluctuation environments.

2. Multi voltage and multi interface output

Provide three output voltages and four interface options:

Output voltage, output current, interface type

5.0V 1000mA USB A / Mini USB / Micro USB / DC Jack

9.0V 550mA DC Jack

12.0V 420mA DC Jack

Total adjustment accuracy: ± 5%

Ripple noise: ≤ 200mV pk pk

Short circuit protection: supports automatic recovery "hiccup" mode

3. High efficiency and energy-saving performance

Conversion efficiency: 74% -79% (typical value)

Idle power consumption: ≤ 75mW

Compliant with Level VI energy efficiency standards (compatible with Level VII), supporting green power design.

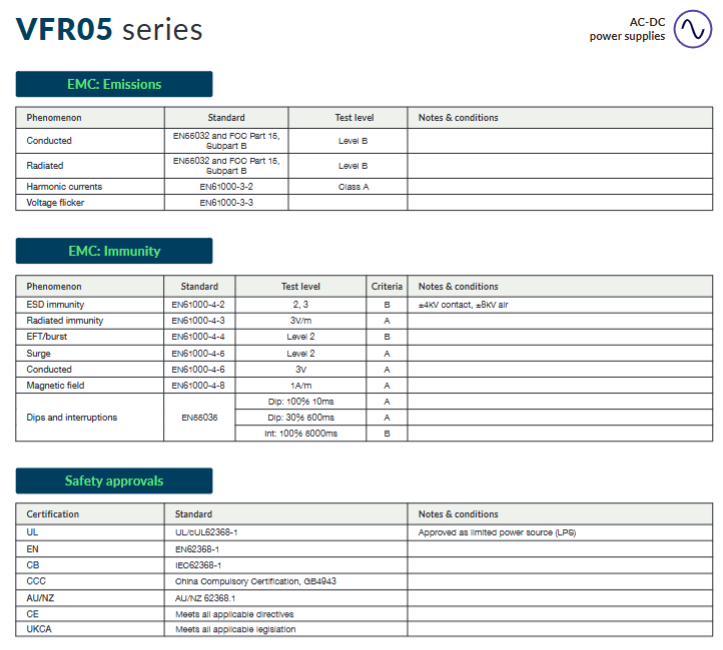

Comprehensive safety and electromagnetic compatibility certification

1. International security certification

UL/cUL 62368-1

EN 62368-1

CB IEC 62368-1

CCC（GB4943）

AU/NZ 62368.1

CE and UKCA comply with local regulations

The product has also obtained LPS (Restricted Power Supply) certification and is suitable for devices with high safety requirements.

2. Excellent EMC performance

Conduction and Radiation: Complies with EN55032/FCC Part 15 Class B

Harmonic current: EN61000-3-2 Class A

Anti interference capability: Through various anti-interference tests such as ESD, EFT, surge, and magnetic field, it ensures stable operation in complex electromagnetic environments.

Reliable environmental adaptability

Working temperature: 0 ° C to+60 ° C (supports load derating)

Storage temperature: -40 ° C to+85 ° C

Protection level: Supports natural cooling, resistant to drops (1 meter of concrete) and vibrations (2g, 10-300Hz)

MTBF：≥100, 000 hours (based on MIL-HDBK-217F model)

Widely applicable scenarios

The VFR05 series is suitable for various occasions that require global deployment or flexible power adaptation:

Typical equipment in the industry

Home and consumer electronics routers, cameras, smart speakers, gaming peripherals

Industrial and communication sensors PLC、 Industrial control module, network equipment

Security and instrument monitoring system, testing instruments, data acquisition equipment

Medical and office portable device chargers, printer auxiliary power supplies

Summary: Why choose VFR05 series?

The VFR05 series inherits the high efficiency, safety, and reliability of the VFL05 series, and achieves true global universality through interchangeable plug design. Its integrated structure, multi interface support, comprehensive certification, and excellent environmental adaptability make it an ideal choice for multinational corporations, system integrators, and OEM customers.

Whether it is providing power supply for export equipment or unifying power standards in multi country deployment systems, the VFR05 series can provide convenient, compliant, and high-performance solutions.
