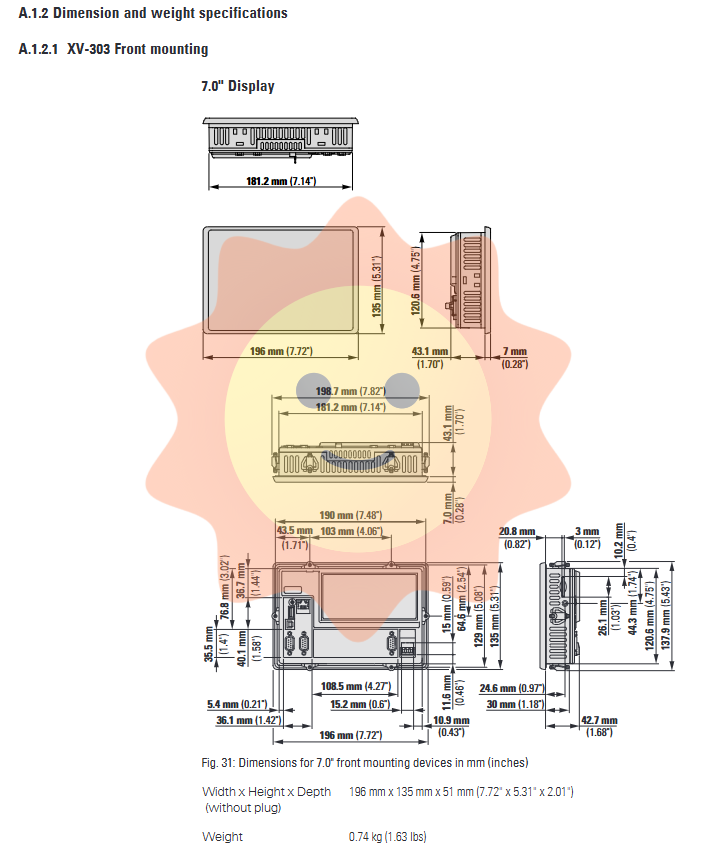

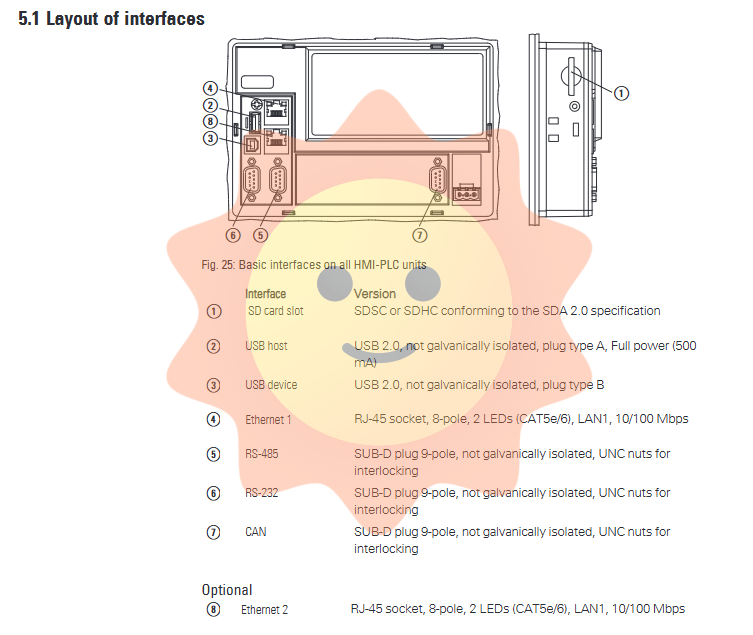

Eaton XV300 Multi Touch Display Screen

If the touch response is inaccurate, you can enter the calibration program at startup and click on the calibration point according to the on-screen prompts. Please refer to the Linux system description for specific operations.

6.3 Brightness adjustment

Reducing backlight brightness through software can extend LED lifespan. Please refer to the visualization software manual for the operation method.

6.4 Common troubleshooting

Possible causes and solutions for the fault phenomenon

The device does not start and there is no 24V power supply. Check the power wiring

Display screen black backlight off software turns on backlight

Touch unresponsive, poor grounding, uncalibrated or disabled check for grounding, calibrated or enabled touch

Maintenance and upkeep

7.1 Cleaning

Wipe the touch screen with a clean, soft, and damp cloth to prevent liquids from entering the device.

It is strictly prohibited to use sharp objects, abrasives, or solvents.

7.2 Battery

Built in lithium battery for real-time clock backup, non replaceable, with a lifespan of approximately 10 years. Dispose of batteries properly when disposing of equipment.

7.3 Maintenance

The device can only be opened by the manufacturer or authorized repair center. Contact local Eaton technical support for repair services and use the original packaging during transportation.

7.4 Storage and Transportation

Storage environment temperature -20~60 ° C, avoid condensation.

Use the original packaging during transportation to prevent vibration and impact.

7.5 Waste disposal

Abandoned equipment must be disposed of environmentally in accordance with local regulations or returned to the manufacturer. The equipment materials include ABS-PC casing, tempered glass, lithium batteries, etc., packaged in cardboard and PE plastic.

Environment and Certification

8.1 Protection level

Front panel: IP65, NEMA 4X, NEMA 12

Rear: IP20

8.2 Certification

CE: Compliant with the EU EMC Directive and Low Voltage Directive

cULus：UL 61010-2-201， Document number E205091

ATEX: II 3D Ex tc IIIC T70 ° C IP6x (applicable to Zone 22 dust environment)

Marine certification: DNV GL type certification, certificate number TAA00000NC (7.0 "and 10.1" models, requiring installation of power filter)

8.3 Applicable standards

Electromagnetic compatibility: IEC/EN 61000-6-2, -4

Safety: IEC/EN 60950, UL 61010-2-201

Environmental testing: IEC/EN 60068-2-1, -2, -3, -6, -27, -31

Product standards: EN 50178, IEC/EN 61131-2
