XP POWER C Series Micro Stabilized High Voltage DC-DC Converter

PRODUCT DESCRIPTION PRODUCT DESCRIPTION

Miniature, well-regulated high voltage power supplies provide clean and reliable high voltage in a shielded, PC-mount package. Featuring precision 0 to 100% programmability and very low ripple and EMI/ RFI, these cost-effective power supplies are ideal for integration into compact, sensitive equipment. For 10kV output, see the CB Series.

APPLICATIONS

• Photomultiplier Tubes

• Solid State Detectors

• Electrophoresis

• Piezo Devices

• Capacitor Charging

• EO Lenses

FEATURES

• Regulated

• Low-Noise, Quasi-Sinewave Oscillator

• Miniature Size

• 0 to 100% Programmable Output

• High Stability: <50ppm/°C (Typical)

• Wide Input Voltage Range: 11.5 to 16V

• Very Low EMI/RFI

• High Reliability: MTBF >2.6 Million Hours per Bellcore TR-332 (Model C10)

• Steel Case with Isolated Case Ground

• Sealed to Withstand Immersion Cleaning Process

• External Gain Adjust for Calibration

• RoHS Compliant

ELECTRICAL SPECIFICATIONS*2 C01 - C80 (100V to 8kV)

PARAMETER VALUE INPUT VOLTAGE:+11.5 to +16V

INPUT CURRENT:<100mA, NO LOAD <250mA,

FULL LOAD INPUT CAPACITANCE:440uF

LOW ESR PROGRAMMING VOLTAGE:0 to +5V, <100uA

RESPONSE TIME:<250msec (FULL LOAD, FULL-SCALE RESPONSE)

SETPOINT ACCURACY*6:+/-1%

GAIN ADJUST*6:5 to 10%

LINEARITY*6:<1% (15% to 100% Vout)

STABILITY:<0.01% / HOUR

TEMPCO:<50PPM / °C*3

THERMAL SHOCK LIMIT:1°C / 10 SECONDS

OPERATING TEMPERATURE:-10 to +60°C*5 (CASE)

STORAGE TEMPERATURE:-20 to +90°C

DETAILED PRODUCT DESCRIPTION

The C Series is a line of miniature, regulated high voltage power supplies. Each model is programmed from 0 to 100% of rated output via a 0 to +5 volt, DAC-compatible, high-impedance programming input voltage. Temperature drift is typically less than 50ppm/°C. These modules exhibit very low ripple, noise, and EMI/RFI by utilizing a quasi-sinewave oscillator, shielded transformer, excellent filtering techniques and an isolated steel enclosure featuring a separate grounding pin. An externally accessible potentiometer provides adjustable gain trim, allowing for individual calibration of units. A proprietary encapsulation process and a custom 94V-0 listed, high-performance formula are used to achieve excellent high voltage and thermal properties. Positive and negative outputs are standard.

Model and Output Specification Table

Model Output Voltage (positive and negative optional) Maximum Output Current Ripple (full load) Load Adjustment Circuit Adjustment Operating Frequency Range

C01 0-+100V 10mA <0.75% <0.1% <0.1% 200-250kHz

C02/C02N 0-±200V 5mA <0.05% <0.1% <0.1%/1% 250-350kHz/75-150kHz

C03 0-+300V 3.3mA <0.03% <0.1% <0.1% 200-300kHz

C05/C05N 0-±500V 2mA <0.004%/0.005% <0.07%/0.5% <0.1%/0.5% 250-350kHz/200-350kHz

C06/C06N 0-±600V 1.67mA <0.003% <0.1%/0.75% <0.1%/0.75% 250-300kHz/125-300kHz

C10/C10N 0-±1000V 1mA <0.005%/0.002% <0.3%/0.5% <0.3% 200-250kHz/100-125kHz

C12/C12N 0-±1250V 1mA <0.004%/0.003% <0.1%/0.175% <0.1% 200-250kHz/100-125kHz

C15/C15N 0-±1500V 0.67mA <0.002% <0.1%/0.2% <0.1%/0.2% 100-125kHz/75-100kHz

C20/C20N 0-±2000V 0.5mA <0.002% <0.15% <0.1% 75-100kHz

C25/C25N 0-±2500V 0.4mA <0.1%/0.2% <0.3%/0.5% <0.2% 125-150kHz

C30/C30N 0-±3000V 0.33mA <0.1%/0.2% <0.3% <0.05%/0.075% 75-100kHz

C40/C40N 0-±4000V 0.25mA <0.1% <0.25%/0.2% <0.2%/0.1% 50-125kHz/75-150kHz

C50/C50N 0-±5000V 0.2mA <0.1% <0.35%/0.25% <0.1% 75-150kHz/125-175kHz

C60/C60N 0-±6000V 0.166mA <0.1% <0.25% <0.1%/0.15% 125-175kHz

C80/C80N 0-±8000V 0.125mA <0.2% <0.75% <0.15%/0.25% 100-150kHz

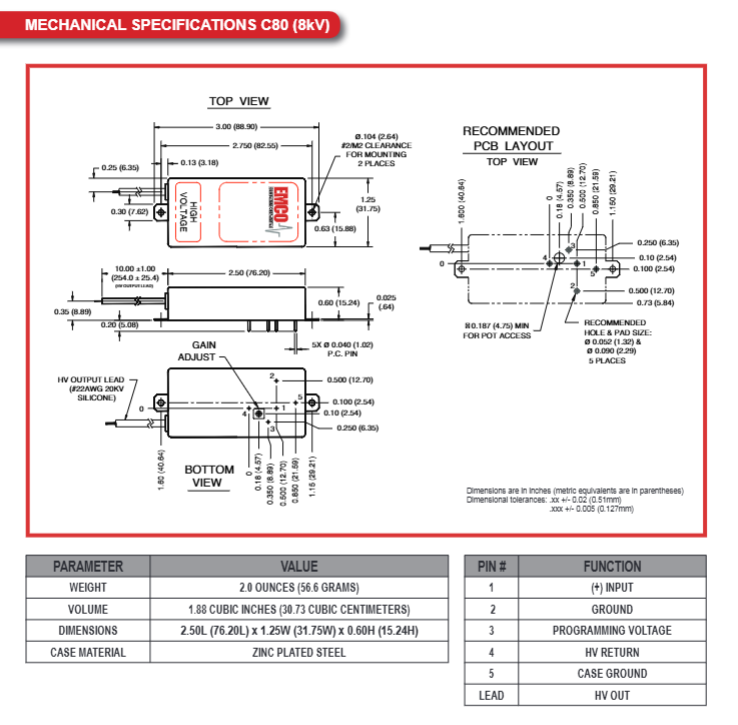

Mechanical and installation specifications

(1) Mechanical parameter table by model

Power level, model range, dimensions (length x width x height), weight, and volume

Low high voltage (100V-2kV) C01-C20 1.40 × 1.11 × 0.50 inches (35.56 × 28.19 × 12.70mm) 31 grams (1.1 ounces) 0.77 cubic inches (12.62 cubic centimeters)

Medium high voltage (2.5kV-4kV) C25-C40 1.75 × 1.11 × 0.50 inches (44.45 × 28.19 × 12.70mm) 36.8 grams (1.3 ounces) 0.96 cubic inches (15.77 cubic centimeters)

High voltage (5kV-8kV) C50-C80 2.10 × 1.11 × 0.50 inches (53.34 × 28.19 × 12.70mm) 50.9 grams (1.8 ounces) 1.16 cubic inches (18.93 cubic centimeters)

(2) Installation and Accessories

Pin definition (5 pins in total): 1 pin (+input), 2 pins (ground), 3 pins (programming voltage), 4 pins (high voltage output/return), 5 pins (shell ground)

Standard installation: PCB installation, recommended aperture 0.052 inches, solder pad 0.082 inches

Optional accessories:

Flywire (FL suffix): Suitable for C01-C15 models, convenient for non PCB installation scenarios

CM3 adapter kit: compatible with C25-C40 models, supports chassis installation, includes SHV output connector, reverse polarity protection

CM4 adapter kit: compatible with C50-C80 models, supports chassis installation, includes LGH output connector, additional filtering

Environment and reliability

Working temperature: -10 ° C to+60 ° C (shell temperature), thermal management is required
