WESTINGHOUSE E510 series compact AC frequency converter (VFD)

Auto run mode: supports loop operation and is suitable for intermittent work scenarios such as intermittent conveying and batch mixing.

Rotating load start: It can directly start the motor in a rotating state to avoid damage to the equipment caused by reverse surge current.

DC injection braking: rapid shutdown, improving equipment operation safety and efficiency.

（2） Operation and configuration experience

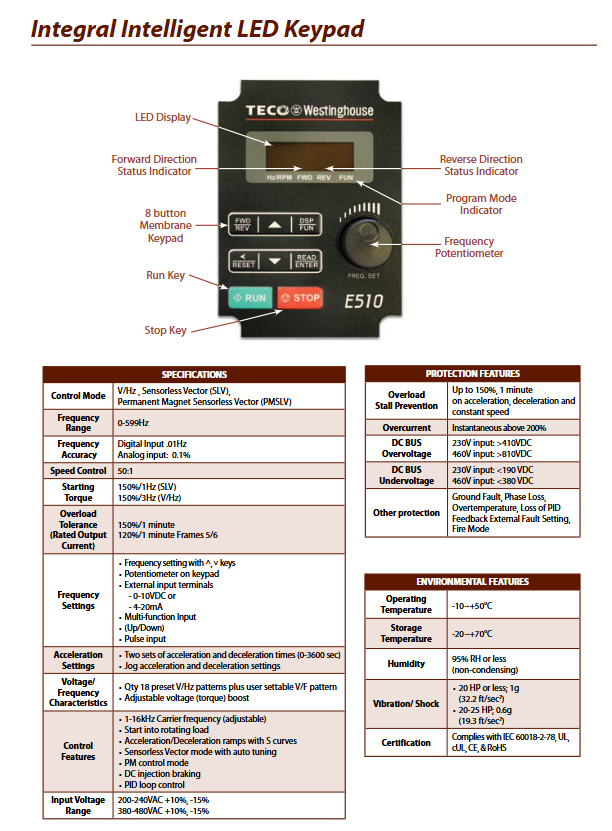

Intelligent operation keyboard:

Standard configuration includes a 5-digit LED keyboard with a speed potentiometer, supporting parameter programming, diagnostic monitoring, and speed setting.

Display function: switchable Hz/RPM units, supports zoom display, clear status indicator lights (forward rotation, reverse rotation, program mode, fault alarm).

Support remote installation: keyboard remote deployment can be achieved through extension cables (JN5-CM-01M~05M) to adapt to complex installation environments.

Parameter management: Parameters are grouped by function, with clear logic and convenient configuration; Support parameter upload/download (with optional JN5-CU replication unit) for unified configuration of multiple devices.

I/O interface and communication function

（1） I/O interface specifications

Specific configuration and characteristics of interface types

6-channel configurable digital input, 39 optional functions, supports customization of normally open/normally closed.

Powered by 24V power supply, including pulse input function, with a response time of about 4ms and quick triggering.

Digital output with 2 relay outputs, 20 optional functions, supporting customization of normally open/normally closed.

Contact capacity of 250VAC/1A, 30VDC/1A, can drive small actuators or alarm devices.

Analog input with 2 independent channels, capable of switching between 0-10VDC or 4-20mA signals.

It supports gain and offset adjustment and can be used as speed reference or PID feedback input to adapt to different sensor signals.

Simulate 1 channel 0-10VDC output, with 5 optional configurations (output frequency, set frequency, output current, output voltage, DC bus voltage).

Supports gain and bias adjustment, and can be used for monitoring operational parameters.

Safe input dedicated safe input terminal (SF1/SG), factory default jumper short circuit.

When disconnecting, the output of the frequency converter can be cut off, and an emergency stop button or safety interlock device can be connected to improve operational safety.

The power supply is equipped with a built-in 24VDC power supply (± 15%, maximum output of 60mA), which supplies power to external sensors and buttons;

Built in 10V power supply (maximum 20mA) for external potentiometer power supply, reducing external power configuration.

（2） Communication function

Standard communication interface: Built in RS485 interface, supports Modbus RTU or BACNet protocol, can exchange data with PLC, touch screen, and upper computer, supports remote monitoring and centralized control.

Extended communication accessories: optional JN5-CM-USB cable, realizing the connection between RS485 and PC (USB interface), facilitating parameter configuration, fault diagnosis, and data log export.

Protection characteristics and environmental adaptability

（1） Comprehensive protection function

Specific parameters and functions of protection types

Overload and locked rotor protection: 150% rated output current/1 minute (effective in acceleration, deceleration, and constant speed stages), 120%/1 minute (5/6 frame), to prevent motor overload and burnout.

Overcurrent protection triggers immediately when the instantaneous current exceeds 200%, cutting off the output to avoid short circuit damage between the frequency converter and the motor.

Bus voltage protection overvoltage protection: 230V input>410VDC, 460V input>810VDC;

Undervoltage protection: 230V input<190VDC, 460V input<380VDC;

Prevent device damage caused by abnormal bus voltage.

Other core protections include ground fault protection, phase loss protection, overheating protection, PID feedback loss protection, external fault setting, fire protection mode, covering all dimensional risks of circuits, equipment, and environment.

（2） Environmental adaptability

Temperature range: Operating temperature -10~+50 ℃, storage temperature -20~+70 ℃, suitable for most indoor industrial environments.

Humidity requirement: ≤ 95% RH (no condensation), to avoid circuit failures caused by humid environments.

Vibration and impact: Models with 20HP and below can withstand 1g of vibration (32.2ft/sec ²), while models with 20-25HP can withstand 0.6g of vibration (19.3ft/sec ²), demonstrating strong seismic resistance of the structure.

Dust prevention optimization: Optional dust stickers (JN5-ECOV1~ECOV4) can be used to enhance the protection level and prevent foreign objects from entering (after installation, the current should be controlled not to exceed 70% of the rated value).

Model classification and accessory expansion

（1） Core model classification

1. 230V 1/3 phase input/3 phase output

Model Example Power (HP) Output Current (A) Size (inches) Weight (lbs)

E510-2P5-H-U 0.5 3.1 7.43×3.57×5.96 3.5

E510-201-H-U 1 4.5 7.43×3.57×5.96 3.5
