EATON MP-3000 Motor Protection Relay: A Comprehensive Upgrade of Intelligent Motor Protection

Eaton MP-3000 is an advanced motor protection relay based on microprocessor technology, designed specifically for three-phase motors in industrial and commercial applications. Whether it is an induction motor or a synchronous motor, it can provide comprehensive protection, monitoring, and control functions regardless of voltage level and power size. As a direct upgrade replacement product for the previous generation Westinghouse/Butler Hammer IQ 1000 II, MP-3000 not only maintains the same installation holes and terminal compatibility, but also introduces multiple advanced features, bringing motor protection into the era of intelligence.

The MP-3000 can accurately measure three-phase current and ground current, combined with advanced thermal models and negative sequence weighting algorithms, to simulate the thermal state of the motor rotor and stator in real time, thereby safely operating near the limit and maximizing the utilization of the motor. At the same time, it integrates rich protection functions, including overload, locked rotor, instantaneous overcurrent, phase imbalance, ground fault, underload, start limit, etc., and can be combined with URTD module to achieve RTD based temperature protection, fully covering various faults and abnormal working conditions that the motor may encounter.

Core protection functions and technical principles

2.1 Intel-I-Trip Adaptive Overload Protection

The core of MP-3000 is its on-site validated Intel-I-Trip overload measurement and thermal protection model. This model utilizes the nameplate data of the motor (such as full load current FLA, locked rotor current LRC, maximum allowable locked rotor time LRT) to generate an overload protection curve for a specific motor. When the motor is running, the relay samples the current waveform 36 times per cycle to accurately calculate the positive and negative sequence currents as well as harmonic components. The thermal effect generated by negative sequence current on the rotor is much greater than that of positive sequence current, so the negative sequence component is given higher weight in the thermal model, which more accurately reflects the actual heating situation of the rotor.

The thermal model adopts the concept of "thermal capacity bucket", where the effective heating current continuously flows into the "bucket" to raise its liquid level, and the liquid level gradually decreases during cooling. When the liquid level reaches 100%, the relay sends a trip command. Users can obtain warnings before the bucket is full through the I2T alarm setting value (P4L2), in order to take measures to reduce the load.

When used in conjunction with the URTD module, the Intel-I-Trip model becomes adaptive: the actual stator winding temperature feedback dynamically adjusts the thermal model, allowing the motor to achieve higher load capacity under safe conditions.

2.2 Instantaneous Overcurrent Protection (IOC)

Used for quickly cutting off high current faults, such as phase to phase short circuits. This function can set the Start Delay (IOCSD) to avoid excitation inrush current during motor start-up and prevent false tripping. The usual setting value should be at least 1.5 times the locked rotor current.

2.3 Phase current imbalance protection (46)

Measure the ratio of negative sequence current to positive sequence current to detect abnormal situations such as voltage imbalance or single-phase power supply. Users can set alarm and trip thresholds separately, and are equipped with independent startup and operation delays to prevent misoperation caused by brief disturbances.

2.4 Grounding fault protection (50G/51G)

MP-3000 provides high sensitivity ground fault protection, and it is recommended to use magnetic balanced ground CT (zero sequence CT) for optimal sensitivity. The protection setting is set as a percentage of the rated current of the grounding CT, and can be set with startup and operation delays. This function has been certified by UL 1053 and can replace an independent ground fault protector.

2.5 Blocking/jamming protection (51R)

When the motor suddenly gets stuck due to mechanical failure during operation, the current will rise sharply. The MP-3000's stall protection can detect this situation and is equipped with a start-up delay (JMSD) and a running delay (JMTR), which can protect the motor and avoid tripping due to brief impact.

2.6 Underload Protection (37)

Used to detect load loss caused by coupling breakage, belt breakage, pump idling, etc. Users can set the underload current threshold (percentage below FLA) and use it in conjunction with a delay.

2.7 RTD temperature protection (49/38)

Through the optional URTD module, MP-3000 can connect up to 11 RTDs (resistance temperature detectors), including 6 stator windings, 2 motor bearings, 2 load bearings, and 1 auxiliary channel. Each channel can independently set alarm and trip temperatures, and the maximum temperature of the stator winding will also participate in the adaptive adjustment of the thermal model.

2.8 Startup Control and Limitations

The MP-3000 is equipped with a complete motor start management logic, including:

Allowable startup times/times (ST/T, T/ST): Limit the maximum number of startups within the set time.

Startup Interval Time (TBS): Prevent frequent startups.

Number of cold starts (NOCS): The number of consecutive cold starts allowed.

Anti reverse time (ABK): For pump loads, prevent starting immediately after the motor stops to avoid reverse impact.

When any restriction is triggered, the relay will display the remaining waiting time and prevent restarting after the motor stops.

2.9 Emergency override function

In emergency situations, operators can use the emergency override button on the panel (to be enabled) or remote input to forcibly reset all startup restrictions and clear the thermal model bucket, allowing for immediate restart of the motor. This operation will be recorded in the event log and may cause damage to the motor. It should only be used in emergency situations that endanger personnel or equipment.

2.10 Disarmament Mode

This mode allows the relay to be placed in the "disarmed" state during operation, while all protection functions are still running internally. The tripping conditions will be displayed and recorded, but the tripping relay will not operate. This is very useful for debugging new relays or new settings in key processes, and can observe the protection behavior without interrupting production.

Technical specifications and hardware features

3.1 Power Supply and Control

Rated voltage: 120 Vac or 240 Vac (automatic adaptation), allowable fluctuation range -25%/+10%.

Power consumption: Maximum 24 VA (body), URTD module 6 VA, IPONI 1 VA.

Voltage sag tolerance: It can still operate continuously at 55% of the rated voltage, and can maintain 13 cycles (60 Hz) after complete power loss.

3.2 Current input

Rated current: 1 A or 5 A (depending on the model).

Thermal endurance: 2 times rated continuous, 50 times rated 1 second.

Accuracy: Phase current ± 1% of I1 (0~I1) or ± 1% reading (above I1); The accuracy of grounding current is slightly lower.

3.3 Output contacts

4-channel Form C (1NO+1NC) contacts: trip, alarm AUX1、AUX2， Programmable (except for trip relays).

Contact capacity: 5 A @ 120/240 Vac, 0.25 A @ 250 Vdc resistive load.

3.4 Discrete Input

2-channel programmable 120 Vac input, configurable for remote reset, remote tripping, differential tripping, motor stop detection, reset disable, emergency override, zero speed switch, incomplete sequence feedback, etc.

3.5 Analog Output

4~20 mA programmable output, selectable to represent average phase current (0~100% FLA or 0~125% FLA), I2t thermal capacity percentage, or maximum winding temperature. The maximum load is 1 k Ω.

3.6 URTD module

Communication method: plastic fiber optic (recommended) or three wire electrical connection.

RTD type: 10 Ω copper, 100/120 Ω nickel, 100 Ω platinum.

Maximum distance: Fiber optic 400 ft (122 m), electrical 500 ft (152 m).

3.7 Environment and Certification

Working temperature: -20 ° C to+60 ° C.

Storage temperature: -45 ° C to+85 ° C.

Humidity: 0~95% without condensation.

Standards: Compliant with ANSI/IEEE C37.90, UL 1053, CE (EMC), etc.

Operation panel and user interface

The front panel design of MP-3000 is intuitive and easy to use, including:

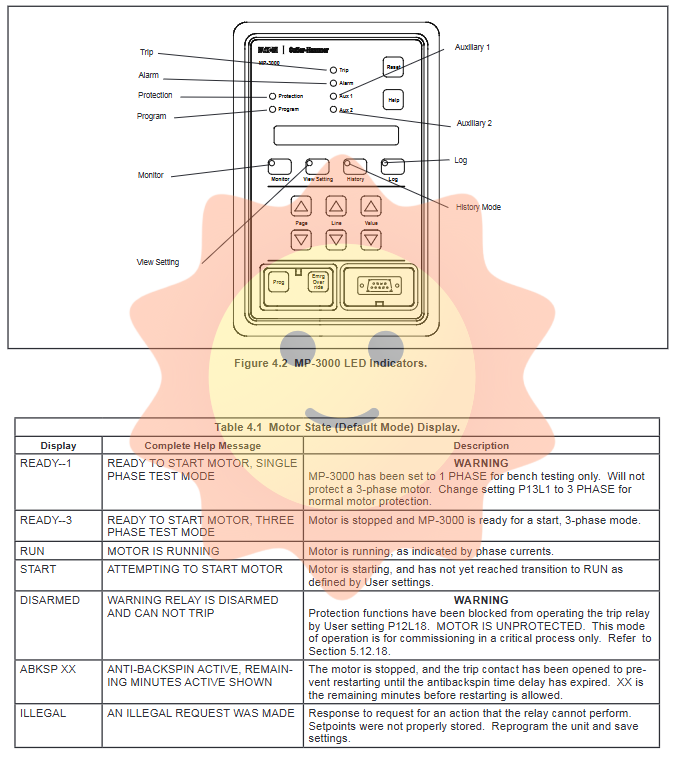

4-line alphanumeric display screen: displays status, measurement values, settings, and logs.

Mode buttons: Monitor, view settings, history, logs, corresponding LED indicators.

Navigation buttons: page up and down, line up and down, numerical addition and subtraction, help to quickly navigate.

Reset button: Clear the trip status and exit programming.

Help button: Display help information for the current screen.

Protection door: The lower small door contains programming buttons and emergency override buttons, which can be sealed with lead to prevent unauthorized operation.

Installation and wiring

5.1 Mechanical Installation

MP-3000 adopts semi embedded installation, with hole size fully compatible with IQ 1000 II, making it easy to replace directly. The optional Quick Release Drawout Case allows for quick replacement of relays without disconnecting wiring, and the CT circuit has a self short circuit function to ensure safety.

5.2 Electrical wiring

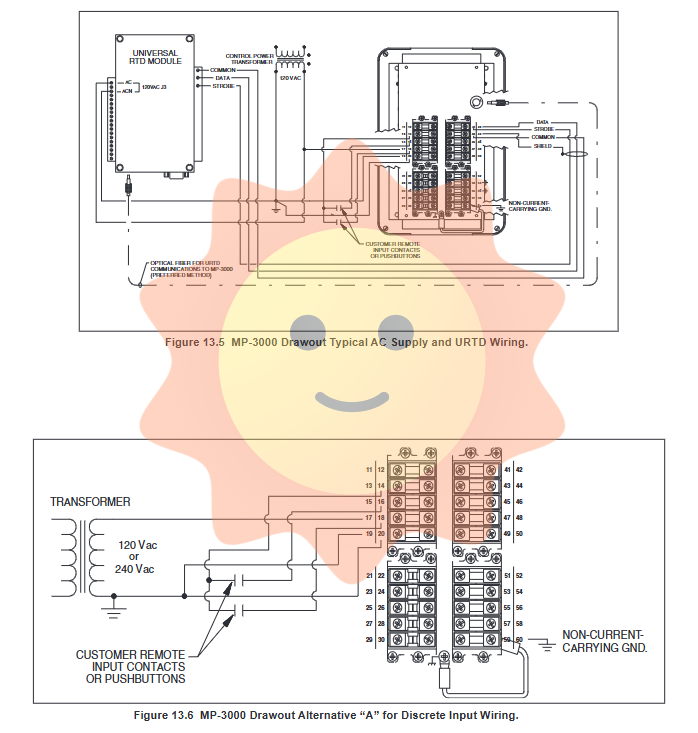

CT wiring: It is necessary to pay attention to polarity and phase sequence, and it is recommended to use short and thick wires to reduce saturation effects. The grounding CT should use a magnetic balance CT, with three phase wires passing through simultaneously.

Output contacts: Trip relays are usually connected in series in the contactor coil circuit; Alarm, AUX1, and AUX2 can be freely configured according to the application.

Power supply: Connect to terminal 4 and automatically adapt to 7120 Vac or 240 Vac.

Discrete input: Using a 120 Vac signal, wet power can be provided by internal terminal 6.

URTD module: Priority is given to using fiber optic communication, with strong anti-interference ability. RTD wiring adopts a three wire shielded cable, with the shielding layer grounded at one end.

Communication and System Integration

MP-3000 supports multiple communication protocols and is implemented through the optional PONI (Product Operation Network Interface) module

I-PONI: INCOM network, suitable for IMPACC system.

RS-485 PON: Modbus RTU protocol.

D-PONI: DeviceNet protocol.

E-PONI: Ethernet 10BaseT or fiber optic, directly connected to the local area network.

Through PowerNet or PowerPort software, users can remotely read real-time data, modify settings, view historical records and event logs, and perform control operations such as remote tripping, resetting, emergency override, etc. Specifically, the motor starting current curve can be uploaded and displayed through PowerNet for easy comparison and verification with the protection curve.

Testing and Maintenance

MP-3000 provides a dedicated testing page (SP TEST) that allows users to test output relays and analog outputs without affecting operation:

Relay testing: forced tripping, alarm, AUX1, AUX2 action.

Analog output test: Force output of 4, 12, or 20 mA.

Discrete input state: Real time display of the on/off status of DI1 and DI2.

Single phase test mode: It is allowed to use a single-phase current source for basic testing, but the three-phase mode must be restored during normal operation.

Drawer style chassis options

Drawout Case provides MP-3000 with higher maintenance flexibility:

Quick release: Press both the up and down buttons simultaneously to extract the inner chassis.

CT self short circuit: When extracted, the contacts inside the chassis automatically short-circuit the CT secondary circuit to prevent open circuit high voltage.

Backup self short circuit contact: can be used to keep the motor running (via bypass tripping contact) or to issue an "unprotected" alarm.

URTD fiber optic access: There is a fiber optic entrance at the back of the chassis to connect the URTD module.

Typical application scenarios

MP-3000 is widely used in various industrial settings, such as:

Pumps, fans, and compressors: use underload protection to detect idling or shaft breakage.

Crusher and conveyor: use blockage protection to detect mechanical jamming.

High inertia load: Utilizing the Long Acceleration Time (LAT) function and zero speed switch in conjunction to safely complete the start-up.

Synchronous motor: using the "motor stop" input to achieve no current operation mode.

Key process: Use the disarmament mode for debugging and utilize emergency response to handle emergency situations.

10、 Troubleshooting and Diagnosis

The MP-3000 has powerful self diagnostic capabilities, which can detect internal hardware faults (such as RAM, ROM, A/D converters, FLASH write errors) and select only alarm or alarm plus trip through user settings (P12L16). The common causes and solutions for external alarms and trips are clearly listed in the manual in the form of tables, making it easy for on-site maintenance personnel to quickly locate the problem.
