EATON SPD series surge protector

EATON SPD series surge protector

Product Overview

The Eaton SPD series surge protection device is the latest generation of advanced surge protection devices certified by UL 1449 5th edition. This series of products adopts thermal protection metal oxide varistor (MOV) technology and can be integrated into various types of Eaton distribution equipment, including distribution panels, switchgear, motor control centers, medium voltage switchgear, automatic transfer switches, and busbar junction boxes. In addition, the SPD series also offers a side mounted version that can be installed outside of electrical equipment.

The SPD series covers multiple surge current capacity levels from 50kA to 400kA, supports all common voltages and configurations, and offers four functional package options. Its rich features, options, and configurations ensure that users can choose the most suitable protection unit for various electrical applications, including inlet ports, distribution cabinets, distribution panels, and terminal equipment.

Core technical features

1. Thermal protection MOV technology

The SPD series uses metal oxide varistors as the core protective component and integrates thermal protection function. When MOV generates excessive heat due to abnormal overvoltage, the thermal protection device will isolate it from the circuit to ensure equipment safety and avoid the risk of thermal runaway.

2. UL 1449 5th edition certification

As the latest UL 1449 certified product, the SPD series has undergone rigorous testing, including:

Nominal discharge current (In) test: 20kA

Voltage Protection Rating (VPR) Test

Fault mode testing

Thermal stability test

3. High short-circuit current tolerance

The SPD series has a short-circuit current rating (SCCR) of 200kA, which can withstand the maximum fault current that may occur in the power system without damage.

4. Multiple surge capacity levels

Provide 9 surge current capacity levels, including 50kA, 80kA, 100kA, 120kA, 160kA, 200kA, 250kA, 300kA, and 400kA, to meet the protection needs of different risk levels.

5. Electromagnetic interference filtering

The standard type, standard type with counter, and Power Xpert SPD all have built-in EMI/RFI filters that can provide up to 50dB noise attenuation in the frequency range of 10kHz to 100MHz, improving power quality.

6. Network security authentication

The Power Xpert SPD model has passed UL 2900-1 network security standard testing, ensuring that networked devices have the necessary network security to prevent malicious attacks.

Feature Pack Options

The SPD series offers four functional packages, which users can choose according to their application needs:

1. Basic type

Thermal protection MOV technology

Dual color protection status indicator light (for each phase and N-G mode)

Sound and light alarm with mute button

Form C relay contacts

2. Standard type

Add:

EMI/RFI filtering

Tri color protection status indicator light

Remaining protection percentage display

3. Standard with Surge Counter

Add on to the standard model:

Resettable surge counter

4. Power Xpert SPD

Add intelligent functions on the basis of the standard model:

RJ45 Ethernet port, supports LAN connection

Modbus TCP/IP and BACnet/IP protocols

Built in web page, programmable settings

Time stamped surge logs and surge classification

Real time clock, network synchronization accuracy ± 2 minutes/month (25 ° C)

Remote display options

The SPD series supports remote installation of display panels, suitable for situations where devices are installed internally but require external viewing of status.

Remote display unit selection

SPD units with directory numbers ending in "B" (see directory number configuration on page 8) are suitable for remote display applications. This type of unit includes SPD host and remote display panel, and remote display cables need to be purchased separately.

Remote display cable

Describe the standard SPD catalog number Power Xpert SPD catalog number

4-foot remote display cable SPDRDCAB04 PXSPDRDCAB04

8-foot remote display cable SPDRDCAB08 PXSPDRDCAB08

12 foot remote display cable SPDRDCAB12 PXSPDRDCAB12

Note: The units integrated into the switchgear by Eaton's factory do not require separate purchase of cables, and the factory has provided and completed the installation.

On site modification kit

For installed standard SPD units, remote installation of the display panel can be achieved through a remote display kit, which includes all required components (including cables).

Describe the standard SPD catalog number Power Xpert SPD catalog number

Remote display kit, 4-foot cable SPDRDKIT04 PXSPDRDKIT04

Remote display kit, 8-foot cable SPDRDKIT08 PXSPDRDKIT08

Remote display kit, 12 foot cable SPDRDKIT12 PXSPDRDKIT12

Performance data and voltage protection level

ANSI/UL 1449 5th edition Voltage Protection Rating (VPR)

The SPD series provides VPR data for two installation methods:

Direct busbar installation (catalog number ending in A): Only applicable to Eaton PRL1a, 2a, 3a, and 3e distribution panels

Connected through circuit breakers (catalog numbers ending in B, C, or J): suitable for switchgear, distribution panels, switchboards, motor control centers, etc

Here are some typical VPR data examples:

50kA direct busbar installation unit VPR

Voltage code protection mode L-N L-G N-G

230L 1000 2000 1000

240S 500 1000 500

208Y/220Y 500 1000 500

400Y/480Y 1000 2000 1000

600Y 1200 2500 1200

240H 500 1000 500

50kA connected unit VPR through circuit breaker

Voltage code protection mode L-N L-G N-G

230L 1200 2000 1200

240S 700 1200 700

208Y/220Y 700 1200 700

400Y/480Y 1200 2000 1200

600Y 1500 2500 1500

240H 700 1200 700

The VPR data for higher surge capacity levels are detailed in Tables 4 to 11 of the original text.

Technical specifications

Electrical parameters

Parameter specifications

Nominal discharge current (In) 20kA

Short circuit current rating (SCCR) 200kA

Power frequency 50/60 Hz (Power Xpert SPD only tests 60 Hz)

Power consumption (basic type) 0.5W~1.3W (depending on voltage code)

Power consumption (standard/with counter) 0.6W~2.1W (depending on voltage code)

Power consumption (Power Xpert SPD) 4W (all voltage codes)

Maximum Continuous Operating Voltage (MCV)

Voltage code L-N L-G N-G L-L

208Y/220Y/240S 150 300 150 300

230L 320 640 320 —

400Y/480Y 320 640 320 640

600Y 420 420 420 840

240D — 300 — 300

480D — 640 — 640

600D — 840 — 840

protected mode

Single phase: L-N, L-G, N-G, L-L

Three phase star: L-N, L-G, N-G, L-L

Three phase triangle: L-N, L-G, L-L

relay output

Contact type: Form C (one normally open and one normally closed)

Rated value: 150 Vac @ 0.46A, 30 Vdc @ 1A

Logic:

Normal power on state: NO contact open, NC contact closed

Power failure status: NO contact closed, NC contact disconnected

environmental parameters

Working temperature: -40 ° C to+50 ° C (-40 ° F to+122 ° F)

Working humidity: 5%~95% (without condensation)

Working altitude:

Standard SPD: up to 5000 meters

Power Xpert SPD: up to 2000 meters

Seismic resistance: meets the requirements of IBC 2018, CBC 2007, and UBC Zone 4

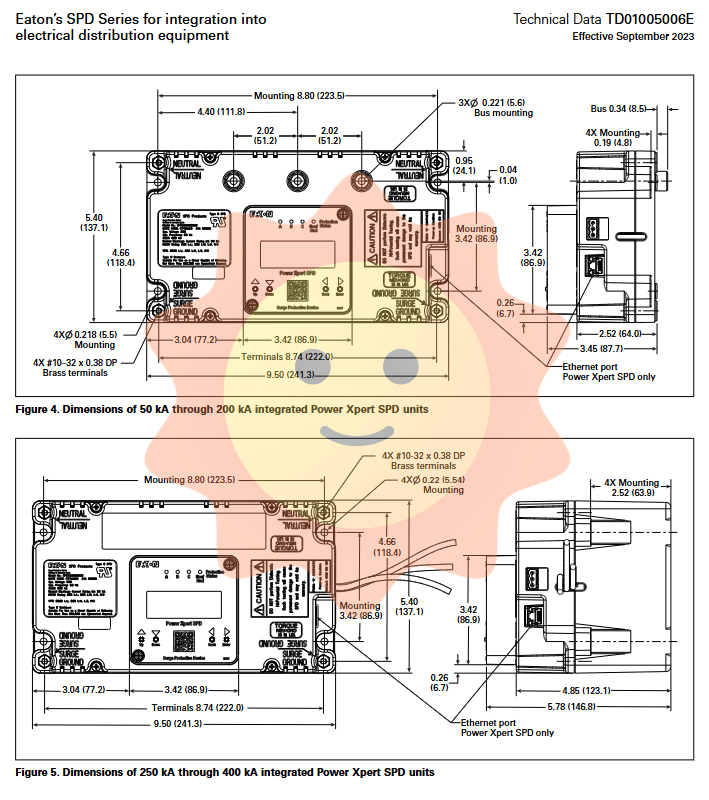

mechanical parameters

Surge capacity weight

50-200kA approximately 1.6 kg (3.5 lb)

250-400kA, approximately 3.2 kg (7.0 lb)

wiring

Factory pre connected 18 inch # 10 AWG wire (for installing suffixes B, C, J)

Certification and Standards

The SPD series has passed multiple international authoritative certifications:

Standard description

UL 1449 5th Edition Surge Protection Device Standard

UL 1283 7th Edition Electromagnetic Interference Filter Standard

CSA C22.2 No. 269.2-17 Surge Protection Device - Type 2

CSA C22.2 No. 269.4-17 Surge Protection Devices - Type 4 Components

UL 60950-1 Information Technology Equipment Safety

UL 2900-1 Networking Product Software Network Security (Power Xpert SPD)

ICES/FCC Part 15 Subpart B Class A Conducted and Radiated Emission Limits

IEC 255-21-1/2 Seismic Testing of Relays

IEEE 693-2018 Seismic Design of Substations

In addition, the SPD series can be used to meet:

UL 96A Lightning Protection System Standard

NFPA 780 Installation Standard for Lightning Protection Systems

RoHS Hazardous Substance Restriction Directive

Selection and ordering information

Catalog Number Configuration Rules

Location Options Description

Series SPD surge protection device

KA level 05008010012016020025030400 Surge capacity per phase

Voltage codes 230L, 240S, 208Y, 220Y, 400Y, 480Y, 600Y, 240D, 480D, 600D, 240H System voltage and configuration

Function Package 1=Basic Type, 2=Standard Type, 3=Standard Type+Counter, 4=Power Xpert SPD Function Level

Application A=direct busbar installation of distribution panel, B=switchgear, C=distribution panel/switch board/busbar, J=installation method of motor control center

Selection example

SPD250480D2J meaning:

SPD series

250kA per phase

480V Triangle System (480D)

Standard Feature Pack (2)

Application of Motor Control Center (J)

Precautions

PRL1a, 2a, 3a, 3e distribution panel direct busbar installation only supports 50-200kA, using the suffix "A"

When the same distribution panel is connected through a circuit breaker, use the suffix "C"

Power Xpert SPD is not suitable for corner grounded delta systems and requires voltage on each phase to function properly

240V high foot triangle (4W+G) B-phase high foot is standard configuration. If you need C-phase high foot, please consult the factory
