In the field of modern process control, the core of distributed control system (DCS) lies in its input/output (I/O) subsystem, which is responsible for connecting field devices and controllers, realizing data acquisition and instruction issuance. Emerson's Ovation system is widely used in industries such as power and chemical due to its high reliability and flexibility. This article is based on the Ovation I/O Reference Manual (R3-1150) to systematically explain the architecture, types, technical specifications, and engineering practices of Ovation I/O modules, aiming to provide professional references for engineers and technicians.

Overview and General Characteristics of I/O Subsystem

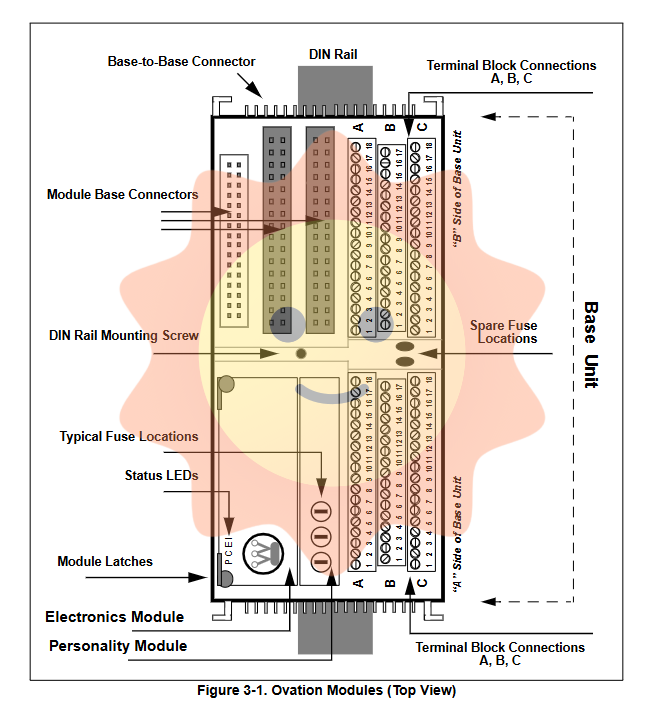

The Ovation I/O subsystem adopts a modular design and supports both local and remote deployment methods. All standard I/O modules consist of three parts: Base Unit, Electronics Module, and Personality Module. The base unit is installed on a DIN rail, carrying two I/O modules and providing on-site wiring terminals. The electronic module contains logic circuits, while the personality module performs signal conditioning and isolation based on signal types such as voltage, current, and thermocouple.

This subsystem has the following core characteristics:

Plug and play and hot swappable: Modules can be replaced while the system is running without interrupting the process.

Diagnostic indication: Each module is equipped with standardized LED indicator lights: green "P" indicates normal power supply, green "C" indicates normal communication with the controller, red "I" indicates internal faults, and red "E" indicates external faults (such as blown fuses or loss of auxiliary power supply).

Environmental adaptability: All I/O modules support operating temperatures from 0 to 60 ℃, non condensing humidity from 5% to 95%, and comply with ISA G3 anti-corrosion standards, making them suitable for harsh industrial environments.

Keying: Ensure the correct matching of electronic modules and terminal blocks through mechanical key positions to prevent incorrect insertion.

Main I/O module types and technical specifications

2.1 Analog input module

13 bit analog input module (1C31113 series): Provides 8-channel isolated input, supports multiple voltage ranges from ± 20mV to ± 10V, and 0-20mA/4-20mA current input (with corresponding personalized modules). The accuracy is ± 0.1%, and the sampling rate is 10 times per second. Supports thermocouple input (needs to be combined with personalized module 1C31116G04 with temperature sensor), and provides cold junction compensation.

14 bit analog input module (1C31224 series): Provides 8-channel 4-20mA or ± 1V input with higher accuracy, sampling rate of 20 times/second (60Hz system) or 25 times/second (50Hz system). Equipped with self calibration function.

High speed analog input module (5X00070 series): specially designed for high-speed applications, with a sampling rate of up to 50/60 times/second, supporting multiple voltage, current, and thermocouple inputs.

RTD input module (1C31161 series): 4-channel, supports various thermal resistors such as Pt100, Ni120, Cu10, etc., supports 2/3/4 wire connection, high accuracy, built-in linearization.

HART Analog Input Module (5X00058/5X00059): 8-channel, supports 4-20mA analog input, and can be combined with HART digital communication for reading multivariable data (PV, SV, TV, QV) from smart instruments. The module is equipped with fuse protection and HART communication status indication.

2.2 Analog output module

Analog output module (1C31129 series): 4-channel, 12 bit resolution, providing 0-5V, 0-10V voltage output or 0-20mA/4-20mA current output. Capable of diagnosing overcurrent and undercurrent (some groups). Support communication timeout settings for output hold or reset.

HART Analog Output Module (5X00062/5X00063): 8-channel, 14 bit resolution, 4-20mA output, supports HART communication, and can send digital commands to smart valve positioners and other devices. Equipped with open-loop detection function.

2.3 Discrete input module

Digital input module (1C31107 series): 16 channels, supporting 24/48/125 VAC/VDC inputs, available in single ended (common ground) and differential types. Single ended type with fuse detection function.

Compact digital input module (1C31232 series): 16 channels, providing multiple configurations such as single ended, differential, and independent fuses (requiring 5X00034 personality module), optimizing space and cost.

Contact input module (1C31142/1C31234 series): 16 channels, built-in 48V wet voltage, suitable for dry contact detection. Equipped with grounding fault detection function to ensure signal reliability.

Event sequence module (1C31157/1C31233 series): 16 channels, used to record timestamps of switch status changes, with a resolution of up to 125 μ s. Supporting event filtering and jitter suppression is a key equipment for accident recall.

Pulse accumulator module (1C31147 series): 2-channel, configurable for frequency measurement, pulse counting, or pulse width measurement. Supports multiple levels of input including 5V, 12V, 24/48V, and has a debounce function.
