In the field of industrial pneumatics, ROSS Controls has become a leading global manufacturer of directional control valves, safety pneumatic products, and air source processing units with over 75 years of experience. Its product line covers ISO standard valves, series bus communication modules, reliable control dual valves, explosion-proof valves, locking valves, and FRL units, providing comprehensive solutions for applications such as mechanical presses, hydraulic equipment, automated assembly lines, hazardous environments, and energy isolation. This article provides a systematic and in-depth analysis of ROSS's core product series, technical features, and selection criteria based on its latest product catalog.

ISO standard valve series: integration of modularity and high performance

ROSS provides valve assemblies that comply with ISO 15407-1, ISO 15407-2, ISO 5599/I, and ISO 5599/II standards, covering various specifications such as size 00 (18 mm), 0 (26 mm), 1, 2, 3, etc., to meet global installation size requirements.

1. W66 series (ISO 15407-1/2)

Sizes 00 and 0, 5/2 single/dual electronic control and 5/3 dual electronic control.

Structural form: Spool&Sleeve, providing high switching speed and lubrication free operation.

Interface form: ISO 15407-1 is lead out type, ISO 15407-2 is plug in type for easy maintenance.

Standard voltage: 24 V DC (1.0 W power consumption) and 120 V AC (2.0 VA).

Working pressure: Vacuum to 145 PSI (10 bar); The minimum pressure for two position valves is 20 gauge, and for three position valves it is 30 gauge.

Flow rate: Size 00 Cv=0.55, Size 0 Cv=1.1.

Material: Die cast aluminum valve body, PBT end cap, thermosetting plastic coil.

Can integrate serial bus communication (see later).

2. W60/W64/W65 series (ISO 5599/I and ISO 5599/II)

Sizes 1, 2, 3, 5/2 single/dual electric control, 5/3 dual electric control and pneumatic valve.

W60 series: Precision stainless steel valve core/sleeve, high reversing speed, long life, suitable for lubrication free operation.

W64 series: Poppet structure with high tolerance to dirty air.

W65 series: ISO 5599/II plug-in type, valve body can be replaced without rewiring, facilitating serial bus integration.

Flow rate: Size 1 Cv ≈ 0.8~1.0, Size 2 Cv ≈ 1.9~2.3, Size 3 Cv ≈ 3.8~4.0.

Working pressure: Vacuum to 150 PSI (10 bar); The pilot pressure for size 1 is ≥ 30 PSI, and size 2/3 is ≥ 15 PSI.

Power consumption: AC 11 VA shock/8.5 VA hold, DC 6 W。

Optional high temperature (fluororubber) seal.

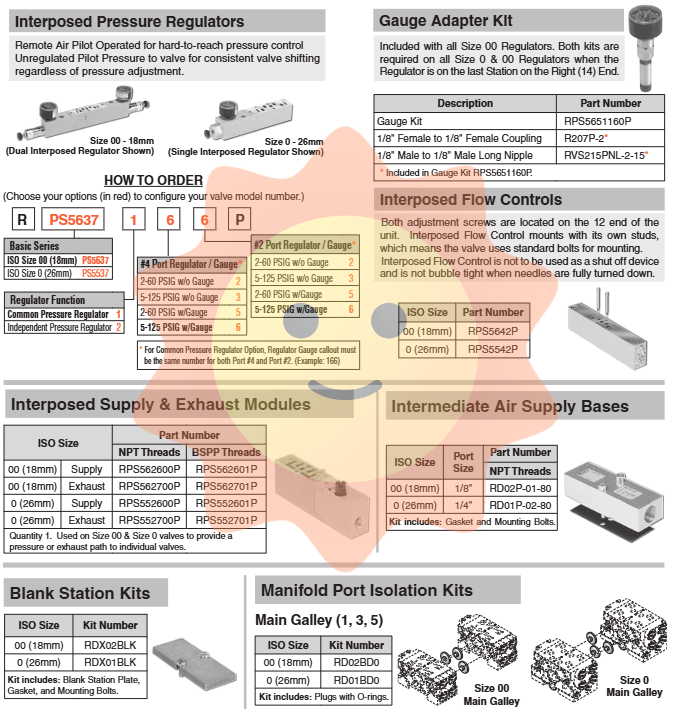

The attachments include intermediate pressure regulator, intermediate flow control, blank station board, isolation board, etc.

All ISO valves can be paired with the ROSS Serial Bus system to achieve centralized or distributed I/O control.

Serial Bus Communication System: Integrated Pneumatic and I/O

The ROSS serial bus system is based on Turck's BL67 modular I/O or its own PointBus architecture, supporting DeviceNet ™、 ControlNet ™、 EtherNet/IP ™、 PROFIBUS DP ™  Waiting for mainstream industrial Ethernet and fieldbus protocols.

1. Centralized and remote configuration

Centralized: The valve island is tightly installed with I/O modules, with 8 points per I/O module, connected to sensors and actuators through M12, M8, or M23 connectors.

Remote configuration: Extend valve island and remote I/O through M23 12 pin cable to adapt to distributed layout.

Partition remote: Separate pneumatic valves, I/O modules, and power supplies in enclosures with different levels of protection.

2. Key modules

Communication adapter: RPSSCDM12A（DeviceNet M12）、RPSSCDM18PA（DeviceNet M18）、RPSSCCNA（ControlNet）、RPSSCENA（EtherNet/IP）、RPSSCPBA（Profibus）。

I/O module: 8-point digital input/output (optional PNP/NPN), 2-point analog input/output (0-10 V or 4-20 mA), and 4-point relay output (2 A).

Valve drive module: RPSSV32A, supports 32 point output, drives ISO size 00/0/1/2/3 valves.

Power expansion module: RPSSSE24A, one additional module needs to be added every 12 modules to provide an additional 5V bus current (maximum 1.3 A).

Terminal module: RPSSTERM is used at the end of the bus.

The system supports up to 63 I/O modules, 264 inputs and 264 outputs, with a protection level of IP65/66/67 and a working temperature range of -20 ° C to 60 ° C.

Safety related products: from energy isolation to reliable control

ROSS has L-O-X in the field of safety aerodynamics ®  Lock valve EEZ‑ON ®  Soft start valve, DM1/DM2 series dual valve, pilot operated one-way valve CrossMirror ®  Rich product lines including dual valves and explosion-proof valves.

1. L‑O‑X ®  Manual locking valve (15 series)

Function: 3/2 normally closed, used for energy isolation in pipelines, in compliance with OSHA standards (1910.147).

Features: Red handle, padlockable only in the closed position, full flow exhaust port (≥ intake size).

Installation form: Modular (Slim Line, Modular, Classic) and stainless steel versions.

Interface size: 1/4 "to 2", Cv from 2.67 to 40.38.

Working pressure: 0-145 PSI (Slim Line) or 0-300 PSI (Classic).

Optional pressure switch (5 PSI drop closed) and pop-up indicator.

2. EEZ‑ON ®  Soft start valve (19/27 series)
