Honeywell SS2-AM Series Ultra-High Speed Digital Fire and Flame Detector (UV/IR)

Honeywell SS2-AM Series Ultra-High Speed Digital Fire and Flame Detector (UV/IR)

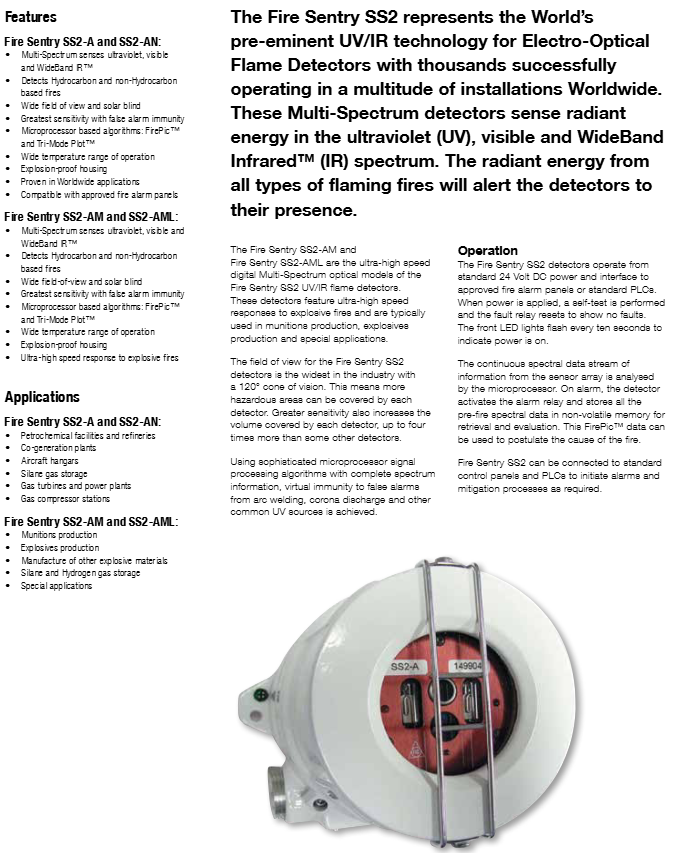

Product Overview

The Fire Sentry SS2 series is a globally outstanding multispectral digital photoelectric flame detector that utilizes leading UV/IR technology and has been successfully applied in numerous installation sites worldwide. This series of detectors can sense the radiation energy of ultraviolet (UV), visible light, and wideband infrared (IR) spectra, and can detect various types of open flames. It has a wide field of view and high sensitivity, while effectively avoiding false alarms.

Model and Features

SS2-A and SS2-AN

Multispectral detection: sensing ultraviolet, visible light, and WideBand IR ™。

Detection range: Can detect both hydrocarbon and non hydrocarbon fires.

Performance advantages: Wide field of view and day blindness, high sensitivity, with false alarm immunity, using a microprocessor based algorithm (FirePic) ™  And Tri Mode Plot ™）， The working temperature range is wide, and the shell is explosion-proof. It has been verified in applications worldwide and is compatible with approved fire alarm panels.

SS2-AM and SS2-AML

Multispectral detection: equally sensitive to ultraviolet, visible light, and WideBand IR ™， Can detect both hydrocarbon and non hydrocarbon fires.

Outstanding features: Wide field of view and day blindness, high sensitivity, with false alarm immunity, using a microprocessor based algorithm (FirePic) ™  And Tri Mode Plot ™）， The working temperature range is wide, the shell is explosion-proof, and the response speed to explosive fires is extremely fast.

Application scenarios

SS2-A and SS2-AN: Petrochemical facilities and refineries, combined power plants, aircraft hangars, silane gas storage facilities, gas turbines and power plants, gas compressor stations, etc.

SS2-AM and SS2-AML: ammunition production, explosive production, manufacturing of other explosive materials, silane and hydrogen storage facilities, and special application scenarios.

Operation mode

Powered by a standard 24V DC power supply, it can be connected to approved fire alarm panels or standard PLCs.

After power on, a self check will be performed, and the fault relay will reset to display no faults. The front LED will flash every ten seconds to indicate that the power is on.

The microprocessor analyzes the continuous spectral data stream from the sensor array, activates the alarm relay upon alarm, and stores all pre fire spectral data in non-volatile memory, FirePic ™  The data can be used to speculate on the cause of the fire.

Can be connected to standard control panels and PLCs to initiate alarm and mitigation processes as needed.

Technical specifications

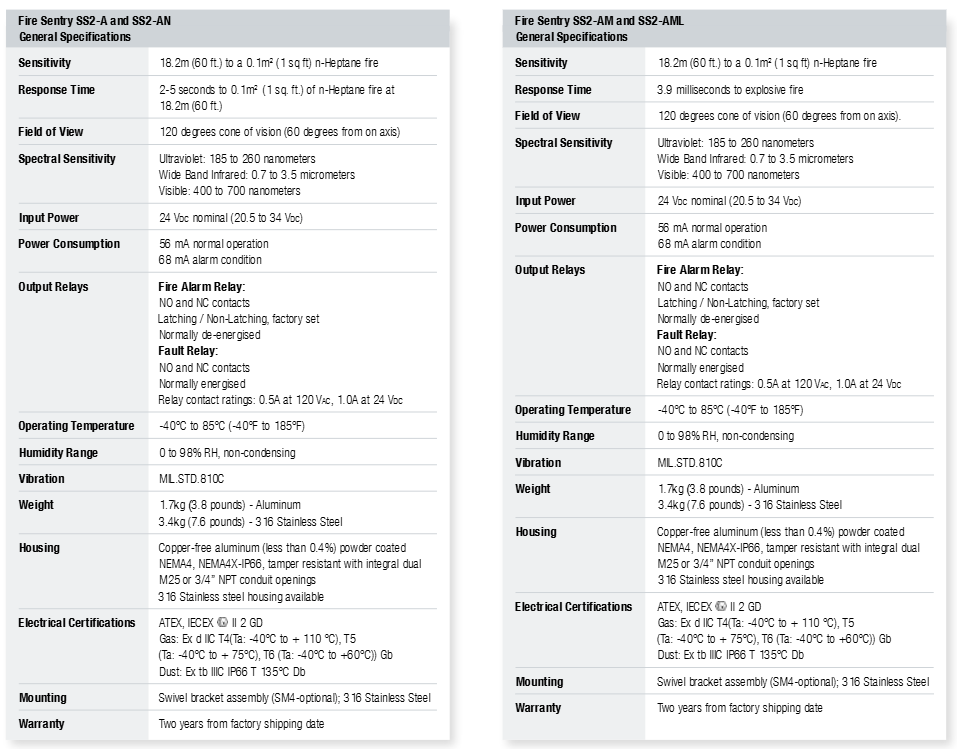

General specifications for SS2-A and SS2-AN

Sensitivity: The detection distance for a 0.1 square meter (1 square foot) n-heptane fire is 18.2 meters (60 feet).

Response time: The response time to a 0.1 square meter (1 square foot) n-heptane fire at 18.2 meters (60 feet) is 2-5 seconds.

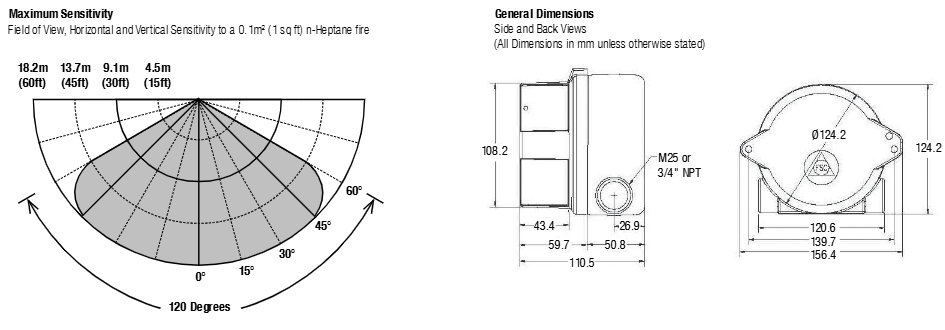

Field of view: 120 degree cone (60 degrees off-axis).

Spectral sensitivity: UV 185-260 nanometers, wideband infrared 0.7-3.5 micrometers, visible light 400-700 nanometers.

Input power supply: nominal 24V DC (20.5-34V DC).

Power consumption: Normal operation 56mA, alarm state 68mA.

Output relay: Fire alarm relay has NO and NC contacts, locked/non locked (factory set), usually powered off; The faulty relay has NO and NC contacts and is usually powered on; The rated value of relay contacts is 0.5A at 120V ac and 1.0A at 24V dc.

Working temperature: -40 ° C to 85 ° C (-40 ° F to 185 ° F).

Humidity range: 0-98% RH, no condensation.

Vibration: Complies with MIL.STD.810C standard.

Weight: 1.7kg (3.8 pounds) made of aluminum, 3.4kg (7.6 pounds) made of 316 stainless steel.

Shell: Copper free aluminum (content less than 0.4%) powder coating, compliant with NEMA4, NEMA4X-IP66, tamper proof, with integrated dual M25 or 3/4 "NPT conduit openings, provided with 316 stainless steel shell.

Electrical certification: ATEX, IECEX II 2 GD, etc.

Installation: Rotating bracket assembly (SM4- optional), made of 316 stainless steel material.

Warranty: Two years from the date of factory shipment.

General specifications for SS2-AM and SS2-AML

Sensitivity: The detection distance for a 0.1 square meter (1 square foot) n-heptane fire is 18.2 meters (60 feet).

Response time: The response time for explosive fires is 3.9 milliseconds.

The remaining parameters (field of view, spectral sensitivity, input power, power consumption, operating temperature, humidity range, vibration, weight, enclosure, electrical certification, installation, warranty) are the same as SS2-A and SS2-AN.
