YOKOGAWA AFV40S/AFV40D on-site control unit (with cabinet)

YOKOGAWA AFV40S/AFV40D on-site control unit (with cabinet)

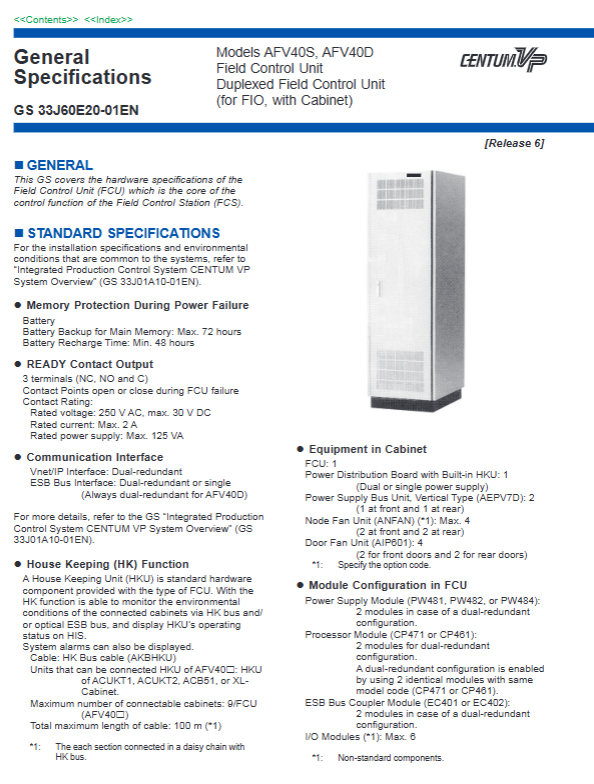

Core hardware configuration and specifications

1. Core module configuration

Module Type Single Redundancy (AFV40S) Double Redundancy (AFV40D) Key Description

1 power module (PW481/PW482/PW484), 2 optional dual power supplies (redundant configuration) supporting 100-120V AC/220-240V AC/24V DC

1 processor module (CP461/CP471) 2 (redundant of the same model) CP471 needs to be equipped with R6.05 or above control functions

1 ESB bus coupling module (EC401/EC402), optional dual redundancy 2 (EC401/EC402, mandatory dual redundancy) EC401 can connect up to 9 nodes, EC402 can connect up to 11 nodes

Up to 6 I/O modules (non-standard configuration) must comply with the FIO system installation restrictions

2. Built in components of the cabinet

Basic components: 1 FCU, 1 power distribution board with HKU, 2 vertical power bus units (1 front and 1 rear)

Cooling components: 4 door fans (2 for each front and rear door), node fans (ANFAN, configured according to the number of units)

Monitoring component: HKU (House Keeping Unit), standard configuration, supports cabinet environment monitoring

3. Communication interface specifications

Core characteristics of interface type redundancy configuration

Vnet/IP interface dual redundancy (AFV40S selectable power supply, AFV40D forced dual power supply) system control network, redundant switching ensures stable communication

ESB bus interface AFV40S: single/dual redundancy; AFV40D: Mandatory dual redundant connection node unit, EC401 supports bus topology, EC402 supports upper and lower connection nodes

The HK bus interface is connected to the external cabinet HKU via a single channel, with AKBHKU cable and a total length of ≤ 100m

READY contact output 3 terminal (NC/NO/C) fault, contact on/off, rated 250V AC/30V DC, maximum 2A/125VA

Key parameters and physical characteristics

1. Electrical parameters

Parameter specifications

Power supply voltage 100-120V AC (50/60Hz), 220-240V AC (50/60Hz), 24V DC

Maximum power consumption 100-120V AC: 2500VA; 220-240V AC：2860VA； 24V DC：71A

Power down protection: Main memory battery backup takes up to 72 hours and charging takes at least 48 hours

Protection level IP20

2. Physical characteristics

Parameter specifications

External dimensions (mm) Height 2105 x Width 800 x Depth 600 (including 25mm front and rear protrusions)

Weight approximately 240kg (excluding nodes); About 360kg (fully equipped with 11 nodes)

Paint color subject: Frost white (Munsell 2.5Y 8.4/1.2); Channel Base: Spring Black (Munsell 3.3PB2.5/0.5)

Grounding terminal M8 screw terminal connection

Power connection M6 screw terminal connection, supports dual power supply system

Installation restrictions and connection capabilities

1. Node unit connection restrictions

Limit type specifications

Maximum number of connected nodes 13/FCU (ANB10 /ANB11 )

The maximum number of installed units in the cabinet is 11 (ANB10  node unit+ANT10U optical ESB relay unit)

There are a maximum of 5 installation positions in the front and 6 installation positions in the rear of the cabinet

Installation sequence: Install the ANB10 node unit first, and then install the ANT10U relay unit

The optical ESB node connection requires the use of ANT401/ANT411 optical relay modules, with a maximum transmission distance of 50km

2. Fan configuration rules

Number of required node fans (ANFAN) for the total number of units in the cabinet (ANB10 +ANT10U)

0-4 of 1 (option code/1-FAN)

5-9 of 2 (Option Code/2-FAN)

10 of 3 (option code/3-FAN)

11 of 4 (option code/4-FAN)

3. Cable and topology limitations

ESB bus cable: Use YCB301 dedicated cable, pre installed in the cabinet, additional connection is required between ANB10  and ANT10U

HK bus: AKBHKU cable is used to connect external cabinets, with a total length of ≤ 100m (daisy chain connection)

Optical ESB bus: supports chain/star topology and requires the use of ANT401/ANT411 relay modules

Model code and options

1. Basic model and core suffix

Product Model Core Suffix Description Key Configuration

AFV40S (single redundancy) - A/- S (processor type); 3/4 (Vnet/IP and power supply); 1-4 (ESB bus); 1/2/4 (power type) selectable/dual redundant ESB bus, single/dual power supply

AFV40D (dual redundancy) - A/- S (processor type); 4 (Vnet/IP and power supply); 2/4 (ESB bus); 1/2 (power type) mandatory dual redundancy Vnet/IP and ESB bus

2. Main option codes

Option code function description associated model

/ - S1F single ESB bus+single power node unit ANB10S-3  5

/- D2F dual redundant ESB bus+dual power node unit ANB10D-4  5

/ - T2A dual power optical ESB relay unit ANT10U-4  5

/ - FAN node fans (configured by quantity) ANFAN

/CH Channel Base with Cable Hole (300 × 40mm)-

/CE with CE/RCM/AAC/KC certification-

/ATDOC Explosion proof Manual (ATEX Directive Adaptation)-

Software and accessory requirements

Software requirements: A separate software license is required. We recommend VP6F1700 control function software and VP6F3100 Project I/O license

SEM functional requirements: The use of event sequence manager requires specific hardware conditions, refer to GS 33J30D10-01EN

Standard accessories: 2 door fan filters (Part No.T9070CB)
