IbaFOB io ExpressCard fiber optic interface card

IbaFOB io ExpressCard Professional Analysis: Empowering Fiber Performance for Mobile Measurement

Introduction

With the increasing complexity of industrial systems, on-site debugging, fault diagnosis, and mobile monitoring have become crucial. As a professional manufacturer in the field of measurement and automation, iba AG's ibaFOB series products have always been known for their high reliability and excellent performance. IbaFOB-ioExpressCard is a key member of the family targeting mobile computing platforms. It perfectly inherits the high-performance characteristics of ibaFOB-io-D card, while utilizing the ExpressCard slot widely equipped in modern laptops to achieve a combination of portability and powerful functionality.

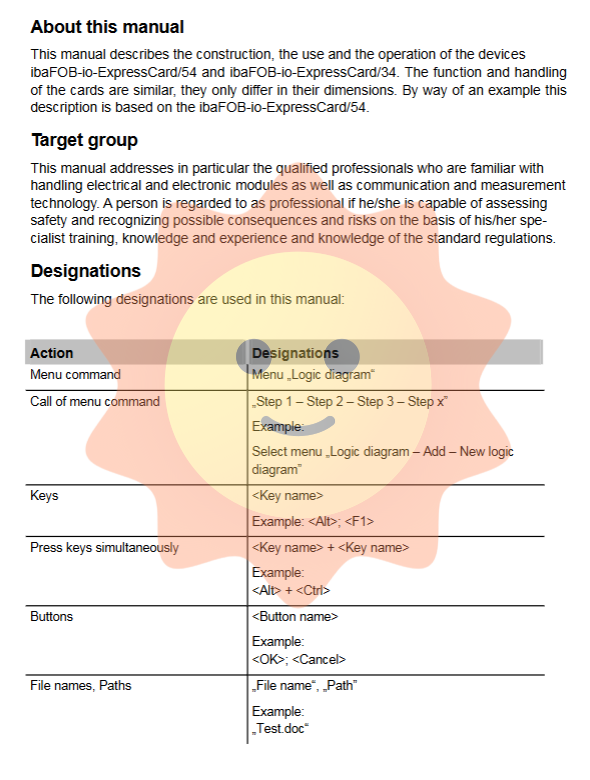

The models described in this manual include ibaFOB io ExpressCard/54 and ibaFOB io ExpressCard/34, which differ only in their external dimensions to accommodate different specifications of ExpressCard slots (54mm and 34mm). Their core functions and operating methods are completely consistent.

Target readers and safety precautions

This technical document is mainly aimed at qualified professionals with expertise in electrical, electronic modules, communication, and measurement technology. Operators should be able to assess safety risks and take corresponding measures based on their professional training, knowledge, experience, and understanding of standard regulations.

During the operation, it is necessary to strictly comply with the electrostatic discharge (ESD) safety regulations. This board contains sensitive electronic components that may be damaged by electrostatic discharge exceeding 2kV. Following standard ESD handling procedures is a fundamental prerequisite for ensuring equipment reliability.

System requirements

To ensure the stable operation of ibaFOB io ExpressCard, the system needs to meet the following hardware and software conditions:

Hardware requirements: IBM PC compatible laptop computer with ExpressCard/54 or ExpressCard/34 slots. Recommended configuration is a Pentium IV/3 GHz or higher performance processor, with at least 512 MB of memory.

Software requirements: The operating system supports 32-bit versions of Microsoft Windows XP, Server 2003, Server 2008, Vista, and Windows 7. The supporting software must use ibaPDA-V6.24.0 or higher, as well as ibaLogic-V4.

Product Technical Specifications and Characteristics

Core advantages

The core design of this card is to combine high-speed fiber optic communication technology with modern computer bus architecture. Its main characteristics include:

High speed data transfer: Using DMA (Direct Memory Access) technology, measurement data can be directly written into system memory without CPU intervention, significantly reducing CPU load and improving data processing efficiency.

Multi protocol support: Automatically detects and supports all current and traditional ibaNet communication protocols, including 2 Mbit/s, 3.3 Mbit/s, 5 Mbit/s, 32 Mbit/s, and 32 Mbit Flex protocols, ensuring compatibility with new and old devices.

High signal density: A single fiber optic link can transmit up to 512 analog signals and 512 digital signals, with a sampling time range from 10 microseconds to 2 milliseconds, meeting a wide range of application requirements from low-speed process monitoring to high-speed transient capture.

Plug and play: supports hot swapping, convenient for on-site use.

Physical specifications and technical parameters

Model and size:

IbaFOB io ExpressCard/54: Dimensions are 126 mm x 54 mm x 5 mm/20 mm, suitable for 54mm ExpressCard slots.

IbaFOB io ExpressCard/34: Dimensions are 126 mm x 34 mm x 5 mm/20 mm, suitable for 34mm ExpressCard slots.

Connector: Provides 2 ST type fiber optic interfaces (1 x input RX, 1 x output TX), using 62.5/125 μ m multimode fiber.

Power consumption and indication: Powered through the ExpressCard slot, the typical power consumption is only 1.5 W. The board integrates 4 LED status indicators to indicate operating status, link speed, and error messages.

Environmental conditions:

Working temperature: 0 ° C to 50 ° C (32 ° F to 122 ° F)

Storage/transportation temperature: -25 ° C to 70 ° C (-13 ° F to 158 ° F)

Hardware installation and driver configuration

IbaFOB io ExpressCard supports plug and play, which can be installed or removed while the computer is running without shutting down.

Installation steps:

Insert hardware: Insert the card smoothly into the ExpressCard slot of the laptop until it clicks into the internal connector. After correct insertion, the green LED will start flashing and the red LED will briefly light up and then turn off (if the driver is not installed, the red LED will continue to light up).

Driver installation: When first inserted, the Windows system will pop up the "Discover New Hardware" wizard. Please follow the prompts to complete the driver installation. To ensure that the driver is correctly recognized, it is recommended to install ibaPDA-V6 (≥ 6.24.0) or ibaLogic-V4 software before inserting the card.

Verify installation: After installation is complete, you can check whether the card is listed correctly through Windows Device Manager. If the card does not appear, it indicates that there is a problem with the driver installation and you need to contact IBA technical support.
