PacSci Model 6410 Microstep Driver: The Core Engine for High Precision Step Control

In modern industrial automation systems, stepper motors are widely used in various precision motion control scenarios due to their advantages of open-loop control, precise positioning, and moderate cost. However, the performance of stepper motors largely depends on the quality of the driver. The Model 6410 in the 6000 series micro stepper drive launched by Pacific Scientific has become the preferred solution for many automation equipment manufacturers due to its compact structure, rich functionality, and excellent electrical performance.

This article will provide a comprehensive and in-depth analysis of the 6410 micro stepper driver from multiple dimensions, including technical specifications, core functions, protection mechanisms, heat dissipation design, and typical applications.

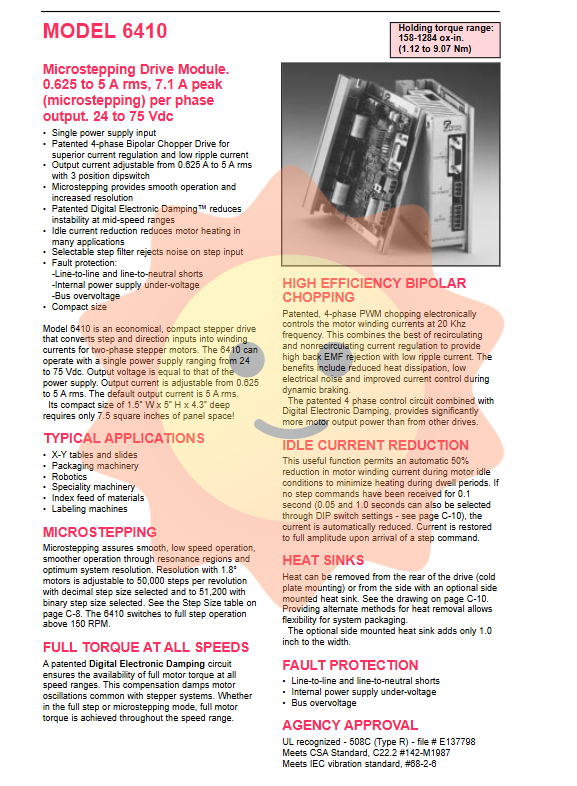

Product positioning and basic characteristics

Model 6410 is an economical and compact stepper motor driver specifically designed to convert step and direction signals into winding currents for two-phase stepper motors. Its design balances performance and cost, making it suitable for system integration that requires space and budget.

Core electrical parameters:

Input power supply voltage: 24-75 Vdc, single power supply, output voltage equal to power supply voltage.

Output current: adjustable from 0.625 to 5 A rms, output per phase. The peak current in micro step mode can reach 7.1 A.

Output current regulation method: Set through a 3-digit DIP switch with a step of 0.625 A and a default value of 5 A rms.

Dimensions: 1.5 inches wide, 5 inches high, 4.3 inches deep, occupying only 7.5 square inches of panel space, very suitable for high-density installation.

The 6410 driver adopts patented 4-phase bipolar chopper drive technology, combined with digital electronic damping and idle current reduction function, effectively reducing motor heating and system resonance while ensuring high torque output.

Microstep technology: improving resolution and smoothness of operation

Microstep is one of the core functions of the 6410 driver. Traditional full step or half step drives are prone to vibration and noise at low speeds, while micro step drives significantly improve position resolution and operational smoothness by finely controlling the current ratio in the two-phase windings, causing the motor rotor to stop at multiple intermediate positions between each full step.

Adjustable step resolution:

For standard 1.8 ° two-phase stepper motors, the 6410 supports step resolutions ranging from full steps (200 steps/rev) to 1/250 steps (50000 steps/rev).

Users can select decimal steps (such as 1/10, 1/25, 1/50, 1/125, 1/250) or binary steps (such as 1/16, 1/32, 1/64, 1/128, 1/256) through DIP switches.

The highest resolution in binary mode can reach 51200 steps per revolution.

The relationship between rotational speed and step mode:

When the motor speed exceeds 150 RPM, 6410 will automatically switch back to full step operation mode. This is to ensure sufficient torque output and stability at high speeds.

The maximum allowed speed may vary under different resolutions. For example, in 1/250 micro step mode, the maximum speed is 2400 RPM; In full step mode, the maximum speed can reach 12000 RPM.

Step input signal requirements:

The step signal is optocoupler isolated and TTL compatible, with a minimum pulse width of 250 ns (1 μ s after enabling the step filter).

The maximum step frequency can reach 2 MHz (500 kHz after enabling the filter).

The step action occurs at the rising edge of the STEP input signal.

Digital electronic damping: maintaining full torque within full speed range

The stepper motor system is prone to mechanical resonance in the medium speed range (usually 200-800 RPM), leading to a decrease in torque or even loss of step. 6410 adopts patented Digital Electronic Damping ™ Digital electronic damping technology actively suppresses motor oscillation through digital signal processing algorithms, thereby maintaining full torque output throughout the entire speed range.

Technical advantages:

Whether in full step or micro step mode, digital electronic damping can adjust current control parameters in real time to counteract system resonance.

Compared to traditional undamped drivers, 6410 can provide significantly higher motor output power, especially in the medium speed range.

Users can choose to enable or disable this function through DIP switches to adapt to different load characteristics.

Delay characteristics:

When the step frequency is below 500 full steps per second, the maximum delay from the input step signal to the motor excitation change is 500 μ s.

When the step frequency is higher than 500 full steps per second, the delay is about 270 ° of the step period.

High efficiency bipolar chopper: low ripple, low heat generation

6410 adopts patented 4-phase PWM chopping technology to electronically control the motor winding current at a frequency of 20 kHz. This technology combines the advantages of cyclic and non cyclic current regulation, with high back electromotive force suppression capability and low ripple current characteristics.
