PacSci Model 6410 Microstep Driver: The Core Engine for High Precision Step Control

In modern industrial automation systems, stepper motors are widely used in various precision motion control scenarios due to their advantages of open-loop control, precise positioning, and moderate cost. However, the performance of stepper motors largely depends on the quality of the driver. The Model 6410 in the 6000 series micro stepper drive launched by Pacific Scientific has become the preferred solution for many automation equipment manufacturers due to its compact structure, rich functionality, and excellent electrical performance.

This article will provide a comprehensive and in-depth analysis of the 6410 micro stepper driver from multiple dimensions, including technical specifications, core functions, protection mechanisms, heat dissipation design, and typical applications.

Product positioning and basic characteristics

Model 6410 is an economical and compact stepper motor driver specifically designed to convert step and direction signals into winding currents for two-phase stepper motors. Its design balances performance and cost, making it suitable for system integration that requires space and budget.

Core electrical parameters:

Input power supply voltage: 24-75 Vdc, single power supply, output voltage equal to power supply voltage.

Output current: adjustable from 0.625 to 5 A rms, output per phase. The peak current in micro step mode can reach 7.1 A.

Output current regulation method: Set through a 3-digit DIP switch with a step of 0.625 A and a default value of 5 A rms.

Dimensions: 1.5 inches wide, 5 inches high, 4.3 inches deep, occupying only 7.5 square inches of panel space, very suitable for high-density installation.

The 6410 driver adopts patented 4-phase bipolar chopper drive technology, combined with digital electronic damping and idle current reduction function, effectively reducing motor heating and system resonance while ensuring high torque output.

Microstep technology: improving resolution and smoothness of operation

Microstep is one of the core functions of the 6410 driver. Traditional full step or half step drives are prone to vibration and noise at low speeds, while micro step drives significantly improve position resolution and operational smoothness by finely controlling the current ratio in the two-phase windings, causing the motor rotor to stop at multiple intermediate positions between each full step.

Adjustable step resolution:

For standard 1.8 ° two-phase stepper motors, the 6410 supports step resolutions ranging from full steps (200 steps/rev) to 1/250 steps (50000 steps/rev).

Users can select decimal steps (such as 1/10, 1/25, 1/50, 1/125, 1/250) or binary steps (such as 1/16, 1/32, 1/64, 1/128, 1/256) through DIP switches.

The highest resolution in binary mode can reach 51200 steps per revolution.

The relationship between rotational speed and step mode:

When the motor speed exceeds 150 RPM, 6410 will automatically switch back to full step operation mode. This is to ensure sufficient torque output and stability at high speeds.

The maximum allowed speed may vary under different resolutions. For example, in 1/250 micro step mode, the maximum speed is 2400 RPM; In full step mode, the maximum speed can reach 12000 RPM.

Step input signal requirements:

The step signal is optocoupler isolated and TTL compatible, with a minimum pulse width of 250 ns (1 μ s after enabling the step filter).

The maximum step frequency can reach 2 MHz (500 kHz after enabling the filter).

The step action occurs at the rising edge of the STEP input signal.

Digital electronic damping: maintaining full torque within full speed range

The stepper motor system is prone to mechanical resonance in the medium speed range (usually 200-800 RPM), leading to a decrease in torque or even loss of step. 6410 adopts patented Digital Electronic Damping ™ Digital electronic damping technology actively suppresses motor oscillation through digital signal processing algorithms, thereby maintaining full torque output throughout the entire speed range.

Technical advantages:

Whether in full step or micro step mode, digital electronic damping can adjust current control parameters in real time to counteract system resonance.

Compared to traditional undamped drivers, 6410 can provide significantly higher motor output power, especially in the medium speed range.

Users can choose to enable or disable this function through DIP switches to adapt to different load characteristics.

Delay characteristics:

When the step frequency is below 500 full steps per second, the maximum delay from the input step signal to the motor excitation change is 500 μ s.

When the step frequency is higher than 500 full steps per second, the delay is about 270 ° of the step period.

High efficiency bipolar chopper: low ripple, low heat generation

6410 adopts patented 4-phase PWM chopping technology to electronically control the motor winding current at a frequency of 20 kHz. This technology combines the advantages of cyclic and non cyclic current regulation, with high back electromotive force suppression capability and low ripple current characteristics.

Technical features:

High back electromotive force suppression: When the motor is running at high speed, the back electromotive force will hinder the establishment of current. The 6410 chopper circuit can effectively overcome this impact and ensure the integrity of the current waveform at high speeds.

Low ripple current: reduces the fluctuation of winding current, lowers the iron and copper losses of the motor, thereby reducing the heating of the driver and motor.

Low electrical noise: The chopping frequency of 20 kHz exceeds the audible range of the human ear (although there may still be slight noise, it is much lower than low-frequency choppers), making it more suitable for quiet environments.

Synergistic effect with digital electronic damping:

The combination of a 4-phase control circuit and digital electronic damping enables the 6410 to provide more motor output power than other drivers, especially in applications that require rapid acceleration, deceleration, and variable loads.

Idle current reduction: reduces motor heating and extends lifespan

The stepper motor maintains its rated current to maintain torque even in a stationary state, which can cause the motor to overheat for a long time, affecting its lifespan and accuracy. 6410 provides Idle Current Reduction function.

Working Principle:

When the driver does not receive any step instructions within 0.1 seconds, it automatically reduces the motor winding current to 50% of the rated value.

After the current decreases, the holding torque decreases accordingly, but it is sufficient to meet most static positioning requirements while significantly reducing heat generation.

Once a new step pulse is received, the current immediately returns to full amplitude.

Optional idle timeout period:

In addition to the default 0.1 seconds, users can also select timeout thresholds of 0.05 seconds or 1.0 seconds through DIP switches or jumpers.

For applications that require longer holding torque and allow for higher temperature rise, the idle current reduction function can also be completely disabled.

Comprehensive fault protection mechanism

6410 is equipped with multiple hardware fault detection circuits, which can automatically disable the driver output in abnormal situations, protecting the motor and the driver itself. All faults need to be cleared by re powering on.

Protection type:

Output short circuit protection: detects wire to wire short circuits between motor windings and wire to neutral short circuits.

Internal power undervoltage protection: prevents abnormal operation of power tubes due to insufficient power supply.

Bus overvoltage protection: When the DC bus voltage exceeds 83 Vdc, the protection is triggered to prevent power device breakdown.

These protection functions enable 6410 to adapt to harsh conditions such as power fluctuations and wiring errors in industrial sites, improving the robustness of the system.

Heat dissipation design and installation flexibility

Thermal management is the key to the long-term stable operation of stepper drives. 6410 provides two cooling paths to meet different system integration requirements.

Cooling method

Cold plate installation (back heat dissipation): Directly attach the metal back plate of the drive to the cooling plate or chassis shell of the device, utilizing system level heat dissipation. For uneven surfaces, it is recommended to use thermal pads or thermal grease.

Optional side mounted heat sink: When back cooling is not possible, the HS6410 side mounted heat sink can be used. After installation, it only increases the width by 1 inch, but it can significantly improve the heat dissipation capacity.

Relationship between rated current and temperature:

No radiator: maximum 2.5 A rms at 25 ° C ambient temperature; The ambient temperature drops to 1.25 A rms at 45 ° C.

Equipped with a side mounted radiator: capable of reaching a full rated value of 5 A at an ambient temperature of 25 ° C; Maximum 2.5 A rms at an ambient temperature of 45 ° C.

Best practice: It is recommended to always maintain the temperature of the drive chassis (back or side) at no more than 60 ° C. If necessary, a fan can be used for forced air cooling or the idle current reduction function can be activated.

Power dissipation curve:

The power dissipation of the driver is approximately proportional to the square of the output current. At 5 A output, the typical dissipation is about 20 W, requiring sufficient heat dissipation area.

Input/output interfaces and signal specifications

The interface design of 6410 is simple and comprehensive, and all control signals are isolated by optocouplers, improving anti-interference ability.

Control input (J3 interface, 9-pin D-sub):

STEP: Optocoupler isolation, TTL compatible. Minimum conduction current 5.5 mA, maximum 10 mA. Rising edge triggers step.

DIR (direction): Optocoupler isolation. The minimum conduction current is 3 mA and the maximum is 4.5 mA. The setting time is 50 μ s and the holding time is 0.

ENABLE: Logic polarity can be selected through jumper (ENBL_SENSE). When the jumper is inserted, the optocoupler conducts to enable the driver; When the jumper is pulled out, the optocoupler conducts and the driver is disabled. The minimum conducting current is 3 mA, and the maximum is 4.5 mA.

Status output:

ENABLED: Open collector/emitter output isolated by optocoupler. When the driver is enabled, the output transistor conducts and the output voltage is below 0.5 V (@ 2 mA); When disabled, the transistor is turned off and can withstand a maximum external voltage of 35 V.

Motor and power connection:

Power input (J2): 3-digit plug-in screw terminal, used to connect 24-75 Vdc power supply.

Motor connection (J3 motor side): 5-position plug-in screw terminal, connecting the four winding wires of the two-phase stepper motor.

Supporting connector kit (CK6410): includes all necessary plug-in terminals and 9-pin D-sub connectors for quick wiring by users.

Detailed explanation of DIP switch settings

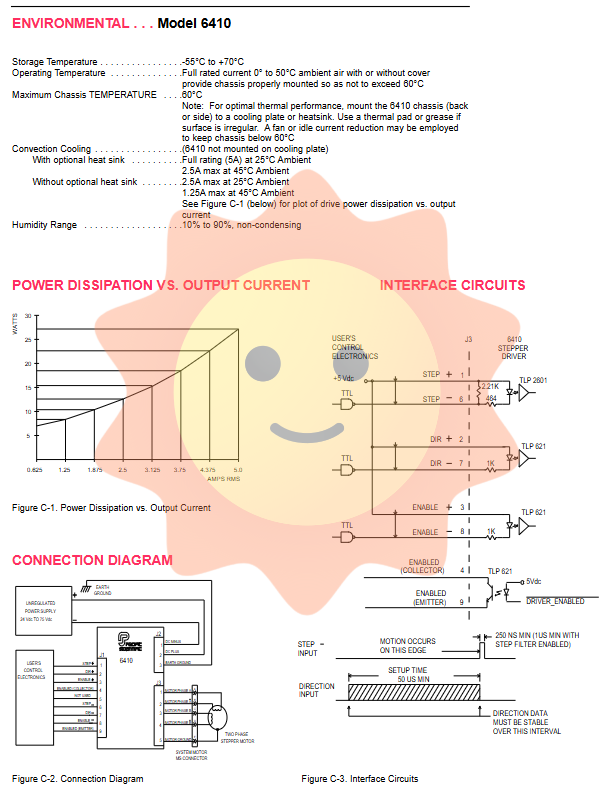

6410 is configured with operating parameters through a 3-digit DIP switch (S1) and optional jumper. Figure C-4 provides a clear schematic of the setup.

Configurable parameters:

Output current: Choose a three position switch combination from 0.625 A to 5 A rms, with a step size of 0.625 A.

Step resolution: Combining decimal/binary jumpers, select micro step subdivision multiples.

Idle current reduction: enabled or disabled.

Digital electronic damping: enabled or disabled.

Step filter: When enabled, it can limit the maximum step frequency to 500 kHz, but can filter out high-frequency noise on the signal line.

Environmental specifications and certification

Environmental conditions:

Storage temperature: -55 ° C to+70 ° C

Working temperature: 0 ° C to 50 ° C (ambient air, ensure chassis does not exceed 60 ° C)

Humidity range: 10% to 90%, no condensation

Institutional certification:

UL Recognized (UL 508C, Type R), File Number E137798

Compliant with CSA standard C22.2 # 142-M1987

Compliant with IEC Vibration Standard # 68-2-6

Typical application scenarios

Based on the above characteristics, the 6410 driver is highly suitable for the following applications:

X-Y worktable and slide table: The high resolution provided by the micro step ensures precise positioning, and the digital electronic damping ensures smoothness during medium speed scanning.

Packaging machinery: frequent start stop and fixed length provide fast current response and idle current reduction functions.

Robots: Multi axis coordinated motion requires drivers to be compact, efficient, and have fault protection.

Material index feed: equipment such as label machines and feeders that require high repeatability accuracy.

Special automation equipment: such as semiconductor manufacturing, medical testing instruments, and other applications that require low vibration and low noise.

Ordering Information and Accessories

Basic model:

6410: Bare drive (including data manual, user manual/design guide to be ordered separately)

Optional accessories:

CV6410: Protective cover (including installation screws)

HS6410: Side mounted radiator (including mounting screws)

CK6410: Connector kit (including 9-pin D-sub and Phoenix motor/power terminals)

MA6410: User Manual/Design Guide

SPC-XXX-6410: Motor cable with control connector and MS connector (four core shielded wire and ground wire, length can be specified as needed)

SPC-CO-XXX: Motor power cable only (four core shielded wire with ground wire)

System combination recommendation:

6415: 6410 with oscillator/driver (24-75 Vdc input)

6420: 6410 with indexer/driver

6423: RS485 programmable package, mnemonic language, 8-channel BDIO

6430/6435/6445: AC input (120/240 Vac 50-60 Hz) version driver or index package
