Handheld electronic handwheel (MPG) is the core equipment for manually controlling axis movement in CNC machine tools, machining centers, robots, and automated production lines. The iPHD series (as well as iHWD, HPG, MHDW) operation box integrates emergency stop switch, enable switch, axis selection knob, magnification switch, jog button, and 100PPR incremental encoder, widely compatible with mainstream CNC systems such as FANUC and Brother. However, due to on-site oil pollution, vibration, cable dragging, and knob wear, such handwheels are prone to signal loss, axis selection failure, emergency stop false alarms, and other malfunctions. This article is based on the official technical specifications of the iPHD series, combined with practical maintenance experience, to systematically sort out the typical fault diagnosis methods, signal measurement standards, interchangeable compatibility selection, and connector self-made points of this series of operation boxes, providing a practical technical guide for equipment maintenance engineers.

Overview of product series and identification of core models

The protection level of the iPHD series shell reaches IP65/NEMA 4, with oil and dust resistance. The back is equipped with a magnet that can be directly attached to the machine panel. The main models and feature comparisons are as follows:

Model Output Type Axis Number Amplification Emergency Stop Contact Enable Switch Compatibility Features

IPHD-FOE6L-IM line driver (26LS31) 6-axis x1/x10/x100 2 contact left+right standard point-to-point output

IPHD-FOA5L-IM TTL (5V) 5-axis x1/x10/x100 2 contact left+right suitable for FANUC TTL interface

IPHD-FOECL-IM line driver 5-axis (binary code 0-Z-X-Y-4-5) with the same 2 contacts left and right fully interchangeable Euchner HBA-072 910

IHDW-BPE5L-IM wire drive 5-axis no magnification knob 2 contacts left+right IPG Photonics proprietary model

HPG-B-100-L-CL line drive shaft selection+magnification dual knob with or without emergency stop, Brother CNC special (metal shell)

The most common problem encountered on site is that a certain model is discontinued or has a long supply cycle, and needs to be replaced with another model. Among them, iPHD-FOECL-IM is designed as a direct substitute for Euchner HBA-072 910, with the same knob coding logic (binary code, axis sequence 0-Z-X-Y-4-5), matching wiring definitions, and can be replaced in situ.

Electrical Signal Specification and Rapid Measurement Methods

Before maintenance, it is necessary to master the core output characteristics of MPG. The iPHD series uses a 100 pulse/rev incremental encoder to output A/B two-phase orthogonal square waves with a phase difference of 90 °± 45 °. The voltage standards for different output types are as follows:

Parameter line driven output (26LS31) TTL output (5V)

Power supply voltage 5V ± 0.25V DC 5V ± 0.25V DC

Output high level (VH) ≥ 2.5V ≥ 4.0V

Output low level (VL) ≤ 0.5V ≤ 0.5V

Absorption current ≤ 20mA ≤ 20mA

Frequency response 0~10kHz 0~10kHz

Line driven output (differential signal) is suitable for long-distance transmission (strong anti-interference ability), and the recommended receiver is 26LS32. TTL output is a single ended signal, with a transmission distance generally not exceeding 3 meters.

On site rapid testing steps

Power supply inspection: Disconnect the handwheel from the CNC and measure whether the 5V power supply is stable (4.75-5.25V) at the cable plug. A common fault is that the 5V power supply provided by the CNC side has insufficient load capacity, resulting in a voltage drop below 4.5V during rotation and pulse loss.

No load output waveform test: Connect the handwheel to a 5V power supply and use an oscilloscope to measure between A+and GND. Slowly rotate the handwheel and you should see a 0-5V square wave (TTL) or a -2.5V~+2.5V differential (line driven). If there is no output, first check if the encoder grating disk is broken (with abnormal noise during rotation) or if the LED light source is aging.

Phase detection: Measure both A and B signals simultaneously, with A phase leading B phase by 90 ° during forward rotation; When reversing, B-ultrasound A. If the phase is incorrect or the duty cycle deviation is too large (normally should be 50% ± 10%), the encoder or signal processing circuit is faulty.

Insulation resistance: When measuring the circuit to the outer shell with a 500V megohmmeter, it should be ≥ 20M Ω. If it is lower than this value, it indicates that there is water ingress or wire damage inside, and there is a risk of leakage.

Troubleshooting of rotary switch and contact parameters

The iPHD series operation box includes multiple rotary switches: axis selection switch, magnification switch E-Stop、 Enable switches, jog buttons, etc. The electrical lifespan and rated values of different switches vary greatly.

3.1 Axis selection and magnification knob

Rated value: maximum voltage 30V DC, current 50mA, mechanical life ≥ 25000 times.

Typical faults: Unclear knob positioning, increased contact resistance leading to CNC misidentification of axis number or magnification.

Diagnostic method: Use a digital multimeter to measure the continuity of the corresponding contacts in the resistance range. For example, in the x1 position of the multiplier switch, two pins should be short circuited, and in the x10 position, another group should be short circuited. If unstable resistance (>10 Ω) is measured, the knob should be cleaned or replaced.

Note: This type of knob outputs "binary code" or "gray code", and the coding order varies depending on the model. When replacing, it is necessary to check the coding table, otherwise it may cause axis selection confusion. For example, the axis sequence of iPHD-FOECL-IM is 0-Z-X-Y-4-5, while the ordinary FOE6L is X-Y-Z-4-5-6 and cannot be directly substituted.

3.2 Emergency stop switch

Model: IDEC XA1E-BV3U02R

Contact: Two sets of normally closed contacts (2-Contacts)

Rated value: 30V DC/1.0A

Common malfunction: Unable to reset after pressing the emergency stop button (mechanical jamming); Contact oxidation causes an increase in circuit resistance, and CNC reports "emergency stop circuit disconnected".

Emergency response: After disconnecting the power supply, gently polish the contacts with fine sandpaper (1000 grit or more) and clean them with anhydrous ethanol. If it is still unreliable, the emergency stop switch of the same specification must be replaced (note that the height and button color are red).

3.3 Enable switch

Model: Dailywell PAS6B1M1CES-5

Rated value: 50V DC/100mA

Characteristic: It is usually in three gears (release light grip tight grip), and the contacts close when lightly gripped. The common fault is that the internal micro switch spring breaks, causing the enable signal to be intermittent.

Measurement: In the light grip position, the corresponding pins should be conductive (resistance<1 Ω). If it doesn't work, the switch is damaged.

3.4 Jog and Function Buttons (Jog+/Jog -/F1)

All are normally open (N.O.) instantaneous type, with no special electrical parameters.

The faults are mostly caused by aging of the button rubber, resulting in a rough feel or inability to press. It can be disassembled to clean the contacts, or replaced with a micro switch of the same size.

Spiral cable malfunction and repair/replacement

The iPHD standard configuration includes a 16 foot (approximately 5-meter) extended spiral cable, which is approximately 6 feet in a contracted state. Internally contains 25 or 26 core wires with specifications of 22-24 AWG. Cable faults account for over 60% of handwheel repairs, mainly manifested as:

Internal wire breakage: Long term repeated stretching leads to fatigue fracture of the core wire, especially near the tail of the plug and the outlet of the handwheel.

Outer skin wear: Friction with machine tool iron filings can cause insulation damage or even short circuits.

Shielding layer damage: causing signal interference from the frequency converter, resulting in shaft shaking and displacement.

Diagnostic steps

On/off test: Remove the handwheel from the CNC side and use a multimeter to measure the corresponding core wires at both ends of the cable one by one in the resistance range. Normally, it should be less than 1 Ω. If a certain core wire is not connected, record its color and position.

Insulation test: Measure the resistance between each core wire and the shielding layer, which should be>10M Ω.

Positioning breakpoint: For spiral cables, a capacitive wire breakage detector can be used under tension, or the "folding method" can be used to preliminarily determine the breakpoint position.

alternative solution

Original replacement cable: P/N EE-6C004-A01, priced at approximately $300. Please note that this cable is a "DIY Work", which means that the plug is not pre installed and the user needs to solder the connector themselves.

Self made cable: If self-made, oil resistant and bending resistant spiral cables should be selected (recommended outer diameter of 8-10mm, core number determined by model). Attention during welding:

Use the recommended connector kit (Amp CPC Size 17/23 or Amphenol Alloy Size 24, see below for details).

Strictly follow the wiring diagram for welding (detailed wiring definitions for iPHD-FOE6L-IM and FOECL-IM are provided in the PDF).

After welding, use heat shrink tubing to isolate and test insulation.

The shielding layer should be grounded at one end on the CNC side and suspended on the handwheel side.

Connector selection and self-made matching

The iPHD series offers a variety of connector kits to accommodate interfaces of different CNC systems.

Connector type, kit model, price, applicable scenarios

Amp CPC Size 17 approximately $90 1.3 "outer diameter, 28 cores, # 18-28 AWG standard point-to-point connection, high cost-effectiveness

Amp CPC Size 23 approximately $190 1.73 "outer diameter, 24 cores, # 20-26 AWG for applications requiring greater mechanical strength

Amphenol Alloy Size 24 approximately $90 1.7 "outer diameter, 24 cores, MS3106 series military grade environmental resistance, threaded connection

Installation points:

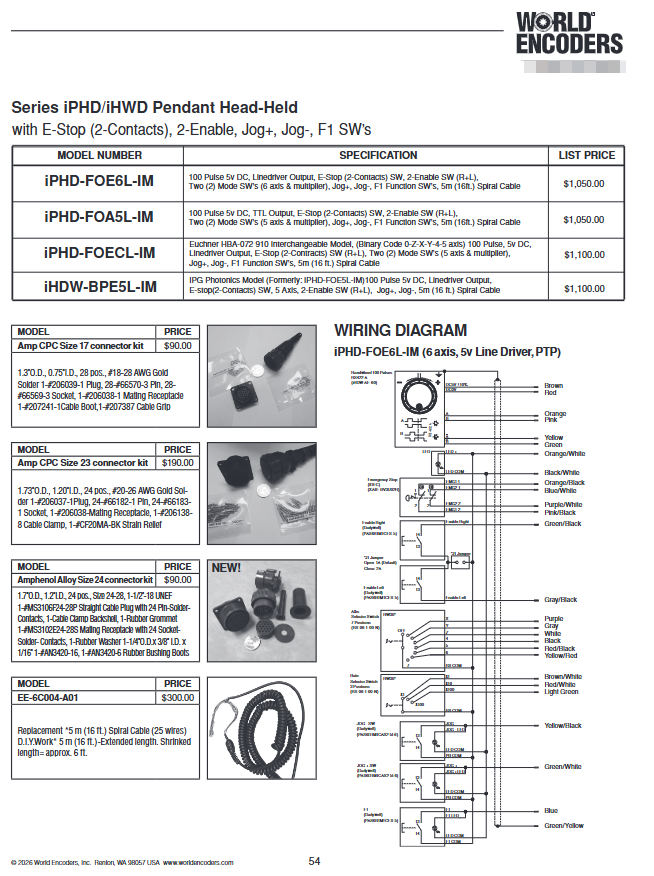

Confirm the pin definition before welding. The PDF provides detailed terminal correspondence diagrams (such as A+, A -, B+, B -, etc. for line driven outputs).

Use appropriate crimping tools or constant temperature soldering irons to avoid virtual soldering.

The cable clamping kit must be installed correctly to prevent the internal welding points from being pulled apart when the cable rotates.

For on-site self-made cables, it is recommended to embed 704 silicone rubber inside the plug to increase shock resistance and waterproofing.

Euchner HBA-072 910 Swap Replacement Details

Many old-fashioned CNC machines use the Euchner HBA-072 910 handwheel, which has been discontinued. The iPHD-FOECL-IM is designed as a direct replacement model with a lower price (approximately $1100 vs original high price). Attention should be paid when replacing:

Axis encoding logic is consistent: the binary code order is 0-Z-X-Y-4-5, which is the same as the original Euchner. No need to modify CNC PLC parameters.

Wiring compatibility: Using wire driven output (26LS31), the receiver end should use 26LS32. If the original system is single ended TTL, it is necessary to confirm whether the receiving board supports differential signals.

Shell size and installation: The position of the back magnet is the same as that of Euchner, which can be directly adsorbed; The height and color of the emergency stop button are consistent.

Functional differences: The iPHD-FOECL-IM provides two additional enable switches (left and right) and a jog button, while some older models of the Euchner may not have these features. If the CNC system does not require it, the corresponding signal can be suspended or logically blocked.

Test checklist after replacement:

Rotate the handwheel, and the CNC coordinates should move smoothly (without jumping or losing steps).

Test each axis gear selection and confirm the corresponding axis movement.

Test the magnification switches (x1, x10, x100) and confirm that the movement distance is correct.

Test safety functions such as emergency stop, enable, and jog.

Common fault codes and troubleshooting (combined with CNC system)

The following is a summary of typical on-site problems and solutions:

Possible causes and troubleshooting steps for the fault phenomenon

Rotate the handwheel, but the shaft does not move. 1. The 5V power supply is missing or the voltage is low

2. A/B signal open circuit

3. CNC parameters are not enabled for MPG measurement plug end 5V; use an oscilloscope to observe A/B waveforms; Check for pulse counting on the CNC diagnostic interface

Swap A+and B+by reversing the direction of movement, or modify the MPG direction in the CNC parameters

Mobile distance too large/too small magnification switch signal error; The pulse number setting does not match (CNC preset is 100PPR, but it is actually 100PPR), and the measurement magnification knob switches on and off at each level; Confirm that the CNC parameters are consistent with the PPR of the handwheel

Poor grounding of shaft vibration shielding during rotation; Check if the encoder grating is contaminated and if the shielding layer is single ended grounded; Disassemble the handwheel to clean the encoder

The emergency stop alarm cannot be eliminated. If the emergency stop contact is not closed (normally closed circuit is disconnected), measure the resistance at both ends of the emergency stop switch, which should be 0 Ω. If infinite, check if the button is pressed but not reset or if there is an internal disconnection

Invalid enable, damaged enable switch; CNC enables logical configuration with opposite measurement to enable light grip position conductivity; Viewing CNC ladder diagram enable conditions

Preventive maintenance and spare parts inventory recommendations

As a frequently used terminal device, it is recommended to maintain the iPHD series operation box according to the following cycle:

Component cycle content

Check the outer skin of the spiral cable for cracks and broken strands every 6 months; Test the continuity after stretching

Drip an appropriate amount of contact cleaner (such as CRC 2-26) into the rotary switch every year and rotate it dozens of times

The emergency stop switch is tested annually to ensure that it is completely disconnected when pressed and fully conductive when reset

The encoder should be disassembled every 2 years or when there is shaking, and the grating and LED surface should be cleaned with a dust-free cotton swab and alcohol

Check if the backplate magnet is loose as needed and re bond it using epoxy resin

Recommended spare parts:

At least one spiral cable (EE-6C004-A01)

1-2 emergency stop switches (IDEC XA1E-BV3U02R)

Enable switch (Dailywell PAS6B1M1CES-5) with 1 on each side

1 set each of Amp or Amphenol connector kits (for on-site emergency wiring)

26LS31 or 26LS32 driver/receiver chip (for circuit board maintenance)
