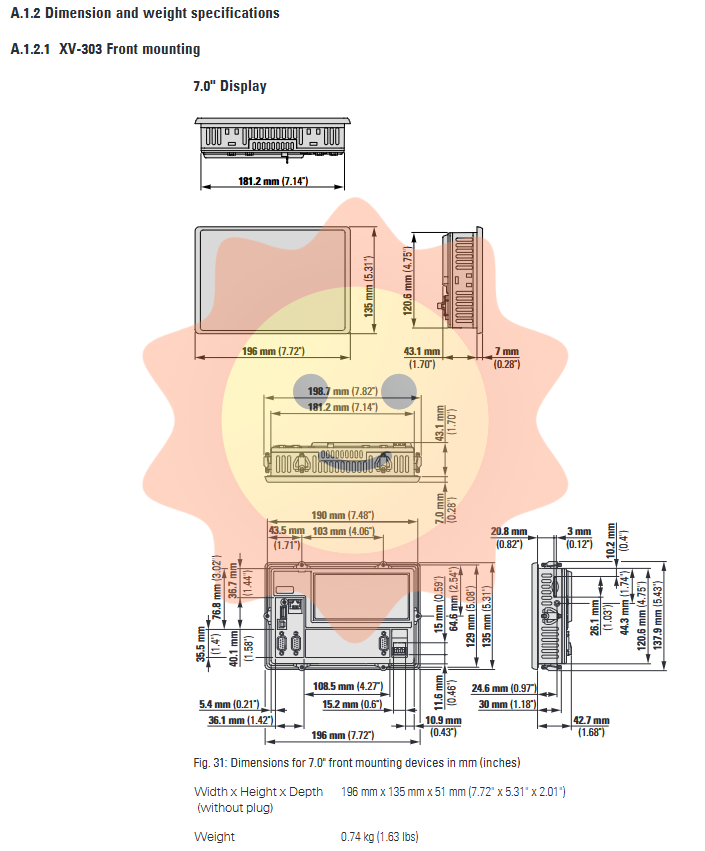

EATON XV-303/XV-313 series industrial multi touch HMI display

F: | Au:FAN | DA:2026-03-10 | 747 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

battery

Built in RTC backup battery maintenance free

Expected lifespan of 10 years in a 25 ℃ power outage environment

8.3 Troubleshooting

Possible causes and solutions for the fault phenomenon

The device does not start and there is no 24V power supply. Check the power wiring and turn on the power supply

Display screen black, backlight off, turn on backlight through software

Touch unresponsive or incorrect response function, poor grounding inspection function, grounding connection

Touch not calibrated, execute calibration procedure

Touch disabled Enable touch function


Special requirements for marine certification

For applications that require DNV GL certification, the following additional conditions must be met:

9.1 Installation Requirements

Complete and correct installation and debugging according to the manual

Shielded cables are required for communication cables

PE connection of communication cables helps improve EMC performance

9.2 Requirements for power filter

To meet EMC B-level requirements, interference suppression filters must be installed in the 24V power supply line:

XT-FIL-1: Suitable for currents of 2.2A and below (Eaton order number 285316)

XT-FIL-2: Suitable for currents of 12A and below (Eaton order number 118980)

The filter must be well grounded and can be directly installed on a grounded metal plate through an integrated contact surface, or grounded through a separate PE connection wire.

9.3 Position Category

EMC Class B: The power interface requires the installation of a filter

EMC Class A: No additional installation required


Packaging, transportation, and disposal

10.1 Open box inspection

Check the packaging for any transportation damage

Check the integrity of accessories against the packing list:

XV-303/XV-313 host

MSTB 2.5/3-ST-5.08 power connector

Installation Manual (IL048022ZU or IL048023ZU)

Install clamps and fastening screws (quantity varies according to model)

10.2 Transportation and Storage

Always use the original packaging for transportation

Avoid exceeding the specified temperature and humidity range

Avoid strong vibrations and mechanical impacts

10.3 Environmental Protection Disposal

Equipment shall not be disposed of as ordinary household waste

Lithium batteries require professional recycling and disposal

Packaging materials can be recycled and reused
