Lenze 8400 Inverter Debugging Guide

Lenze 8400 StateLine C Inverter: A Complete Guide to Debugging, Parameter Setting, and Troubleshooting

Introduction: When your drive system needs to be quickly replaced or optimized

In the field of industrial automation, the frequency converter, as the core component of motor drive, directly affects the downtime of the production line in terms of debugging efficiency and fault diagnosis capability. Lenze's 8400 StateLine C series (model E84AVSCxxxxxx) is a frequency converter designed specifically for speed control applications, with built-in "execution drive speed" technology application, supporting multiple motor control modes such as V/f characteristic control (VFCplus), energy-saving V/f control, and sensorless vector control. Its flexible terminal configuration, optional keyboard operation, and free PC debugging software (EASY Starter and Engineer) enable engineers to complete the entire process from wiring to parameter settings in a short amount of time.

This article is based on the official operating manual of 8400 StateLine C, providing a detailed technical guide from product identification, safety specifications, wiring configuration, quick debugging, parameter explanation, troubleshooting to advanced functional applications. Whether you need to replace an old frequency converter (such as Lenze 8200, 9300 series or third-party brands), or debug a new device for the first time, this article will help you quickly grasp the key points.

Product identification and software version check

1.1 Model interpretation and nameplate

The product key format for 8400 StateLine C is E84AVSCxxxxxx. among which

E84: Lenze 8400 series

AV: Variable frequency drive

S: StateLine version

C: C-type (standard type, no safety function)

The subsequent numbers represent the power level and power supply voltage (such as 230V or 400V versions).

The nameplate contains key information: product model, rated input/output, software version (HW/SW line). The software version is an important basis for determining the scope of functionality - this document applies to firmware versions starting from V06.00. The software version can be checked by reading parameter C00099 (displaying firmware version) or by viewing the nameplate.

1.2 Accessories and Debugging Tools

Tool model and purpose

Keyboard X400 EZAEBK1001: Local parameterization, diagnosis, and simple debugging

Diagnostic terminal X400 (with casing) EZAEBK2001 can be installed on the control cabinet door, IP65 front

USB diagnostic adapter E94AZCUS connects PC and inverter, electrically isolated, hot swappable

Connect cable EWL0070 (2.5m)/0071 (5m)/0072 (10m) adapter to frequency converter

The PC software EASY Starter and Engineer can be downloaded for free from Lenze's official website. The former is suitable for simple online debugging, while the latter supports full function parameterization and functional block programming.

Safety precautions (condensed version)

2.1 Personal safety

Dangerous voltage: After a power outage, the power terminals (U, V, W,+UG, - UG, Rb1, Rb2) may still be charged for 3-20 minutes (depending on the model). It is necessary to wait for the discharge to be completed or use a multimeter to confirm that there is no voltage before operation.

Residual risk: When the motor stops, the power terminals remain energized. After cutting off the main power supply, if the control electronics are powered by external 24V (X4/24E terminals), the control part will still be live.

Leakage current: The PE wire of the frequency converter may generate direct current. If residual current protection device (RCD) is required, type B RCD must be used (type A can be used for single-phase power supply).

2.2 Equipment Protection

All plug-in terminals must be connected or disconnected in a power-off state.

The contactor can only be switched in the motor cable when the frequency converter is in the CINH state.

During parameter transmission, the control terminal may enter an undefined state. Before transmission, the X4 terminal (digital input signal) should be disabled to ensure that the frequency converter is disabled and all control terminals are at a determined "LOW" level.

2.3 Motor Protection

Some settings may cause the motor to overheat, such as prolonged use of DC injection braking or low-speed operation of self ventilated wind turbines. Motor overload protection (I ² × t, parameter C00120) should be set up.

Wiring and terminal pre allocation

3.1 Power terminal

The power terminal positions of 230V equipment and 400V equipment are slightly different (see Figure 4-1 in the manual). The main terminals include:

L1, L2, L3 (single-phase L1, L2): Main power input

U. V, W: Motor output

+UG, - UG: DC bus connection (used for parallel or external braking units)

Rb1, Rb2: Brake resistor connection (only for some models)

Attention: The warning signs on the terminals have the following meanings:

C: Long discharge time (waiting for several minutes after power failure)

A: High leakage current (must be fixedly installed and reliably grounded)

E: Electrostatic sensitive devices (perform electrostatic discharge before operation)

H: Hot surface (may burn during operation)

3.2 Control terminals and pre allocation (Lenze factory settings)

When Lenze leaves the factory, the control mode "Terminals 0" is preset, and the terminal functions are as follows:

Terminal signal function

X3/A1U analog input (0~10V) main speed setpoint (10V=100% reference speed=1500 rpm, suitable for 4-pole asynchronous motors)

X3/O1U simulation output actual speed value (10V=100% reference speed)

X4/24E external 24V power supply (optional) provides separate power supply for control electronics

X4/RRR digital input controller enable (HIGH=enable; LOW=Forbidden)/Reset fault information

X4/DI1 digital input fixed speed 1 (40% reference speed)

X4/DI2 digital input fixed speed 2 (60% reference speed)

X4/DI3 digital input manual DC injection brake

X4/DI4 digital input rotation direction change

X4/DI5 digital input status "Drive ready"

X101 (relay) COM/NO status "Fault exists"

Differences in terminal allocation for different control modes: The manual compares four modes: Terminals 0, 2, 11, and 16. For example, in Terminals 2, DI3 is used for Quick Stop and DI4 is used for rotation direction selection. Users can choose the appropriate mode based on the application (parameter C00007).

Quick debugging process

4.1 Preparation work

Connect the power supply, motor, and control terminals according to the wiring diagram.

Power on the frequency converter (main power supply or external 24V) and check if the green LED "DRV-RDY" is flashing (indicating that the device is ready).

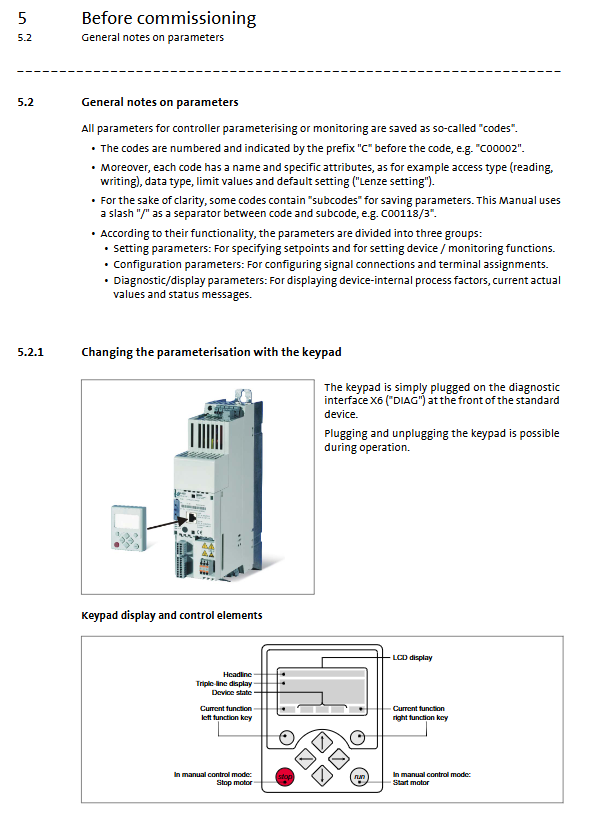

If using a keyboard, insert it into diagnostic interface X6 (hot plug allowed).

4.2 Loading Lenze factory settings

To obtain a definite initial configuration, it is recommended to load Lenze settings first. Operation steps (keyboard):

Go to the main menu → Code List → Select C00002/1 (Load Lenze setting).

Change the value to '1: On/start'.

After confirmation, the frequency converter will automatically restart and all parameters will be restored to factory values.

Note: This operation is only allowed when the controller is disabled (CINH).

4.3 Setting the basic parameters of the motor

Adjust the following parameters based on the motor nameplate (taking V/f linear control as an example):

Parameter name description Lenze factory value

C00015 V/f fundamental frequency setting motor rated frequency (such as 50Hz) 50.0 Hz

C00016 V/min boost low-frequency voltage boost, improving starting torque by 1.60%

C00011 reference speed corresponds to the 100% set point speed (such as 1500 rpm) of 1500 rpm

C00022 Imax motor mode maximum current limit (based on equipment power) equipment related

C00120 motor overload (I ² × t) overload protection threshold 100.00%

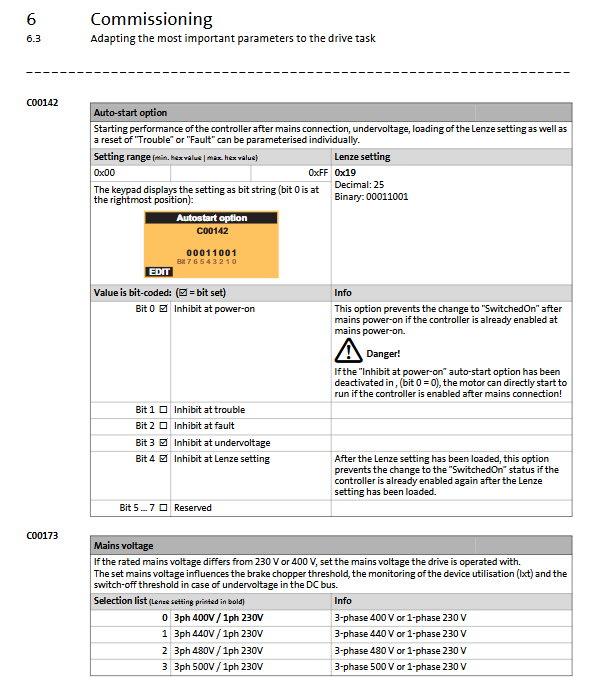

If the voltage on the motor nameplate is different from the grid voltage, the proportional relationship between C00173 (main power supply voltage) and C00015 needs to be adjusted.

4.4 Select Control Mode

Terminal control (default): C00007=10 (Terminals 0). The speed setpoint comes from the analog input A1U.

Keyboard control: C00007=20 (Keypad). The speed setpoint is set through C00728/3 on the keyboard.

4.5 Setting acceleration and deceleration time

C00012: Acceleration time (from 0 to reference speed, default 2.000 seconds)

C00013: Deceleration time (default 2.000 s)

C00105: Rapid stop deceleration time (default 2.000 s)

4.6 Enable the controller and operate it

Set terminal X4/RRR to HIGH (or use the RUN key on the keyboard).

Given speed set point (analog or keyboard value).

The motor should start rotating. The actual speed can be monitored in C00051.

Check the direction of rotation. If the opposite is true, the motor U and V phases can be exchanged, or the logic of reversing DI4 through parameter C00114 (or using C00727/3 keyboard direction control) can be used.

4.7 Save Parameters

All parameter changes must be explicitly saved to the memory module, otherwise they will be lost after power failure. Save method:

Keyboard: Press the SAVE function key.

PC software: Click on the toolbar save icon, or execute the device command C00002/11=1.

During the storage process, do not cut off the power or unplug the memory module.

Detailed explanation of key parameters

5.1 Analog Input Configuration (AIN1)

Parameter Function Description

C00034/1 AIN1 configuration 0=-10...+10V (default); 1 = 0…20mA；2 = 4…20mA

C00026/1 offset for zero adjustment (-1999.99%~1999.99%)

C00027/1 gain for range adjustment (default 1.0000)

C00010/1... 8 characteristic curve 8-point programmable nonlinear characteristic, used for dead zone or nonlinear sensors

Disconnecting monitoring: When selecting 4... 20mA, if the current is less than 4mA, a response can be triggered (C00598/1 setting response mode, default "TroubleQuickStop").

5.2 Fixed speed (JOG)

Three fixed speed values (percentage, relative to C00011):

C00039/1 = 40.00%

C00039/2 = 60.00%

C00039/3 = 80.00%

In Terminals 0 mode, select the binary combination of DI1 and DI2:

DI2=0, DI1=0 → Analog main setting

DI2=0, DI1=1 → Fixed speed 1

DI2=1, DI1=0 → Fixed speed 2

DI2=1, DI1=1 → Fixed speed 3

5.3 Motor Control Mode

C00006 Value Mode Applicable Scenarios

6 VFCplus: V/f linear standard asynchronous motor, constant torque load

8 VFCplus: V/f square fans, pumps, variable torque

10 VFCplus: V/f can define custom features

11 VFCplusEco energy-saving V/f control

5.4 DC injection braking (DCB)

C00019: Automatic DCB threshold (default 3 rpm). When the speed setting value is lower than this value, direct current is automatically injected.

C00036: DC braking current (percentage, relative to C00022, default 50%).

C00106: Automatic DCB hold time (default 0.500 s).

Manual DCB can be triggered through digital input DI3 (Terminals 0 mode).

5.5 Slip Compensation (C00021)

Only used for V/f control to improve speed accuracy under load. Default 2.67%. Excessive slip compensation may lead to instability.

5.6 Switching frequency (C00018)

Choose a fixed or variable switching frequency (2-16 kHz). Variable switching frequency can reduce switching losses (min. Pv) under light loads, but may generate auditory noise. The factory setting is "8 kHz var./drive optimized".

Troubleshooting and Diagnosis

6.1 LED Status Indication

Two LEDs (DRV-RDY green, DRV-ERR red) are located below the front panel of the inverter:

DRV-RDY DRV-ERR device status parameter C00137 display

Slow flashing (about 3 seconds), ready to go ReadyToSwitchOn

Flashing (about 1.25s) off, powered on SwitchedOn

Normally on/off, operational enabled during operation

Constant flashing warning OperaEnabled (with warning)

Fault of constantly on/off

Slow flashing system malfunction SystemFault

6.2 Common Error Codes and Countermeasures

Common causes and solutions for incorrect code names

OC1 power part short circuit, motor cable short circuit, frequency converter and motor power mismatch, check motor wiring; Use allowed combinations; Reduce current loop dynamics

OC2 grounding fault motor phase line short circuit to ground, cable too long (>50m) causing leakage current inspection insulation; Increase the filtering time for ground fault detection (C01770=250ms)

OC5 Ixt overload frequency converter overload check load cycle; Increase the power of the frequency converter

OC6 motor overload (I ² × t): Long term overload of the motor reduces the load; Check Vmin boost (C00016)

Check the main power supply for phase loss or low voltage of the LU DC bus under voltage; Set C00142 auto start option

The excessive regenerative energy of OU DC bus overvoltage increases the braking resistance; Use regeneration unit

OH1 radiator overheating, high ambient temperature, blocked fan, clean fan and heat sink; Reduce the ambient temperature

Check the load when the instantaneous current of OC7 motor exceeds the limit of C00939 due to overcurrent; Reduce dynamic response

LP1 motor phase loss motor cable breakage or poor contact inspection U, V, W connection

Su02: One phase main power supply is missing. One phase of the three-phase power supply is faulty. Check the power supply wiring

PS01 has no memory module. The memory module is not inserted or has poor contact. Insert the module and clamp it tightly

6.3 Fault Reset

By terminal X4/RFR: When a fault exists, changing RFR from LOW to HIGH can reset (provided that the cause of the fault has been eliminated).

Using the keyboard: select device command C00002/19=1.

Through PC software: click the reset button.

Attention: Some faults require power off and then power on to clear (such as system fault dF series).

6.4 Common misoperation (motor not turning)

Possible causes and solutions for the phenomenon

The motor does not rotate, and the green LED flashing controller is prohibited (CINH). Check all prohibited sources displayed on C00158; Set RFR to HIGH

The motor does not rotate and displays "CINH". Automatic start is prohibited (C00142 bit0=1). RFR rising edge is required

The motor does not rotate, displaying "IMP" Quick Stop (QSP) activation check C00159 shows QSP source

Motor shaking or irregular rotation motor cable phase sequence error (feedback system does not match motor rotation direction), exchange motor two phases; Check the encoder wiring (if any)

Advanced Features and Applications

7.1 Speed Limitation and Frequency Hopping

C00635: Maximum speed set point limit (%). C00636: Minimum speed set point limit.

Skip Frequency: Used to avoid mechanical resonance points. Define three hopping zones using C00632/x (maximum hopping value) and C00633/x (minimum hopping value). When the set value enters the zone, the output speed remains at the previous value until the set value leaves the zone.

7.2 Motor Potentiometer

The motor potentiometer function replaces the hardware potentiometer and adjusts the speed through two digital inputs (speed up/down). Activation method:

Set C00806=1 (enabled), or enter bMPotEnable through the process (requires configuration).

Upper and lower limits: C00800 (upper limit, default 100%), C00801 (lower limit, default 0%).

Acceleration and deceleration time: C00802, C00803.

Initialization behavior after power failure: C00805.

7.3 Process Controller (PID)

Process controllers can be used for tension control, pressure control, position control, etc. The operating mode is selected by C00242:

0: Close

1: Main setting+PID output

2: PID output as the main setting (actual value feedback)

3: PID output as the main setting (actual value feedback, another structure)

4. Grade 5

PID parameters:

C00222: Proportional gain Vp (default 1.0)

C00223: Integral time Tn (default 400 ms)

C00224: Differential gain Kd (default 0.0)

C00225/C00226: Output limiting (± 199.99%)

The actual value signal can be connected through analog input (with C00698/C00672 configured for offset and gain).

7.4 Parameter Change over

8400 StateLine supports grouping up to 32 parameters into 4 value sets, which can be switched online through two binary inputs. Configuration steps:

List parameter numbers in C01085/1... n in the format of "code. subcode".

Fill in value set 1 in C01086/1... n, value set 2 in C01087, and so on.

Select a value set by controlling the input bSelectWriteValue_1 and bSelectWriteValue_2.

Write the selected value set when bExecute rises.

This feature is very suitable for devices that require quick switching of driving parameters based on different process formulas.

Precautions for replacing old frequency converters

When replacing old models (such as Lenze 8200, 9300, or third-party brands) with 8400 StateLine C, please note:

Control mode matching: The old system may use 0... 10V analog inputs, which are consistent with the default settings of 8400; If using 4... 20mA, C00034/1=2 needs to be set.

Terminal function mapping: The digital input function of old devices may be different. The pre allocation mode of 8400 (Terminals 0/2/11/16) provides multiple options; If it still does not match, you can use the Free Interconnection feature of Engineer software to reassign.

Motor parameter transplantation: Manually input the rated voltage, current, frequency, power factor and other parameters of the old frequency converter into C00084... C00092 of 8400.

Acceleration and deceleration time: The slope time of the old equipment can be directly copied to C00012, C00013, and C00105.

Braking resistor: If the old equipment is connected to an external braking resistor, please confirm whether the resistance value and power meet the 8400 specification, and connect it to Rb1 and Rb2.

Installation size: Please refer to the hardware manual for the width and height of the 8400 StateLine C, which may require adaptation to the installation board.

Software compatibility: If the old system is controlled through fieldbus (such as PROFIBUS, CANopen), 8400 needs to insert the corresponding communication module (such as MCI card) and reconfigure the parameters.
