Leuze DDLS 200 Optical Data Transmission System: Complete Guide to Installation, Debugging, Fault Diagnosis, and Maintenance

Introduction: When there is a problem with the data optical path on the industrial site

In modern automated logistics systems, three-dimensional warehouses, inter workshop communication, and rotary table data transmission, non-contact optical data transmission systems have become an ideal choice to replace slip rings and drag chain cables due to their high bandwidth, resistance to electromagnetic interference, and long-distance transmission advantages. The DDLS 200 series infrared laser data optical transmission system from Leuze Electronics has a working distance of up to 200 meters and supports INTERBUS 500 kBit/s and RS 422 protocols. It is widely used in scenarios such as elevated warehouses, fixed data transmission between buildings, and rotary transmission.

However, as the operating years of the equipment increase, engineers often face problems such as optical path alignment deviation, received signal attenuation, and data transmission interruption. When the original spare parts are discontinued or the delivery time is long, how to quickly diagnose faults, correctly realign, maintain and replace the system becomes the key to ensuring the continuous operation of the production line. This article is based on the official technical manual of DDLS 200, providing a detailed technical guide from installation alignment, electrical wiring, operation mode, fine debugging to troubleshooting to help on-site engineers quickly restore optical communication.

Overview and Core Technical Parameters of DDLS 200 System

DDLS 200 is an optical data transmission system consisting of two optical transceivers. Each device includes an infrared laser diode (wavelength 880 nm, laser level 1, compliant with EN 60825), a receiving optical unit, and a signal processing circuit. The system supports point-to-point full duplex communication and protocol transparent transmission.

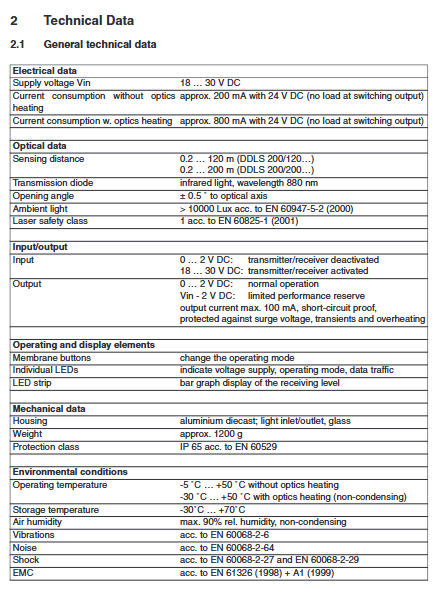

1.1 Main technical specifications (excerpted from the manual)

Parameter values

Detection distance 0.2... 120 m (DDLS 200/120...); 0.2 … 200 m（DDLS 200/200…）

Emission angle ± 0.5 ° (relative to the optical axis)

Laser safety level 1 (EN 60825-1)

Supply voltage 18... 30 V DC

Current consumption (without optical heating) approximately 200 mA @ 24 V DC

Current consumption (with optical heating) approximately 800 mA @ 24 V DC

Working temperature -5 ° C...+50 ° C (without heating); -30 ° C...+50 ° C (with heating, no condensation)

Protection level IP 65 (EN 60529)

Aluminum die-casting shell material, glass optical window

Weight approximately 1200 grams

Key point: The optical heating function is suitable for low-temperature environments (such as cold storage), which can prevent window frosting, but the current consumption significantly increases. Engineers should confirm whether heating models are needed based on the on-site temperature when selecting models.

1.2 Application scenarios and typical faults

DDLS 200 is commonly used for:

Automated elevated warehouse: data exchange between stacker cranes and ground control stations.

Data transmission between buildings: When optical cables cannot be laid, short-range wireless communication is achieved using infrared light.

Rotary transmission: such as rotary tables and rotary workbenches, replacing easily worn slip rings.

Common fault phenomena include:

Intermittent interruption or complete loss of data transmission.

The receiving level bar graph shows low or completely dark.

Warning output (OUT Warning) is activated.

The device cannot enter the normal 'Automatic' mode.

Installation and optical alignment: 90% of faults are caused by this

Optical alignment is a prerequisite for the stable operation of the DDLS 200 system. The manual clearly states: "At the minimum working distance Amin, the optical axes of the two devices must be aligned with each other within ± Amin · 0.01 to ensure that the emitting/receiving beam falls within each other's opening angle. ”

2.1 Mechanical installation requirements

Install two DDLS 200 units on opposite, parallel vertical walls.

Use 4 M5 screws to secure the device using the 4 fixing holes on the mounting plate.

For mobile applications such as stackers, it is necessary to ensure track stability and avoid relative angle changes caused by uneven ground or vibration.

Attention: The fine alignment adjustment range for both horizontal and vertical directions is ± 6 ° (achieved by adjusting the screw). But the emission angle is only ± 0.5 °, so it is necessary to ensure that the optical axis deviation does not exceed ± (Amin · 0.01) throughout the entire stroke range.

2.2 Anti interference measures between adjacent systems

When installing multiple sets of DDLS 200 on site, frequency and spatial isolation must be considered:

Frequency offset configuration (using different frequencies f1 and f2): The distance between two parallel optical paths is ≥ 300 mm (DDLS 200/120...) or ≥ 500 mm (DDLS 200/200...).

Same frequency configuration: minimum distance=500 mm+tan (0.5 °) x detection distance (200 m model) or 300 mm+tan (0.5 °) x detection distance (120 m model).

Not following the above distance will lead to mutual interference between adjacent systems, manifested as an increase in bit error rate and unstable communication.

2.3 Quick Alignment Techniques

During the installation phase, it is recommended to first use rough visual alignment, and then power on for electronic fine alignment (see Chapter 4 for details).

Electrical connections: power supply, input/output, and INTERBUS wiring

3.1 Power Supply and Grounding

The power terminals Vin (+18... 30 V DC) and GND (0 V) use spring terminals at the bottom of the housing and provide dual terminals for cascading power supply.

It is necessary to connect the protective earth (PE), which can be done through dedicated PE terminals or shell grounding screws (maximum wire diameter 2.5 mm ²).

The power supply must use a double insulated safety transformer that complies with EN 60742.

Common error: Incorrect grounding can cause EMC interference, causing the received signal bar to bounce.

3.2 Switching input IN (transmit/receive off)

The IN terminal is used for remote shutdown of laser emission and bus drive. The logic is as follows:

0... 2 V DC: transmit/receive off, no infrared light output, bus output in high impedance state.

18... 30 V DC: normal transmission/reception.

Switch S1 is used to bypass this input:

S1=On: Ignoring the IN terminal, the transmission/reception always works (internally pulled up to Vin).

S1=Off: Controlled by the IN terminal voltage.

Typical application: When the stacker crane is changing lanes, the current optical path is temporarily turned off through PLC to avoid interference with adjacent lanes.

3.3 Switching output OUT Warning

When the received level drops to the warning threshold, the OUT Warning output becomes Vin-2 V (high level), which is 0... 2 V during normal operation. This output can be connected to the PLC input for remote monitoring of optical path contamination or alignment offset. The output has short-circuit protection, overvoltage protection, and overheating protection.

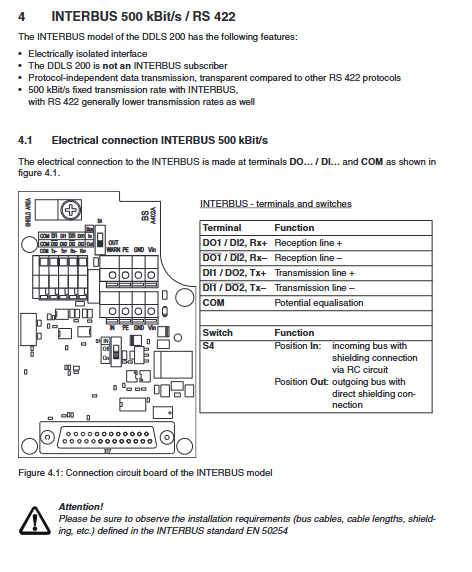

3.4 INTERBUS interface wiring (for INTERBUS models)

The INTERBUS version of DDLS 200 provides the following terminals:

Rx+/Rx -: receive line (from bus)

Tx+/Tx -: Transmission line (to bus)

COM: equipotential connection

Switch S4 is used to set the shielding connection method:

S4=In: Used for input bus, shield connected to PE through RC circuit (1 M Ω+15 nF).

S4=Out: Used for output bus, shielding direct connection to PE.

Important: The bus cable type, length, and shielding requirements in the INTERBUS standard EN 50254 must be followed.

Operation mode and fine tuning: using bar graphs to achieve optimal alignment

The DDLS 200 offers three operating modes, which can be switched through buttons and LEDs on the panel. Correctly understanding and using these patterns is the core of ensuring communication quality.

4.1 Definition of Three Modes

Meaning of Mode LED Light Transmission Status Bar Diagram Application Scenarios

Automatic (AUT) AUT lights up and activates to display the local receiving level (transmitted by the other party) and operates normally

Manual (MAN) MAN is activated to display the local receiving level, but the internal shutdown threshold is raised to the warning level to maintain communication during the adjustment process, but the performance margin is low

Adjust (ADJ) ADJ light interrupt to display the receiving level of the other party (i.e. the strength of the local transmission received by the other party). Align independently by one person

Switching rules:

From AUT to MAN: Press and hold the button (>2 seconds) to switch only the device being pressed.

From MAN to ADJ: Short press the button to require both devices to be in MAN mode, and press it to enter ADJ simultaneously.

From ADJ to MAN: Short press any device button and both devices will return to MAN simultaneously.

From MAN to AUT: Press and hold the button (>2 seconds) to switch only the device being pressed.

4.2 Fine alignment steps (single person operation)

The manual provides the following standard procedures:

Install the two devices in place and power on, confirm that the PWR/UL LED is always on. The initial distance is greater than 1 meter.

Press and hold any device button (>2 seconds) to switch it to MAN mode (MAN LED on). At this time, data communication is still maintained, but the performance margin is reduced.

Adjust the device to make the bar graph display as full as possible (10 LEDs are fully lit). If the bar chart is not satisfactory, it indicates poor alignment.

Intentionally moving the device until data communication is interrupted (only the first few LEDs in the bar are lit). This step is to find the critical point.

Short press the button to switch both devices to ADJ mode simultaneously (ADJ LED on). At this time, data communication is interrupted.

In ADJ mode, the bar graph displays the strength of the local transmission signal received by the other party. Adjust the azimuth and elevation angles of the device to maximize the bar chart (ideally fully offset). If there is only one person, they can walk to the opposite device and repeat the same operation, but usually the ADJ mode allows one person to adjust each device one by one.

After the adjustment is completed, press any button briefly to return both devices to MAN mode. Data communication recovery.

If the communication is stable and the bar graph is good, long press the button (>2 seconds) to switch the device back to AUT mode and put it into normal operation.

Key technique: In ADJ mode, the bar chart reading directly reflects the optical power received by the other party, which is an absolute indicator of alignment quality. Make sure to maximize the bar chart (at least 8 LEDs or more).

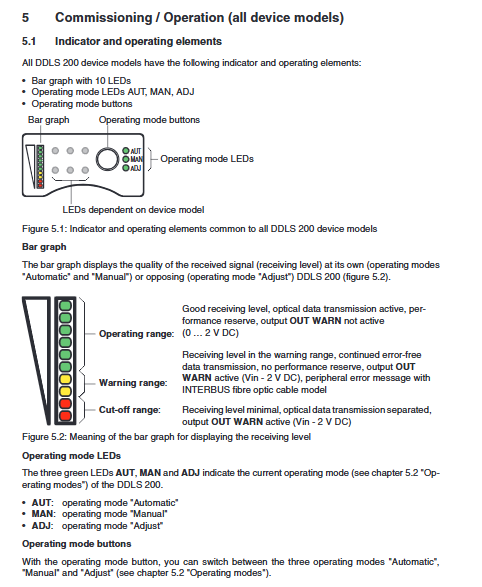

4.3 Interpretation of Receiving Level Bar Chart

10 LED lights are all on: good reception, sufficient performance margin, OUT Warning not activated.

Yellow light area (usually 5-7 LEDs): Warning range, data can still be transmitted normally but there is no margin, OUT Warning activated (output Vin-2 V).

Red light area (<5 LEDs): Off range, data communication interrupted, OUT Warning activated.

Note: At the maximum detection distance (200 m), even with optimal alignment, the bar graph may not achieve full deviation, which is a normal phenomenon.

Fault diagnosis and common problem elimination

5.1 The PWR/UL LED does not light up after power on

Possible cause inspection and resolution

The voltage between Vin and GND measured without power supply voltage should be 18... 30 V DC

Check the terminal wiring for reverse polarity of the power supply, with Vin connected to positive and GND connected to negative

Internal hardware failure returned to manufacturer for repair

5.2 PWR/UL LED flashing

Possible cause inspection and resolution

Switch input IN activated (S1=Off and IN voltage<2 V) Check IN terminal voltage or S1 switch position

If the hardware error still flashes after excluding the input cause, return for repair

5.3 Data communication interruption, but the bar graph displays normally

Possible cause inspection and resolution

Instantaneous obstruction of the optical path (such as robotic arms, flying insects). Check if there are periodic obstructions on site

Inspection of INTERBUS terminal Tx/Rx wiring for broken or poor contact of bus cable

Two devices with mismatched frequencies confirm that one is. 1 (f1) and the other is. 2 (f2)

5.4 The display of the image is too low, and OUT Warning is activated

Possible cause inspection and resolution

Cleaning glass windows with optical window contamination (using glass cleaner and avoiding acetone solvents)

Align the offset and perform fine alignment again (follow the steps in Chapter 4)

The ambient light is too strong (>10000 Lux) and meets the standard, but it is possible to consider installing a light shield

Check if the actual distance is ≤ 200 m (or 120 m) when the working distance of the equipment exceeds the specifications

5.5 Bus communication failure, Tx/Rx LED flashing abnormally

For INTERBUS, a green flashing Tx LED (at high rates) may indicate a bus communication failure. Check the baud rate setting (fixed at 500 kBit/s) and bus cable length.

Ensure that the S4 switch is in the correct position (In/Out).

Maintenance and Cleaning

DDLS 200 is maintenance free during normal operation, but the optical window requires regular cleaning. The manual recommends cleaning once a month or when triggered by an OUT Warning.

Cleaning steps:

Disconnect the power supply (not mandatory, but recommended).

Gently wipe the optical window with a soft cloth and standard glass cleaner.

Do not use solvents containing acetone, as it may damage the glass coating.

Check heating function: In low-temperature environments, if frost appears on the window, check if the optical heating is working (current consumption should be 800 mA). If the heating fails, the equipment needs to be replaced.

System replacement and upgrade suggestions

When the original DDLS 200 is discontinued or cannot be repaired, engineers may consider the following solutions:

Same model replacement: Confirm that the spare parts are of the same model (such as pairing DDLS 200/2001-YY with. 2-YY). Pay attention to frequency identification (. 1 and. 2 must be paired).

Upgraded to a new model: Leuze has subsequently launched series such as DDLS 500/508, supporting higher speeds and longer distances. When replacing, attention should be paid to the electrical interface (possibly changed from INTERBUS to PROFINET) and installation dimensions.

Repair service: Internal optical components, laser diodes, or electronic boards can be replaced through Leuze official or third-party repair providers.

Important reminder: After replacement, the complete mechanical installation and fine alignment process must be re executed, and the old alignment data cannot be directly used.
