Panning Vacuum Sensor Maintenance Guide

Leybold PENNINGVAC PR Cold Cathode Vacuum Sensor: A Complete Guide to Selection, Installation, Cleaning, Maintenance, and Troubleshooting

Introduction: When high vacuum measurement requires robustness and reliability

In the fields of ultra-high vacuum (UHV) and high vacuum (HV), the cold cathode ionization vacuum gauge (Penning gauge) has become an indispensable measuring tool due to its non hot filament, resistance to sudden air intake, resistance to vibration, and wide measurement range (usually from 10 ⁻² mbar to 10 ⁻⁸ mbar). Compared with hot cathode ionization gauges (such as Bayard Alpert gauges), cold cathode gauges do not have fragile filaments and will not burn out due to accidental exposure to the atmosphere, making them particularly suitable for process environments with frequent risks of gas release, sputtering, or vibration.

Leybold's PENNINGVAC PR series passive cold cathode sensors are designed based on the Penning discharge principle, featuring a sturdy metal casing and a detachable measurement chamber, specifically developed for demanding applications such as semiconductors, coatings, particle accelerators, and space simulations. Its unique titanium cathode plate not only improves ignition characteristics, but can also be replaced separately, significantly extending the service life of the sensor. This article will provide a detailed technical guide to help engineers solve practical problems on site, covering working principles, model characteristics, installation selection, cleaning and maintenance, troubleshooting, and replacement selection.

Principle of Penning Cold Cathode Ionization and Characteristics of PR Sensor

1.1 Working principle

The cold cathode ionization vacuum gauge utilizes the gas discharge phenomenon in a magnetic field. The sensor contains an anode ring and two cathode plates inside, and a permanent magnetic field (usually around 0.1 T) is applied externally. When a high voltage of about 2 kV is applied, residual gas molecules inside the cavity are ionized, and the generated ions and electrons move along a spiral path under the combined action of electric and magnetic fields, increasing the probability of collision and forming self-sustaining discharge. The discharge current is logarithmic to the gas pressure, and the pressure can be calculated by measuring the current.

Unlike hot cathode gauges, cold cathode gauges do not require heating of the filament, therefore:

No thermal radiation, no interference with the process

Low sensitivity to oxygen

Anti sudden intake (will not burn out)

Ignite at lower pressure (<10 ⁻ ² mbar)

1.2 Core advantages of PR sensors (based on the original text)

According to the product manual, the PENNINGVAC PR sensor has the following outstanding advantages:

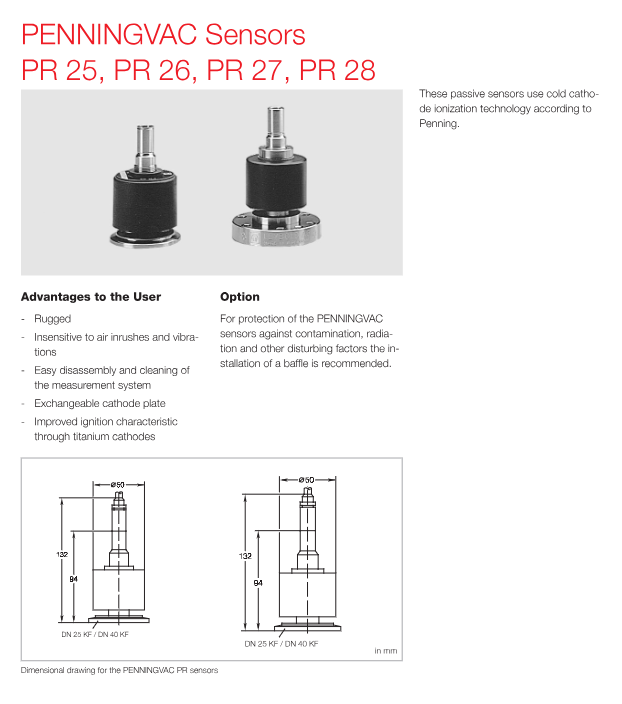

Rugged: All metal structure, resistant to mechanical impact and vibration.

Insensitive to air surges: Even if accidentally exposed to the atmosphere, the sensor will not be damaged.

Easy disassembly and cleaning of the measurement system: Users can disassemble and clean it on site without returning to the factory.

Exchangeable cathode plate: When the cathode is heavily contaminated or sputtered, only the cathode plate needs to be replaced instead of the entire sensor.

Improved ignition characteristics through titanium cathodes: Titanium has a high secondary electron emission coefficient, which helps to quickly establish discharge under low pressure.

1.3 Optional accessories: Baffle

The manual clearly recommends installing a baffle to protect the PENNINGVAC sensor from contamination, radiation, and other interference factors. The baffle can be installed between the sensor and the vacuum chamber to block particles, sputtered atoms, or radiation generated during the process from directly entering the measurement chamber, thereby extending the cleaning cycle.

Technical specifications and models (based on manual information)

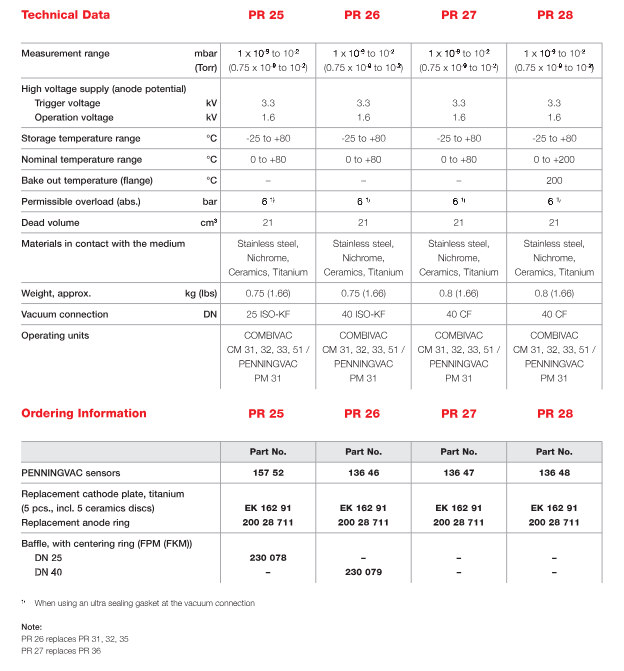

Although the detailed specification table on the second page of the original document has been truncated, according to Leybold's publicly available information, the PR series typically includes the following models:

Model measurement range (air), flange interface material, ignition voltage

PR 25 10 ⁻⁵~10 ⁻ ² mbar DN 25 ISO-KF stainless steel~2 kV

PR 40 10 ⁻⁵~10 ⁻ ² mbar DN 40 ISO-KF stainless steel~2 kV

PR 81 10 ⁻⁸~10 ⁻ ² mbar DN 40 CF stainless steel~2 kV

Key parameters (typical values):

Pressure range: 1 × 10 ⁻⁸~1 × 10 ⁻² mbar (depending on the model)

Output signal: current (logarithmic, usually 10 ⁻¹¹~10 ⁻⁴ A)

Power supply: requires external high-voltage power supply and current measurement controller (such as Leybold Center, GRAPHIX series or third-party Penning gauge controller)

Baking temperature: up to 400 ° C (CF flange version, without electronic components)

Weight: Approximately 0.3~1.5 kg

Note: PR sensors are "passive", meaning they do not include built-in electronic circuits or signal processing units and only provide discharge current output. The user needs to be equipped with a dedicated Penning gauge controller (providing high voltage and current measurement). This is different from integrated models such as the PENNINGVAC PTR series.

Installation and Selection Guide

3.1 Flange selection

ISO-KF flange (DN 25/40): suitable for high vacuum applications (baking temperature ≤ 150 ° C), quick installation, using clamps and centering rings.

CF flange (DN 40 CF): suitable for ultra-high vacuum (UHV), can be baked up to 400 ° C, metal sealed.

Selection suggestion: If the system requires frequent baking or the maximum pressure is below 10 ⁻⁹ mbar, the CF flange version must be selected.

3.2 Installation location

The sensor should be installed in a location without direct process flow to avoid direct impact of particles and sputtered atoms on the measurement chamber.

It is recommended to install a baffle or bend between the sensor and the cavity to block contaminants.

Avoid installing sensors near the pump port to prevent contamination from pump oil vapor.

3.3 Magnetic field interference

The cold cathode sensor itself has a permanent magnet, therefore:

Ensure that there is no ferromagnetic material within 50 mm around the sensor during installation.

If there is a strong magnetic field in the system (such as sputtering cathode, electron beam evaporation source), magnetic shielding should be considered.

3.4 Electrical Connections

PR sensors typically have three electrodes:

Anode: connected to high voltage positive electrode (around+2 kV)

Cathode: connected to high voltage negative electrode (usually grounded)

Guard: Used to reduce leakage current (optional)

The controller needs to have:

High voltage output (0-5 kV, usually fixed at 2 kV)

Current measurement (pA level, logarithmic amplifier)

Ignition auxiliary circuit (improves starting reliability)

Use low-noise coaxial cables (such as RG-58) to connect sensors and controllers, with the shielding layer grounded at one end.

Ignition characteristics and improvement methods

Panning gauge may have difficulty igniting automatically when the pressure is below 10 ⁻⁴ mbar due to insufficient initial free electrons. The PR sensor uses a titanium cathode with a high secondary electron emission coefficient, but the following improvement measures still need to be noted:

Ensure sufficient initial pressure: When the system pressure is below 10 ⁻⁵ mbar, a small amount of gas (such as argon) can be introduced for a short period of time to 10 ⁻³~10 ⁻ ² mbar, and then lowered after the discharge is established.

High voltage scanning or ignition pulses using controllers: Many Leybold controllers (such as GRAPHIX, CENTER) provide automatic ignition functionality.

Clean cathode: The contaminated cathode surface will reduce the ignition success rate.

Cleaning and Maintenance: The Great Advantage of Removable Design

The long-term stability of a cold cathode sensor depends on the cleanliness of the measurement chamber. The oil vapor, sputtered atoms, and dust in the process will gradually deposit on the cathode and anode, resulting in:

Difficulty igniting

Current reading drift

Insulation resistance decreases (leakage current increases)

The easy disassembly and cleaning of PR sensors are their core selling points.

5.1 Cleaning steps

Release the system to atmospheric pressure and turn off the high pressure of the controller.

Remove the sensor (if the system is in vacuum, close the isolation valve first).

Use tools to open the sensor housing and remove the anode ring and cathode plate.

Cleaning method:

Mild pollution: Wipe with anhydrous alcohol or isopropanol, rinse with deionized water, and then dry.

Heavy pollution (such as metal plating): The surface of the cathode plate can be gently sanded with fine sandpaper (such as 600-1000 mesh) to remove the deposited layer.

Ultrasonic cleaning (in deionized water) is suitable for ceramic insulation components.

Check insulation resistance: Use a megohmmeter to measure the resistance between the anode and cathode, which should be>10 ¹² Ω.

Reassemble, pay attention to alignment.

Install on the system and test after vacuuming.

5.2 Replacement of cathode plate

When the cathode plate is worn or contaminated and cannot be cleaned, a replacement cathode plate (original parts) can be purchased. The manual states that "replaceable cathode plate" is a standard feature of PR sensors, which eliminates the need to replace the entire sensor and greatly reduces long-term usage costs.

5.3 Cleaning cycle recommendations

General laboratory application: once a year.

Coating or sputtering process: Every 3-6 months or based on reading drift.

Using a baffle: can extend the cleaning cycle by 2-3 times.

Troubleshooting

The following fault diagnosis is based on typical failure modes of Panning specifications.

6.1 No current output or display as zero (when pressure is below 10 ⁻⁴ mbar)

Possible cause inspection and resolution

Check the high voltage indicator light for controller high voltage not outputting; Measure high voltage output (pay attention to safety)

The sensor is not ignited (pressure is too low), introduce a small amount of gas to 10 ⁻ mbar, and observe whether the current jumps

Severe contamination of the cathode or anode leads to insulation degradation. Disassemble and clean, measure insulation resistance

Check coaxial cable connection for cable breakage or poor contact

Magnetic demagnetization (extremely rare): Check the magnetic field strength using a Gaussian meter. If it is below 0.05 T, replace the sensor

6.2 High or non-linear readings (compared to reference gauge)

Possible cause inspection and resolution

Cathodic pollution leads to abnormal secondary electron emission. Cleaning or replacing the cathode is necessary

Particles or burrs inside the sensor causing partial discharge. Disassemble and inspect, and blow with compressed air

Leakage current is large (insulation contamination). Clean ceramic insulation and dry it

Controller calibration offset can be adjusted using Leybold calibration service or comparison standard gauge

6.3 Unstable and jumping readings

Possible cause inspection and resolution

Intermittent plasma or sputtering in the process, adding baffles or adjusting installation positions

Poor cable shielding, use double shielded cable due to electromagnetic interference, check grounding

Vacuum pressure fluctuation inspection system for air leakage or pump performance

Internal looseness of sensor, reassembly and tightening

6.4 Difficulty in ignition (failure to ignite even at a pressure of 10 ⁻ mbar)

Possible cause inspection and resolution

Oxidation or contamination of cathode surface, polishing of cathode plate or replacement

Insufficient High Voltage Output (<1.5 kV) Check Controller Settings

Magnetic field weakening inspection: Check if the permanent magnet has demagnetized due to high temperature (if baked above 200 ° C)

Replace the anode ring or cathode plate if the electrode gap is too large or deformed

6.5 Leakage or flange leakage

Possible cause inspection and resolution

O-ring (KF flange) aging replacement centering ring O-ring

CF flange metal seal ring damaged, replace oxygen free copper gasket

Check the O-ring or metal sealing surface for poor sealing of the sensor housing and tighten it again

Precautions for replacing old or faulty sensors

When you need to replace a discontinued or irreparable cold cathode vacuum timer, PR sensors are an excellent alternative. Please verify the following points:

7.1 Flange compatibility

The old standard flanges are usually DN 25 KF, DN 40 KF, or DN 40 CF. The PR series offers the same specifications and can be directly replaced.

If the flange sizes are different, variable diameter flanges (such as DN 25 to DN 40) can be used.

7.2 Electrical Interface

The old regulations may use 4-pin or 6-pin circular connectors, while PR sensors typically use high-voltage coaxial cables (SHV or MHV) or BNC. The output interface of the controller needs to be checked, and if necessary, an adapter cable should be made.

The measurement principle is the same (Penning discharge), and most brands of Penning gauge controllers can drive PR sensors, but the high voltage polarity (usually anode positive, cathode grounded) and sensitivity (current pressure curve) need to be checked. The curve of the Leybold controller is pre-set, and third-party controllers may require manual calibration.

7.3 Baking Requirements

If the system needs to be baked above 200 ° C, the CF flange version must be selected and the cables and controller must be removed. The PR sensor (without electronic components) can be baked to 400 ° C.

7.4 Measurement Range

The measurement range of the old regulations may be different from that of PR. The minimum measurement limit for PR series is usually 10 ⁻⁸ mbar (PR 81). If the system needs to measure 10 ⁻⁹ mbar, a higher sensitivity model (such as Leybold PENNINGVAC PTR series or hot cathode gauge) should be selected.

7.5 Cables and Controllers

The PR sensor itself does not include a controller. If you only have sensors without a matching controller, you will need to purchase an additional controller (such as Leybold GRAPHIX series or Center series). Third party Penning gauge controllers can also be used, but it needs to be confirmed that their output high voltage and current measurement ranges are compatible.

Suggestions for Accessories and Spare Parts

To ensure the long-term reliable operation of PR sensors, it is recommended to stock the following spare parts:

Recommended inventory for spare parts usage

Replace 2-3 worn or heavily contaminated cathodes with titanium cathode plates

5 O-ring seals (KF flange) for centering ring

Two oxygen free copper gaskets (CF flanges) are used for sealing

1 spare coaxial cable (with connector)

Baffle reduces pollution by 1 (recommended to be used immediately upon initial installation)
