Selection and Application Guide for SIEMENS PL and ES Series Load Centers

Selection and Application Guide for SIEMENS PL and ES Series Load Centers

Basic and Standard Specifications

1. Positioning and Applicable Scope

Core objects: Siemens PL series, ES series EQ ®  Series and Murray brand load centers, covering 1-phase (120/240V) and 3-phase (240V/120/208V) AC distribution scenarios.

Application scenarios: residential (such as household power distribution), commercial (such as office buildings), industrial (such as factory workshops), and special scenarios (high-rise shafts, generator backup power).

Standard certification:

Standard Number Standard Name Applicable Components

UL 50 Electrical Cabinet and Box Load Center Shell

UL 67 Distribution Panel Integrated Load Center

UL 489 Plastic Case Circuit Breaker Matching QP/QR Series Circuit Breaker

UL 943 Ground Fault Circuit Breaker (Class A) Load Center with GFCI Function (e.g. SPA Panel)

NEC National Electrical Code Installation and Wiring Specification

2. Model coding system (core rules)

Taking PL series P1224B1100CU and ES series S1224B1100 as examples, the coding breakdown is as follows:

Example Explanation of Encoding Segment Meaning (PL Series) Meaning (ES Series)

Initial letter P=PL series (copper busbar) S=ES series (aluminum busbar) P=PL series, S=ES series

Number of vacancies in the first and second digits (1 inch circuit breaker vacancy) Number of vacancies 12=12 vacancies

The number of circuits in the 3rd and 4th digits is 24 circuits

Letter B/L B=main circuit breaker type, L=main terminal block type B=main circuit breaker type, L=main terminal block type B=with main circuit breaker

The 5th to 8th digits represent the rated current (1100=100A, 1200=200A). The rated current is 1100=100A

Suffix CU=copper busbar, SG=disconnect grounding, GEN=generator ready, W=white decoration, G=with grounding bar CU=copper busbar

Detailed explanation of core product series

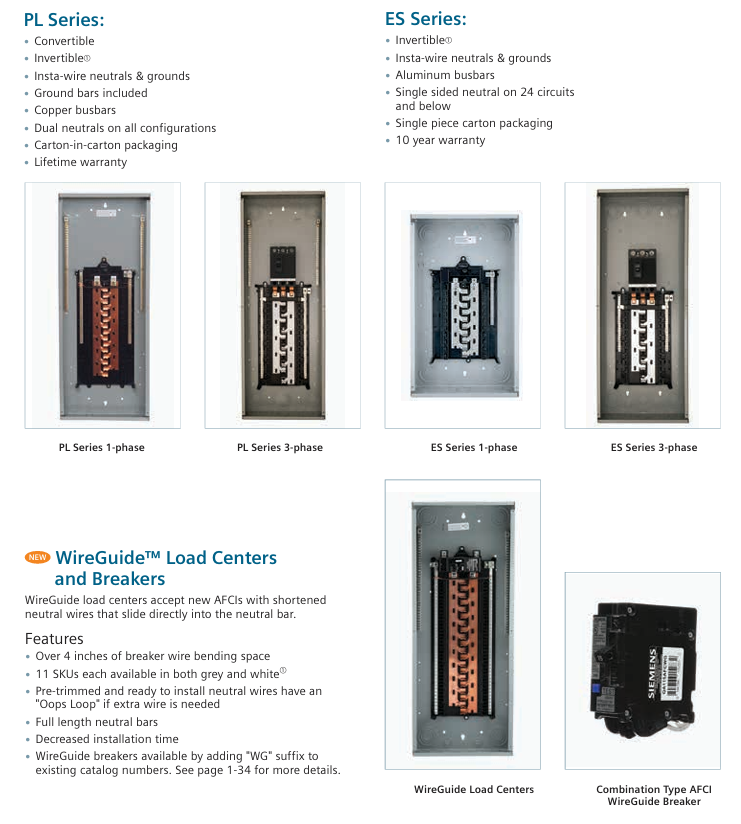

1. PL series (copper busbar, lifetime warranty)

Core features: convertible (main circuit breaker/main terminal switch), reversible installation, Insta wire neutral/ground wire, dual neutral bars, 22kA short-circuit breaking capacity (main circuit breaker type)/100kA (main terminal type).

Example of 1-Phase model:

Model Rated current Vacancy/Circuit protection level Shell size (height x width x depth, inches) Applicable scenarios

P1224B1100CU 100A 12/24 NEMA 1 18 × 14.25 × 3.88 Residential Small Power Distribution

P3040B1200CU 200A 30/40 NEMA 3R 35 × 14.5 × 4.25 Outdoor Commercial Distribution

P5470B1225CU 225A 54/70 NEMA 1 44 × 14.25 × 3.88 Industrial High Power Scenario

Example of 3-phase model:

Model Rated Current Vacancy/Loop Voltage Shell Height (inches)

P3054B3200CU 200A 30/54 120/208V 39

P4260B3225CU 225A 42/60 240V 42

2. ES series (aluminum busbar, 10-year warranty)

Core features: Inverted installation, Insta wire neutral/ground wire, 24 circuit and below single neutral busbar, 10kA short-circuit breaking capacity (3-phase main circuit breaker type).

1-Phase main circuit breaker type:

Model rated current vacancy/circuit protection level matching circuit breaker

S1224B1100 100A 12/24 NEMA 1 Q2100（2P 100A）

S3040B1200 200A 30/40 NEMA 3R QN2200（2P 200A）

Special application models:

Surge protection type: S3054B1200S060 (200A/54 circuit, 60kA surge protection)

Trailer panel type: SW0816B1200T (200A/16 circuit, NEMA 3R， Factory pre installed MBK200A

3. EQ ®  Series (High Power/Special Scenarios)

Core classification:

Type Rated Current Circuit Range Core Characteristics Model Example

High power 300-400A 24-70 copper busbar with locking device E4242MB1400SCU (400A/42 circuit)

Small loop type 100-125A 4-16 narrow size (such as 6 inches wide), suitable for old residential renovation E0408ML1125F (125A/8 loop)

Circuit breaker housing 60-250A 2-4 poles, including only the housing, requires separate circuit breaker W0202MB1200CU (200A/2 poles)

Generator ready type (EQ derivative):

Model rated current vacancy/circuit protection level suitable for generator type

G3042B1200GEN 200A 30/42 NEMA 1 Automatic/Portable

W3042L1225GEN 225A 30/42 NEMA 3R Portable

4. Murray series (compatible with PL/ES accessories)

Core features: Optional aluminum/copper busbar, 100kA short-circuit breaking capacity (main terminal type), supports bottom inlet inverted installation.

1-Phase main terminal block type:

Model Rated Current Vacancy/Loop Bus Material Shell Size (Height x Width x Depth, inches)

LC2040L1125 125A 20/40 aluminum 24 × 14.38 × 4

LC2040L1125CU 125A 20/40 copper 24 × 14.38 × 4

Installation and accessory selection

1. Key installation specifications

Main circuit breaker conversion: PL series 100A load center requires MBK100A kit, 225A requires MBK225A; The ES series 200A requires MBK200A.

Grounding busbar selection: Match according to the number of circuits, such as EC2GB15 (15 positions) for 24 circuits and EC3GB27 (27 positions) for 40 circuits.

Outdoor installation: NEMA 3R enclosures require HS type hubs (such as ECHS 150 for 1.5 inches and ECHS 200 for 2 inches), and HV type hubs (such as ECHV 200) for high power (>225A).

2. List of core accessories

Accessory type, model description, applicable scenarios, packaging quantity

Main Circuit Breaker Kit MBK100A 1-Phase 100A, 22kA PL/ES Series 100A Load Center 1
