Detailed explanation of product basic information

1. Product classification and model system

(1) Product series division

Series Structure Type Core Characteristics Thrust Range (Rated) Speed Range (Maximum) Applicable Scenarios

SGLG ironless low inertia, silent operation, no cogging effect 12.5-750N, 4.0-5.0 meters/second high-speed reciprocating motion, precision positioning equipment (such as chip packaging machines)

SGLF F-type iron core with high thrust density, supporting self cooling/water cooling 25-2520N 4.0-5.0 meters/second medium to heavy-duty automation equipment (such as conveyor belts, stamping machines)

SGLT T-shaped iron core with high thrust, high rigidity, strong anti-interference ability 130-2000N 2.5-4.8 m/s heavy-duty machine tools, large production lines (such as CNC machine tool spindles)

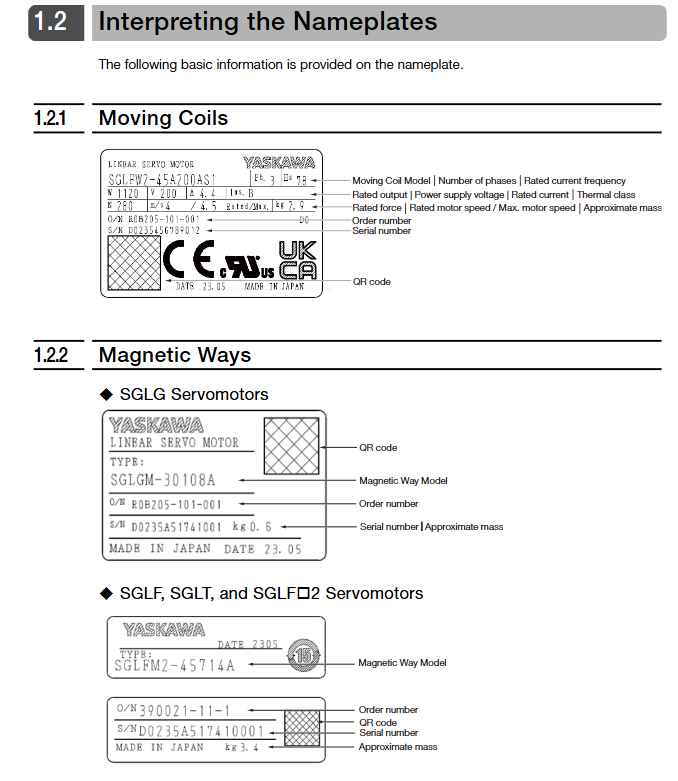

(2) Model coding rules

Taking SGLFW2-30A070AS1 as an example, the encoding meanings of each segment are as follows:

SGL: Identification of ∑ -7 series linear servo motors;

F: Structural type (F-type iron core);

W2: Component type (rotor);

30: Magnet height (30mm);

A: Supply voltage (200VAC);

070: length of rotor (70mm);

One:

S: Sensor configuration (with polarity sensor+thermal protector);

1: Cooling array

2. Core technical parameters

(1) General parameters

Power supply specifications: Unified at 200VAC (single-phase/three-phase compatible), insulation level B, insulation resistance ≥ 10M Ω (500VDC), withstand voltage 1500VAC/1 minute;

Environmental adaptability: working temperature 0-40 ℃ (no freezing), relative humidity 20% -80% RH (no condensation), altitude ≤ 1000m, protection level IP00;

Mechanical performance: Vibration acceleration ≤ 49m/s ² (in three directions), impact acceleration ≤ 196m/s ² (twice), gap between magnetic track and rotor 0.8-1.4mm (0.5-1.2mm with magnetic cover).

(2) Key performance parameters (typical models)

Series model: Rated thrust, maximum thrust, rated speed, maximum speed, mass of rotor

SGLG SGLGW-40A253C 93N latitude 280 degrees north 2.0 meters/second 5.0 meters/second 0.6 kilograms

SGLF SGLFW2-90A380A 1120N 3360N 4.0 m/s 4.0 m/s 10.1 kg

SGLT SGLTW-50A320H 900N 1800N 2.0 m/s 3.1 m/s 11 kg

3. Core components and accessories

Sensors: polarity sensor (Hall sensor, used for position detection), thermal protector (to prevent motor overheating);

Encoder: compatible with Heidenhain, Renishaw, Mitutoyo and other brands, supports incremental/absolute, with a maximum signal resolution of 1/4096 pitch;

Cables: servo main circuit cables (JZSP-CLN series), encoder cables (JZSP-CLL series), sensor cables (JZSP-CL2L series);

Auxiliary components: Serial conversion unit (JZDP series, converting encoder signals to servo amplifiers), braking resistor, water cooling pipeline (only for water cooling models).

Detailed Explanation of Selection Calculation

1. Core formula and steps for selection

(1) Basic parameter collection

Key parameters such as load mass (mW), worktable mass (mT), motor rotor mass (mM), target speed (v), acceleration time (t ₐ), deceleration time (td), friction coefficient (μ), and external force (F) need to be clearly defined.

(2) Core Strength Calculation

Steady state thrust (force required for uniform load operation):

F L=9.8×M×(m W+m T+m M)+F

Acceleration thrust (force required during load acceleration phase):

F P=(m W+m T+m M)× t onev+F L

Deceleration thrust (force required during load deceleration phase):

F S=(m W+m T+m M)× t dv−F L

Effective thrust (average thrust during cyclic operation):

F RMS= tF P two⋅t one+F L two⋅t C+F S two⋅t d(t is the total time of the cycle, t_C is the uniform speed time)

(3) Selection verification criteria

Acceleration thrust ≤ maximum motor thrust × 0.9;

Deceleration thrust ≤ maximum motor thrust × 0.9;

Effective thrust ≤ motor rated thrust × 0.9;

The total load mass (mW+mT) is ≤ the maximum allowable load of the motor (to be combined with the configuration of the braking resistor).

2. Selection Example (Taking SGLGW-60A253C as an Example)

Known conditions: load mass of 1kg, worktable mass of 2kg, rotor mass of 0.82kg, speed of 2m/s, acceleration time of 0.02s, friction coefficient of 0.2, external force of 0N;

Calculation results: Steady state thrust of 7.5N, acceleration thrust of 389.5N, effective thrust of 108.3N;

Verification: The maximum thrust of the motor is 440N × 0.9=396N (≥ 389.5N), and the rated thrust is 140N × 0.9=126N (≥ 108.3N). The selection is qualified.

Installation specifications (mechanical+electrical)

1. Mechanical installation specifications

(1) Installation environment requirements

Environmental restrictions: Indoor use, no corrosive gases (such as hydrogen sulfide), explosive gases, no strong magnetic field interference (away from electromagnets and large transformers);

Strong magnetic protection: The magnetic track contains neodymium iron boron strong permanent magnets and should be kept away from electronic medical equipment such as pacemakers (safety distance ≥ 1m). Non magnetic tools (brass, stainless steel) should be used during operation to avoid magnetic substances (nails, wrenches) from approaching and causing compression injuries;
