YASKAWA ∑ - V series AC servo drive

YASKAWA ∑ - V series AC servo drive

Core positioning

The YASKAWA ∑ - V series AC servo drive focuses on the entire lifecycle of design, testing, adjustment, and maintenance. It is compatible with SGDV series servo amplifiers and SGMMV/SGMJV/SGMAV rotary servo motors, as well as SGMCV/SGMCS direct drive servo motors. Its core applications include high-frequency, high-speed, and high-precision positioning scenarios (such as automated production lines, precision machine tools, robots, etc.), and it also specifies compliance requirements and safety operating standards such as UL in North America, CE in the European Union, and UKCA.

Product Core Parameter System

（1） Power supply and electrical parameters

Power supply type, model series, voltage range, frequency, continuous output current, instantaneous maximum output current

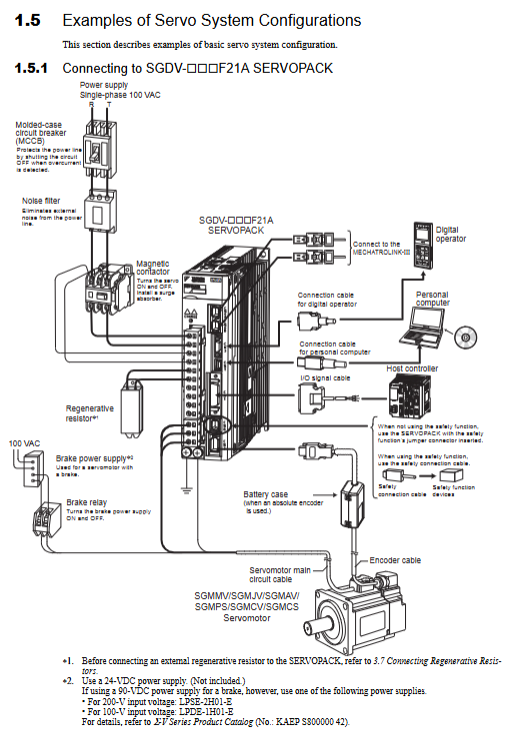

Single phase 100V SGDV-F series (R70F/R90F/2R1F/2R8F) 100-115VAC,+10%/-15% 50/60Hz 0.66-2.8 Arm 2.1-9.3 Weapon

Single phase 200V SGDV-A series (120A21A008000) 220-230VAC,+10%/-15% 50/60Hz 11.6 weapons 28 weapons

Three phase 200V SGDV-A series (R70A/1R6A/3R8A, etc.) 200-230VA,+10%/-15% 50/60Hz 0.66-78.0 weapons 2.1-170 weapons

Three phase 400V SGDV-D series (1R9D/3R5D/8R4D, etc.) 380-480VAC,+10%/-15% 50/60Hz 1.9-37.2 weapons 5.5-85 weapons

（2） Performance indicators

Speed control range: 1:5000 (the lower limit should be lower than the rated torque without causing the motor to stop)

Speed regulation accuracy: ± 0.01% (rated speed) when the load changes from 0% to 100%; 0% when voltage fluctuation is within ± 10%; ± 0.1% when the temperature changes by 25 ± 25 ℃

Repeatability of torque control: ± 1%

Positioning completion accuracy: can be fine tuned through electronic gear ratio (Pn20E/Pn210) and positioning completion width (Pn522), with a minimum reference unit of 1 μ m

Response characteristics: Soft start time 0-10s (acceleration/deceleration can be independently set)

（3） Environmental and Protection Parameters

Working temperature: 0-55 ℃; Storage temperature: -20-85 ℃

Relative humidity: ≤ 90% RH (no condensation, no freezing)

Vibration resistance: 4.9m/s ²; Impact resistance: 19.6m/s ²

Protection level: IP10 (to avoid contact with corrosive gases, dust, and oil-water)

Altitude limit: ≤ 1000m

Pollution level: Level 2

Key operations and configuration system

（1） Panel and digital operator

1. Core components

Seven segment LED display: displays servo status, alarm codes, parameter values

Function keys (MODE/SET, DATA, JOG/SVON, etc.): used for parameter configuration, utility function execution, and manual operation

Indicator lights: CHARGE (main circuit capacitor charging), L1/L2 (communication data transmission), CN (communication connection normal)

2. Core operating procedures

Parameter configuration: Switch to the "PRM/MON" menu using the MODE/SET keys, select the parameter (Pn series) using the directional keys, modify the value using the DATA key and save it

Utility function execution: Switch to the "Function" menu with MODE/SET keys, select Fn code (such as Fn201 advanced self-tuning), and press the DATA key to start

Monitoring view: Switch the MODE/SET key to the "PRM/MON" menu, switch to the monitoring item starting with "Un", and check the motor speed (Un000), torque (Un002), etc

（2） Parameter classification and core parameters

1. Parameter classification

Setup parameter: Basic operating condition configuration (such as Pn002 encoder type, Pn00B single-phase/three-phase power supply selection), after modification, it needs to be restarted to take effect

Tuning parameters: Control gain, filter, etc. (such as Pn100 speed loop gain, Pn102 position loop gain), partially effective in real-time

2. High frequency core parameters

Parameter Code Parameter Name Function Description Typical Setting Range

Pn002 encoder type selection switches between absolute/incremental encoder mode n.  0  (absolute), n.  1  (incremental)

Pn00B. 2 Power Supply Type Selection Three phase 200V Model Switching Single phase/Three phase Input 0 (Three phase), 1 (Single phase)

PN103 moment of inertia ratio matching motor and load inertia, affecting stability 1-1000 (adjusted according to actual load)

Pn20E/PN210 electronic gear ratio adjustment reference unit to actual displacement ratio 1-1073741824

Pn402/PN403 forward/reverse torque limit protection for mechanical loads, preventing overload from 0-800 (unit: rated torque%)

When the width positioning error of Pn522 positioning is less than this value, output the completion signal 0-1073741824 (reference unit)

（3） MECHATROLINK-III Communication Configuration

1. Hardware settings

Station address: Set by rotating switch S1 (high), S2 (low), range 03h EFh (disable 00h-02h, F0h FFh)

Number of transmitted bytes: set through DIP switch S3, 16/32/48 bytes (standard servo profile requires 32/48 bytes)

Wiring: CN6A/CN6B connector, shielded twisted pair, maximum distance between stations 75m, terminal needs to be connected to 220-470 Ω matching resistor

2. Communication parameters

Protocol: MECHATROLINK-III

Baud rate: 100Mbps

Transmission cycle: 125 μ s, 250 μ s, 500 μ s, 750 μ s, 1.0-4.0ms (0.5ms step)

Core commands: CONNECT (establish communication), SENS-ON (read absolute encoder data), SV_SON (servo enable)
