YOKOGAWA STARDOM FCN-RTU Controller

STARDOM FCN-RTU Autonomous Controller: A High Reliability Automation Platform for Extreme Environments and SCADA Applications

In the field of modern industrial automation, especially in applications such as oil and gas, long-distance pipelines, water resource management, and new energy monitoring, the requirements for control systems have far exceeded the scope of traditional PLCs. These application scenarios are often accompanied by severe challenges such as weak infrastructure, harsh environmental conditions, dispersed geographic locations, and limited communication bandwidth. On site engineers not only need a stable control logic execution unit, but also crave an "edge" intelligent node that can seamlessly integrate into existing heterogeneous networks, withstand extreme temperatures, and efficiently collaborate with upper level SCADA systems.

Yokogawa Electric's STARDOM series FCN-RTU autonomous controller is a low-power, high-density, and highly reliable remote terminal unit (RTU) solution designed for such demanding requirements. It is not a simple PLC or RTU, but a hybrid control platform that combines DCS level stability, PLC flexibility, and RTU remote communication capabilities. This article will delve into the core technical characteristics, hardware architecture, engineering software ecosystem, and unique advantages of FCN-RTU in complex system integration, providing a detailed selection and application reference for professional technicians.


Core architecture and ultimate reliability design

When facing unmanned or harsh environments, the physical reliability of the controller is the first line of defense. The design philosophy of FCN-RTU has always prioritized "robustness" and "durability" from the very beginning.

1. Wide temperature operation and fanless design

The CPU module and most I/O modules of FCN-RTU support stable operation within an extreme temperature range of -40 ° C to+70 ° C, and can operate in environments up to 3000 meters above sea level (depending on the combination of I/O modules). This feature allows it to be deployed directly in environments such as deserts, cold regions, oil fields, or high-altitude weather stations without the need for additional cabinet heating or cooling equipment.

In order to achieve this high reliability, FCN-RTU adopts the "Failure proof" design concept. On its basic module, it does not use IC chips with high failure rates in traditional designs and instead relies on efficient heat dissipation circuit design. This fully sealed design without fans or moving parts fundamentally eliminates the risk of system downtime caused by fan wear, dust accumulation, or difficulty starting at low temperatures.

2. High availability hardware features

CPU and Memory: The controller is equipped with a high-performance CPU that supports CPU scan cycles of up to 10 milliseconds and analog control cycles of up to 50 milliseconds, meeting the requirements of fast closed-loop control. Of particular importance is that its RAM memory integrates error correction code (ECC) functionality, which can automatically detect and correct single bit memory errors, preventing program crashes or calculation errors caused by data flipping. This is a key technology to ensure long-term stable operation of the controller.

Power redundancy and hot plugging: For critical applications, FCN-RTU supports redundant configuration of power modules (such as NFPW446 model). When the main power module fails, the backup module can seamlessly take over to ensure the continuous operation of the system. At the same time, all I/O modules and some power modules support hot swapping, which means that the replacement of faulty modules can be completed without shutting down the system, greatly improving maintenance efficiency and system availability.

Fallback function: In extreme cases, if the CPU fails or communication is interrupted, the analog and digital output modules of FCN-RTU can be pre configured to a "safe value" or "hold last significant value" state. This function ensures that even if the controller core fails, the final actuator on site (such as valves, motors) can remain in a predetermined safe position to prevent secondary disasters from occurring.

Integrated compact design and built-in I/O

Unlike traditional PLCs that require separate configuration of CPU, power supply, and multiple I/O modules, the CPU module (model NFC050) of FCN-RTU integrates a rich variety of I/O interfaces, greatly reducing initial installation costs and space occupation.

Analog input: 12 channels 1-5V DC analog input, and 1 channel 10-32V DC battery monitoring input.

Analog output: 2-channel 4-20mA analog output.

Digital and pulse input: 16 channel 24V DC digital input, 8-channel 24V DC digital output, and 2-channel 0-10kHz pulse input.

This highly integrated design enables FCN-RTU to directly process the most common signal types on site, making it ideal for small and medium-sized control points or as a remote data acquisition front-end for large systems. For more complex applications, users can also expand a variety of specialized I/O modules through the backplane bus, such as channel isolated analog input (NFAI135), 16 channel thermocouple/mV input (NFAT141), RTD thermistor input (NFAR181), and 32 channel digital input/output module (NFDV151/551).


Seamless Communication and SCADA Integration Capability: Breaking the 'Information Island'

In wide area SCADA applications, communication is often the biggest technical bottleneck and cost center. One of the design essences of FCN-RTU is its excellent "connectivity".

1. Physical layer connection with multiple media and protocols

The core network of FCN-RTU is based on TCP/IP, making it easy to build control networks using commercial off the shelf (COTS) network components such as switches and routers. More importantly, it can adapt to various narrowband communication infrastructure, including public telephone lines GSM/GPRS、 Satellite links and private radio stations. This feature enables it to maintain a reliable connection with the control center even in remote mountainous areas, offshore platforms, or mobile devices.

2. Built in communication port and mainstream protocol stack

This is a significant advantage that sets FCN-RTU apart from many similar products. The CPU module directly integrates:

1 100BASE-TX Ethernet port, supporting automatic power-saving mode.

3 RS-232 serial ports (supporting up to 115kbps).

1 RS-422/485 serial port (supports up to 115kbps and can be configured with a 120 Ω terminal resistor).

These ports natively support Modbus RTU/ASCII and Modbus TCP protocols, and can be optionally equipped with a DNP3 protocol stack. This means that engineers do not need to purchase expensive specialized communication modules and can directly use the built-in serial or network ports to connect to smart instruments, frequency converters, or other PLCs on site, acting as protocol conversion gateways. For scenarios that require connection to Mitsubishi MELSEC or Yokogawa FA-M3 PLC, a dedicated driver library is also provided.

3. Efficient SCADA data exchange

When used in conjunction with Yokogawa's SCADA CI Server, FCN-RTU exhibits extremely high efficiency in narrow bandwidth and high cost wireless communication environments

Report by Exception: Traditional polling methods continue to consume bandwidth, while FCN-RTU only sends updates to the central server when data changes, significantly reducing communication traffic and costs.

Data timestamp and network fault switching: Each data point has an accurate timestamp, ensuring complete traceability of historical data even after network interruption recovery. At the same time, it supports dual network redundancy. When the main network link fails, it can automatically switch to the backup link to ensure that data is not lost.

In addition, FCN-RTU also provides OPC servers (supporting OPC DA 2.05a and A&E 1.10), enabling seamless integration with any third-party SCADA system that supports OPC standards, such as Wonderware, iFix, etc. Its built-in web server function allows authorized users to directly access the status, logs, and diagnostic information of the controller through the browser of their smartphone or laptop, achieving true device management "anytime, anywhere".

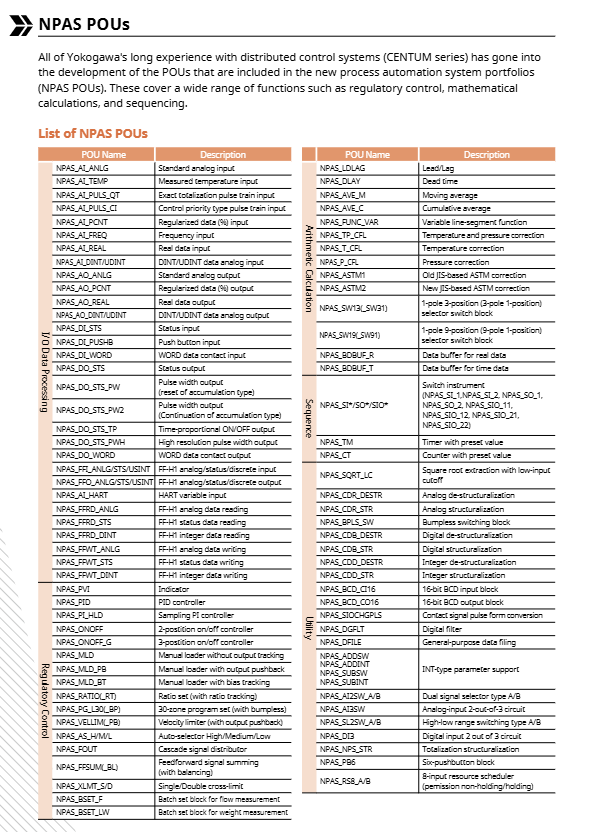

Advanced engineering software based on IEC 61131-3

A powerful hardware platform requires equally powerful software tools to unleash its potential. The engineering suite of FCN-RTU follows the best practices of modern software engineering, decoupling logic development from hardware configuration.

1. Logic Designer: Platform independent logic development

Logic Designer is an integrated development environment (IDE) for FCN-RTU, which fully complies with the IEC 61131-3 international standard and supports all five programming languages:

Ladder diagram (LD)

Function Block Diagram (FBD)

Structured Text (ST)

Instruction List (IL)

Sequential Function Diagram (SFC)

This enables engineers familiar with different programming paradigms to work efficiently. More importantly, application development in Logic Designer is completely 'platform independent'. Engineers can complete the writing, simulation, and debugging of all control logic on a standard PC without actual hardware. The logical I/O in the program (such as the input of a PID function block) is separated from the physical hardware (such as the third channel of an AI module).

2. Resource Configurator: Flexible hardware mapping

After the logic development is completed, engineers use the Resource Configurator tool to map logical I/O to actual hardware channels. This separation architecture brings unparalleled application portability. For example, a pump station control program written for an FCN-RTU can be deployed to another FCN-RTU with a different hardware configuration or a larger FCN controller by simply reconfiguring the I/O mapping in the Resource Configurator without modifying any logical code. This greatly enhances the reusability of the program and significantly shortens the project delivery cycle.

3. Efficient debugging and maintenance features

Online download: Allow modification and download of control logic without stopping the controller operation. This is crucial for continuous production processes that do not allow downtime. During the modification process, all variable values will be inherited to ensure a smooth transition.

Parameter Saving: The P, I, D parameters and other key process parameters of PID control can be declared as "Retained variables". These variables remain after the controller is powered off and restarted, and do not need to be re inputted. Multiple parameter sets can be backed up to a PC for quick switching between different operating conditions.

Software Wiring and Logic Analyzer: During the debugging phase, the software wiring function can simulate the input signals of on-site sensors and test logic circuits without the need to connect to an actual signal generator. The Logic Analyzer function can continuously record variable change curves and export them in text format, greatly facilitating the troubleshooting of complex temporal logic.

Web maintenance: Through a web browser, maintenance personnel can remotely view the running status, system logs, firmware versions, and other information of CPU and I/O modules without installing any client software.

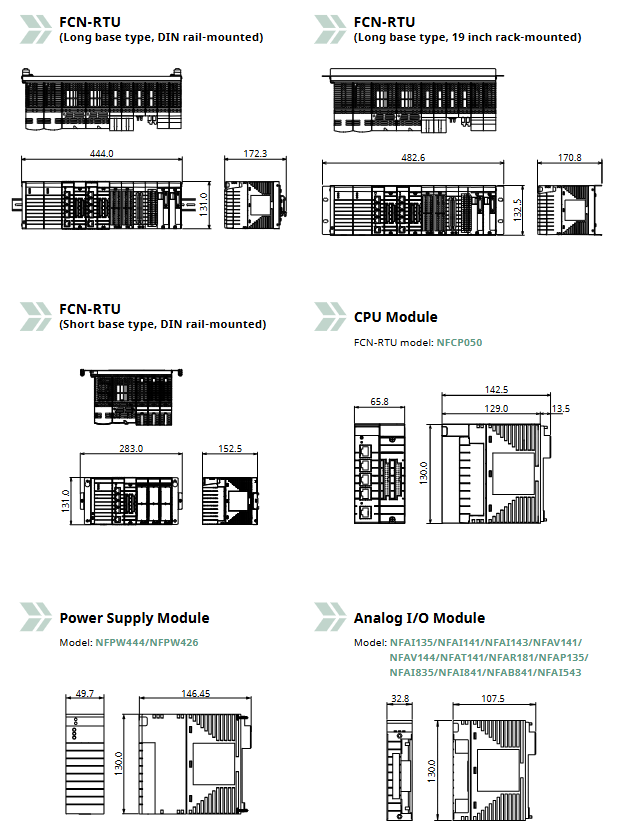

Modular expansion and detailed selection

The FCN-RTU system is based on modular design and mainly includes the following components:

1. Basic components

CPU module (NFC050): Core processing unit with built-in I/O.

Base Module: Provides physical connections and backplane bus. There are long (NFBU200, supporting power redundancy) and short (NFBU050) options available, supporting 19 inch rack mounting and DIN rail mounting respectively.

Power Supply Module: Supports NFPW426 (non redundant) with 10-30VDC input and NFPW444/NFPW446 (redundant) with 24VDC input.

2. Key selection points for key I/O modules

Analog input: For applications that require inter channel isolation and HART communication, choose NFAI135 (8 channels) or NFAI143 (16 channels). For non isolated, high-density applications, choose NFAI141.

Temperature input: Select NFAT141 for thermocouple/mV signal, with an accuracy of ± 0.03% of full scale; The RTD (thermistor) signal selection NFAR181 also has excellent accuracy. Both support Burnout Detection.

Digital quantity and relay output: NFDV151 (32 channel DI) and NFDV551 (32 channel DO) are used for high-speed switching quantity. NFDR541 (16 channel relay output) is used to directly drive AC or DC loads, with contact capacity supporting 24-110VDC or 100-240VAC.

Communication module: Supports mainstream fieldbuses such as FOUNDATION Fieldbus (NFLF111, 4-port, H1), PROFIBUS-DP (NFLP121), and CANopen (NFLC121), facilitating the integration of third-party instruments and actuators.
