In the evolution of modern industrial asset management, mechanical protection and condition monitoring systems are undergoing a profound transformation from single unit defense to full plant level digital integration. Traditional monitoring systems often face bottlenecks such as rigid architecture, blurred network security boundaries, and limited scalability. In order to break down these barriers, the new generation monitoring platform has introduced a highly modular and distributed design concept, integrating the protection of key units and plant level status monitoring into a unified underlying architecture. This article will delve into the core architecture, hardware selection logic, practical troubleshooting experience of migrating from old systems, and deep level configuration strategies to ensure long-term stable operation of such advanced systems.

Core Architecture Analysis: The Leap from Centralized to Distributed Cabinets

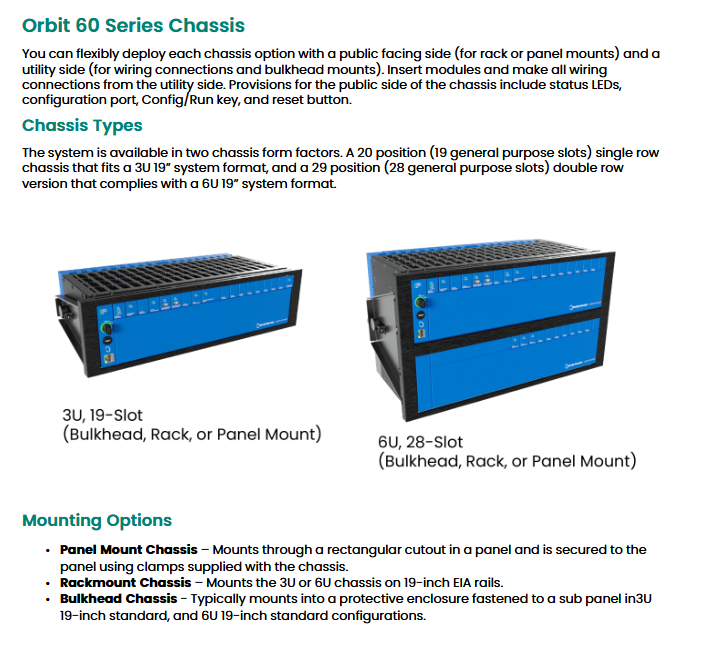

The biggest breakthrough in the physical form of modern monitoring systems is their support for flexible combinations of multiple installation methods. The system typically offers two standard chassis sizes, 3U (19 universal slots) and 6U (28 universal slots), to accommodate different space constraints. The installation method is no longer limited to the traditional 19 inch EIA rack, but has been extended to panel embedding and partition installation. The partition installation method is particularly suitable for placing the chassis inside a protective enclosure. By completely separating the common operating surface from the rear wiring surface, it not only meets the safety regulations of hazardous areas, but also greatly facilitates on-site operations for maintenance personnel.

Distributed architecture is the core highlight of this system. In practical deployment, engineers can seamlessly connect multiple chassis into a logical "single system" through fiber optic bridging modules. This design not only physically isolates the core processing unit from the on-site sensors, but also significantly reduces analog grounding circuits and noise interference. Fiber optic links support a transmission distance of up to 2000 meters (using OS1 or OS2 single-mode fiber) and allow for a total attenuation of up to 6dB, which means there can be multiple jumper panels or fusion points in between without affecting communication quality. It should be noted that bridging does not increase the total processing bandwidth and channel limit of the system, it is only an extension of the physical space. Therefore, when planning distributed nodes, it is necessary to coordinate the calculation of the total number of dynamic channels in all chassis to ensure that it does not exceed the maximum limit defined by the System Interface Module (SIM) (usually 64 dynamic channels).

Functional boundaries and collaborative mechanisms of key hardware modules

A complete monitoring system consists of multiple functionally independent modules working together, and understanding their boundaries is crucial for troubleshooting.

The System Interface Module (SIM) is the brain and security gateway of the entire system. It must be installed adjacent to the power input module (PIM), responsible for issuing configuration instructions and collecting global diagnostic information. One of the major troubleshooting points of SIM is its physical security mechanism: the key switch on the panel and the physical contact points on the back of the module can lock the system in the "RUN" state. If the engineer finds that the configuration cannot be written through Ethernet, the first thing to check is whether the key switch is in the "PRG" state and whether the LED indicator light is amber. In addition, the solid-state protection fault relay integrated on the SIM is the ultimate arbiter of the system's health status, and any hardware abnormality in the underlying module will cause the relay to trip.

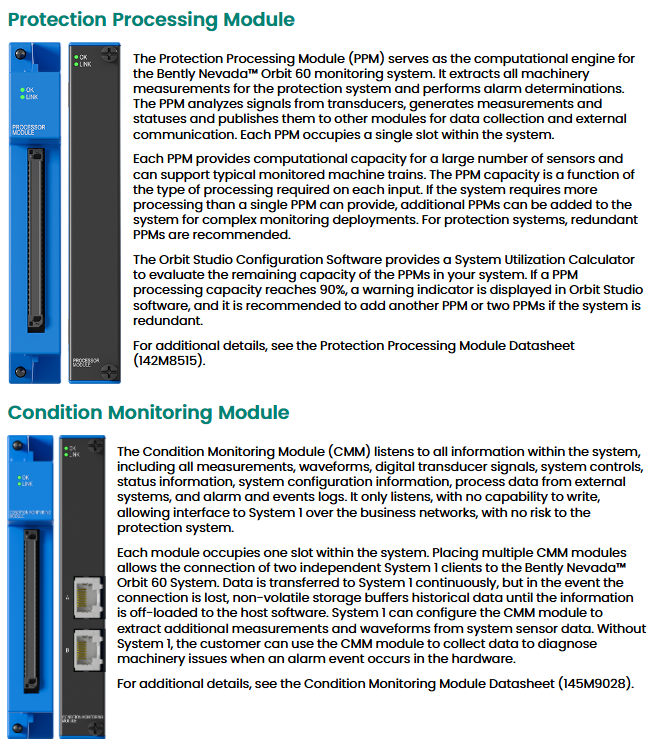

The Protection Processing Module (PPM) is the source of computing power. It is responsible for extracting the raw waveforms of all sensors, filtering and integrating them, and generating the final measurement values and alarm states. In complex units such as compressors with planetary gearboxes, the signal processing load is extremely high. A common trap during configuration is PPM overload. When using the "System Utilization Calculator" in the configuration software, if the utilization reaches 90%, although the system will not immediately crash, it will cause a decrease in sampling rate or response delay. The standard troubleshooting process requires considering adding a second PPM when the utilization rate exceeds 75%; For redundant designs involving Safety Instrumented Systems (SIL), dual PPM is a mandatory requirement.

The Condition Monitoring Module (CMM) plays the role of a "read-only observer". Its original design intention is to meet industrial network security standards (such as IEC 62443-4-2). CMM can monitor all measurement values, waveforms, and alarm logs within the system, but it absolutely does not have write permission. This hardware level data isolation ensures that external software (such as System 1) connected to the business network (L4 layer) through CMM cannot reverse tamper with the underlying protection logic and alarm settings even if they are subjected to network attacks. If it is found that external software cannot issue control commands, it is not a fault, but rather due to the safety design of CMM.

Accurate selection of sensor access and dynamic input modules

Incorrect selection of input modules is the most common cause of measurement distortion or direct sensor burnout. The system provides a rich 4-channel dynamic input module, with the core distinction being the polarity of the sensor's power supply.

For traditional negative voltage biased sensors (such as most eddy current proximity sensors), PAV, PAS, PAA, or PAD modules should be selected. For industrial standard IEPE accelerometers or speed sensors powered by positive voltage, PVT (Positive Voltage Sensor) modules must be used. An extremely critical troubleshooting case involves the modification of an old Velomitor (such as the 190501 Velomitor CT): Although the PVT module has better performance, its output current is higher. If the old Velomitor is forcibly connected to the PVT, it can easily cause sensor overload damage. The correct approach is to connect it to the PAV module and configure it as a "custom sensor" in the software to match its electrical characteristics.

The system exhibits strong flexibility in measuring speed and key phases. Conventional PAV/PAS/PAA/PAD/PVT modules support configuring key phase function on any channel, but their pulse frequency limit is 200Hz (corresponding to 12000 rpm). If the unit speed exceeds this limit, or if the pulse rate of the gear multi event wheel is too high, the system must switch to KPH (high-speed key phase module). KPH supports input frequencies up to 20kHz and speeds of 120000 rpm. When troubleshooting, it should be noted that the measurement accuracy of non speed channels on the KPH module (such as connecting vibration signals) will decrease from 1% to 2%. Therefore, it is strictly prohibited to use KPH for non speed measurement in the SIL circuit.

There are also traps in the integration of temperature and process variables. For thermocouple (TC) measurement, if external terminal wiring is used, ordinary external terminal blocks must not be used, and dedicated thermocouple terminal blocks must be used. Because thermocouples require cold junction compensation (CJC), ordinary terminal blocks lack CJC circuits, which can result in measurement errors of tens of degrees. However, RTD modules do not have this limitation.

Engineering implementation and troubleshooting of migrating from old systems

When upgrading an old system (such as the 3500 series) that has been running for over a decade to a new generation system, directly replacing cables is often not feasible because the pin definitions and physical interfaces of the internal terminal blocks have completely changed. In order to reduce downtime, the "External Terminal Adapter (ETA)" strategy is commonly used in engineering.

The first step in implementing migration is to 'investigate'. The adapter type must be determined by comparing the monitor card and terminal block (ETB) model of the original system. For example, the original 4-channel cards such as 3500/40 and 3500/42, which handle radial vibration and thrust, can be directly connected to the PAV or PVT module of the new system through a universal vibration adapter, and the original on-site cables do not require any stripping or modification.

However, there are several situations that require special troubleshooting:

Stripping of control signals: Old systems are accustomed to directly connecting control lines such as "alarm suppression" or "trip doubling" to specific pins on the monitor card. The new system adopts a centralized discrete input (PVD) module to process these system level commands. Therefore, when dismantling the old terminal block, these control wires must be stripped off and uniformly connected to the PVD module of the new system.

Splitting of multi-channel temperature card: The old 16 channel temperature card cannot be connected to the new system's 6-channel temperature card through a single adapter. Multiple universal external terminal blocks must be introduced to physically split and reassemble the existing cables in groups of every 6.

The complex interface of absolute vibration (axis absolute) typically involves vector synthesis between proximity sensors and seismic sensors. The original system may have used dedicated terminal blocks, while the new system requires a dedicated "universal adapter" in conjunction with the "universal terminal block" to complete complex internal wiring conversions.

After completing the hardware wiring, the most easily overlooked link is the "separation of key phase and vibration signal". The specification requires that the key phase (velocity) signal and vibration signal cannot be wired in parallel in the same multi-core cable to prevent crosstalk caused by capacitive coupling. An independent 9-pin cable must be used to introduce the key signal into the dedicated key phase terminal block.

Network communication protocol configuration and PLC integration challenges

The communication between the new system and DCS/PLC is independently undertaken by the Communication Gateway Module (CGW), which supports Modbus TCP/IP, EGD (Ethernet Global Data, for GE control systems), and PROFINET. In integrated troubleshooting, protocol parameter mismatch is the primary obstacle.

Taking PROFINET as an example, the system operates as a device and complies with the V2.45 specification and Conform Class B standard. If the PLC end is configured for higher-level real-time (IRT) communication, it may result in connection failure. At this point, it should be checked whether CGW is configured as a standard RT Class 1. In addition, the maximum data packet output from CGW to PLC is limited to 1408 bytes. If there are too many floating-point measurement values configured, exceeding this limit, CGW will refuse to send data. The solution is to streamline the polling register list in the configuration software, retaining only critical alarm values and trend values.

In Modbus integration, the system only supports acting as a 'server', and the address space is typically mapped to a 40000 register area. When engineers write read logic on the PLC side, they often get outrageous values (such as vibration values displayed as millions) due to parsing errors in word sequence (big/small) or data type (32-bit floating-point numbers occupying two 16 bit registers in Modbus). This requires correct byte concatenation of the two consecutive registers read in the PLC program.

Advanced configuration verification and System 1 data fusion

During the operation phase after the system is powered on, the Orbit Studio configuration software provides a powerful "current value and loop check" function. Troubleshooting personnel should not rely solely on the "no error" prompt in the software, but should enter the bar chart verification interface and compare the real-time gap voltage or bias voltage of each channel point by point.

A deep-seated configuration trap lies in the combination of "custom sensors" and low full-scale (FSR). When engineers configure a sensor with an output signal of only a few tens of millivolts to a very low full-scale range in pursuit of extremely high resolution, although software allows for this, hardware noise and environmental electromagnetic interference will be multiplied, resulting in a complete loss of measurement accuracy. The data manual clearly warns that when the sensor signal corresponding to the configured FSR is below 100mV, the actual measurement error may far exceed the nominal 1%. The solution strategy is to appropriately relax the FSR setting or add signal shielding and filtering circuits at the physical level.

When the system is connected to the System 1 software platform, data continuity is crucial. The CMM module has a built-in non-volatile storage buffer. If the factory network is interrupted, CMM will automatically cache historical waveform and event data locally. After the network is restored, these data will automatically resume transmission. If a "breakpoint" or "loss peak" is found in the historical trend of System 1, the troubleshooting direction should not be the monitoring system itself, but should check whether the switch port connected to CMM has set too much traffic storm suppression, resulting in sudden large data packets being discarded.

Environmental adaptability, power redundancy, and long-term maintenance

Finally, the physical survivability of the system determines its long-term reliability. The environmental temperature limit of the chassis has a strict red line: the maximum temperature for 3U chassis is 70 ° C, and the maximum temperature for 6U chassis is 65 ° C. However, this has a prerequisite - when the environmental temperature exceeds 50 ° C, forced air cooling must be introduced, and the wind speed must not be lower than 0.5 m/s. If frequent random system restarts or PPM errors are found in outdoor cabinets in hot areas, the first step is to use a thermal imaging device to check for local hotspots inside the chassis and verify if the fan filter is clogged with dust. It is particularly important to note that if a bridge module (BRG) is installed inside the 3U chassis, its own temperature derating curve is more stringent, and if it exceeds 55 ° C, forced air cooling is required.

The power system is another hidden fault point. The PIM slot of each chassis supports stacking and connecting two redundant power modules, with an input range of+21VDC to+32VDC. PIM has comprehensive overvoltage and reverse protection (achieved through internal replaceable fuses). In maintenance practice, it is allowed to hot plug a single PIM without interrupting system operation, provided that the other PIM is in a healthy power supply state. If unplugging a PIM during dual power operation causes the entire chassis to lose power, it usually means that the two power inputs are connected to the same upstream bus or circuit breaker, losing true physical redundancy. The specification requires that the power supply for two PIMs must come from two completely independent distribution circuits.

For the maintenance of relay outputs, regardless of whether the system is applied to SIL 2 scenarios, the best engineering practice strongly recommends that for any critical protection trip logic, do not use two relay contacts in parallel to increase capacity, but must be deployed on two independent relay modules. Because if a short circuit fault occurs in the control power supply or internal drive circuit of the relay module itself, it will cause all 8 channels on the module to fail simultaneously. Cross module physical isolation is the only effective means to prevent common cause failures.

In summary, the upgrade of modern mechanical protection and condition monitoring systems is not simply a matter of "plugging and unplugging". It requires engineers to have a deep understanding and rigorous verification of the entire chain, from the electrical characteristics of sensors at the bottom layer, the distributed network topology in the middle, to the network security isolation and protocol parsing at the upper layer. Only by avoiding the precision trap of custom ranges, clarifying the stripping logic of old system controls, and strictly implementing the derating requirements of the physical environment, can we ensure that this critical industrial nervous system will accurately and stably jump in the coming decades.
