ELAU PacDrive SM Series Servo Motor Field Application and Maintenance Complete Guide

In the high-end automation packaging, printing, electronic assembly, and machine tool industries, ELAU's (now under Schneider Electric) PacDrive system is renowned for its outstanding motion control performance. As the core execution unit of the PacDrive system, the SM series permanent magnet synchronous servo motor is an ideal choice for complex positioning tasks due to its high dynamic response, low moment of inertia, and extremely high overload capacity.

However, for on-site engineers, how to correctly select, install, wire, debug, and maintain these motors to ensure their long-term stable operation is a task that requires a deep technical understanding. This article will extract a comprehensive guide for engineering practice based on the technical documentation of SM series motors, to help you efficiently tackle various challenges in your daily work.

Core Features and Technology Overview: Why the SM Series is Different

The SM series servo motor belongs to the permanent magnet excitation synchronous motor, and its design core is to meet the stringent dynamic positioning requirements. Compared with similar products, its outstanding advantages are reflected in:

Extremely low moment of inertia and high overload capacity: Low rotor inertia means higher acceleration and shorter acceleration and deceleration time, while high overload capacity ensures precise following of instructions even under instantaneous impact loads. For example, the rotor inertia of the SM 070 60 020 model is only 0.79 kgcm ², the peak torque can reach 7.7 Nm, and the acceleration capacity exceeds 125000 rad/s ².

Sine wave back electromotive force and high voltage technology: Adopting a sine wave back electromotive force design, combined with 400V high voltage winding, effectively reduces phase current, thereby reducing copper loss in motors and cables and improving system efficiency.

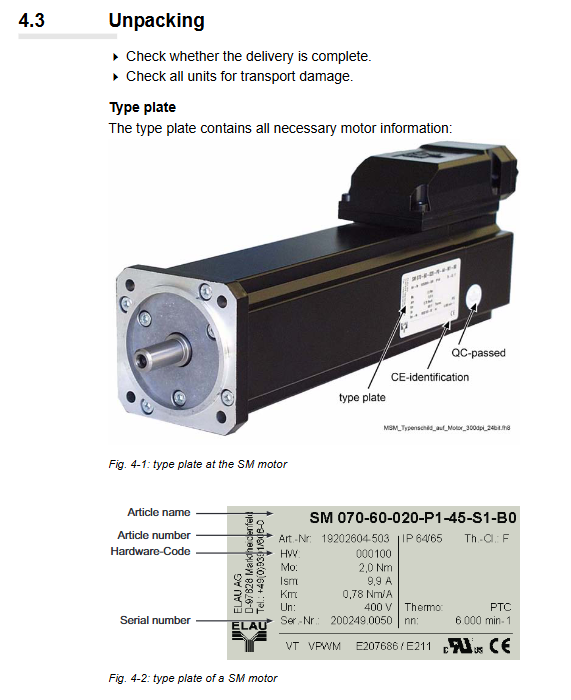

Electronic Type Plate: SM motors equipped with SinCos encoders have built-in electronic type plates. During the initial debugging, PacDrive controllers (such as MC-4) can automatically read motor parameters through serial communication (RS485 parameter channel), achieving "plug and play" functionality, significantly reducing debugging time and avoiding parameter setting errors.

Multiple feedback and selection options: Supports various feedback types such as SinCos (single/multi turn absolute value), Transformers (Resolvers), and optional permanent magnet holding brakes, surface forced ventilation, stainless steel shafts, keyway shafts, and barrier pressure systems (IP67 protection) to adapt to different application scenarios.

Installation and mechanical integration: avoid common pitfalls

The mechanical installation of the motor is the first step in ensuring its lifespan and performance. The following key points require special attention:

1. Installation orientation and protection level

The protection level (IP) of SM motors is directly related to their installation orientation:

IM B5 (flange installation) and IM V1 (axis down): At this time, the protection level of the shaft extension end is IP64, and the whole machine can reach IP65.

IM V3 (axial up): In this installation orientation, the protection level of the shaft extension end is reduced to IP60. The manual clearly warns that even if the motor is equipped with a shaft seal ring, the risk of liquid infiltration along the drive shaft cannot be completely ruled out. Therefore, IM V3 installation should be avoided or additional protective covers should be installed in damp or sprayed environments.

High protection requirements: If the application requires an IP67 rating, a Barrier Pressure System must be selected. The system maintains a slight positive pressure on the casing by introducing dry, dust-free, and oil-free compressed air at 0.1-0.3 bar into the motor, effectively preventing the intrusion of liquids and gases.

2. Selection of shaft extension and coupling

Standard Smooth Shaft: The manual strongly recommends using a smooth shaft end, paired with expansion sleeves from brands such as CLAMPEX or Spieth, to achieve friction connection. This method has no reverse clearance and can avoid stress concentration and dynamic balance problems caused by keyways, especially suitable for high dynamic applications with frequent forward and reverse rotation.

Keyway shaft (optional): Only suitable for situations with small load changes and low reverse stress. The manual points out that under alternating torque or high reverse frequency, the semi-circular keys inside the keyway may experience gaps due to micro motion wear, leading to increased vibration and even key breakage.

Allowable shaft load: It is necessary to verify the allowable radial force (F_radial) and axial force (F_axial=0.2 × F_radial) of the motor bearings. For example, the SM 140 series allows a radial force of approximately 1095 N at 3000 rpm (with slight differences in length). Exceeding this value will significantly shorten the bearing life (rated life L10h is 20000 hours).
