ELAU PacDrive SM Servo Motor Application and Maintenance Guide

ELAU PacDrive SM Series Servo Motor Field Application and Maintenance Complete Guide

In the high-end automation packaging, printing, electronic assembly, and machine tool industries, ELAU's (now under Schneider Electric) PacDrive system is renowned for its outstanding motion control performance. As the core execution unit of the PacDrive system, the SM series permanent magnet synchronous servo motor is an ideal choice for complex positioning tasks due to its high dynamic response, low moment of inertia, and extremely high overload capacity.

However, for on-site engineers, how to correctly select, install, wire, debug, and maintain these motors to ensure their long-term stable operation is a task that requires a deep technical understanding. This article will extract a comprehensive guide for engineering practice based on the technical documentation of SM series motors, to help you efficiently tackle various challenges in your daily work.

Core Features and Technology Overview: Why the SM Series is Different

The SM series servo motor belongs to the permanent magnet excitation synchronous motor, and its design core is to meet the stringent dynamic positioning requirements. Compared with similar products, its outstanding advantages are reflected in:

Extremely low moment of inertia and high overload capacity: Low rotor inertia means higher acceleration and shorter acceleration and deceleration time, while high overload capacity ensures precise following of instructions even under instantaneous impact loads. For example, the rotor inertia of the SM 070 60 020 model is only 0.79 kgcm ², the peak torque can reach 7.7 Nm, and the acceleration capacity exceeds 125000 rad/s ².

Sine wave back electromotive force and high voltage technology: Adopting a sine wave back electromotive force design, combined with 400V high voltage winding, effectively reduces phase current, thereby reducing copper loss in motors and cables and improving system efficiency.

Electronic Type Plate: SM motors equipped with SinCos encoders have built-in electronic type plates. During the initial debugging, PacDrive controllers (such as MC-4) can automatically read motor parameters through serial communication (RS485 parameter channel), achieving "plug and play" functionality, significantly reducing debugging time and avoiding parameter setting errors.

Multiple feedback and selection options: Supports various feedback types such as SinCos (single/multi turn absolute value), Transformers (Resolvers), and optional permanent magnet holding brakes, surface forced ventilation, stainless steel shafts, keyway shafts, and barrier pressure systems (IP67 protection) to adapt to different application scenarios.

Installation and mechanical integration: avoid common pitfalls

The mechanical installation of the motor is the first step in ensuring its lifespan and performance. The following key points require special attention:

1. Installation orientation and protection level

The protection level (IP) of SM motors is directly related to their installation orientation:

IM B5 (flange installation) and IM V1 (axis down): At this time, the protection level of the shaft extension end is IP64, and the whole machine can reach IP65.

IM V3 (axial up): In this installation orientation, the protection level of the shaft extension end is reduced to IP60. The manual clearly warns that even if the motor is equipped with a shaft seal ring, the risk of liquid infiltration along the drive shaft cannot be completely ruled out. Therefore, IM V3 installation should be avoided or additional protective covers should be installed in damp or sprayed environments.

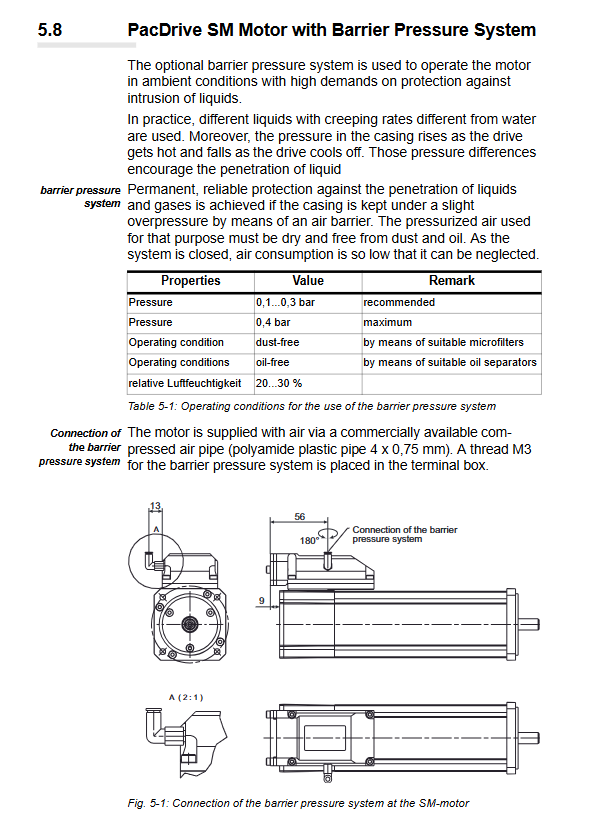

High protection requirements: If the application requires an IP67 rating, a Barrier Pressure System must be selected. The system maintains a slight positive pressure on the casing by introducing dry, dust-free, and oil-free compressed air at 0.1-0.3 bar into the motor, effectively preventing the intrusion of liquids and gases.

2. Selection of shaft extension and coupling

Standard Smooth Shaft: The manual strongly recommends using a smooth shaft end, paired with expansion sleeves from brands such as CLAMPEX or Spieth, to achieve friction connection. This method has no reverse clearance and can avoid stress concentration and dynamic balance problems caused by keyways, especially suitable for high dynamic applications with frequent forward and reverse rotation.

Keyway shaft (optional): Only suitable for situations with small load changes and low reverse stress. The manual points out that under alternating torque or high reverse frequency, the semi-circular keys inside the keyway may experience gaps due to micro motion wear, leading to increased vibration and even key breakage.

Allowable shaft load: It is necessary to verify the allowable radial force (F_radial) and axial force (F_axial=0.2 × F_radial) of the motor bearings. For example, the SM 140 series allows a radial force of approximately 1095 N at 3000 rpm (with slight differences in length). Exceeding this value will significantly shorten the bearing life (rated life L10h is 20000 hours).

Electrical Connections and EMC Engineering Practice

The SM motor connects power, brake/temperature feedback, and encoder signals through three independent connectors (X2, X3, X4). Incorrect wiring can not only cause motor damage, but also lead to serious EMC issues.

1. Power connection (X2)

Pin definitions: U (1), V (2), W (3), PE (4). For high-power models in the SM 140 series (such as 290 and 370), the X2 connector is a screw terminal that can accommodate up to 4 mm ² cables.

Important reminder: For long-distance power cables, voltage drop and leakage current must be considered. The manual specifically states that when using long cables, the holding brake of the motor may require separate power supply or increased power supply voltage to ensure that the rated voltage (24V ± 10%) is obtained at the connection box.

2. Brake and temperature monitoring (X3)

Pin definition: Pin 1/2 is PTC thermistor (CPTC, switching temperature 130 ° C), pin 3/4 is brake (3: DC 0V, 4: DC 24V).

Key parameters of the brake:

SM 070: Holding torque of 2.5 Nm, rated power of 12W

SM 100: Holding torque 11 Nm, rated power 16W

SM 140: Holding torque of 22 Nm, rated power of 18W

Correct use of brake: Keep the brake only used to lock the shaft in a stationary state or when power is off, and strictly prohibit its use for deceleration or parking during normal operation. The energy absorbed by the brake during emergency stop (EM STOP) must be limited:

SM 070: Energy absorption ≤ 50 Ws per emergency stop

SM 100: ≤ 200 Ws

SM 140: ≤ 400 Ws

At least 3 minutes of cooling is required between two emergency stops, and the brake is allowed to make no more than 2000 emergency stops throughout its entire lifespan. Exceeding these limits can lead to premature wear or burning of brake pads.

3. Encoder connection (X4)

SinCos encoder: supports 1 Vpp sine/cosine differential signal, with 1024 signal cycles per revolution. By subdividing, extremely high resolution can be obtained. Pin definitions: 1 (U_S, 7-12V), 2 (GND), 3 (REFSIN), 4 (SIN), 5 (REF COS), 6 (COS), 7 (RS485-), 8 (RS485+). High quality shielded twisted pair cables must be used, and the shielding layer must be grounded extensively at both ends.

Resolver: Suitable for extremely harsh environments (strong vibration, high temperature, oil pollution). Pin definitions: 3/4 (SIN+/-), 5/6 (COS+/-), 7/8 (EXC+/-, excitation signal). The signal line of the rotary transformer also needs to be strictly shielded.

4. EMC rules

The servo system is a strong interference source. The following rules must be followed:

Shielded motor cables and shielded encoder cables must be used, and the shielding layer must achieve large-area contact through metal connectors or 360 ° grounding clamps. Single point grounding through pins is strictly prohibited.

The motor cable should be as short as possible to avoid winding and forming a loop inside the control cabinet.

A central grounding point (CEP) should be installed inside the control cabinet, where all grounding wires converge in a star shape.

Inductive loads (contactor coils, relays) must be connected to the nearest freewheeling diode (DC) or impedance capacitance absorption circuit (AC).

Debugging, Running, and Performance Data Interpretation

1. Debugging process

Before the first power on: check all wiring (especially PE grounding continuity), check brake function, and check emergency stop circuit.

Parameter recognition: Connect to EPAS engineering software, read the motor electronic nameplate through the controller, and automatically complete parameter configuration. For the solver version without an electronic nameplate, manual input of motor parameters (pole pairs, torque constant, back electromotive force constant, etc.) is required.

Trial operation: First, test in low-speed JOG mode to confirm that the motor rotation direction, encoder feedback direction, and brake action logic are correct.

2. Torque speed characteristics

The manual provides detailed torque speed curves for each motor model. Understanding these curves is crucial for selecting and setting controller limits correctly:

S1 working system (continuous operation): The area below the curve is the continuous working zone of the motor. In this area, the temperature rise of the motor does not exceed the insulation level (F level, 155 ° C). For example, SM 100 40 050 can continuously output a torque of approximately 3.5 Nm at 4000 rpm.

Peak torque (MSM): The horizontal line at the top of the curve represents the peak torque output capability of the motor at a given bus voltage. This torque can only be output for a short period of time (usually a few hundred milliseconds), depending on the peak current limit of the controller.

Reduced capacity use: When the ambient temperature exceeds 40 ° C or the installation altitude exceeds 1000 meters, the capacity must be reduced. For every 1 ° C increase, the rated current decreases by 1%; At an altitude of over 1000 meters, for every 100 meters increase, the performance decreases by about 1%.

3. Temperature monitoring

The SM motor stator winding is embedded with a triple PTC thermistor (CPTC), with a switching temperature of 130 ° C. This signal must be connected to the motor temperature monitoring input of the driver. When the winding temperature reaches 130 ° C, the resistance of the thermistor rises sharply, and the driver should trigger an alarm and take measures to reduce power or stop the machine for protection.

Maintenance, troubleshooting, and repair

1. Daily maintenance and cleaning

SM motors are basically maintenance free, but it should be noted that:

Cleaning: It is strictly prohibited to use a high-pressure cleaning machine to directly rinse the motor, especially in the IM V3 installation position. Use a damp cloth or low-pressure mild cleaner.

Long term storage of brake: If the motor is stored for more than 2 years, the brake must be "run in" before installation. Manually rotate the motor shaft about 50 revolutions in the brake closed state to remove the oxide layer and impurities on the surface of the friction plate.

2. Common faults and countermeasures

Possible causes of malfunction and troubleshooting steps

The motor cannot start, reporting "phase loss" or "overcurrent". The power cable X2 has poor contact and is disconnected; Check if the U/V/W phase resistors are balanced, if the connectors are locked, and if the cables are bent or broken for damage to the driver power module

Report "overload" or "high motor temperature" during operation, mechanical jamming, excessive load, high ambient temperature, fan failure (if any), disconnect the coupling for no-load trial operation; Check if the actual load exceeds the S1 curve; Improve heat dissipation conditions; Check if the surface ventilation fan is running

During operation, there is a report of "encoder fault". The encoder cable X4 is poorly shielded, the signal line is broken, the encoder is contaminated or damaged by impact. Check the grounding of the shielding layer and use an oscilloscope to measure whether the SIN/COS waveform is intact; Check if RS485 communication is normal; After replacing the encoder, it is necessary to perform phase initialization again

The shaft cannot be locked, the vertical axis sliding brake is not powered, the brake coil is open, and the brake pad wear is measured. The voltage at pin 3/4 of X3 should be 24V DC; Measure the resistance of the brake coil (should be tens of ohms); Manually test whether the brake can be engaged

When the motor is running, there is loud noise, severe vibration, and the shaft load exceeds the allowable radial force. The coupling is poorly aligned and the dynamic balance is damaged. Check whether the bearings are damaged; Re calibrate the coupling alignment; Check if the keyway or expansion sleeve is loose

3. Replace the motor or cable

When it is necessary to replace the motor:

Safety first: Cut off the main power supply and wait for the DC bus capacitor to discharge for at least 5 minutes. The servo motor generates dangerous voltage in generator mode, do not disconnect the connector while it is powered on.

ESD prevention: When handling encoders or replacing motors, wear an anti-static wristband and and touch grounded metal to release static electricity.

Operation after replacement: After replacing the motor, due to the loss of the mechanical position reference point (especially in a semi closed loop system that only relies on the motor encoder), the origin of the machine coordinate system must be re established. For motors fed back by Resolvers, phase angle identification (Commutation alignment) is also required.

Fault report and repair

When an irreparable fault occurs in the motor, the correct repair process can accelerate the processing speed:

Fill out the error report form: Provide a detailed description of the fault phenomenon (whether it is persistent or occasional, and whether it is related to temperature or vibration), motor model, serial number, hardware code, operating time, and machine operating conditions.

ESD packaging: Place the motor in the original or equivalent anti-static packaging bag to prevent electrostatic damage during transportation.

Repair address:

ELAU AG, Abt. Kundendienst, Dillberg 12, D-97828 Marktheidenfeld, Germany

Or contact the local ELAU representative.
