Core of Gas Turbine Fuel Metering: Technical Analysis of C327895 Electromechanical Gas Metering Valve

In industrial gas turbine control systems, the accuracy and reliability of fuel metering valves directly determine the combustion efficiency, emission level, and operational safety of the unit. For aircraft modified gas turbines using dry low emission (DLE) and single annular combustion chamber (SAC) technologies, the fuel gas metering valve is a key actuator for achieving stable combustion and low NOx emissions. This article takes the Meggitt C327895 two inch flange gas metering valve as the object, and conducts a comprehensive technical analysis from the dimensions of design architecture, electrical parameters, mechanical performance, environmental adaptability, certification compliance, and engineering application to help engineers deeply understand the selection logic, installation specifications, and common engineering considerations of the valve.

Product positioning and technical background

C327895 belongs to the global style electric mechanical driven gas metering valve, developed specifically for precision fuel gas metering of industrial aviation modified gas turbines. This valve adopts an electromechanical actuator (EMA) instead of traditional pneumatic or hydraulic actuators, which has the advantages of fast response speed, precise position control, and no risk of oil leakage. After millions of hours of on-site operation verification, its design exhibits extremely high reliability under various harsh working conditions.

Compared with traditional pneumatic control valves, the EMA solution eliminates auxiliary equipment such as gas source processing, locators, and gas pipeline fittings, significantly improving system simplicity. Meanwhile, as it does not rely on compressed air or hydraulic oil, the valve can maintain stable dynamic response in low temperature, dusty, or explosive environments. For gas turbine variable load operation scenarios that require frequent adjustment of fuel flow, the fast full stroke response capability (120 milliseconds) of C327895 provides sufficient execution margin for combustion chamber pressure and temperature control.

Core mechanical specifications and structural design

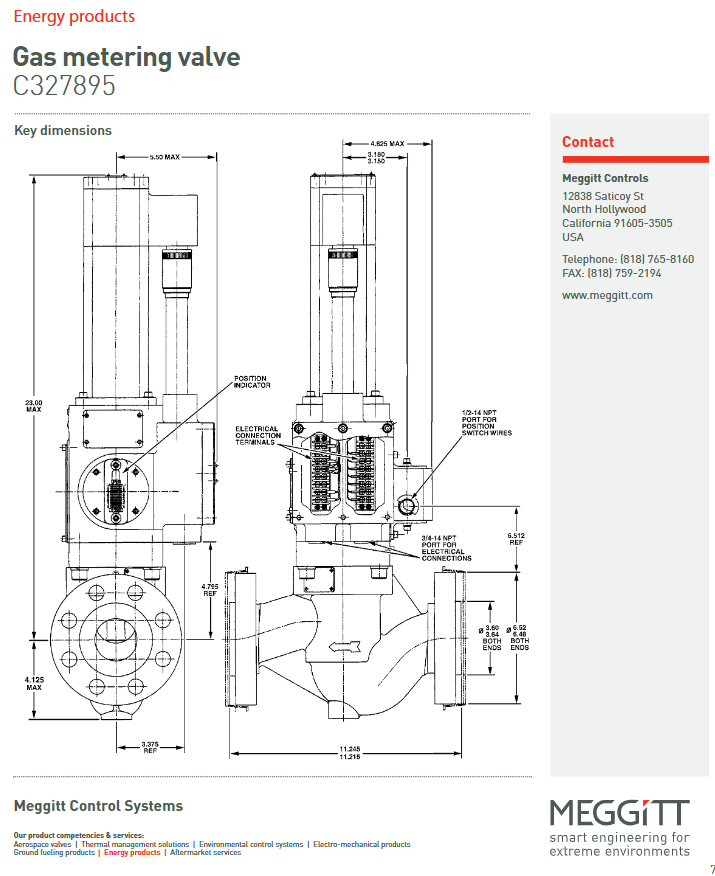

2.1 Appearance and Interface

The flange to flange length of C327895 is 11.245 inches, with an overall height of 23 inches and a net weight of 85 pounds. The interface adopts a two inch ANSI B16.5 Class 600 raised face flange, which meets the standard matching requirements of petrochemical pipeline systems. A 600 pound flange means that the valve can withstand higher pipeline pressures, with an actual design pressure range of 0 to 600 PSI (gauge pressure). For fuel gas branches in natural gas transmission or compressor stations, this pressure level covers the vast majority of medium and high pressure application scenarios.

The valve body and yoke material are all made of stainless steel to meet the NACE (National Association of Corrosion Engineers) standard's tolerance requirements for sulfide stress corrosion cracking. Under acidic natural gas conditions containing hydrogen sulfide, ordinary carbon steel valves are prone to brittle fracture, while the selection of stainless steel material ensures the long-term safe operation of the valve in acidic environments. In addition, stainless steel materials also provide excellent high-temperature oxidation and erosion resistance, suitable for working conditions with fluid temperatures up to 400 ° F (approximately 204 ° C).

2.2 Flow characteristics and pressure drop

The rated natural gas flow range of this valve is 0 to 4.0 pounds per second (approximately 1.81 kg/s), with a maximum pressure drop of 25 psid (approximately 1.72 bar) at the maximum flow point (4 pounds per second, 500 PSI pipeline pressure). This pressure drop characteristic indicates that the valve flow channel design minimizes throttling losses while ensuring regulation accuracy. For gas turbine fuel systems, excessive valve pressure drop can increase the power consumption of upstream compressors, so the upper limit of 25 psid is an optimized equilibrium value.

The internal leakage level meets the ANSI Class IV standard. Class IV indicates that the allowable leakage rate does not exceed 0.01% of the rated capacity when the valve is fully closed. For gas metering applications, extremely low internal leakage can prevent fuel gas from continuously infiltrating the combustion chamber during shutdown or emergency shutdown, avoiding the risk of explosion during hot start.

Technical Explanation of Electro Mechanical actuators (EMA)

3.1 Driving motor parameters

The core driving component of C327895 is a high-speed brushless DC servo motor. The steady-state power supply demand is 75 watts, with a voltage range of 150 to 200 VDC and a current of 0.30 amperes; The peak current can reach 8 amperes (with a duration of 100 milliseconds), used to overcome static friction and inertia during valve core startup. Compared to brushed motors, brushless motors eliminate the problem of brush wear, have extremely low maintenance requirements, and do not generate commutation sparks in explosive environments.

For situations where the power supply capacity of the control system is limited, this valve also offers a voltage version of 90 to 130 VDC, providing users with flexible power adaptation options. Engineering designers need to select appropriate voltage specifications based on the capacity of existing DC power modules and cable voltage drop.

3.2 Position Feedback and Parser

The closed-loop control of valve position relies on a built-in resolver, which has an excitation power supply of 4 VAC and a maximum current consumption of 25 to 60 mA. The resolver is an electromagnetic absolute position sensor with characteristics of anti vibration, high temperature resistance, and anti oil pollution. Compared with potentiometers or Hall sensors, the resolver has better long-term stability in the high-temperature cabin environment of gas turbines. The sine and cosine signals output by it can be calculated by the controller to obtain the precise angular displacement or linear displacement of the valve core, thereby achieving closed-loop regulation of flow instructions.

3.3 Limit switch and temperature control protection

The valve is equipped with a closed position indicator switch, which is of the single pole double throw (SPDT) type, with a working voltage of 28 VDC and a two-wire wiring system. This switch operates when the valve is fully closed and can be used to control the system to confirm that the valve has entered a safe closed state, as well as to confirm the "valve closed in place" in the interlock logic.

In addition, a set of thermostats is integrated inside the actuator to monitor the temperature of the motor or drive circuit. The temperature controller disconnects its contacts at 329 to 347 ° F (approximately 165 to 175 ° C), cutting off motor power or triggering an alarm; Automatically reset when the temperature drops to 252 to 269 ° F (approximately 122 to 132 ° C). This thermal protection mechanism can prevent coil burnout caused by prolonged high duty cycle operation or cabin cooling failure.

Dynamic response and frequency characteristics

The full stroke response time of C327895 (from fully closed to fully open or vice versa) is 120 milliseconds. For two inch valves, this speed is much faster than typical pneumatic diaphragm actuators (typically 300 to 500 milliseconds). Rapid response enables gas turbines to quickly increase fuel flow during sudden load increases, avoiding excessive speed drops; It can also quickly close the valve during load shedding to prevent overheating and overspeed.

More noteworthy is its 20 Hz frequency response capability. This means that when the control system outputs a 20 Hz sine position command, the actual position tracking amplitude of the valve does not attenuate by more than 3 dB. The bandwidth of 20 Hz is sufficient to cover the majority of combustion dynamic fluctuation frequencies in gas turbines (usually between 5 and 15 Hz), enabling the valve to effectively participate in active control of combustion stability. For units using DLE technology, the premixed flame in the combustion chamber is highly sensitive to high-frequency disturbances in fuel composition and flow rate. High bandwidth metering valves are the foundation for achieving low emission closed-loop control.

Explosion proof certification and environmental adaptability

5.1 Hazardous Area Certification

C327895 is designed as an explosion proof type and has passed multiple international certifications:

CSA/UL: Compliant with NEC (National Electrical Code) Class 1, Division 1, Groups C and D. Groups C and D cover typical combustible gases such as ether, ethylene, propane, gasoline, and natural gas. The temperature code T4 indicates that the maximum surface temperature of the valve does not exceed 135 ° C, and is suitable for explosion-proof zones in the vast majority of petrochemical plants.

ATEX&PED: CE marking, compliant with the EU Explosion Protection Directive (2014/34/EU) and Pressure Equipment Directive (2014/68/EU). The specific category is EExd IIB, Zone 1. Class IIB is applicable to general combustible gas environments outside of mines, while Zone 1 indicates locations where explosive gas environments may occur during normal operation.

PED certification: Ensure that valve pressure bearing components are designed to meet EU pressure equipment safety requirements.

For multi country engineering turnkey projects that require compliance with both North American and European Union standards, the one-stop certification of this valve can simplify the procurement process.

5.2 Temperature Range

The allowable range for fluid temperature is 32 to 400 ° F (0 to 204 ° C), and the allowable range for ambient temperature is -65 to 350 ° F (-54 to 177 ° C). The extremely wide ambient temperature range makes it suitable for outdoor gas turbine installation stations in Alaska during winter, as well as for high-temperature enclosed cabins in the Middle East during summer. It should be noted that when the fluid temperature approaches the upper limit of 400 ° F, the pre tightening force of the flange bolts and the high-temperature creep characteristics of the sealing gasket need to be checked.

Fault safety and failure modes

This valve has a fail safe closed function with a response time of 300 milliseconds. When the control power is lost, the drive signal is interrupted, or the internal monitoring circuit detects a serious fault, the spring mechanism or energy storage capacitor inside the actuator will quickly drive the valve core back to the fully closed position. The shutdown time of 300 milliseconds, although slightly slower than the full stroke normal action time (120 ms), is sufficient to cut off fuel within the time required by most overspeed protection logic. For more demanding emergency shutdown situations, an additional independent shut-off valve is usually required.

Designers should be aware that during the fail safe operation, the moving parts of the valve may generate mechanical impact, and long-term frequent fail safe operation may lead to spring fatigue or valve seat damage. Therefore, the fault safety function should be regarded as a true emergency protection measure, rather than a conventional shutdown method.

Key points for installation and maintenance

7.1 Maintenance free design

Under normal operating conditions, C327895 does not require regular maintenance. Core components such as brushless motors, stainless steel valve bodies, and position feedback for analyzers do not require lubrication or calibration. This is due to:

Brushless motors eliminate brush wear;

Fully sealed bearings and valve stem packing;

No hydraulic circuit, no risk of leakage.

However, it is recommended that users conduct a visual inspection every 8000 hours of operation or annually to confirm that the wiring terminals are not corroded, the flange bolts are not loose, and the valve body casing is not mechanically damaged. For fuel gases with severe sulfur or dust content, the inspection cycle should be appropriately shortened.

7.2 Installation direction and support

Due to the weight of the valve reaching 85 pounds (approximately 38.6 kilograms) and a height of 23 inches, sufficient pipeline support or independent brackets must be provided during installation to avoid the valve weight being entirely borne by flange bolts. The recommended installation direction is vertical upward or horizontal for the valve stem, but it is necessary to ensure that the actuator heat dissipation port (if any) is not obstructed. On platforms with high vibration (such as car mounted generator sets), it is recommended to use flexible short pipes to connect with valves to reduce the mechanical stress transmitted by pipelines.

7.3 Wiring precautions

The motor power line (150-200 VDC) and the analyzer signal line should be laid separately to avoid electromagnetic interference. The parser shielding layer should be single ended grounded on the controller side. It is recommended to use flame-retardant insulated wires and equipped with fast fuses for the 28 VDC circuit of the limit switch. The temperature controller contacts can be connected to the DI channel of the PLC to generate an "actuator overheating" alarm.

Typical application scenarios and selection comparison

8.1 Applicable models

This valve has been applied in various DLE and SAC gas turbines, including but not limited to:

Fuel gas regulation for aviation modified gas turbines (such as LM2500, LM6000 series);

Natural gas metering for industrial gas turbines (such as Taurus and Titan series);

Fuel control for gas turbines driven by compressor stations.

Its maximum flow rate of 4.0 pounds per second is approximately 14400 pounds per hour (about 6.5 tons) of natural gas, corresponding to a gas turbine with a power of about 30-40 MW in terms of natural gas calorific value. For larger power units, it is usually necessary to use two or more valves in parallel.

8.2 Alternative Selection Considerations

When the original Woodward or Honeywell gas metering valves are discontinued or have insufficient performance, C327895 can be evaluated as an alternative solution. Key alternative indicators include:

Flow range: Confirm whether the maximum flow rate of 4.0 lb/s meets the full load demand of the unit;

Response time: If the full stroke time of the original valve is greater than 200 ms, C327895 can provide faster response;

Explosion proof level: If the original valve certification is Class I Div 1 Groups C/D, it is directly compatible;

Voltage level: If the original system provides 150-200 VDC, it can be directly converted; If it is 24 VDC or 110 VAC, a power conversion module needs to be installed.

It is worth noting that C327895 uses a digital parser interface, while some older systems use 4-20 mA position feedback. At this point, it is necessary to add a signal converter or replace the controller I/O module.

Technical comparison with competing products

Characteristic C327895 Typical Pneumatic Valve Typical Hydraulic Valve

Response time 120 ms 300-500 ms 80-150 ms

Position accuracy ± 3% Flow point ± 5% ± 2%

Explosion proof certification standard (no additional accessories required) requires explosion-proof locator and servo valve

Maintenance requirement: No maintenance required. Regular cleaning of the air path, replacement of filter elements, and sealing

Fault safety spring reset (300 ms) gas source fault reset accumulator reset

Environmental temperature range -65 to 350 ° F, 0 to 150 ° F (affected by gas source) -20 to 200 ° F

From the comparison, it can be seen that C327895 is superior to pneumatic solutions in response speed, explosion-proof convenience, and environmental adaptability. Although the accuracy is slightly lower compared to hydraulic solutions (± 3% vs ± 2%), the maintenance cost is significantly reduced and there is no risk of hydraulic oil leakage.

Common engineering problems and troubleshooting strategies

10.1 Valve does not operate

Check motor power supply: Is 150-200 VDC normal? Has the peak current reached 8A?

Check the thermostat: If the temperature exceeds 347 ° F, the thermostat will disconnect and automatically reset after cooling.

Check the parser signal: Does the parser output the correct sine/cosine voltage? If the parser is damaged, the controller cannot obtain position feedback and will stop driving.

10.2 Slow response speed

Possible reasons: Wear of valve stem or seat leading to increased friction; The aging of the motor leads to insufficient peak current; The voltage drop of the power cord is too high.

Exclusion method: Measure whether the full travel time is still 120 ms; if it exceeds 150 ms, it is recommended to return to the factory for maintenance.

10.3 Internal leakage exceeding the standard

Possible cause: The sealing surface of the valve seat is scratched by particulate matter; Fault safety shutdown impact caused deformation of the valve core.

Judgment method: After the valve is closed and the downstream is vented, monitor the downstream pressure rise rate. If the leakage exceeds the ANSI Class IV limit, the valve seat assembly needs to be replaced.

10.4 Position feedback fluctuation

Possible reasons: The parser signal is subject to electromagnetic interference; The connection between the parser rotor and the valve core is loose.

Troubleshooting: Check the shielding grounding; Observe the output of the parser with an oscilloscope to determine if there is high-frequency noise; If necessary, recalibrate the zero and full positions.

Key points of procurement and engineering documents

When writing technical specifications or purchase orders, the following parameters should be specified:

Model: C327895

Flange specification: 2 "ANSI B16.5 CL 600 RF

Voltage: 150-200 VDC (or specify 90-130 VDC version required)

Fault safety action: Close

Certification requirements: CSA/UL Class I Div 1 Groups C&D, ATEX IIB Zone 1

Material: All stainless steel, NACE compliant

Attachment: Matching flange, bolt, gasket, and installation bracket drawings are required

It is also recommended to request suppliers to provide factory test reports, including full travel time, internal leakage testing, and parser accuracy calibration data.
