Application of MOOG G77x servo valve

MOOG G77x series two-stage electro-hydraulic servo valve: full analysis of selection, installation, commissioning and maintenance

In the field of electro-hydraulic servo control, high dynamic response, high reliability, and long lifespan are key indicators for measuring core components. As the inventor and industry standard setter of servo valves, Moog's G77x series (including G771, G772, G773) two-stage flow control servo valves, with their simple and durable design, excellent stability, and wide flow coverage range, have become the preferred choice for hydraulic systems in high-end equipment such as injection molding machines, presses, gas turbines, testing equipment, and aerospace. This article will systematically explain the technical characteristics, installation integration points, electrical parameter matching, performance debugging, daily maintenance, and common troubleshooting of the G77x series from an engineering application perspective, helping engineers better select and use this series of products in practical projects.

Product Series Overview: Core Differences of G771, G772, G773

The G77x series is a high-performance two-stage electro-hydraulic servo valve launched by Moog, suitable for three-way or more common four-way throttling control. Its output stage is a closed center four-way slide valve, and the pilot stage is a symmetrical dual nozzle baffle, driven by a dual air gap dry torque motor and using a cantilever spring to achieve mechanical feedback of the main valve core. This mature two-level structure balances control accuracy and anti pollution capability.

According to the different installation interface sizes and rated flow rates, this series is divided into three sub series:

Characteristics G771/771 G772/772 G773/773

Installation surface standard ISO 10372-02-0-0-92 ISO 10372-03-0-0-92 Moog specific

Maximum flow rate 17 L/min (4.4 gpm) 57 L/min (15 gpm) 63 L/min (16.5 gpm)

Rated flow rate (@ 35 bar/valve port) 4 or 10 L/min 10, 19 or 38 L/min 38 or 57 L/min

0-100% step response time 4 ms 4 ms 10 ms

Maximum working pressure 210 bar (3000 psi) Universal 210 bar 210 bar

Key points of engineering selection:

For applications with small flow rates (≤ 10 L/min) and compact spaces, G771 is the preferred choice, with an installation surface of ISO 02 size.

Medium flow (10-38 L/min) industrial applications, G772 is the most common, with an installation surface of ISO 03 size.

For situations with high flow rates (38-57 L/min) or special interface requirements, choose G773.

All sub series offer intrinsically safe versions that comply with ATEX, FM, CSA, IECEx certifications, and can be safely used in hazardous environments such as oil and gas, chemical, etc.

Working principle and structural advantages

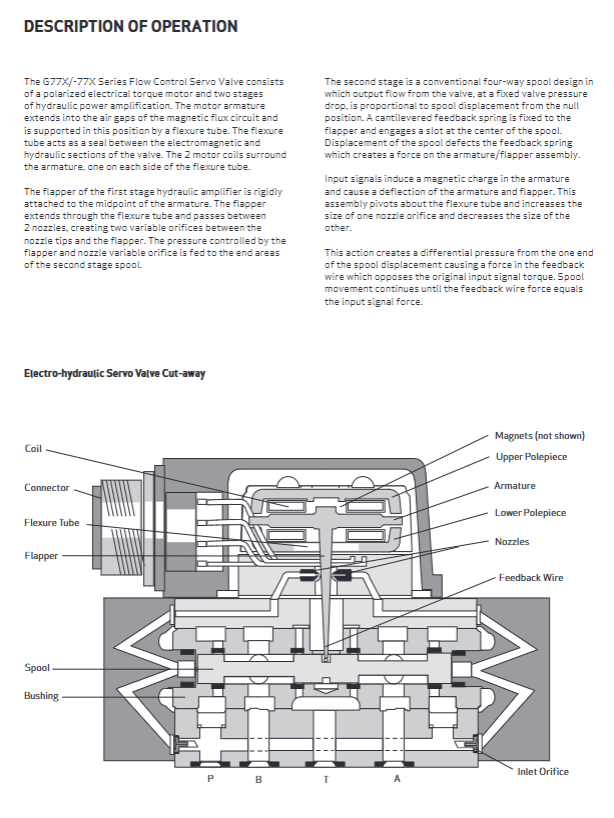

Understanding the working principle of G77x is helpful for fault analysis and debugging. Its core structure includes:

Dry Torque Motor: Polarized electromagnet drives the armature assembly. Two coils surround the armature, isolating the electromagnetic part from the hydraulic part through a flexible tube and serving as the pivot of the armature. This' dry 'design means that hydraulic oil will not come into contact with the coil, significantly improving the insulation reliability and service life of the coil.

Dual nozzle baffle pilot stage: The baffle in the middle of the armature extends through the flexible tube and is located between two nozzles, forming two variable throttling holes. When the input current causes the armature to deflect, the baffle approaches one nozzle and moves away from the other, resulting in a pressure difference in the back pressure chambers of the two nozzles. The pressure difference acts on both ends of the main valve core, pushing it to move.

Main valve and mechanical feedback: The main valve core is a four-way slide valve, and the valve core position is mechanically connected to the baffle/armature assembly through a cantilever feedback spring. The displacement of the valve core will twist the feedback spring, generating a mechanical torque opposite to the electromagnetic torque of the torque motor. When the two are balanced, the valve core stops moving. Therefore, the position of the valve core is precisely proportional to the input current and independent of changes in load pressure.

Failure safety: When the input signal is lost (such as power outage), the torque motor has no torque output, and the feedback spring pulls the valve core back to the neutral position (zero position), causing the P, A, B, and T oil ports to be disconnected from each other, achieving fault safety.

Engineering insights:

The "zero position" of the valve core can be adjusted by mechanical zero adjustment screws (within ± 10% of the rated flow range), making it easy to match the system on site.

Due to the use of mechanical feedback, there is no need for external displacement sensors, making the system simple and reliable.

Practical installation and mechanical integration

Correct installation is the foundation for ensuring the performance of servo valves. The following key points must be strictly followed:

1. Surface requirements for installation
