For situations where the power supply capacity of the control system is limited, this valve also offers a voltage version of 90 to 130 VDC, providing users with flexible power adaptation options. Engineering designers need to select appropriate voltage specifications based on the capacity of existing DC power modules and cable voltage drop.
3.2 Position Feedback and Parser
The closed-loop control of valve position relies on a built-in resolver, which has an excitation power supply of 4 VAC and a maximum current consumption of 25 to 60 mA. The resolver is an electromagnetic absolute position sensor with characteristics of anti vibration, high temperature resistance, and anti oil pollution. Compared with potentiometers or Hall sensors, the resolver has better long-term stability in the high-temperature cabin environment of gas turbines. The sine and cosine signals output by it can be calculated by the controller to obtain the precise angular displacement or linear displacement of the valve core, thereby achieving closed-loop regulation of flow instructions.
3.3 Limit switch and temperature control protection
The valve is equipped with a closed position indicator switch, which is of the single pole double throw (SPDT) type, with a working voltage of 28 VDC and a two-wire wiring system. This switch operates when the valve is fully closed and can be used to control the system to confirm that the valve has entered a safe closed state, as well as to confirm the "valve closed in place" in the interlock logic.
In addition, a set of thermostats is integrated inside the actuator to monitor the temperature of the motor or drive circuit. The temperature controller disconnects its contacts at 329 to 347 ° F (approximately 165 to 175 ° C), cutting off motor power or triggering an alarm; Automatically reset when the temperature drops to 252 to 269 ° F (approximately 122 to 132 ° C). This thermal protection mechanism can prevent coil burnout caused by prolonged high duty cycle operation or cabin cooling failure.
Dynamic response and frequency characteristics
The full stroke response time of C327895 (from fully closed to fully open or vice versa) is 120 milliseconds. For two inch valves, this speed is much faster than typical pneumatic diaphragm actuators (typically 300 to 500 milliseconds). Rapid response enables gas turbines to quickly increase fuel flow during sudden load increases, avoiding excessive speed drops; It can also quickly close the valve during load shedding to prevent overheating and overspeed.
More noteworthy is its 20 Hz frequency response capability. This means that when the control system outputs a 20 Hz sine position command, the actual position tracking amplitude of the valve does not attenuate by more than 3 dB. The bandwidth of 20 Hz is sufficient to cover the majority of combustion dynamic fluctuation frequencies in gas turbines (usually between 5 and 15 Hz), enabling the valve to effectively participate in active control of combustion stability. For units using DLE technology, the premixed flame in the combustion chamber is highly sensitive to high-frequency disturbances in fuel composition and flow rate. High bandwidth metering valves are the foundation for achieving low emission closed-loop control.

Explosion proof certification and environmental adaptability
5.1 Hazardous Area Certification

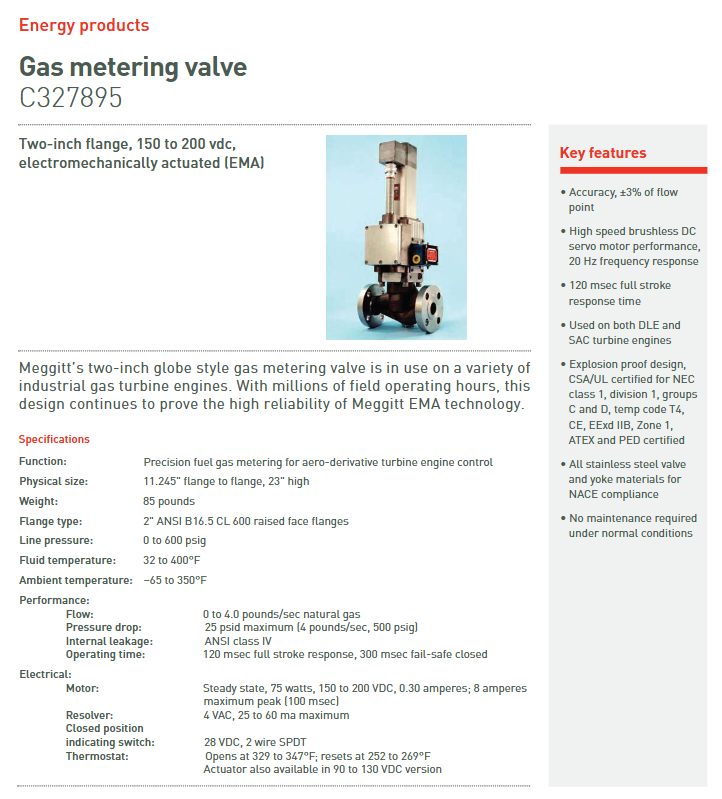

C327895 is designed as an explosion proof type and has passed multiple international certifications:
CSA/UL: Compliant with NEC (National Electrical Code) Class 1, Division 1, Groups C and D. Groups C and D cover typical combustible gases such as ether, ethylene, propane, gasoline, and natural gas. The temperature code T4 indicates that the maximum surface temperature of the valve does not exceed 135 ° C, and is suitable for explosion-proof zones in the vast majority of petrochemical plants.
ATEX&PED: CE marking, compliant with the EU Explosion Protection Directive (2014/34/EU) and Pressure Equipment Directive (2014/68/EU). The specific category is EExd IIB, Zone 1. Class IIB is applicable to general combustible gas environments outside of mines, while Zone 1 indicates locations where explosive gas environments may occur during normal operation.
PED certification: Ensure that valve pressure bearing components are designed to meet EU pressure equipment safety requirements.
For multi country engineering turnkey projects that require compliance with both North American and European Union standards, the one-stop certification of this valve can simplify the procurement process.
5.2 Temperature Range
The allowable range for fluid temperature is 32 to 400 ° F (0 to 204 ° C), and the allowable range for ambient temperature is -65 to 350 ° F (-54 to 177 ° C). The extremely wide ambient temperature range makes it suitable for outdoor gas turbine installation stations in Alaska during winter, as well as for high-temperature enclosed cabins in the Middle East during summer. It should be noted that when the fluid temperature approaches the upper limit of 400 ° F, the pre tightening force of the flange bolts and the high-temperature creep characteristics of the sealing gasket need to be checked.
