Introduction: When the limit switch fails - the way to replace the "travel guardian" in industrial automation

Limit switches are one of the most fundamental but crucial sensors in automated production lines, lifting machinery, packaging equipment, valve control, and CNC machine tools. It is responsible for converting the travel position of mechanical components into electrical signals, thereby controlling motion termination, reversing, or interlocking protection. However, many old limit switch brands (such as some early German and American models) have been out of production for many years, and once they fail on site, engineers often face the dilemma of "difficult to find models, unknown parameters, and mismatched installation holes".

Nastyaer GIV50-11 is a cylindrical metal shell position limit switch produced in Germany (DE), designed for end position detection in automated workstations. It is powered by 24 V DC, with a single normally open (NO) contact, a maximum switching current of 0.4 A, and a maximum working environment temperature of 50 ℃. This article will provide a detailed breakdown of the technical specifications, installation requirements, wiring specifications, and troubleshooting methods of GIV50-11 from an engineering practical perspective. It will also provide a comparison table for the replacement selection of shutdown limit switches and wiring modifications to help equipment maintenance personnel quickly restore equipment operation and improve system reliability.

Product Overview and Core Features

2.1 Basic positioning

GIV50-11 belongs to the mechanical contact limit switch, which directly touches the roller or push rod of the switch through an actuator (such as a cam or stopper) to drive the internal micro switch to switch the contact state. In its naming "GIV50-11", "50" may refer to the diameter of the housing or series code, and "11" usually represents an open close contact form, but this model actually only provides normally open (NO) single output. The product label is printed with "Endschalter" (German: limit switch), "position switch", and "UL: 24 V DC, Imax: 0.4 A, Tu 50 ° C".

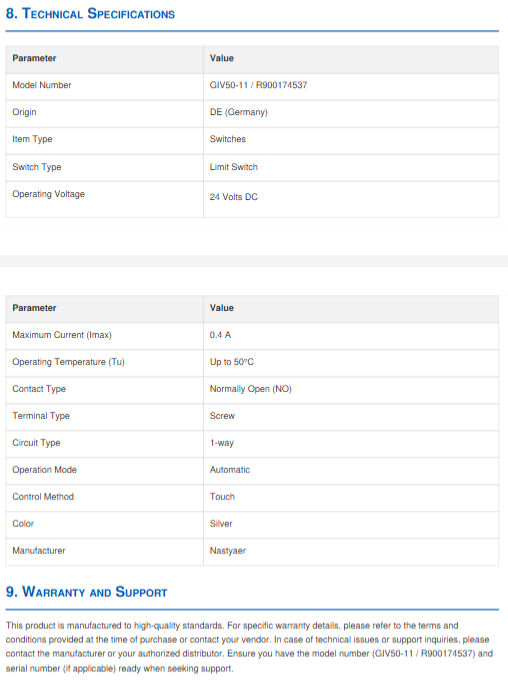

2.2 Key Characteristics Overview

Working voltage: 24 V DC (typical industrial control voltage)

Contact form: 1 x Normally Open, no closed contacts

Maximum current: 0.4 A (recommended to reduce the rating for resistive loads)

Shell material: metal (aluminum alloy or stainless steel, presumed to have some protective ability, but the manual does not provide IP rating)

Connection method: Screw terminal (internal wiring)

Operation method: Mechanical touch based, requiring physical contact

Environmental temperature: Tu 50 ℃ (upper limit of environmental temperature)

Origin: Germany

Order number: R900174537

Example of serial number: HYB833A130912

This switch is suitable for indoor industrial environments that are dry and free of highly corrosive gases. As it is not labeled with a protection level (such as IP67), it is not recommended for use in damp, wet, or dusty environments unless a protective cover is installed.

Comparison and selection with common limit switches

When the old limit switches on the original equipment (such as Schneider XCK-J, Omron D4N, Turck BNS series) are damaged or discontinued, GIV50-11 can be used as a substitute, but the following key parameters must be checked:

Common substitutions for parameter GIV50-11 should be noted

If the original circuit is 110/220 V AC with a voltage of 24 V DC, it cannot be directly replaced (voltage level needs to be changed)

If the original load exceeds 0.4 A (such as directly driving the contactor coil), an intermediate relay needs to be added

If the original switch requires 1NC+1NO or dual signal, then other models or parallel/series connections need to be used instead

The type of actuator is not clear (roller/plunger), and the appropriate actuator head should be selected according to the mechanical action (optional accessories)

Installation size cylindrical thread M? Measure the diameter of the original installation hole, which may require an adapter bracket

If the ambient temperature is ≤ 50 ℃ and there is a high temperature source (>50 ℃) near the equipment, it cannot be used

Replacement suggestion: If using GIV50-11 to replace a shutdown switch on site, the original circuit voltage should be confirmed to be 24V DC, the load current should be less than 0.4A, and only a single normally open signal is required. If the original switch is normally closed (NC) logic, the PLC program needs to be modified or relay conversion contacts need to be added.

Installation and wiring instructions

4.1 Installation steps

Power off tagging: Cut off the main power supply of the equipment and tag it with a lock to prevent accidental power transmission.

Mechanical installation:

Secure GIV50-11 to the mounting bracket via its external thread. Use appropriate nuts and washers, and refer to the manufacturer's recommended tightening torque (if not available, typically 3-5 N · m).

Adjust the position of the switch so that the moving parts precisely press the actuator (roller or plunger) to the midpoint of the stroke at the position where the limit is required, to avoid damaging the switch due to overtravel.

Ensure that the contact surface between the actuator and the switch is perpendicular to prevent lateral forces from causing internal mechanism jamming.

Wiring preparation: Open the switch junction box cover (usually the top cover) to expose the screw terminals. Use 0.5~1.0 mm ² multi strand flexible wires to crimp U-shaped or O-shaped terminals, or tighten them directly under screws.

Wiring according to the markings: GIV50-11 is a 1-way normally open (NO) contact, usually with two terminals: COM and NO (or labeled 1-2). Connect the 24V DC positive terminal to the COM through a load (such as a PLC input module), and connect the NO terminal to the other end of the load; Alternatively, the switch can be directly connected in series into the control circuit.

Grounding: The metal casing should be grounded to prevent electric shock and electromagnetic interference.

Inspection and Testing: Manually press the actuator and measure the conductivity between COM-NO using a multimeter in the resistance range (resistance close to 0 Ω); After release, it should be an open circuit (infinite). Attention: The switch is normally open and does not conduct when not activated.

4.2 Typical Wiring Diagram

text

[PLC DI]

|24V DC+-----------------------------------------24V DC-|COM

The actual wiring should follow the original equipment drawings. If the switch is used to directly control the relay coil, the coil must be connected in parallel with a freewheeling diode (such as 1N4007) to absorb the back electromotive force, otherwise it will burn out the contacts.

4.3 Precautions

Cable management: The lead wires should be fixed to avoid being pulled or worn out by moving parts on the insulation layer.

Sealing: The sealing gasket of the junction box cover should be intact, and the screws should be tightened to prevent dust from entering.

Torque: The torque of the wiring screw is about 0.5 N · m, and excessive torque can cause the wire to slip.

Operating principle and signal logic

The GIV50-11 is equipped with a mechanical self resetting micro switch inside. When no external force is applied, the moving contact is disconnected from the normally open terminal, and the circuit is not connected; When the external mechanical stopper presses down on the actuator, the internal spring quickly switches, pushing the moving contact to make contact with the normally open terminal and closing the circuit. After releasing the actuator, the spring resets and the contacts disconnect again.

Signal timing:

Action point (OP): The stopper begins to contact the actuator and move until the contact point flips over, typically at a distance of 0.5~2 mm.

Differential travel (DT): The travel difference between the action point and the reset point, ensuring that the contacts have sufficient backlash to avoid shaking.

Overtravel (OT): The maximum safe distance that allows the actuator to continue pressing beyond the action point. The stroke of GIV50-11 should not exceed 1.5 mm, otherwise the internal mechanism may be damaged.

For PLC systems, the NO contact is usually connected to the 24 V DC circuit of the digital input module. When the limit switch is triggered, the input signal changes from 0 V to 24 V (or vice versa, depending on the wiring). If using relay conversion, the contact life needs to be considered.

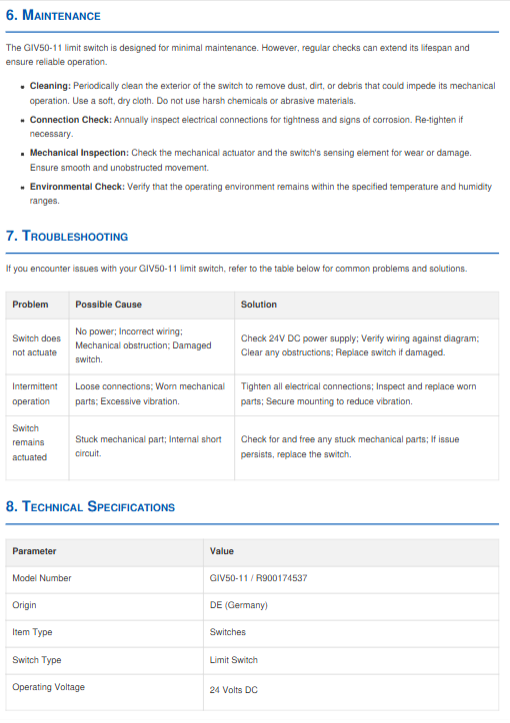

Maintenance and lifespan prediction

6.1 Regular Maintenance Plan

Periodic inspection project standards/tools

Monthly appearance cleaning, removing oil stains, dust, soft cloth, compressed air

Tighten the wiring terminals every quarter, check the cable insulation screwdriver and megohmmeter

Check the wear of mechanical actuators every six months, measure the action stroke with a feeler gauge and marking line

The annual contact resistance measurement (when closed) using a micro ohmmeter or multimeter should be less than 50 m Ω

Replace as a whole according to the working conditions when the number of actions approaches the mechanical life (usually 1 million times) or when contact welding occurs

6.2 Factors affecting lifespan

Switching frequency: If the action exceeds 60 times per minute and the contact wear accelerates, it is recommended to use a contactless proximity switch as a substitute.

Load type: The arc generated by inductive loads (relays, solenoid valves) will shorten the contact life. The Imax=0.4 A of GIV50-11 is the value under resistive load; The inductive load should be reduced to 0.2 A and a buffer circuit should be added.

Environmental temperature: Exceeding 50 ℃ can cause plastic parts to deform and lubricating grease to evaporate, resulting in poor operation.

Mechanical shock and vibration: Excessive vibration can cause instant disconnection of contacts, resulting in false signals, and vibration reduction brackets should be installed.

Practical cases of troubleshooting

7.1 Fault phenomenon: The limit switch does not operate, and the equipment crosses the limit, causing mechanical collision

Troubleshooting steps:

After power off, manually press the actuator and use a multimeter to measure whether the COM-NO is conducting. If it does not conduct, it can be determined that the internal contacts of the switch are burnt or mechanically stuck → replace the switch.

If the manual test shows normal conductivity, check if the actuator block is worn or displaced, which may prevent the switch roller from being pressed down. Adjust the position of the stopper or replace worn parts.

Check wiring: There should be a 24V voltage between the COM and NO terminals when measuring the voltage range of the multimeter (when the switch is not pressed down). If the voltage is 0, check for broken upstream fuses, power modules, or cables.

Check the PLC input module channel: short-circuit the input point to 0V or 24V (depending on the type), and confirm if the module is functioning properly. If normal, replace the limit switch.

7.2 Fault phenomenon: intermittent false triggering, occasional no signal

Reason: Loose wiring and vibration caused the wire to instantly disconnect. Reconnect the terminals and apply thread locking adhesive.

Reason: The internal contact spring of the switch is fatigued, and the action point drifts. Replace the switch with a new one.

Reason: There is interference from high-power frequency converters or electromagnets nearby. Although mechanical contacts are not directly affected by EMI, long-term induction may cause subsequent electronic devices to malfunction. Suggest using shielded cables and grounding the shielding layer at one end.

7.3 Fault phenomenon: The switch remains conductive (normally closed)

Mechanical jamming: The actuator is stuck by foreign objects or cannot rebound at the overtravel position. Remove obstacles and check if the spring is corroded.

Contact welding: overcurrent occurs (load current exceeds 0.4 A or no arc extinguishing circuit is added). Replace the switch and add an intermediate relay in the circuit.

Comparison Table for Production Shutdown and Replacement Selection

When the GIV50-11 prototype number cannot be found on the market, the following parameter matching logic can be used to select a substitute:

Recommended model series for replacing original switch parameters (example)

24V DC, 0.4A, NO voltage and current ≥ 0.4A, NO contact, mechanical action Omron D4N-1120 (roller plunger type)

Cylindrical thread M20 × 1.5 installation thread consistent with Schneider XCMD2110L1

Metal casing, IP65 protection level not lower than the original switch Turck BNS 819-D

Maximum temperature 50 ℃ Operating temperature -25~70 ℃ Baruff BNS 819-BL

Precautions for renovation:

The installation hole spacing may vary for different brands, and it is necessary to process adapter plates or enlarge holes.

The actuator type (roller, plunger, rod type) needs to match the original machine action mode. GIV50-11 does not specify the actuator type, but from the picture it appears to be a short cylinder, possibly a plunger or roller lever type. Please confirm before replacing.

If the original circuit requires normally closed (NC) logic, a 24V DC intermediate relay can be installed after GIV50-11 to convert the NO contact to NC.

Safety compliance and final recommendations

GIV50-11 limit switch should be used in accordance with IEC 60947-5-1 standard. In safety related applications (such as emergency stop limit), a positive opening structure must be used to ensure that even if the contact is welded, it can be forcibly disconnected under mechanical action. After checking the manual, it was not clear whether the switch has a forced disconnection function. Therefore, it is not recommended to use it as a safety limit (such as the upper limit of a crane) and can only be used for general position detection.

To extend the service life, please avoid directly driving large inductive loads in the control circuit. For a contact capacity of 0.4 A, it is recommended to drive the PLC input module (usually 5-20 mA) or micro relay (coil current<30 mA).
