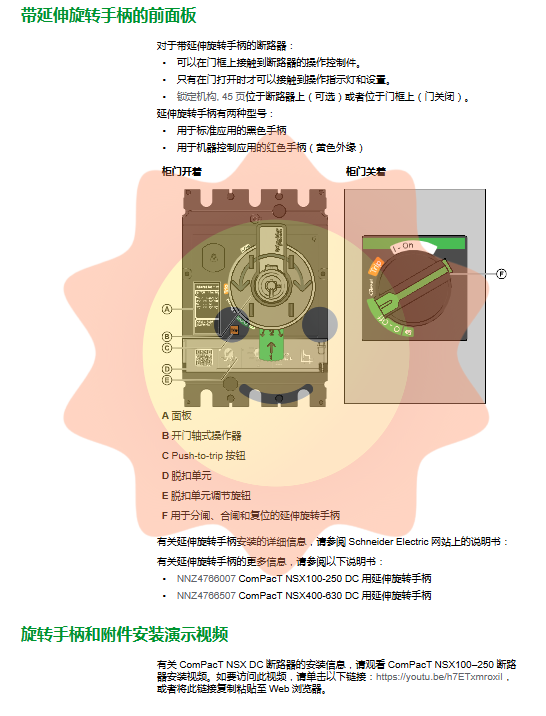

Schneider Electric ComPacT NSX DC Circuit Breaker Full Solution and Application Guide

5.2 Debugging and Daily Inspection

Before new equipment is put into operation or restarted after long-term disuse, a systematic inspection should be conducted, including:

Insulation and dielectric strength testing

Connection torque verification

Mechanical operation and protection function testing

Communication system pairing and verification

5.3 Regular maintenance recommendations

To ensure the long-term reliable operation of circuit breakers, it is recommended to implement a graded maintenance plan:

Basic user maintenance: Conduct annual visual inspection, mechanical operation testing, and accessory status assessment.

User standard maintenance: Conduct protection characteristic verification, connection status inspection, and insulation resistance measurement every 2-3 years.

Manufacturer maintenance: Conduct comprehensive diagnosis, component replacement, and system calibration every 5 years or after a malfunction.

Circuit breakers in photovoltaic applications need to strengthen environmental adaptability checks, including monitoring of sealing, temperature rise, and insulation status.

Fault diagnosis and trip response

After the circuit breaker trips, the reason for the trip should be determined through indicator contacts or wireless devices:

SD indication: may be manual trip, test trip, or coil action.

SDE indication: Indicates electrical fault tripping, downstream equipment malfunction needs to be investigated.

Before restoring power supply, it is necessary to eliminate the cause of the fault and conduct necessary equipment inspections and tests. After short-circuit tripping, the arc residue should be cleaned, the connecting parts should be inspected, and a no-load operation test should be conducted.

Communication integration and intelligent functions

Through the BSCM Modbus SL/ULP module, circuit breakers can be connected to industrial communication networks to achieve:

Remote status monitoring and event recording

Network Control of Electric Mechanisms

Remote firmware update and diagnosis

Integrated with EcoStruxure Power Commission software, supporting project configuration, test report generation, and equipment management

The system supports Modbus SL, ULP, and hybrid communication modes, adapting to different voltage levels and network architecture requirements.

Environmental adaptability design and derating instructions

The ComPacT NSX DC series can operate stably in ambient temperatures ranging from -25 ° C to+70 ° C, and has excellent resistance to vibration, electromagnetic interference, and pollution. In high-altitude areas (>2000 m), voltage and current parameters need to be adjusted according to the derating table to ensure safe operation of the equipment.
