Strategic Role in Industrial Data Acquisition

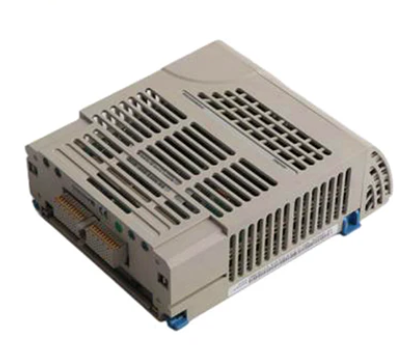

The WESTINGHOUSE 1C31147G01 is a specialized Pulse Input module engineered for the Ovation Distributed Control System (DCS). In modern industrial automation, tracking rotational speeds, flow rates, and frequency-based metrics requires a dedicated hardware solution that can process high-speed pulse trains without taxing the main controller's CPU. The 1C31147G01 is designed specifically for this purpose, providing high-resolution frequency measurement and pulse counting for critical infrastructure monitoring.

Core Technical Specifications and Architecture

The 1C31147G01 architecture is centered around high-speed digital counters and advanced signal conditioning circuitry. It is built to interface directly with field devices such as magnetic pickups, proximity switches, and flow meters that output pulse-frequency signals.

• Brand Series: Westinghouse / Emerson Ovation

• Model Identification: 1C31147G01

• Module Type: Pulse Input / Frequency Input Module

• Signal Compatibility: Supports varied voltage thresholds for diverse pulse sources.

• Isolation: Integrated galvanic isolation to protect system logic from field surges.

• Configuration: Multi-channel design for simultaneous monitoring of multiple high-speed inputs.

Key Features of the 1C31147G01 Module

As a critical component of the Ovation I/O family, the 1C31147G01 distinguishes itself through its ability to maintain high accuracy across a wide range of input frequencies.

High-Resolution Frequency Measurement

This module utilizes precision clocking mechanisms to calculate the period and frequency of incoming pulses. Whether monitoring a slow-moving conveyor or a high-speed turbine shaft, the 1C31147G01 delivers digitized data with minimal jitter. This precision is vital for governor control systems where speed fluctuations must be detected within milliseconds.

Ruggedized Signal Conditioning

Field signals in industrial environments are often plagued by electrical noise and ringing. The WESTINGHOUSE 1C31147G01 features onboard hardware filtering and software-selectable debouncing to ensure that only valid pulses are counted. This robust signal conditioning prevents false readings that could lead to system trips or inaccurate production data.

Primary Industrial Applications

The WESTINGHOUSE 1C31147G01 is widely deployed in sectors where precise motion and flow tracking are non-negotiable:

• Turbine Speed Monitoring: Essential for overspeed protection and load control in steam and gas turbines.

• Flow Metering: Interfacing with turbine flow meters for high-accuracy liquid or gas volume measurement.

• Rotational Analysis: Monitoring pump, fan, and motor speeds to assist in predictive maintenance and vibration analysis.

• Pulse Accumulation: Tracking totalized counts for energy metering or discrete part counting in manufacturing lines.

System Integration and Reliability

The 1C31147G01 is designed for seamless integration into the Ovation backplane. It communicates via the standard I/O bus, allowing the controller to access pulse data as readily as any other I/O point. One of the most significant advantages for facility managers is the module's diagnostic depth. The 1C31147G01 constantly monitors its own internal health and the integrity of the field wiring, capable of identifying "loss of signal" or "out of range" conditions instantly.

Furthermore, the thermal management of the module is optimized for long-term service in high-density cabinets. By utilizing low-power components and efficient heat dissipation paths, the 1C31147G01 maintains a high Mean Time Between Failures (MTBF). Its hot-swappable design ensures that should a module need replacement, it can be swapped out without disrupting the power or operations of neighboring modules, maximizing system uptime.

Conclusion

The WESTINGHOUSE 1C31147G01 Ovation Pulse Input Module remains a premier choice for industrial engineers seeking reliable frequency and pulse data acquisition. By combining high-speed processing capabilities with rugged industrial hardening and comprehensive diagnostics, it provides the accuracy required for the world’s most demanding control environments. For any facility utilizing the Ovation DCS, the 1C31147G01 offers the technical sophistication necessary to maintain optimal process efficiency and safety.
