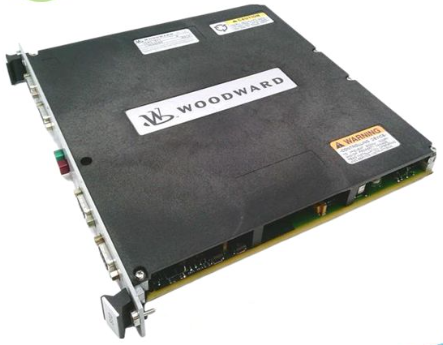

WOODWARD 5501-471 Communication Module

WOODWARD 5501-471 Communication Module

Core positioning

5501-471 is a high-performance Ethernet communication and protocol conversion gateway module. Its main task is to seamlessly convert the CAN bus (J1939) protocol used by the internal controllers of the generator set, such as the engine governor and generator excitation controller, into the mainstream industrial Ethernet protocol Modbus TCP/IP, thereby achieving remote monitoring, data integration, and advanced diagnosis.

Main functions and features

Efficient protocol conversion engine

Core conversion: specifically responsible for efficient and stable mapping between CAN SAE J1939 data and Modbus TCP/IP registers. It continuously monitors messages on the CAN bus (such as engine speed, water temperature, oil pressure, controller status, etc.) and organizes these data into a pre-defined Modbus register mapping table.

Bidirectional communication: not only can data be "uploaded" to the monitoring system, but also Modbus write commands from the upper computer (such as SCADA, HMI) can be "issued" and converted into CAN bus commands, enabling modification of remote setpoints or control modes.

Remote Access and Debugging Channel

This is one of its most important functions. Through the internet, maintenance engineers can use the Woodward Toolkit ™  Software, directly connected to module 5501-471.

Through this module, Toolkit can access all J1939 supported Woodward devices on the entire CAN bus network (such as EasyGen-3000 controller, 2301D digital speed controller, DC series voltage regulator, etc.) for parameter configuration, real-time monitoring, fault diagnosis, and data recording, without the need to physically visit noisy device sites.

Simplify system integration

It makes the generator set a standard Modbus TCP/IP network node. The distributed control system, energy management system, or any third-party software that supports Modbus TCP in the factory can directly and uniformly access all operational data of the generator set, without the need to develop dedicated driver interfaces for different controllers.

Robust industrial design

Adopting DIN rail installation, compact and sturdy, suitable for industrial environments.

Provide status indicator lights (power, network status, CAN activity, data transmission and reception) for quick diagnosis of the module's own status.

Typical application scenarios

5501-471 is a standard configuration for building modern and networked generator sets, suitable for:

Remote/unmanned power stations: remote monitoring of backup power sources such as telecommunications base stations, oil and gas pipeline pressurization stations, remote mines, etc.

Multi unit parallel power station: As the communication gateway for each unit, it aggregates all data to the parallel control cabinet or power station management computer.

Factory power system integration: Integrate the backup generator set into the SCADA or DCS system of the factory to achieve energy monitoring throughout the entire plant.

After sales service and technical support: manufacturers or service providers can provide customers with rapid technical support and troubleshooting through remote Internet access.

Product advantages

Standardized interface: Convert the dedicated J1939 network to the industry standard Modbus TCP, greatly reducing the difficulty and cost of system integration.

Powerful remote diagnostic capability: a key tool for implementing predictive maintenance and reducing downtime.

Improve operation and maintenance efficiency: support remote debugging and parameter optimization, reduce travel and on-site service time.

High reliability: designed for industrial environments with 7x24 hour continuous operation.

Important supporting facilities and precautions

Essential software: Woodward Toolkit ™  It is the only software that configures and utilizes all its functions.

Network and Information Security: This is the lifeline of deployment. Strict measures must be taken:

Set a static IP address for the module and place it in a separate, firewall protected control network subnet.

Use VPN for remote access to avoid direct exposure to the public network.

Strictly manage access permissions and passwords.

Configuration work: Professional engineers familiar with generator control, J1939 protocol, and basic network knowledge are required for initial configuration and address mapping settings.
