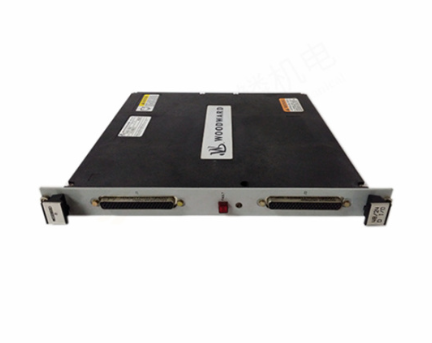

WOODWARD 5466-258 is a simplex discrete input/output (I/O) module launched by Woodward, belonging to the MicroNet digital control product series, mainly used for signal acquisition and command output in industrial control systems.

Core specifications

Input/output: It has 48 input terminals and 24 output terminals. The input type is dry contact and the output type is relay.

Voltage and Power: The external input voltage and power input are both 18-32 volts DC, and the required power is 6.5 watts at 24 volts DC.

Environmental parameters: The working temperature range is 0-55 ° C, the storage temperature range is -40-105 ° C; the applicable air quality pollution level is 2, and the rated overvoltage category is Class II.

Related certifications: Passed multiple certifications such as UL, ATEX, CE (Electromagnetic Compatibility), DNV, ABS, and LRS, and can be used in non hazardous areas or specific hazardous areas such as Class I Zone 2.

Installation and Usage

This module can be adapted to chassis modules with 8 or 14 slots. During installation, it needs to be connected to the corresponding network and 24V DC power supply and fixed on the DIN rail. The module address also needs to be set through the 1st and 10th rotary switches. It supports real-time replacement of faulty nodes by the system, ensuring that the network cable connection is intact and the address switch of the replacement node is consistent with the faulty node. After replacement, the application needs to reset the node to restore communication and clear the fault.

Alternative product Woodward

This module was replaced by an upgraded module in 2010, with different replacement models corresponding to different systems. In systems equipped with 5200 and P1020 processors and running encoder versions 5.04 and above, it is replaced by a 5466-1050 high-definition digital input/output module suitable for simplex applications; In systems equipped with 5200 processors and running encoder versions 4.06 and above, the corresponding alternative model is 5466-1158.

Application scenarios

With its stable discrete input-output control performance, this module is commonly used in power generation, oil and gas extraction, water treatment, and various manufacturing scenarios. It is compatible with hardware such as MicroNet Plus and can be used in simplex and redundant systems to achieve signal acquisition and command output control of related equipment.
