Overview

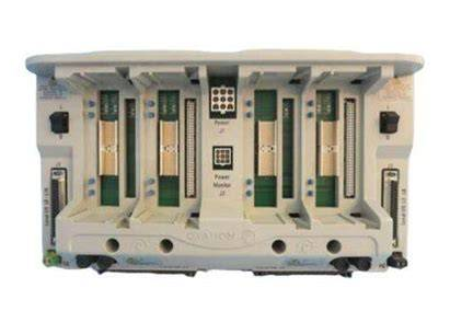

The Westinghouse 5X00225G01 controller base rack is engineered as a foundational module within the Emerson Ovation distributed control system                architecture. This assembly serves as a robust mechanical and electrical backbone designed to support multiple control and I/O modules for complex                industrial automation environments. Its modular architecture enables flexible configurations tailored to specific application requirements.

Key Features

• Modular Design: The base rack accommodates multiple plug-in modules, enabling scalable configurations for diverse automation  tasks and control logic integration.

• Backplane Communication Support: Integrated backplane facilitates high-speed communication between modules, enhancing data  coordination and system responsiveness.

• Industrial Grade Construction: Built to withstand challenges in industrial settings, including mechanical vibration and extended operational hours.

• Flexible Integration: Compatible with a wide array of Ovation I/O modules and automation components for streamlined implementation in distributed control systems.

Technical Specifications

Designed with precision engineering, the Westinghouse 5X00225G01 offers a balance of compact footprint and robust performance characteristics.                Typical specifications include:

• Operating Voltage: 24 VDC nominal, with standard industrial tolerance.

• Dimensions: Form-factor suitable for standard rack assemblies.

• Environmental Tolerance: Supports a wide range of operating temperatures and non-condensing humidity levels typical to industrial spaces.

• Communication: Backplane connections support coordinated module interaction for real-time process control.

The 5X00225G01 base rack is widely deployed in industrial automation sectors requiring dependable distributed control system infrastructure.

Notable application areas include:

• Process control and monitoring in chemical and petrochemical plants

• Power generation and distribution systems

• Manufacturing automation in heavy industry

• Utilities and critical infrastructure control systems

Integration and System Architecture

As part of a broader Ovation DCS configuration, the base rack interfaces with controller and I/O modules via a standardized backplane. The solid                mechanical assembly ensures secure module seating and electrical connectivity. Enhanced communication pathways within this architecture enable                synchronized control logic execution and process feedback handling.

Performance and Reliability

With an industrial-grade build, the base rack is designed to meet rigorous performance standards in continuous operation environments.

Emphasis on structural integrity and electrical stability ensures that control modules maintain reliable data transfer and command execution.

The platform’s rugged design contributes to reduced maintenance cycles and long service life under demanding conditions.
