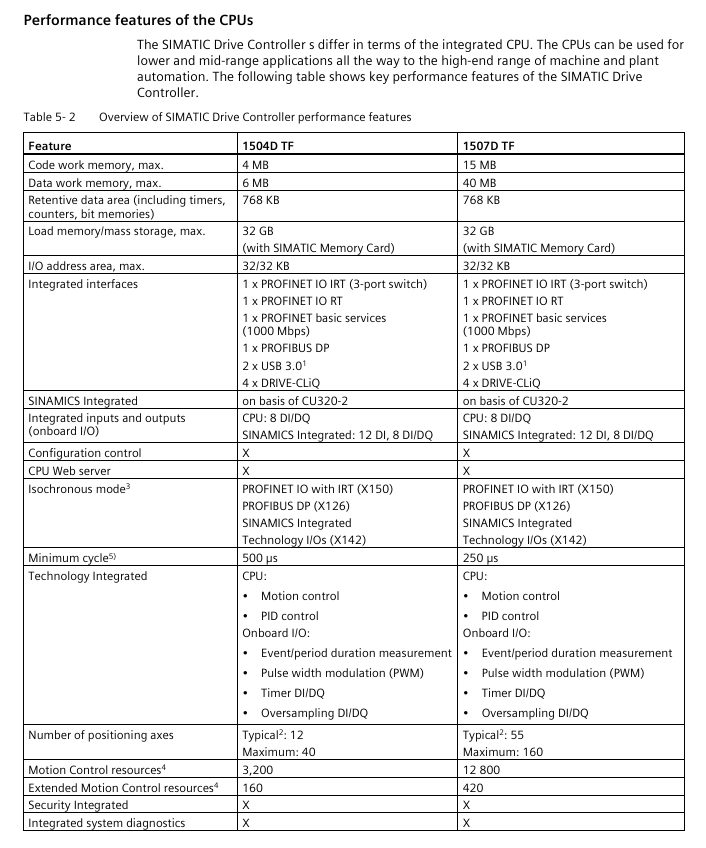

SIEMENS SIMATIC Drive Controller System

Isochronous mode configuration:

Coupling objects: PROFINET X150+X142 I/O+SINAMICS Integrated

Cycle setting: minimum 250 μ s (1507D TF), requiring allocation of OB 91 (MC Servo)

Synchronization mechanism: IRT clock synchronization ensures driver/IO/CPU cycle consistency

2. Key debugging steps

First power on:

Check wiring (power/ground/DRIVE CLiQ), insert SIMATIC memory card (24MB-2GB)

After power on, the CPU performs a self-test (LED flashing → STOP yellow light on), and the SINAMICS Integrated RDY light turns green

Download project: First download the CPU hardware configuration, then download the SINAMICS driver configuration (requires CPU STOP mode)

IO testing:

Scan PROFINET network using PRONETA tool and test I/O wiring

Monitor variables through STEP 7 "Watch&Force Tables" or force peripheral I/O through CPU web server

Program Execution and Security Protection

1. Fundamentals of Program Processing

Organizational Block (OB):

Description of OB Number Triggering Event Priority Function

OB 1 loop program 1 main loop executes user program

OB 91 MC Servo Interrupt 26 Processing Motion Control Task (Equal Time Mode)

OB 80 time error 22 triggered when cycle time exceeds the limit

OB 121 programming error 7 triggered when there is a syntax error in the program

Asynchronous instruction:

Representative instructions: MC_SoveAbsolute (absolute positioning), MC_GearIn (gear synchronization)

Resource limitations: CPU 1504D TF supports 6400 asynchronous instructions to be executed simultaneously, 1507D TF has no explicit restrictions

2. Security protection mechanism

Access control:

Level 4 permissions: Full access (no password), Read access (read configuration only), HMI access (HMI operation only), No access (fully protected)

Local User Management (TIA V19+): Create users/roles, assign CPU functional permissions (such as web server access/OPC UA permissions)

Data Protection:

Know how protection: Set password for OB/FB/DB, only display interfaces and comments

Copy protection: Bind programs to CPU/storage card serial numbers to prevent piracy

Integrity protection: Verify firmware/configuration data, detect tampering (such as storage card data corruption)

Maintenance and Diagnosis

1. Daily maintenance

Module replacement:

CPU: Replace after power failure, need to download configuration again (keep IP address)

Memory card: Only allows insertion and removal when CPU STOP/POWER is OFF, and memory reset is required after replacement

DRIVE CLiQ component: topology detection needs to be performed again after replacement (SINAMICS Integrated automatic recognition)

Firmware update:

CPU: via TIA Portal/memory card/web server (with correct FW file format)

SINAMICS Integrated: Matching FW version (such as V5.2 SP3 HF10+) through CPU web server

2. Fault diagnosis

Diagnostic tool:

Diagnostic buffer: records CPU/SINAMICS faults (such as power overload, topology errors), which can be read through STEP 7/Web server

Trace function: Record CPU tags (16 signals), SINAMICS parameters (8 signals), support triggering conditions (such as value exceeding threshold)

Service data: Export DUMP.S7S file for Siemens technical support analysis

Technical Parameters and Appendices

1. Core technical parameters

Environmental parameters:

Parameter Type Range Remarks

When the operating temperature exceeds 0-60 ℃ (horizontal)/0-40 ℃ (vertical), the display screen will automatically turn off

Storage temperature -40-80 ℃ under original packaging conditions

EMC performance EN 61000-6-2/4 electrostatic discharge ± 8kV (air)/± 6kV (contact)

Electrical parameters:

Parameter Type Range Remarks

24V DC power supply 19.2-28.8V DC PELV rating

Insulation voltage 600V in accordance with IEC 60664-1

Digital I/O (X142) 24V DC, DI input current 2.5mA, DQ output current 0.4A (high speed)

2. Appendix Resources

Accessories list: including DRIVE CLiQ cable (6SL3060 series), front connector (6ES7592 series), shielding bracket (6ES7590 series)

Migration Guide: Steps for migrating from SIMOTION D4x5-2 to Drive Controller (such as replacing technical objects, adjusting messages)

Open source software information: Open source software licenses (such as GPL license) can be read through CPU QR codes or memory cards
