  • YASKAWA DDSCR-R84H Controller
    ❤ Add to collection

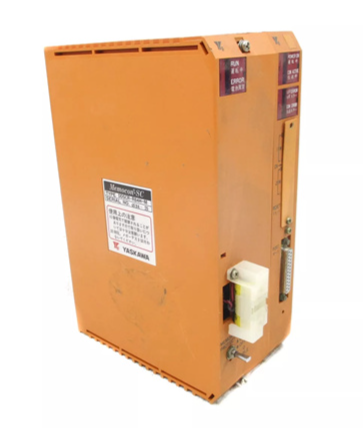

  • YASKAWA DDSCR-R84H Controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The YASKAWA DDSCR-R84H controller is a high-performance miniature programmable controller (MPC) launched by Yaskawa Electric (YASKAWA), belonging to the MEMOCON-SC series of products. As the core hub of industrial automation control systems, this controller undertakes key tasks such as instruction parsing, logical operations, equipment collaborative control, and status monitoring. With high-precision control performance, stable operating performance, and flexible adaptability, it is widely used in multiple industries such as food processing, packaging, printing, electronic manufacturing, and mechanical manufacturing. It can achieve precise control and efficient management of various industrial equipment such as conveyor belts, packaging machines, printing machines, industrial robots, and CNC machine tools. As an important member of the Yaskawa programmable control product family, it continues Yaskawa's technological advantages in program processing speed, anti-interference design, and functional scalability. It can accurately adapt to the complex control requirements of industrial sites and ensure the stable and reliable operation of the entire automation system.

    • ¥21584.00
      ¥21806.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.640KG
    • Quantity:
    • (Inventory: 99999)
Description

The YASKAWA DDSCR-R84H controller is a high-performance miniature programmable controller (MPC) launched by Yaskawa Electric (YASKAWA), belonging to the MEMOCON-SC series of products. As the core hub of industrial automation control systems, this controller undertakes key tasks such as instruction parsing, logical operations, equipment collaborative control, and status monitoring. With high-precision control performance, stable operating performance, and flexible adaptability, it is widely used in multiple industries such as food processing, packaging, printing, electronic manufacturing, and mechanical manufacturing. It can achieve precise control and efficient management of various industrial equipment such as conveyor belts, packaging machines, printing machines, industrial robots, and CNC machine tools. As an important member of the Yaskawa programmable control product family, it continues Yaskawa's technological advantages in program processing speed, anti-interference design, and functional scalability. It can accurately adapt to the complex control requirements of industrial sites and ensure the stable and reliable operation of the entire automation system.




YASKAWA DDSCR-R84H Controller

The YASKAWA DDSCR-R84H controller is a high-performance miniature programmable controller (MPC) launched by Yaskawa Electric (YASKAWA), belonging to the MEMOCON-SC series of products. As the core hub of industrial automation control systems, this controller undertakes key tasks such as instruction parsing, logical operations, equipment collaborative control, and status monitoring. With high-precision control performance, stable operating performance, and flexible adaptability, it is widely used in multiple industries such as food processing, packaging, printing, electronic manufacturing, and mechanical manufacturing. It can achieve precise control and efficient management of various industrial equipment such as conveyor belts, packaging machines, printing machines, industrial robots, and CNC machine tools. As an important member of the Yaskawa programmable control product family, it continues Yaskawa's technological advantages in program processing speed, anti-interference design, and functional scalability. It can accurately adapt to the complex control requirements of industrial sites and ensure the stable and reliable operation of the entire automation system.


Core technical parameters

The technical parameters are the core foundation for the YASKAWA DDSCR-R84H controller to adapt to different industrial equipment, ensure control accuracy and operational stability. Combined with the product positioning and application characteristics of its micro programmable controller, the core parameter calibration is as follows:

-Power supply parameters: The rated working voltage is AC100-240V, and the allowable voltage fluctuation range is ± 10%. It can be directly adapted to the general AC power supply system in industrial sites; The rated working current is 0.8A (under AC220V operating conditions), and the standby current is 0.3A. It has low-power operation characteristics and can stably provide power support for the controller core computing module, interface module, and peripherals, avoiding program interruption or control failure caused by power supply fluctuations.

-Operations and interface parameters: High performance microprocessor is used, with a basic instruction processing speed of ≤ 0.1 μ s/step, which can efficiently complete complex logical operations and control instruction parsing; Supports a maximum program capacity of 16k steps, meeting the program storage requirements of medium to large-scale automation control scenarios. Equipped with rich functional interfaces, including 24 digital input interfaces and 16 digital output interfaces, the input signal voltage range is DC12-24V, the response time is ≤ 0.5ms, and the output adopts a relay/transistor hybrid driving mode. The maximum load current per relay output is 2A, and the maximum load current per transistor output is 0.5A, which can directly drive various actuators; Simultaneously integrating RS485 and Ethernet communication interfaces, supporting mainstream industrial communication protocols such as Modbus and EtherNet/IP, with a data transmission rate of up to 100Mbps, achieving high-speed data exchange with upper monitoring systems and on-site devices.

-Physical and environmental parameters: The product size specification is 250mm × 180mm × 80mm (length × width × height), adopting a compact chassis design, suitable for standard industrial control cabinet rail installation, which can effectively save installation space and facilitate coordinated layout with other control modules; The working environment temperature range is 0-55 ℃, with a relative humidity of ≤ 90% (no condensation). The chassis adopts a sealed design, which has good dust and oil pollution prevention capabilities and can operate stably in industrial sites with high dust and oil pollution; The protection level reaches IP20, which can effectively prevent solid foreign objects from entering and ensure the safety of internal components.


Key functions and core features

The YASKAWA DDSCR-R84H controller integrates Yaskawa's advanced programmable control technology and modular design concept, with core advantages focused on four dimensions: efficient computation, stable control, flexible adaptation, and safety protection. It can fully meet the complex control needs of industrial automation scenarios in multiple industries

1. High speed computation and precise control

Equipped with a high-performance 32-bit microprocessor, it has excellent computational processing capabilities, with a basic instruction processing speed of ≤ 0.1 μ s/step and a complex function instruction processing speed of ≤ 1 μ s/step. It can quickly parse control instructions from the upper system and status signals from on-site sensors, ensuring the real-time performance of the control system. Supports multiple motion control functions, including single axis positioning, multi axis synchronous control, trajectory planning, etc., with a positioning accuracy of ± 0.01mm. It can accurately drive actuators such as servo motors and stepper motors, meeting the requirements of high-precision motion control scenarios. At the same time, the built-in high-precision clock module can achieve functions such as timing control and pulse output, with a time accuracy of 1ms, ensuring the accuracy of timing control.

2. Strong anti-interference and stable operation guarantee

Multiple anti-interference techniques are adopted in the circuit design, and both input and output interfaces are equipped with optoelectronic isolation modules. The isolation voltage is ≥ 2500VAC, which can effectively isolate the impact of on-site high-voltage signals and electromagnetic interference on the core computing circuit of the controller, avoiding signal crosstalk and component damage. The power interface integrates anti surge, overvoltage, and undervoltage protection circuits, which can resist voltage fluctuations and surge impacts in industrial power grids (with a maximum anti surge voltage of up to 2kV), ensuring power supply stability. In addition, high-density PCB wiring design is adopted, the grounding circuit is optimized, and EMI filters are equipped to further enhance the anti-interference ability of the controller, ensuring its long-term stable operation in strong electromagnetic interference environments such as frequency converters and welding machines, effectively reducing the probability of fault shutdown.

3. Flexible system adaptation and functional expansion

It has good system compatibility and can directly adapt to various series of Yaskawa servo drives, sensors, and actuators. It also supports seamless integration with various mainstream industrial PC, touch screen, and PLC control systems without the need for additional adaptation modules. The controller reserves 4 sets of expansion interfaces, which can flexibly increase the number of input and output channels through expansion modules (up to 64 input channels and 32 output channels). It can also expand analog input and output modules, temperature acquisition modules, and other functional modules to accurately adapt to different scales and types of automation control needs. In addition, it supports multiple programming languages (ladder diagrams, functional block diagrams, instruction lists) and is equipped with user-friendly programming software, making it easy for engineers to quickly complete program writing, debugging, and modification, thereby improving project implementation efficiency.

4. Comprehensive security protection and status monitoring

Built in multiple safety protection mechanisms, covering various types such as overcurrent protection, overvoltage protection, undervoltage protection, short circuit protection, overload protection, and program error protection. When a device malfunction or abnormal working condition is detected, the controller will immediately cut off the output and issue an alarm signal. At the same time, the fault code, time of occurrence, and other information will be stored in the internal memory for subsequent troubleshooting and analysis. Equipped with multiple sets of status indicator LED lights, it can display real-time power status, operating status, communication status, and fault alarm status. Operators can quickly judge the operation status of the equipment through the indicator lights; Simultaneously supporting feedback of operating status, production data, and fault information to the upper monitoring system through communication interfaces, achieving remote monitoring, remote diagnosis, and remote maintenance.


Applicable industries and typical application scenarios

With high-speed computing capability, precise control performance, stable operation performance, and flexible adaptability, YASKAWA DDSCR-R84H controller is widely used in multiple industrial automation fields, especially suitable for small and medium-sized automation control systems with high requirements for control accuracy and operation stability. Typical applications include:

-Packaging industry: applied to control systems for food packaging machines, pharmaceutical packaging machines, daily chemical product packaging machines and other equipment, responsible for fully automated control of packaging processes, including collaborative control of material conveying, metering, sealing, labeling, sorting and other processes. By collecting status signals from photoelectric sensors and pressure sensors, the operation of conveyor belts, solenoid valves, and servo motors is accurately controlled to ensure packaging accuracy and efficiency, while achieving functions such as packaging quantity statistics and fault alarms.

-Printing industry: Control units integrated into printing equipment such as gravure printing machines, flexographic printing machines, label printing machines, etc., to achieve precise control of the printing process. Responsible for controlling key processes such as the speed synchronization of the printing drum, ink supply adjustment, paper tension control, and registration accuracy calibration. Through precise multi axis synchronization control, it ensures the quality of printed products, improves printing efficiency, and supports flexible adjustment of printing parameters to meet the printing needs of different specifications and materials.

-Electronic manufacturing industry: applied to automated production lines such as electronic component assembly lines, PCB board processing equipment, battery production equipment, etc., to achieve precise assembly, welding, testing, and sorting of electronic components. For example, in the PCB board mounting production line, the controller is responsible for controlling the motion trajectory of the mounting head, adjusting the suction nozzle pressure, and detecting component positioning. Through high-precision positioning control, the mounting accuracy is ensured and the production yield is improved.

-Other industrial control scenarios: It can also be adapted to CNC machine tool auxiliary control in the mechanical manufacturing industry, intelligent conveyor belt control in the logistics and transportation industry, production line automation control in the food processing industry, and other scenarios. It can also be used for collaborative control of industrial robots, signal acquisition and control of testing and measurement equipment, etc., providing reliable control cores for various industrial automation equipment and helping to achieve automation and intelligent upgrading of equipment.


Installation and commissioning specifications

Proper installation and debugging are key to ensuring the optimal performance of the YASKAWA DDSCR-R84H controller. The following specifications must be strictly followed, while also complying with the technical manual requirements of the corresponding industrial equipment:

1. Preparation before installation

Before installation, it is necessary to verify whether the controller model, specifications, and control system requirements match, check the appearance of the controller for any damage during transportation (such as deformation of the chassis, damaged interfaces, damaged indicator lights, etc.), and confirm that the installation tools (such as screwdrivers, crimping tools, multimeters, anti-static wristbands) and materials (such as shielded cables, wiring terminals, insulation tape) are complete. At the same time, ensure that the installation environment meets the requirements: the ambient temperature range is 0-55 ℃, the relative humidity is ≤ 90% (no condensation), and avoid installation in positions with direct sunlight, high dust, corrosive gases, strong electromagnetic interference, and severe vibration. The installation area should reserve a heat dissipation space of ≥ 10cm to prevent heat accumulation from affecting the performance of the controller.

2. Hardware installation and wiring

When installing, it is necessary to wear an anti-static wristband first to avoid static electricity damaging the internal components of the controller. Insert the controller smoothly into the standard industrial guide rail, ensuring firm fixation, smooth installation without looseness, and avoiding poor internal circuit contact caused by vibration. The wiring process must strictly follow the wiring diagram in the product manual, and the core wiring points include:

-Power wiring: Connect the live wire, neutral wire, and ground wire of AC100-240V power supply to the corresponding power interface according to the controller nameplate identification, ensuring that the wiring is firm and the polarity is correct; The power circuit should be connected in series with fuses that meet the specifications (recommended 1A) to prevent overcurrent damage to the controller.

-Input and output signal wiring: Both input and output signal cables use twisted pair shielded wires to connect external devices such as sensors and actuators to the input and output interfaces of the controller. The shielding layer is grounded at one end (near the controller end) to reduce electromagnetic interference; Attention should be paid when wiring, and input and output cables should be kept at a distance of ≥ 20cm from strong electrical lines (such as power lines) to avoid signal interference; The relay output circuit needs to choose the appropriate wire diameter according to the load power, and the transistor output circuit needs to pay attention to freewheeling protection to ensure that the wiring is firm and avoid loose connections that may cause poor contact or short circuits.

-Communication and grounding wire connection: Connect the controller to the upper monitoring system or other control equipment through standard communication cables to ensure a secure connection of the communication interface. Both ends of the communication cable should be shielded; The grounding wire should be a copper core cable with a cross-sectional area of ≥ 2.5mm ² and a grounding resistance of ≤ 4 Ω. Good grounding can effectively suppress electromagnetic interference and ensure stable operation of the controller and personnel safety.

Special attention should be paid: all power sources must be cut off during the wiring process. It is strictly prohibited to plug and unplug controllers and wiring while they are live. Operators must wear personal protective equipment such as insulated gloves to avoid electric shock or static electricity damage to the equipment; After the wiring is completed, it is necessary to double check the polarity and interface number of the wiring to ensure that there are no errors or reversals. At the same time, check whether the cable layout is neat to avoid compression, tension, or interference with moving parts.

3. Debugging process and parameter settings

Debugging should follow the process of "hardware inspection - program writing and downloading - parameter configuration - signal testing - system integration debugging". It is recommended to use Yaskawa's official programming and debugging software (such as CX Programmer or corresponding MEMOCON-SC series debugging software) for program writing and parameter configuration:

-Hardware status check: After connecting the power supply, observe the controller power indicator light and various status indicator lights, confirm that the power indicator light is always on (normal), and that the operation indicator light and communication indicator light have no abnormal alarms; If a fault alarm occurs, immediately cut off the power and check the power wiring, communication wiring, and controller installation.

-Program writing and downloading: According to the control requirements, use programming software to write control programs (supporting programming languages such as ladder diagrams and functional block diagrams), and perform program syntax checks after completion to ensure no syntax errors; Download the program to the controller through a communication cable, and after the download is complete, check the program version and content to ensure that the download is correct.

-Software parameter configuration: Establish a communication connection with the controller through debugging software, and set core parameters according to actual application requirements, including communication protocol type, baud rate, input signal filtering time, output channel protection mode, motion control parameters (such as positioning accuracy, motion speed), etc; After the parameter settings are completed, they need to be saved to the non-volatile memory of the controller to prevent power loss.

-System integration debugging: Connect the controller to the entire control system for full process integration debugging, simulate actual working conditions on site, check whether the signal interaction between the controller and the upper system and on-site equipment is smooth, whether the execution of control instructions is accurate, whether the program runs stably, and whether there is no signal delay, loss, or false triggering; Based on the joint debugging results, fine tune program parameters, optimize control performance, and ensure that the system meets production requirements.
