The YASKAWA JAMSC-B2732V advanced drive controller has become the core drive control component of medium and large industrial automation systems due to its high reliability, high-precision control capability, flexible system integration characteristics, and comprehensive safety protection functions. Whether it is machine tool processing, chemical process control, automated production lines, new energy equipment and other fields, it can adapt to complex industrial scenarios with excellent performance, improve the automation level and production efficiency of the system. In practical applications, strictly following installation and debugging specifications, optimizing parameter settings and program logic reasonably, can fully leverage its performance advantages, extend equipment service life, and provide solid technical support for the safe, stable, and efficient operation of industrial production.

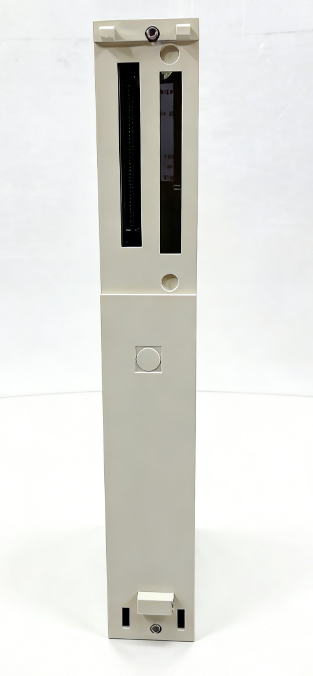

YASKAWA JAMSC-B2732V Advanced Drive Controller

Core Basic Information

As an important component of the Yaskawa JAMSC series, the JAMSC-B2732V advanced drive controller has undergone industrial grade optimization in hardware configuration and specification parameters, and can seamlessly adapt to various multifunctional I/O modules such as the Yaskawa AMF series, as well as high-power servo motors and actuators, to build a stable and reliable distributed control system.

-Power supply and output specifications: Adopting industrial grade DC power supply design, compatible with DC 24V standard industrial power supply, low power consumption, low heat generation, and can operate stably for a long time; The output terminal supports multi-channel signal output, providing precise driving signals for the actuator, and has a 3A load driving capability, which can directly drive small and medium-sized actuators without the need for additional power amplification modules.

-Environmental adaptability: The working temperature range is from 0 ° C to 60 ° C, the environmental humidity is 5% to 95% (no condensation), and it meets the IEC 61000-6-2/4 electromagnetic compatibility standard. It has excellent anti electromagnetic interference ability and can work stably in industrial sites with high dust, strong vibration, and high electromagnetic interference (such as metallurgical workshops and chemical equipment areas).

-Structure and installation design: Adopting standard DIN46277 (35mm wide) guide rail installation design, it can be directly embedded into the standard guide rail of industrial electrical cabinets, making installation convenient and space saving; Modular structure design facilitates later maintenance and replacement, while supporting parallel installation of multiple modules to achieve flexible system expansion.

-Core component configuration: Built in high-performance signal processing chip, with high-speed signal acquisition and conversion capabilities, signal sampling accuracy of 16 bits, can accurately capture the operating parameters of on-site equipment; Equipped with an independent communication processing unit to ensure real-time and reliable data transmission.

-Insulation and safety specifications: The insulation voltage reaches DC 500V, the insulation resistance is above 2M Ω, and it has good electrical isolation performance, which can effectively avoid damage to internal circuits caused by external voltage fluctuations; The anti noise capability reaches 1000V 1 μ S pulse for 1 minute, further improving the operational stability in harsh industrial environments.


Core functions and technological advantages

The JAMSC-B2732V advanced drive controller integrates advanced industrial control technology from Yaskawa, and has significant advantages in signal processing, communication interaction, system protection, etc., which can meet the high-precision drive control requirements in complex industrial scenarios.

1. High precision signal processing and drive control

Having complete signal acquisition, conversion, and drive control functions is the core foundation for achieving high-precision driving. On the one hand, it can accurately collect the operating signals of on-site motors such as speed, torque, and position. Through an internal 16 bit high-precision AD conversion module, the analog signals are converted into digital signals and filtered to ensure the authenticity and stability of the signals; On the other hand, precise driving signals can be output according to the instructions of the upper control system, achieving multi-dimensional precise control of the speed, torque, position, and other aspects of the actuator. The control accuracy error is less than 0.1%, effectively ensuring the process stability of industrial production. At the same time, it has signal compensation function, which can automatically correct the influence of environmental temperature on sensor signals, further improving the accuracy of measurement and control.

2. Flexible system integration and communication capabilities

Supporting multiple industrial communication protocols and expansion interfaces, it has strong system integration flexibility and can easily integrate into various industrial automation systems. Specific features include:

-Multi communication interface configuration: equipped with dual communication interfaces of RS-232 and RS-485. The RS-232 interface can be directly connected to the upper computer and human-machine interface for programming and debugging, while the RS-485 interface supports multi module networking or connection to intelligent instruments, frequency converters, and other devices to achieve centralized data management and interaction; At the same time, it supports BD board expansion of communication ports, which can expand more communication links according to system requirements.

-Rich protocol support: Native support for mainstream industrial communication protocols such as MODBUS, seamless integration with upper level control systems such as PLC and DCS, achieving fast transmission of control instructions and real-time upload of on-site data. The data refresh rate can reach milliseconds, meeting the real-time control requirements of industry.

-Modular expansion capability: It can be connected to external expansion modules and BD boards, supporting flexible expansion and functional upgrades of I/O points. It can increase or decrease the number of input and output channels according to the needs of actual application scenarios, and adapt to industrial control systems of different scales.

In addition, the controller has an I/O mapping area data caching function, which can quickly read and store all input states and data during the input sampling stage, ensuring data stability during user program execution; Supports two execution modes for programs: loop scanning and timed scanning, which can be flexibly switched according to control requirements to improve system efficiency.

3. Comprehensive system protection and self diagnostic functions

Built in multiple security protection mechanisms and comprehensive self diagnostic functions provide comprehensive guarantees for the safe and stable operation of the system. Specifically, it includes:

-Electrical safety protection: It has overcurrent, overvoltage, and undervoltage protection functions. When abnormal current or voltage is detected in the circuit, the output circuit can be quickly cut off and an alarm can be triggered to avoid damage to the controller and external equipment due to electrical faults; At the same time, it has good insulation and isolation design, effectively preventing safety hazards such as leakage and short circuit.

-Program and Data Protection: Supports password protection for user programs, using 6-digit ASCII passwords to effectively prevent program tampering or malicious alteration; Equipped with FlashROM and lithium battery, it can maintain user data in case of power failure, ensuring that key control parameters are not lost after the system is powered off.

-Comprehensive self diagnostic capability: Equipped with multiple self diagnostic functions such as power on self-test, monitoring timer, and syntax check, it can monitor the real-time operation status of the controller's internal circuits, communication links, and external modules; When a fault is detected, the front panel LED indicator lights (such as RUN, ERR indicator lights) provide real-time feedback on the fault status and output fault codes, making it convenient for technicians to quickly locate and troubleshoot the problem.

At the same time, the controller supports external emergency stop signal access, which can be linked with the system's emergency stop circuit to quickly cut off the drive output in case of sudden faults, ensuring the safety of personnel and equipment.

4. Rich programming and control functions

Support instruction programming and ladder diagram programming to adapt to the operating habits of different technicians; The user program has a capacity of 128K, which can meet the programming needs of complex control logic. It has abundant internal resources, including 8512 point internal coils (M), 640 point timers (T), 640 point counters (C), and 8512 word data registers (D). The timers support three precision levels of 100mS, 10mS, and 1mS, and the counters support two specifications of 16 bit and 32-bit, which can flexibly adapt to various control scenarios. In addition, it also supports advanced functions such as high-speed counting, pulse output, external interrupts, and C language editing blocks, which can achieve precise control of high-speed motion equipment and flexible implementation of complex logic.


Typical application areas

With high reliability, high-precision control, and flexible system integration capabilities, the JAMSC-B2732V advanced drive controller is widely used in various medium and large-scale industrial automation systems, covering multiple core industrial fields:

1. Machine tool and metal processing field

In large CNC machine tools, stamping production lines, and metal cutting equipment, it is used to control the movement of spindle drives and feed mechanisms. Through high-precision torque and speed control, it ensures the stability of the machining process and the accuracy of part machining. For example, in the cutting process of heavy-duty machine tools, their precise load adjustment ability can effectively avoid rapid tool wear, improve machining efficiency and part qualification rate; At the same time, it can collaborate with PLC systems to achieve automated control of the machining process.

2. In the field of chemical engineering and process control

In chemical plants and petroleum refining equipment, as a key driving module of DCS system, it is used to control the operation of actuators such as valves and pumps, and achieve precise adjustment of process parameters such as reaction temperature, pressure, and flow rate. Its excellent ability to resist electromagnetic interference and adapt to the environment can work stably in harsh environments with high temperatures and corrosive gases, ensuring the continuity and safety of chemical production processes; Through redundant communication design, seamless switching in case of failure can be achieved, improving system availability.

3. Automated production lines and packaging field

In large-scale automated assembly lines, high-speed packaging machines, sealing and cutting machines and other equipment, it is used to control the coordinated movement of conveying mechanisms, robotic arms, and packaging execution components. Through multi module networking and precise synchronous control, it achieves efficient operation of the production process. For example, in high-speed food packaging production lines, their high-speed signal processing capabilities can ensure precise feeding and sealing positioning of packaging materials, improving packaging speed and quality; The supported high-speed counting and pulse output functions enable real-time monitoring and adjustment of production line speed.

4. Metallurgy and building materials field

In equipment for steel smelting, non-ferrous metal processing, and building materials production (such as cement and glass manufacturing), it is used to control the driving operation of large equipment such as conveyor belts, presses, and fans. Its powerful load driving capability and resistance to harsh environments can adapt to production sites with high temperatures, high dust, and strong vibrations. By precise speed and torque control, production efficiency can be effectively improved and energy consumption can be reduced; A comprehensive protection function can prevent equipment damage due to overload, voltage fluctuations, and other issues, extending the service life of the equipment.

5. In the field of new energy and power equipment

In new energy equipment such as wind power and photovoltaics, as well as auxiliary equipment in thermal power plants and substations, it is used to control the operation of components such as pitch mechanisms, cooling fans, and conveying pumps, achieving stable start stop and operation status adjustment of the equipment. Its high reliability and low-power design can adapt to harsh outdoor working environments for new energy equipment; Through real-time communication with the upper monitoring system, remote monitoring and control of equipment operation status can be achieved, improving operation and maintenance efficiency.


Installation, debugging, and safety precautions

1. Installation specifications

-The installation environment must strictly follow the product specifications and avoid installation in environments with high temperature, high humidity, corrosive gases, strong vibration, or excessive dust; The installation location should be away from strong electromagnetic interference sources such as high-voltage cables and high-power frequency converters, and shielding measures should be taken if necessary.

-Adopting standard DIN rail installation, ensure that the rail is firmly fixed during installation, and reserve at least 30mm of heat dissipation space between the controller and other modules or cabinets to avoid equipment overheating and damage due to poor heat dissipation; Do not stack debris above the controller, as it may affect heat dissipation.

-Before wiring, it is necessary to confirm that the power has been cut off and use tools with good insulation performance for wiring; Power lines, signal lines, and communication lines should be laid separately and are not allowed to be in the same pipeline or bundled together to avoid signal interference; It is recommended to use shielded cables for communication lines and ensure proper grounding to enhance anti-interference capabilities.

-After the wiring is completed, it is necessary to carefully check whether the terminal screws are tightened and whether the cable connection is firm, in order to avoid poor contact or faults caused by looseness; Pay special attention to the correct wiring of the positive and negative poles of the power supply to prevent internal circuit burnout caused by reverse wiring.

-The third grounding method should be used for grounding, and it cannot be shared with the strong electrical system. The grounding resistance should meet the grounding requirements of industrial control equipment to ensure the electrical safety and anti-interference performance of the equipment.

2. Key debugging points

-Before debugging, it is necessary to back up the original parameters and user programs to avoid system crashes caused by misoperation; Connect the controller through the upper computer software, confirm that communication is normal, and sequentially check whether the power supply voltage and input/output signals are normal.

-When debugging programs, it is recommended to use the "segmented debugging" method, first debugging the logic of individual functional modules, and then conducting overall system debugging; Utilize the monitoring function of the upper computer to view the status of internal coils and registers in real time, and determine whether the program runs as expected.

-When setting parameters, it is necessary to reasonably set communication parameters, timer/counter parameters, I/O signal types, etc. according to the specifications and control requirements of the external equipment; For functions such as high-speed counting and pulse output, it is necessary to accurately set relevant parameters to ensure the accuracy of equipment operation.

-During the debugging process, it is necessary to monitor the operating status of the equipment in real time, including temperature, noise, communication status, etc. If an alarm occurs, it is necessary to check the problem according to the panel indicator light status and fault code, and refer to the product manual. Forced operation is not allowed; After debugging, it is recommended to backup the final parameters and program.

3. Safety and Maintenance Standards

-Complete emergency stop circuits, protection circuits, and interlock circuits must be configured externally to ensure that the equipment remains in a safe state even in the event of power or controller failures; It is strictly prohibited to put it into operation without configuring a safety circuit.

-Do not touch the main circuit board of the controller, as its internal CMOS IC is susceptible to damage from static electricity. An anti-static wristband should be worn during operation; When replacing or maintaining a module, it is necessary to first cut off the power and wait for the internal capacitor to discharge before proceeding with the operation.

-Regular maintenance and inspection: clean the dust on the surface and surroundings of the controller, check whether the cable connections are firm, and whether the terminals are oxidized or loose; Regularly check the heat dissipation situation to ensure that the heat dissipation channels are unobstructed; For models equipped with lithium batteries, it is necessary to regularly check the status of the lithium batteries to avoid data loss due to battery failure.

-Caution should be exercised when updating firmware and programs. It is essential to confirm that the firmware version is compatible with the controller model. During the update process, the power should not be cut off to avoid device failure caused by update failure; It is recommended to make a complete backup of existing programs and parameters before updating.

-In damp or condensation prone environments, moisture-proof measures should be taken to prevent damage to internal components of the controller due to moisture; When the equipment is not in use for a long time, the power should be cut off and dust and moisture prevention measures should be taken.
