Megatiker M4 Circuit Breaker Maintenance

Selection and Maintenance of Megatiker M4 Circuit Breaker

In low-voltage distribution systems, molded case circuit breakers play a critical role in overload, short-circuit protection, and line continuity. The Legrand Megatiker M4 series thermal magnetic circuit breakers (including MS4 isolating switches) are widely used in industrial distribution, building electrical, and new energy fields due to their wide current range (250A to 630A), multiple breaking capabilities (36kA to 100kA), and flexible accessory configurations. However, when faced with practical issues such as on-site selection, installation and wiring, accessory matching, parameter tuning, and equipment replacement, engineers often require a systematic technical guide. This article is based on the Megatiker M4 technical data sheet, providing a complete set of on-site technical references from six dimensions: model identification, installation points, electrical characteristics, accessory functions, interpretation of trip curves, and maintenance and replacement.

Model identification and selection

The Megatiker M4 series includes two main categories: circuit breakers and switch disconnectors (MS4). The model coding rules are as follows:

Model prefix, number of poles, breaking capacity, rated current

T743 3P F=36kA, N=50kA, H=70kA, L=100kA 250,320,400,500,630

T744 4P Same as above

T742 3P+N/2 Same as above (only 320-630A) Same as above

Example: T743F250=3 poles, 36kA breaking capacity, 250A rated current. T744H630=4-pole, 70kA breaking capacity, 630A.

Isolation switch models: T743S400, T744S630, etc. (S represents Switch disconnector), only providing isolation function, without thermal magnetic protection, suitable for circuits that require manual opening and closing but do not require overload protection.

Installation and wiring specifications

2.1 Fixed installation

Installation surface: It can be installed vertically or horizontally, or upside down (the direction of the power supply input can be reversed, but attention should be paid to the markings).

Fixed screws: The product comes with 4 (3P/4P) mounting screws for fixing on the mounting plate.

Wiring terminal: Comes with 6 (3P) or 8 (4P) connecting screws. Cage terminals, Lugs, External Lugs, Spreaders, or Rear terminals can be selected.

Specification for the use of cage terminals (taking M7400 kit as an example):

Applicable cables: copper or aluminum, with a maximum cross-sectional area of 300mm ² (hard wire) or 240mm ² (flexible wire).

The high-capacity cage terminal (M7400/2) supports dual cables: 2 × 240mm ² hard wire or 2 × 185mm ² soft wire.

Suggested cross-section (according to IEC 60947-1/2):

250A: Copper 120mm ², Aluminum 185mm ²

400A: Copper 240mm ², Aluminum 300mm ²

630A: Copper 2 × 150mm ², Aluminum 2 × 240mm ²

2.2 Insertion and extraction

Insertion type: Special terminals (M7B11/M7B12) and bases (M7B13~M7B16) need to be installed for the circuit breaker. The plug-in version has increased in weight by approximately 3.35-4.79kg (compared to the fixed version).

Pull out type: Adding a Debro lift mechanism (M7B22~M7B24) on top of the plug-in type allows the circuit breaker to be easily removed from the base for maintenance. It is necessary to extract the handle (M7T412) and position signal contact (M7T910N) together.

2.3 Electrical clearances and resistance to electric forces

When a short circuit occurs, a huge electric force is generated between the conductors. According to the breaking capacity, the minimum distance between conductors should be maintained:

Icc (kA) minimum spacing (mm)

36 350

50 300

70 250

100 200

If using busbars other than Legrand busbar kits, the installer needs to verify the spacing themselves. At the same time, it should be ensured that the weight of the wire does not cause additional stress on the terminal block.

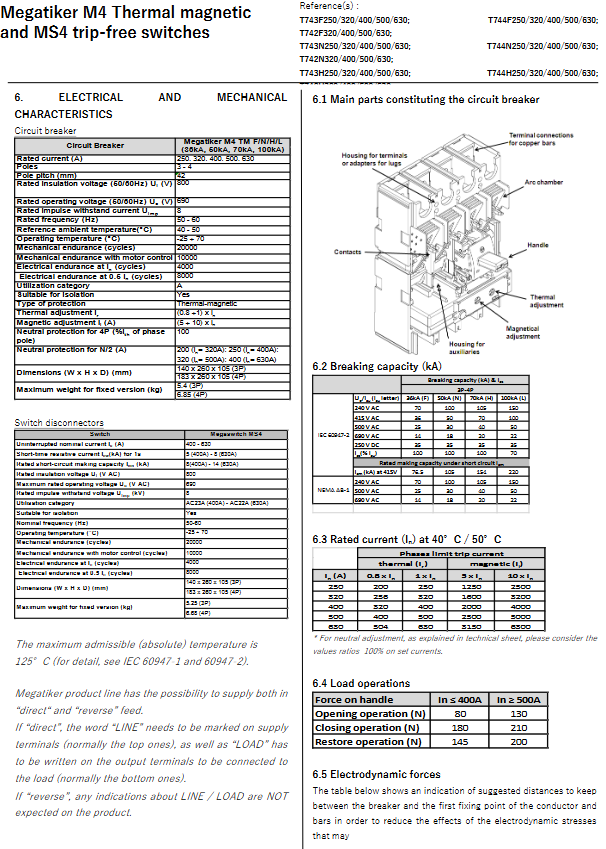

Electrical characteristics and derating

3.1 Power loss

The power loss per pole (tested according to IEC 60947-2 Annex G at rated current) varies depending on the terminal type. Taking 400A as an example:

Terminal type Phase line loss (W) Neutral line loss (W)

Cage terminal 25.6 18.9

Terminal block 25.6 18.9

External terminal block 27.5 19.7

Expansion terminal 29.3 20.4

Rear terminal 28.7 20.2

Insertion 44.9 26.5

Circuit breaker+RCD 33.6 22.1

Attention: When multiple poles work simultaneously, the total loss is the sum of the losses of each pole. Cabinets with poor heat dissipation conditions should have their capacity appropriately reduced.

3.2 Temperature Capacity Reduction

The rated current varies significantly with the ambient temperature. The following table shows the maximum long-time delay protection setting current at different temperatures (example):

In (A) 10°C 20°C 30°C 40°C 50°C 60°C 70°C

250 336 307 279 250 220 193 183

400 475 460 425 400 360 320 280

630 700 683 650 630 580 530 480

Note: For every 10 ° C increase above 40 ° C, it is recommended to reduce the capacity by approximately 10-15%. Please refer to Table A in the manual for details.

3.3 Altitude Capacity Reduction

Capacity reduction is required for altitudes above 2000m:

Altitude (m) Rated insulation voltage Ue (V) Rated current multiple

2000 690 1.00×In

3000 590 0.98×In

4000 520 0.93×In

5000 460 0.90×In

3.4 DC Application

Megatiker M4 can be used for DC circuits. The specific DC rated values should refer to Table B (not fully listed in this data sheet, but typical connection methods are: 1-pole for 60V, 2-pole series for 110V, 3-pole series for 250V, 4-pole series for 500V). Note that the DC polarity can be connected arbitrarily.

Release curve and protection characteristics

4.1 Thermal Magnetic Release Curve

The standard thermal magnetic trip curve (see Figure 9.1) is divided into:

Hot trip (overload protection): bimetallic strip with inverse time characteristic. The long delay setting current Ir can be adjusted through a dip switch (the specific range is not listed in this table, but is usually 0.4~1 × In).

Magnetic tripping (short circuit protection): instantaneous tripping, fixed multiple (about 10-12 × In).

The "cold state" and "hot state" in the curve correspond to the difference in operating time of the circuit breaker when the starting temperature is different. When selecting, it should be ensured that the instantaneous short-circuit tripping value is lower than the expected short-circuit current of the line and higher than the maximum load peak current.

4.2 Characteristics of Energy I ² t

Figure 9.2 shows the relationship between the allowable passing energy (I ² t) of the circuit breaker and the expected short-circuit current at different levels of breaking capacity. This parameter is used for selective coordination with downstream devices (cascade protection). For example, when the expected short-circuit current is 50kA, the energy passing through is about 10 ^ 6 A ² s. When designing, it should be ensured that the lower level equipment can withstand this energy without damage.

4.3 Cut off peak current characteristics

Figure 9.3 shows the relationship between the actual allowable peak short-circuit current (Ipk) and the expected symmetrical short-circuit current (Icc) under different breaking capacities. Due to the current limiting effect of the circuit breaker, the actual peak current passing through is much lower than the expected peak. For example, when the expected Icc is 100kA, the actual peak value is about 25kA. This characteristic is crucial for the dynamic stability selection of downstream components (contactors, cables).

Key selection points:

Selection of breaking capacity: determined based on the expected short-circuit current at the installation point. For systems with large transformer capacity and short busbar length, H or L level (70/100kA) should be selected. A general industrial power distribution of 50kA is sufficient, and a terminal circuit of 36kA can meet it.

Pole selection: 3P is used for three-phase three wire system; 4P is used for three-phase four wire system (can simultaneously disconnect neutral wire); 3P+N/2 (T742 series) is used for specific neutral wire protection requirements.

Installation methods: fixed type (directly fixed with screws), plug-in type (quick replacement through base, additional terminal and base need to be ordered), pull-out type (with Debro lift mechanism, can be shaken out for maintenance). Pull out type is suitable for situations that require frequent maintenance or backup.

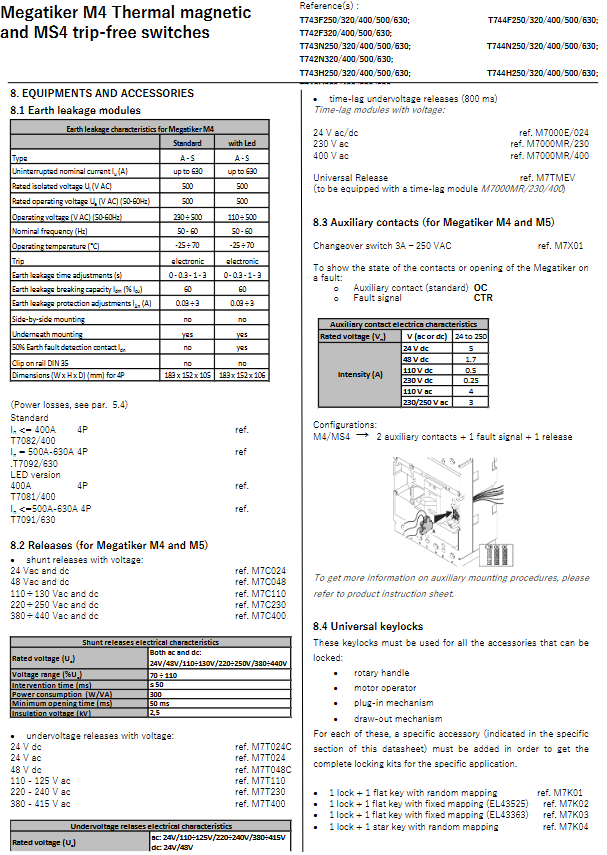

Attachments and Extended Features

Megatiker M4 offers a wide range of on-site installation accessories, which are classified and introduced below.

5.1 Earth Leakage Modules

Standard type: T7082/400 (suitable for ≤ 400A), T7092/630 (suitable for 500-630A).

LED indicator type: T7081/400, T7091/630.

Features: Electronic, adjustable residual current of 0.03/0.3/3/3A, optional delay time of 0/0.3/1/3s. Suitable for TN-S systems. It can only be installed under the circuit breaker (under mounting) and cannot be installed side by side. The LED type has 50% ground fault detection contacts.

5.2 Release Accessories

Split release:

Voltage specifications: 24V, 48V, 110-130V, 220-250V, 380-440V (AC/DC universal).

Operating voltage range: 70%~110% Ue.

Action time: ≤ 50ms, power consumption 300W/VA.

Undervoltage release:

Voltage specifications: 24V DC, 24V AC, 48V DC, 110-125V AC, 220-240V AC, 380-415V AC.

Delay undervoltage module (800ms): M7000E/024 (24V ac/dc), M7000MR/230 (230V ac), M7000MR/400 (400V ac).

The universal release M7TMEV can be equipped with a delay module.

5.3 Auxiliary contacts

Standard auxiliary contacts: M7X01, 1C/O (conversion contacts), 3A-250V AC.

Configuration: M4/MS4 can accommodate up to 2 auxiliary contacts, 1 fault signal contact, and 1 release.

Fault signal contact (CTR): Indicates that the circuit breaker has tripped due to a fault (overload/short circuit), rather than human operation.

5.4 Operating mechanism

Rotating handle:

Directly installed on the circuit breaker: M7447 (black standard), can be equipped with M7R14 red/yellow handle.

Variable Depth Handle (IP55): T7449 (Black), T7449E (Emergency Red/Yellow).

Handle locking accessory: M7R17 (to be used in conjunction with universal key locks M7K01~M7K04).

Electric operating mechanism:

Direct action type (suitable for general operation): M74D230 (230V AC), direct drive, suitable for frequent opening and closing but low speed requirements.

Energy storage type (suitable for synchronous operation): M7475P/024/048/110/230 (24/48/110/230V AC/DC). The energy storage type can still complete one closing or opening operation after power loss, with an action time of about 450-550ms and a mechanical life of 4000 times (630A).

Locking attachment: Electric motor mechanism can be equipped with key lock M7M406.

5.5 Terminal Accessories

Cage terminal: M7400 (4 pieces, maximum cable 300mm ²), M7400/2 (high capacity, supports dual cables).

Extended front-end terminals: M7430 (4 for expanding wiring space).

Spreaders: M7430/3 (3P), M7430/4 (4P), used to increase wiring spacing.

Rear terminals: M7450/P (3P), M7451/P (4P), convert fixed type to rear wiring type.

Terminal protective cover: M7C11 (3P), M7C12 (4P), improving IP20 protection.

Sealed terminal cover: M7475 (3P), M7476 (4P), can be sealed with lead.

5.6 Plug in/Pull out Accessories

Plug in special terminals: M7B11 (3P), M7B12 (4P).

Base: M7B13 (3P front wiring), M7B14 (4P front wiring), M7B15 (3P rear wiring), M7B16 (4P rear wiring). Base with leakage module: M7B17 (4P front), M7B18 (4P rear).

Pull out Debro lift mechanism: M7B22 (3P), M7B23 (4P), M7B24 (4P with leakage). Pull out the matching handle M7T412.

Pull out the position signal contact: M7T910N, indicating whether the circuit breaker is in the "insert" position.

Pull out auxiliary contact: M7B21 (automatic, up to 2).

Pull out key lock: M7B40 (for operating panel opening), M7B38 (for the mechanism itself), requires a universal key lock.

5.7 Universal Keylocks

Can be used to lock rotating handles, electric mechanisms, insertion/extraction mechanisms, etc. Specifications:

M7K01:1 lock+1 flat key, randomly coded

M7K02:1 lock+1 flat key, fixed code EL43525

M7K03:1 lock+1 flat key, fixed code EL43363

M7K04:1 lock+1 star key, randomly encoded

5.8 Other attachments

Padlock (locked in the "off" position): M7045.

Interphase partition (insulation shielding): M7295.

Extension rods are used for manual operation mechanisms.

Maintenance and troubleshooting

6.1 Circuit breaker cannot be closed

Possible reasons:

The undervoltage release is not powered (voltage below 70% Ue).

The shunt release is continuously powered (pulse signal is required, continuous power supply will burn out the coil).

The circuit breaker did not reset after tripping due to overload or short circuit (the handle is in the middle position of "tripping" and needs to be pulled to "open" before closing).

The electric operating mechanism has no energy storage or malfunction.

handle:

Measure whether the voltage at both ends of the undervoltage coil is normal.

Turn the handle to the "off" position and then try to close it.

Check the energy storage indicator and power supply of the electric motor mechanism.

6.2 Failure to trip in a timely manner during overload

Reason:

The long delay setting value Ir is set too high.

When the ambient temperature is below 40 ° C, the setting value is not appropriately increased (the tripping time is prolonged in cold state).

Three phase load imbalance leads to one phase current exceeding the standard but not triggering tripping (thermal magnetic tripping is a single-phase detection, if the phase is not overloaded, it will not act).

handle:

Re adjust Ir according to the actual load and ambient temperature (by dialing the release).

Measure the three-phase current, and if it is unbalanced, check the internal connections of the load or circuit breaker.

6.3 Attachments cannot function properly after installation

Frequently Asked Questions:

Incorrect linkage of auxiliary contacts after installation: Check if the auxiliary contacts are engaged in the dedicated slot on the side of the circuit breaker and if the follow-up mechanism is not detached.

Leakage module misoperation: Check if the neutral wire passes through the leakage transformer (N wire is required for 4P module) and if there is any ground leakage in the circuit (such as moisture or insulation damage).

The travel of the electric operating mechanism is not in place: adjust the length of the connecting rod between the mechanism and the circuit breaker handle, and check whether the power supply voltage is within the range of 85%~110% Ue.

6.4 Abnormal temperature rise

Reason:

Loose or poor contact of wiring terminals.

The cable cross-section is too small or the aluminum cable does not use copper aluminum transition terminals.

Poor ventilation inside the cabinet, with an ambient temperature exceeding 40 ° C.

handle:

Tighten the terminals according to the recommended torque (please refer to the product manual for the torque of the fixed wiring screws).

Use infrared thermography to check the terminal temperature. If the temperature difference with the environment exceeds 40K, it should be repaired.

Increase the use of fans or reduce the capacity inside the cabinet.

Shutdown replacement and upgrade

If the original Megatiker M4 model is discontinued (such as some specifications of the early T742 series), it can be replaced with a higher breaking capacity model of the same series (such as replacing F with N/H). Attention when replacing:

External dimensions and installation hole spacing: Within the same current level, the fixed installation dimensions are consistent (there is a slight difference in size between 250-400A and 500-630A, refer to the dimension diagram in section 3.1).

Terminal adaptation: If cage terminals were originally used, the new circuit breaker needs to reorder the M7400 kit.

Attachment compatibility: Most accessories (such as shunt, undervoltage, auxiliary contacts, rotating handles, etc.) are compatible across the entire M4 series. But the leakage module needs to match the current level (T708x for ≤ 400A, T709x for 500-630A).

Pull out base: The Debro lift mechanism base (M7B22~M7B24) can continue to be used by simply replacing the circuit breaker body.

If it is necessary to upgrade from Megatiker M4 to a higher current level (such as 400A to 630A), the circuit breaker body and corresponding terminal accessories need to be replaced at the same time, and the busbar current carrying capacity and cabinet space need to be checked.
