additional outputs via RTCNet modules)

COMMUNICATIONS

Ethernet:(3) customer ports (Modbus TCP or OPC) Simplex versions,

(2) customer ports (Modbus TCP or OPC) Redundant versions,

(1) Port Service Tool use

Serial:1 Modbus port (ASCII or RTU) Comm Ports (RS-232 or RS-485 compatible)

CAN: (4) ports (RTCNet comm. protocol)

Features

Configurable for dual-redundant applications

Integrated operator control panel

Surge prevention, detection & recovery logic

Security (program is password protected)

First-Out indication (alarms & shutdowns)

On-line Anti-Surge Valve Health Test

Remote analog setpoints for Performance control

Bearing temperature monitoring/alarms/trips

Vibration monitoring/alarms/trips

Control Accessories

RTCNet Modules—Optionally users can apply Woodward distributed I/O modules to extend the Vertex controller’s input and output channels

Vibration Sensor Kit—Optionally users can apply 4-20mA accelerometer sensors with the Vertex to monitor unit vibration levels and alarm & trip on high vibration events. Refer to product manual for related kit part numbers

RemoteView—Woodward’s RemoteView software program once installed on a computer or touch panel can be used as an engineering workstation and or remote operator control panel.

Stored Trend/Log File Service Tool – Woodward’s Control Assistant software service tool can be used to view real-time trends, saved trend files, upload and download Vertex control’s configuration files and alarm/trip logs

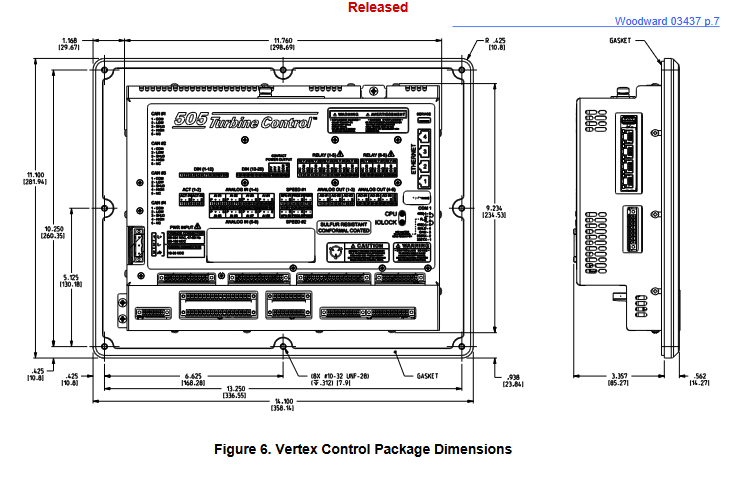

Operating Conditions

–30 to +70 °C ambient air temperature range

Humidity: Lloyd’s ENV2 test #1

Dry Heat: Lloyd’s ENV3

Salt Fog: US MIL-STD-810 method 509.2 procedure 1

Shock: meets US MIL-STD-810C, method 516.2-1, procedure 1B

Vibration: Lloyd’s ENV2 test #1

Pollution Resistance

Particulate Pollution Resistance: IEC 60664-1 Pollution Degree 2 (normally only non-conductive pollution occurs)

IEC 60068-2-60:1995 Part 2.60 Methods 1 and 4 (Flowing Mixed Gas Corrosion Test)

Gaseous Pollution Resistance: Module conformal coating withstands NO2, CO2, SO2, and H2S gases

Will withstand levels typical of telecommunications and computer installations as defined by Battelle Labs Class III (between

IEC60721-3-3 classification 3C1 and 3C2, light industrial to urban industrial, heavy traffic)

Regulatory Compliance

European Compliance for CE Marking

These listings are limited to only those units bearing the CE Marking.

EMC Directive: 2014/30/EU COUNCIL DIRECTIVE

LVD Directive: 2014/35/EU COUNCIL DIRECTIVE

ATEX Directive: 2014/34/EU COUNCIL DIRECTIVE 2, Category 3, Group IIG Ex ic nA IIC T4 X Gc IP20

Other International Compliance

IECEx Ex ic nA IIC T4 Gc: Certificate No. IECEx CSA 15.0020X

North American Compliance

CSA Listed for Ordinary Locations Certificate 70006135 (LR 79726)

CSA Listed for Class I, Division 2, Groups A, B, C, and D, T4 at +70 °C: Certificate 70006135 (LR 79726)
