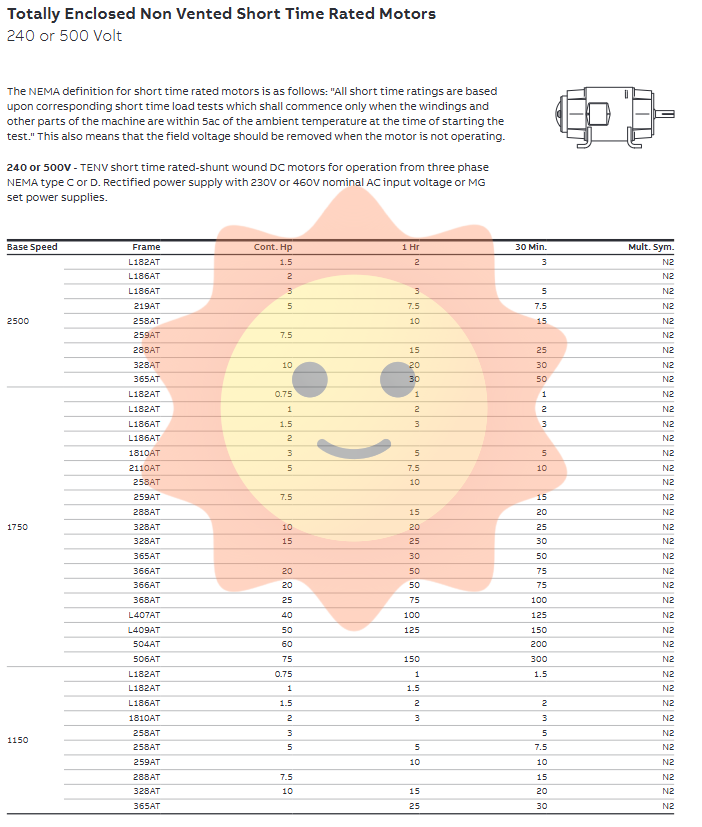

Baldor Reliance Full Horsepower DC Motor Comprehensive Guide: From Technical Specifications to Industrial Application Selection

Shaft seal:

Inpro ®  Shaft Seal: A labyrinth non-contact seal used to prevent the intrusion of liquids, solids, vapors, and mud.

Forsheda ®  Shaft Seal: Used to prevent oil and dust contamination.

Lip Seal: Used in situations where oil pressure exists (such as connecting gearboxes).

Installation options:

Base type: Provides sliding base (for belt tension adjustment), base guide rail, and bottom plate.

Vertical installation: Suitable for vertical installation configuration of DPFG and TEFC motors, equipped with anti drip cover and lifting device.

C-Face/D-Blade: Provides NEMA standard C-face or D-face installation methods, compatible with gearboxes.

4.2 Thermal protection and monitoring

Thermostat: Installed on the intermediate coil to provide overheating protection. The options include high temperature limit thermostat and low temperature alarm thermostat.

PTC Thermistors: Smaller in size than thermostats, providing more accurate temperature monitoring and typically requiring external control modules for use.

Resistance Temperature Detector (RTD): Provides analog signals for continuous temperature monitoring, used in conjunction with instruments provided by customers.

Space heater: prevents condensation of the motor when it is stopped, usually used outdoors or in high humidity environments.

4.3 Feedback and Control Equipment

Encoder: Provides multiple feedback options, including:

Hollow Shaft Encoders: Magnetic or optoelectronic, maintenance free design.

Coupled Encoders: Suitable for NEMA C-face or PY flange installation through coupling.

Explosion Proof Encoders: Certified for use in hazardous locations.

Speed generator: Analog or digital output, used for speed feedback.

Rotary Transformer: Provides robust position and speed feedback.

4.4 Braking System

Disc brake: spring set, electrically released brake.

Installation: It can be installed on the commutator end (C side) or the opposite shaft extension end.

Manual release: Standard manual release device for easy maintenance.

4.5 Environmental Enhancement

Harsh environment: The "Dirty Duty" option offers epoxy primer, anti-corrosion hardware, and sealing gaskets, suitable for the paper or chemical industry.

Outdoor/Weather resistant: including special paint system, double sealed bearings, and shaft oil slinger.

Marine applications: Compliant with IEEE 45 standard, suitable for under deck services.

5. DC generator

In addition to motors, the catalog also includes DC generators used for cranes and handling magnets:

Enhance magnetic generator: 230V DC output, compound excitation design, with droop voltage characteristics to ensure load stability.

Universal DC Generator: Provides 120V or 250V output, suitable for independent power systems.

Conclusion

The Baldor Reliability full horsepower DC motor series provides highly reliable solutions for industrial motion control with its modular design, powerful insulation system, and deep customization capabilities for specific applications such as papermaking, extrusion, and hazardous areas. By selecting appropriate housing types (such as DPFG, TEFC, DPBV) and incorporating necessary modifications (such as shaft seals, heaters, or explosion-proof feedback), engineers can ensure that the motor can perform at its best under any operating conditions.
