GE Fanuc Series 90-30 PLC Hardware System: Architecture, Components, and Installation Guide

In the field of industrial automation, programmable logic controllers (PLCs) are the core of control systems. GE Fanuc's Series 90-30 PLC plays an important role in numerous industrial applications due to its modular design, high reliability, and powerful scalability. It allows users to build customized control systems by combining different hardware components according to specific needs. This article aims to provide an in-depth interpretation of the installation and hardware manual for Series 90-30 PLC, systematically elaborating on its system architecture, core component characteristics, installation specifications, and system design points, providing automation engineers with a professional and detailed technical reference.

Part 1: Overview of Series 90-30 PLC System Architecture

The Series 90-30 PLC system adopts a modular and plug-in design, and its basic components include: substrate, power module, CPU module, I/O module, and option module.

Substrate: This is the physical foundation of the PLC system, on which all other modules are installed. The substrate provides electrical connections (backplate) and mechanical fixation between modules. According to their functions, substrates are divided into three categories:

CPU substrate: There must and can only be one in the system, which includes a CPU or provides CPU module slots. The CPU substrate is assigned rack number 0 by default.

Expansion board: Used to add more I/O module slots near the CPU board (up to 50 feet/15 meters cable distance) for faster communication speed.

Remote substrate: used to add I/O module slots at longer distances (up to 700 feet/213 meters), with built-in isolation circuits to accommodate ground potential differences at different locations.

Power module: Each substrate must have a power module installed in its dedicated slot on the far left. The power module provides operating voltage for all other modules on the substrate (+5 VDC,+24 VDC relay power,+24 VDC isolation power).

CPU module: This is the "brain" of PLC, responsible for executing user programs, managing system communication, and conducting self diagnosis. There are multiple models of CPUs with varying performance, memory capacity, and functionality. The CPU can be embedded in the substrate or a standalone module.

I/O modules: These modules are the interfaces between PLC and field devices such as sensors, switches, relays, and solenoid valves. They convert physical signals on site (such as 24VDC, 120VAC) into logic signals that can be processed by PLC, and vice versa. I/O modules are divided into two categories: discrete (switch) and analog.

Option modules: These modules are used to expand the basic functions of PLC, such as implementing network communication (Ethernet, Genius, FIP), motion control (servo positioning), high-speed counting, temperature control, etc.

Part 2: Detailed Explanation of Hardware Components

2.1 Baseplate

The substrate is the skeleton of the system, and its physical size determines the number of modules that can be installed. There are two specifications for Series 90-30 substrates: 5-slot and 10 slot (note that power slots are not counted). The common features of all substrates include:

Module holder: used to secure inserted modules.

Backplane connector: provides power and communication bus connections.

Installation hole: used to fix the substrate to the panel or 19 inch rack.

Rack number selection switch: located on the expansion board and remote board, used to assign a unique rack number (1-7) to each board. The CPU substrate is fixed to rack 0.

Key point: The metal backplate of the substrate must be safely grounded through a separate grounding wire, and installing screws alone is not enough.

2.2 Power Supply Module

The power module provides power to the system. The total output power of all power modules is 30 watts, but their+5VDC output capabilities are different, divided into standard type (15 watts) and high-capacity type (30 watts). The main models include:

IC693PWR321: Standard AC/DC input (100-240VAC or 125VDC).

IC693PWR330: High capacity AC/DC input,+5VDC output up to 30 watts.

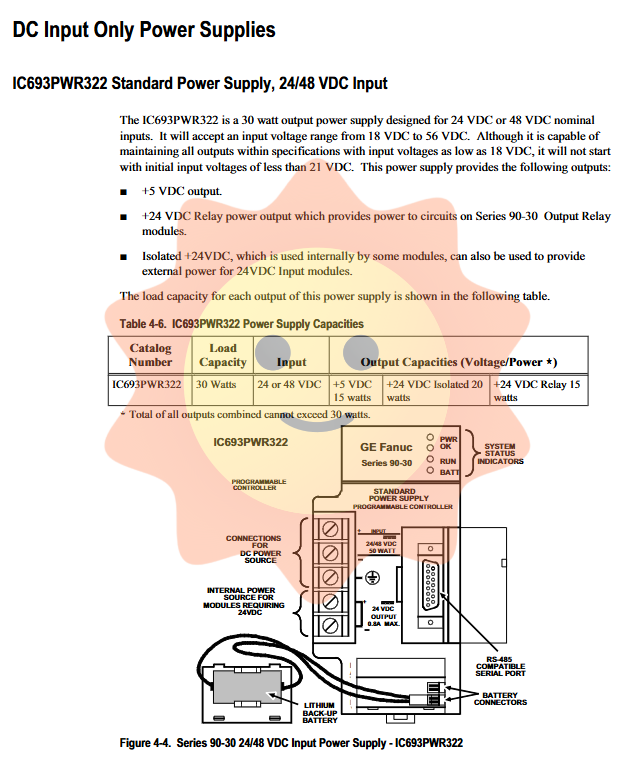

IC693PWR322:24/48VDC input.

IC693PWR331:24VDC input high-capacity type.

The key factor in power supply selection is to calculate the total load of all modules to ensure that it does not exceed the rated capacity of the power supply. For example, an IC693CPU351 module consumes 890 mA of+5V current, equivalent to 4.45 watts of power. If multiple high-power modules are installed on a single substrate, it may be necessary to choose a high-capacity power supply.

2.3 CPU module (CPU)

The CPU is the core of the system, and its selection determines the system's processing power, memory capacity, and scalability. CPUs are mainly divided into two categories: embedded (such as 311, 313, 323) and modular (such as 331, 340, 341, 350-374). The manual focuses on introducing the models and features of modular CPUs:

CPU331/340/341: Based on 80C188XL processor, supports up to 5 substrates (1 CPU+4 expansion/remote), with memory ranging from 16K to 80K bytes.

CPU350-374: Based on a more powerful 80386EX or 586 processor, supports up to 8 substrates (1 CPU+7 expansion/remote), has a maximum memory of 240K bytes (configurable), and supports floating-point operations.

CPU351/352/363: In addition to the standard serial port, it also provides two additional built-in serial ports (one RS-232 and one RS-485) to improve communication performance.

CPU364/374: Built in Ethernet interface, allowing access to Ethernet networks without the need for a separate Ethernet module. CPU374 also supports dual 10/100BASE-T/TX ports.

Additional functions of CPU:

Memory: All CPUs use RAM as working memory and are backed up by lithium batteries. Some CPUs support the use of flash memory or EPROM/EEPROM as non-volatile user program storage.

Clock: Modular CPUs all have built-in real-time clocks.

Key switch: CPU350-374 is equipped with a key switch, which can be used to protect flash memory, control run/stop status, and prevent memory modification.

Serial port: All CPUs' serial ports are accessed through a 15 pin D-type connector on the power module, supporting SNPs/SNPX protocol (slave).

2.4 Input/Output Modules

I/O module is the bridge between PLC and on-site equipment. The manual divides it into two categories: discrete quantities and analog quantities.

Discrete quantity module: divided into two types: standard density (16 points or less) and high-density (32 points).

Standard density module: equipped with detachable terminal boards for easy wiring and replacement. There are usually LED indicator lights on the front cover of the module to indicate the status of each point.

High density module: The front panel has single 50 pin or double 24 pin connectors for connecting cables to terminal boards or quick connect terminal blocks (TBQC). This type of module does not have fuses, but has a higher point density.

Analog module: used to process continuously changing signals such as temperature, pressure, flow rate, etc. The manual emphasizes that the wiring of analog modules must use shielded twisted pair cables, and the shielding layer should be grounded at one end (usually at the signal source end or module end, depending on the module type) to maximize noise suppression.

2.5 Option Modules

The optional module greatly expands the application range of Series 90-30 PLC. The manual introduces various optional modules, mainly including:

Communication module:

Genius Communication Module (GCM/GCM+): Used for high-speed, peer-to-peer global data exchange with other GE Fanuc PLCs on the Genius bus.

Genius Bus Controller (GBC): Used to control Genius I/O blocks and remote I/O stations.

Ethernet interface module: allows PLC to connect to Ethernet and supports client/server communication.

FIP bus controller/remote I/O scanner: used to connect to FIP (Factory Instrument Protocol) network.

Motion control module:

Motion Mate APM: Axis positioning module, supporting single or dual axis motion control.

Motion Mate DSM302/314: Digital servo module used to control servo motors and support high-precision positioning.

Other specialized modules:

High speed counter (HSC): used to process high-speed pulse signals up to 80 kHz.

I/O LINK master/slave module: used to connect Fanuc CNC or create I/O LINK networks.

Temperature Control Module (TCM): Provides closed-loop temperature control with up to 8 channels.

Programmable Coprocessor Module (PCM): Provides additional processing capabilities for PLCs, supports MegaBasic and C programming languages, and is used to handle complex communication and computing tasks.

Part Three: Installation and Wiring Specifications

3.1 Mechanical Installation

Installation direction: The substrate must be installed vertically to facilitate heat dissipation. Horizontal installation may result in power supply derating.

Heat dissipation space: There must be sufficient space around the substrate (usually at least 4 inches at the top and bottom) to ensure air circulation.

Environmental requirements: The working temperature range is 0-60 ° C, and the humidity is below 95% (no condensation). It should be avoided to use in environments containing corrosive gases, dust, or severe vibrations.

Installation steps: usually include marking installation holes, drilling holes, installing substrates, connecting safety grounding wires, setting the rack number of remote/expansion substrates, installing modules, etc. on the panel.

3.2 Electrical Wiring

Power wiring: The terminal block of the power module is used to connect the input power supply (AC or DC) and safety grounding. The manual emphasizes that for IT systems (floating neutral point systems), the factory jumper between terminals 3 and 4 on the power module must be removed, and external surge protection devices must be installed between L1 and ground, and L2 and ground.

I/O wiring: Standard density modules use detachable 20 pin terminal boards. The manual provides wiring diagrams and recommended wire diameters for each module. For the 32 point high-density module, it is connected to the user provided terminal board or GE Fanuc's quick connect terminal block (TBQC) through a dedicated cable. The TBQC system can significantly reduce wiring time.

Grounding: Grounding is the key to ensuring system safety and noise resistance.

Safe grounding: Each substrate must be connected to a common grounding point through an independent grounding wire.

Shielding grounding: For CPUs with external serial ports (such as 351, 352, 363, 364), separate shielding grounding must be performed to suppress port noise. The manual provides detailed instructions on the grounding methods and required hardware for these CPUs.

Module shielding grounding: The cable shielding layer of the analog module should be grounded at one end. The input module is usually grounded at the signal source end, and the output module is usually grounded at the module end.

Part Four: System Design and Maintenance

4.1 System Design Process

Designing a Series 90-30 PLC system typically follows the following steps:

Planning: Clarify system requirements and control objectives.

Determine I/O requirements: List the types (discrete/analog), voltage/current, and quantity of all input and output points.

Select option modules: Choose appropriate option modules based on special requirements such as communication, motion control, and high-speed counting.

Select CPU: Choose the appropriate CPU based on the number of I/O points and the requirements of the option module, as well as performance, memory, and other requirements.

Select substrate: Determine the quantity and specifications (5 slots or 10 slots) of CPU substrate, expansion substrate, and remote substrate based on the total number of modules and installation layout.

Select power supply: Calculate the total load of all modules and choose the appropriate power supply (pay special attention to the+5V load).

System layout: Plan the layout of each device in the cabinet, ensure sufficient heat dissipation space, and physically isolate noise sources (such as AC power lines, output modules) from sensitive signals (such as analog inputs).

4.2 Power load calculation

This is a crucial step in system design. The manual provides current consumption meters for all modules'+5V,+24V relays, and+24V isolated power supplies. When calculating, the total power (in watts) is obtained by adding the currents of all modules on the substrate and multiplying them by the corresponding voltage. It must be ensured that the total power does not exceed the 30 watt rated value of the power supply, and the current of each output voltage does not exceed its limit.

4.3 Maintenance and Fault Diagnosis

Status indicator light: The LED indicator light on the module is crucial for initial diagnosis.

Power LED: PWR (power supply normal), OK (PLC normal), RUN (running), BATT (battery low).

I/O module LED: Corresponding to each input/output point, lighting up indicates that there is a signal at that point. There may also be an "F" LED on the output module to indicate that the fuse is blown.

Module replacement: Most modules can be directly replaced without the need for reconfiguration. For I/O modules with terminal boards, only the module body can be replaced while retaining the wired terminal board, greatly simplifying the replacement process.

Fuse List: The manual lists all modules with internal fuses and their fuse specifications for easy spare parts and replacement.

Preventive maintenance: It is recommended to check the wiring tightness once a year, clean the heat sink and ventilation filter, and replace the CPU battery (usually replacing once a year can ensure foolproof). For devices that are not used for a long time, their electrolytic capacitors need to be "reformed" to restore performance.

Part 5: Summary and Key Technical Points

The GE Fanuc Series 90-30 PLC is a mature, reliable, and powerful modular control system. Its design fully considers the strictness of industrial environments and provides great flexibility through a modular structure.

Review of Key Technical Points

Modular architecture: The combination of substrate, power supply, CPU, I/O, and option modules enables the system to flexibly expand from small to large scale, adapting to different application requirements.

Scalability: The system can easily increase the number of I/O points through expansion and remote substrates. Remote substrate technology allows I/O to be distributed 700 feet (213 meters) away from the CPU.

Rich CPU selection: From basic embedded CPUs to high-performance modular CPUs, to models with built-in Ethernet and dual serial ports, users can accurately choose based on performance and functional requirements.

Comprehensive optional modules: Through communication modules such as Genius, Ethernet, FIP, as well as specialized modules for motion control, high-speed counting, temperature control, etc., PLC can be integrated into almost any industrial automation system.

Strict installation standards: Proper installation (such as vertical installation, ensuring heat dissipation space, and following grounding procedures) is the foundation for reliable system operation. Especially for the special wiring requirements of IT systems, it reflects the adaptability to different global power standards.

Detailed maintenance guidance: The manual provides a detailed list of fuses, battery replacement steps, maintenance cycle recommendations, and fault diagnosis methods to support users in long-term and effective maintenance of the system.

In short, a deep understanding of the hardware architecture and installation specifications of Series 90-30 PLC is key to the successful application of this platform. It is not only the technical foundation for building automation systems, but also the guarantee for ensuring the long-term safe, stable, and reliable operation of the system.
