OMRON 3G3KV frequency converter

Deep technical analysis of OMRON 3G3KV frequency converter: a comprehensive guide from installation and wiring to troubleshooting

In the field of industrial automation, frequency converters are the core equipment for motor speed regulation, and their reliable operation directly affects production efficiency and equipment safety. OMRON's SYSDRIVE 3G3KV series all digital low-noise frequency converter, as a classic voltage type PWM control product, is still in service in a large number of old equipment and renovation projects. For on-site engineers, a deep understanding of their hardware composition, parameter logic, and fault handling processes is an essential skill to ensure the stable operation of equipment. This article will be guided by practical experience and systematically analyze the key technical points of 3G3KV frequency converters.

Safety First: Unbreakable Red Lines and Hardware Awareness

Before handling any inverter related tasks, safety must be prioritized. The 3G3KV operation manual specifies several absolute prohibitions:

Residual charge hazard: After the main circuit is powered off, it is necessary to wait for the "CHARGE" indicator light to completely turn off before touching the circuit components. The internal capacitor still carries dangerous voltage.

Strictly prohibit live operation: It is absolutely not allowed to change the wiring or check the signal when it is powered on.

Mandatory grounding: It must be reliably grounded through the grounding terminal G (E), and the grounding resistance should be less than 100 Ω.

Output terminal must not be connected to power supply: The output terminals T1 (U), T2 (V), and T3 (W) of the main circuit must not be connected to the AC main power supply, otherwise it will directly damage the frequency converter.

In addition, do not conduct voltage withstand tests on any part of the frequency converter, as it contains a large number of semiconductor components and is extremely sensitive to high voltage.

The hardware of 3G3KV mainly includes the main circuit terminals (L1/R, L2/S, L3/T as power inputs; T1/U, T2/V, T3/W are motor outputs; B1/⊕, B2 are brake resistor interfaces) and control circuit terminals (sequence input, analog input, sequence output, fault output, etc.). Understanding the layout of these terminals is the first step towards proper wiring.

Installation and environment: details that determine lifespan

3G3KV has clear requirements for installation environment, ignoring these will lead to premature device failure:

Environmental temperature: When installing the top cover, the allowable ambient temperature is -10 ° C to 40 ° C; removing the top cover can expand to 45 ° C.

Protection requirements: It is necessary to avoid rainwater, direct sunlight, corrosive gases, metal dust, strong vibrations, and electromagnetic noise.

Installation space: It must be installed vertically and ensure sufficient cooling space. When installing multiple units in the same switchgear, a cooling fan must be installed to ensure that the air temperature entering the frequency converter is below 45 ° C.

Practical experience of main circuit and wiring

Correct wiring is the foundation for the stable operation of a frequency converter. The following are the core points:

Wire diameter selection: The main circuit terminal screw is M4 or M5, and it is recommended to use AWG 14-10 (2-5.5 mm ²) 600V vinyl insulated wire. It is recommended to use AWG 20-14 (0.5-2 mm ²) shielded wire for the control circuit terminal (M3.5 screw).

Crimping terminals: It is necessary to use closed crimping terminals that match the wire diameter and use crimping tools to reliably crimp.

Circuit breaker and contactor: A molded case circuit breaker (MCCB) must be connected between the power supply and the input terminal of the frequency converter. For example, 3G3KV-A2007 (1.9 kVA) recommends using 10A or 20A MCCBs. If using a residual current circuit breaker, it is necessary to choose a type that is insensitive to high frequencies, and it is recommended to set the current above 200mA and the action time above 0.1 seconds to prevent misoperation.

Braking resistor wiring: When using optional braking resistors (such as 3G3IV-PERF150WJ), a thermal overload relay must be installed between the braking resistor and the frequency converter, and the power supply side must be cut off when the overload relay is activated through a timing circuit to prevent the resistor from overheating and catching fire.

Voltage drop calculation: When selecting wires, voltage drop should be considered and controlled within 2% of the rated voltage. The calculation formula is: phase to phase voltage drop (V)=√ 3 × wire resistance (Ω/km) × distance (m) × current (A) × 10 ⁻ ³.

Motor insulation requirements: The switching action on the output side of the frequency converter will generate surge voltage, which can reach up to three times the power supply voltage (about 600V for 200V level and about 1200V for 400V level). When using a 400V level frequency converter, it is necessary to use a dedicated motor for the frequency converter or ensure that the motor phase to phase withstand voltage is above 1200V.

Output side taboo: It is absolutely forbidden to connect power factor correction capacitors or noise filters on the output side of the frequency converter. At the same time, do not frequently open or close the contactor in the output circuit.

Control circuit wiring and signal definition

The control circuit is the command input channel of the "brain" of the frequency converter. The control terminal of 3G3KV has powerful functions, and the following core signals are preset at the factory:

Sequence input:

Terminal 1: Positive rotation operation/stop signal (closed positive rotation, disconnected stop).

Terminal 2: Reverse operation/stop signal.

Terminal 3: Fault reset signal (closed reset).

Terminals 4 and 5: Multi functional contact input (factory preset terminal 4 for external faults and terminal 5 for multi-stage speed command 1).

Terminal 6: Sequence input common terminal.

Analog input:

Terminal 10: Frequency setting power supply (12V, 20mA).

Terminal 8: Frequency command (0-10V, 20k Ω).

Terminal 9: Frequency command (4-20mA, 250 Ω).

Terminal 11: Control circuit common terminal (0V).

Sequence output:

Terminals 13 and 14: Multi function optocoupler output (factory preset terminal 13 for "running" signal and terminal 14 for "consistent frequency" signal).

Terminal FLT-A/B/C: Fault relay contact output (A-C closed and B-C disconnected in case of fault).

Key wiring guidelines:

The control signal line must be wired separately from the power line to prevent interference.

The simulated frequency given signal must use shielded wire and be properly grounded.

The length of the control signal line shall not exceed 50 meters.

If a transistor is used to drive the contact input, its specifications must meet 50V, 50mA or above, and the leakage current when turned off should be less than 100 μ A.

If driving inductive loads such as relays, a freewheeling diode must be connected in reverse parallel at the optocoupler output terminal.

Core parameter settings and functional analysis

The functionality of 3G3KV is configured through a series of constants. Constants are grouped by function and access permissions are controlled by the value of constant No.00 (1: basic function only; 2: first and second groups; 3: first to third groups; 5: all). The following are the most commonly used and critical parameters.

1. Operation mode selection (constant No.01)

This parameter determines where the frequency converter receives the start command and frequency command.

Set value x0xx: The frequency command comes from the external terminal (8/9).

Set value x1xx: The frequency command comes from the digital operator (Fxxxxx).

Set value 0xx0: The running command comes from an external terminal.

Set value 1xx1: The run command comes from the RUN key of the numeric operator.

Set value x0xx: The stop mode is deceleration stop.

Set value x1xx: The stopping method is free sliding stop.

The factory default is 0011, which means the digital operator controls the start stop and frequency setting.

2. V/f characteristic setting (constant No.02-08)

This is the core of matching the frequency converter with the motor. The factory default is 60Hz saturation mode, suitable for standard 60Hz motors. The parameters include:

No.02: Maximum output frequency (0.1-400Hz, factory 60Hz)

No.03: Maximum voltage (200V level, maximum 200V)

No.04: Maximum voltage frequency (fundamental frequency, factory 60Hz)

No.05: Intermediate output frequency (factory 1.5Hz)

No.06: Intermediate output frequency voltage (factory 12V)

No.07: Minimum output frequency (0.1-10Hz, factory 1.5Hz)

No.08: Minimum output frequency voltage (factory 12V)

By adjusting these points, any V/f curve can be formed to accommodate special loads. Attention: Setting too high a voltage in the low-frequency range (below 3Hz) can cause motor overheating or frequency converter failure.

3. Acceleration and deceleration time (constant No.09-12)

Determine the soft start and soft stop characteristics of the motor. The setting range is 0.0 to 600.0 seconds, indicating the time required to accelerate from 0Hz to the maximum frequency (No.02). The factory default is 10 seconds. Acceleration/deceleration time 1 (No.09/10) or 2 (No.11/12) can be switched through external terminals.

4. Multi speed operation (constants No.13-16, 32, 33)

By combining the multifunctional input terminals 4 and 5, up to 4 segments of fixed frequency operation can be achieved. Need to set:

No.13-16: Corresponding to 4 frequency commands respectively.

No.32/33: Set the corresponding terminal function to "3" (multi speed command 1) or "4" (multi speed command 2). The factory preset terminal 4 (No.32) is set to 1 (external fault), and terminal 5 (No.33) is set to 3 (multi-stage speed 1).

5. Electronic thermal overload protection (constant No.18,19)

Protect the motor from overheating.

No.18: Select the protected object. Set the first digit to 0 to enable protection, set it to 1 to disable. Set the second digit to 0 for the standard motor, and set it to 1 for the frequency conversion dedicated motor.

No.19: It must be set to the rated current value (A) on the motor nameplate. This is the basis for the correct operation of electronic thermal protection.

6. DC braking (constant No. 26-28)

Used for precise positioning during stopping or for "capturing" a freely rotating motor before starting.

No.26: DC braking current (0-100%, 100% is equal to the rated current of the frequency converter). 50% factory production.

No.27: DC braking time at stop (0.0-25.5 seconds). 0.5 seconds from factory.

No.28: DC braking time during startup (0.0-25.5 seconds). 0.0 seconds from factory (disabled).

7. Carrier frequency (constant No.40)

Affects motor noise, frequency converter self loss, and external interference. Set range 1-6, corresponding to 2.5kHz to 15kHz (formula: 2.5kHz x set value). The factory output is 4 (10kHz).

Long line drive: When the distance between the frequency converter and the motor exceeds 30 meters, the carrier frequency must be reduced (such as ≤ 10kHz within 50 meters and ≤ 5kHz within 100 meters).

Reduced usage: When the carrier frequency is set to 5, the continuous output current needs to be reduced to 90%; When set to 6, it needs to be reduced to 80%.

Digital operator: the core tool for on-site debugging

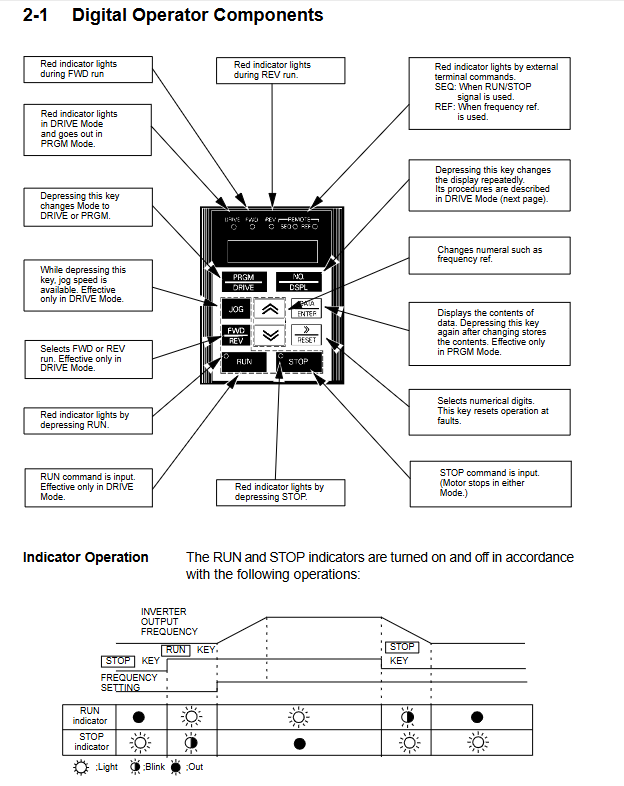

The 3G3KV digital operator is a human-machine interface for parameter setting, operation monitoring, and fault diagnosis. The key operating modes include:

DRIVE Mode: Run mode. Can start/stop, jog, and change frequency settings.

PRGM Mode: Programming Mode. Used to modify all constants.

Key operation example:

Modify parameters: Press the PRGM/DRIVE key to enter PRGM Mode → use the NO/DSPL key to select a constant number → use the up and down keys to modify the value → press the DATA/ENTER key to write. The screen displays' END 'to indicate successful writing.

Monitoring: Press the NO/DSPL key in DRIVE Mode to cycle through the display: frequency given → output frequency → output current → fault content.

Fault reset: After a fault occurs, press the>/RESET key or input a reset signal through external terminal 3.

Parameter initialization: Setting the constant No.00 to 8 can restore all parameters to their factory values.

Troubleshooting: Systematic Diagnostic Process

3G3KV has comprehensive protection functions, and correctly interpreting fault codes is the key to quick repair.

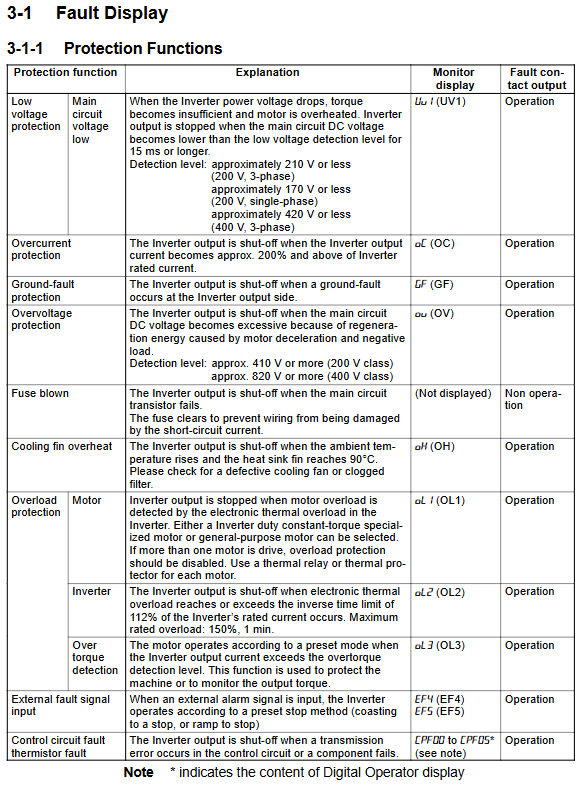

Common fault codes and troubleshooting steps

Common causes and corrective measures for fault display protection function

U1 (UV1) low voltage protection power supply has insufficient capacity, large line voltage drop, and a large motor starting in the same power grid. Check the power capacity and wiring. When the signal input is turned off during operation, UV will be triggered. The frequency converter should be stopped first before turning off the power.

The overcurrent protection of α C (OC) includes rapid acceleration and deceleration, short circuit or grounding on the output side, and excessive motor capacity. Extend the acceleration and deceleration time. Check the output wiring. Confirm that the capacity of the motor matches that of the frequency converter.

The deceleration time of the α U (OV) overvoltage protection is too short, and the load has regenerative energy (such as being pulled backwards by the load). Extend the deceleration time. Optional braking resistor.

OL1 (OL1) motor overload, low-speed long-term operation, improper V/f characteristic setting. Reduce the load. Optimize the operating mode. Check the V/f settings.

The OL2 frequency converter is overloaded with excessive load and has a short acceleration time. Reduce the load. Extend acceleration time. Consider increasing the capacity of the frequency converter.

OL3 (OL3) over torque detection mechanical failure caused the current to exceed the preset detection level. Check the mechanical parts (if stuck). Appropriately increase the torque detection level (No.38).

GF grounding fault: The output side of the frequency converter is grounded. Check the insulation of the motor and output cables.

Overheating of the OH radiator, malfunction of the cooling fan, high ambient temperature, and clogged filter. Replace the fan. Clean the filter. Ensure that the ambient temperature is below 40 ° C.

CPF00-05 control circuit fault external noise, vibration, component failure. Record the fault code and attempt initialization. Power off and restart. If the fault persists, the frequency converter needs to be replaced.

Special functions and warning prompts

Stall prevention: This is not a malfunction, but a protective action. When the current during acceleration exceeds 170%, the frequency converter will pause acceleration and wait for the current to fall back; When the DC voltage is too high during deceleration, the deceleration will be paused. This is a normal phenomenon, indicating that the load inertia is too large or the acceleration and deceleration time is set too short.

EF: If both forward and reverse commands are inputted simultaneously for more than 500ms, the frequency converter will stop in the preset way. Check the setting of control timing or constant No.32 (such as whether it is mistakenly set to 3-Wire mode).

BB: External base block signal input, motor stops sliding freely. Check the input status of external terminals 4/5.

Maintenance and testing

Regular maintenance can significantly extend the lifespan of the frequency converter.

Daily inspection: Keep clean, dry, and well cooled.

Periodic inspection: Check for loose terminals, dust accumulation on the radiator, abnormal noise from the cooling fan, and oil stains on the printed circuit board.

Cleaning: Use dry compressed air at 57-85 psi (4-6 kg/cm ²) to blow the radiator and circuit board.

High voltage insulation test: Only test between the main circuit terminal and the grounding terminal G (E), using a 500V megohmmeter. The insulation resistance should be greater than 1M Ω. High voltage testing of control circuits is strictly prohibited.
